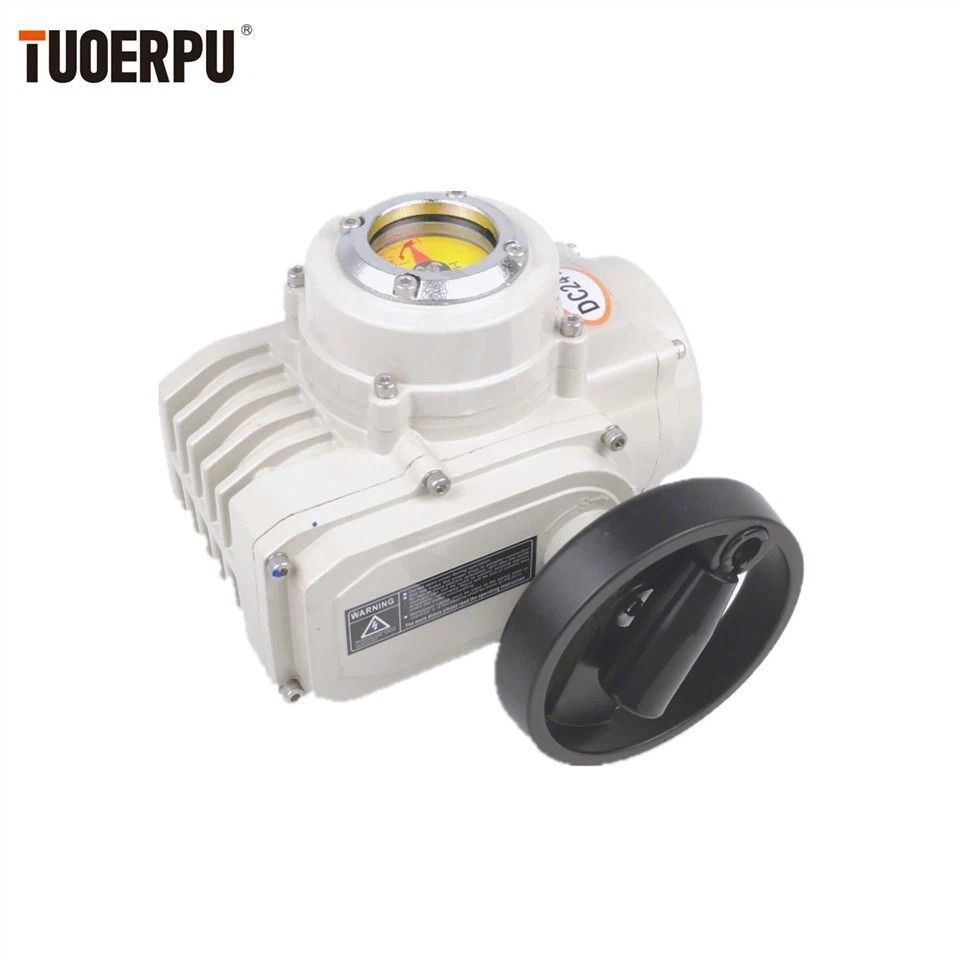

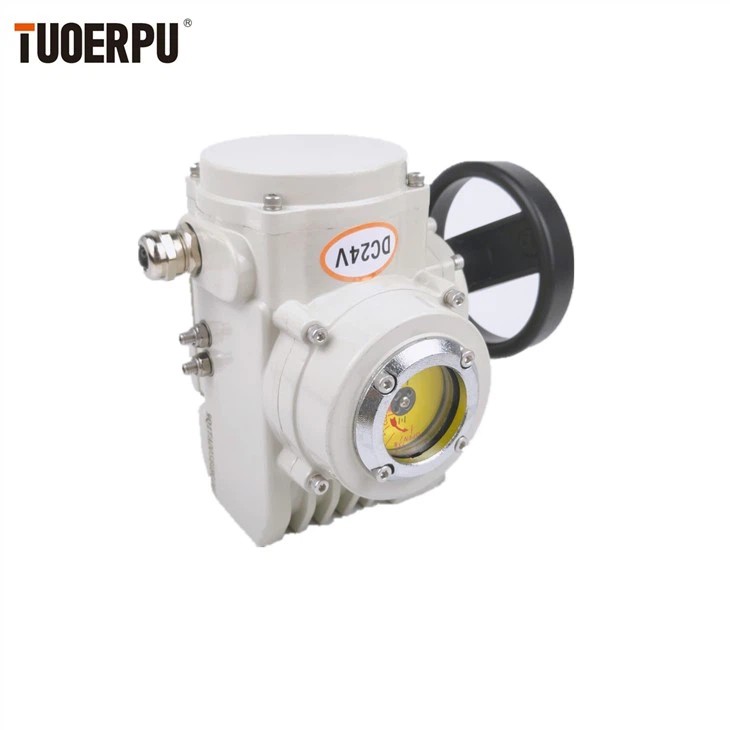

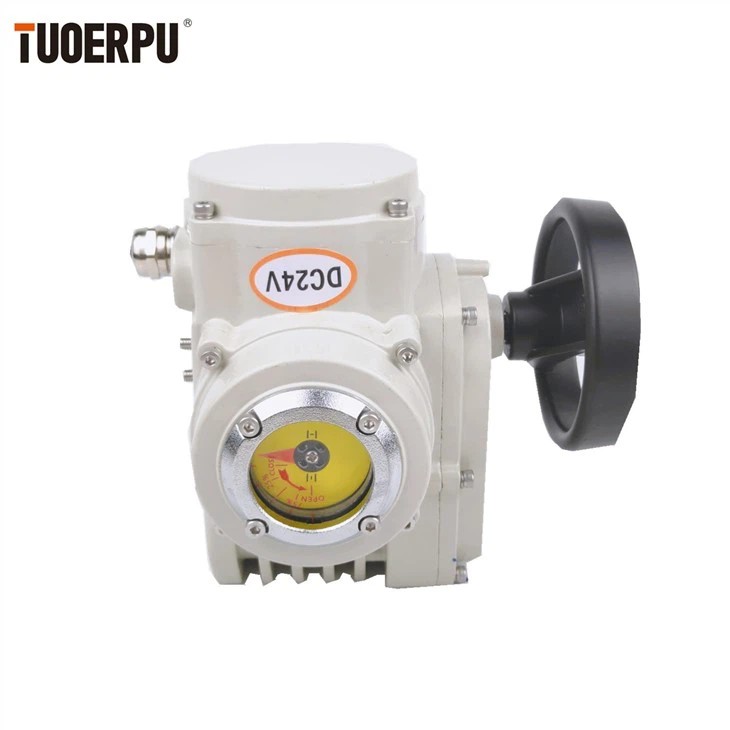

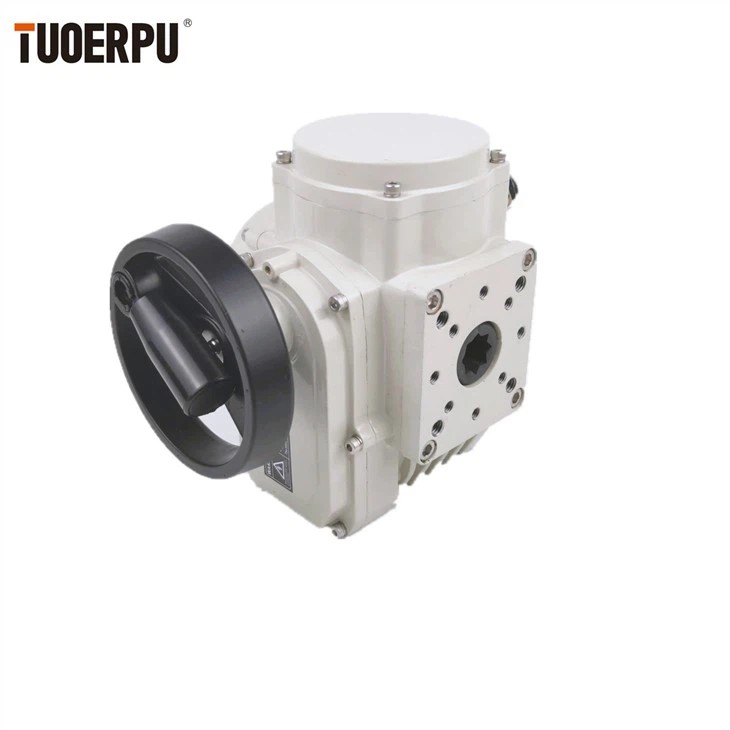

Volume and weight of the 90 rotary aluminium actuator are only 1/3 of that of similar products. The input power is small, the output torque is large, and the installation space required is small; the installation and transportation are very convenient. The valve opening is displayed. The lens and the body are bonded with imported food-grade glass glue. The bonding height='auto' rea is strong, so that the product is pollution-free, resistant to high temperatures, and can effectively resist corrosion in harsh environments such as rain immersion.
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
