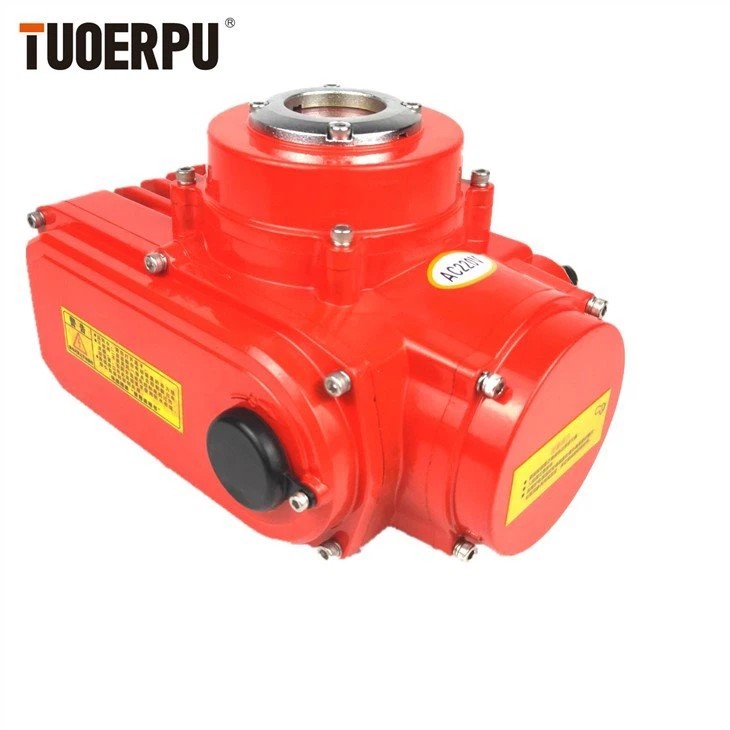

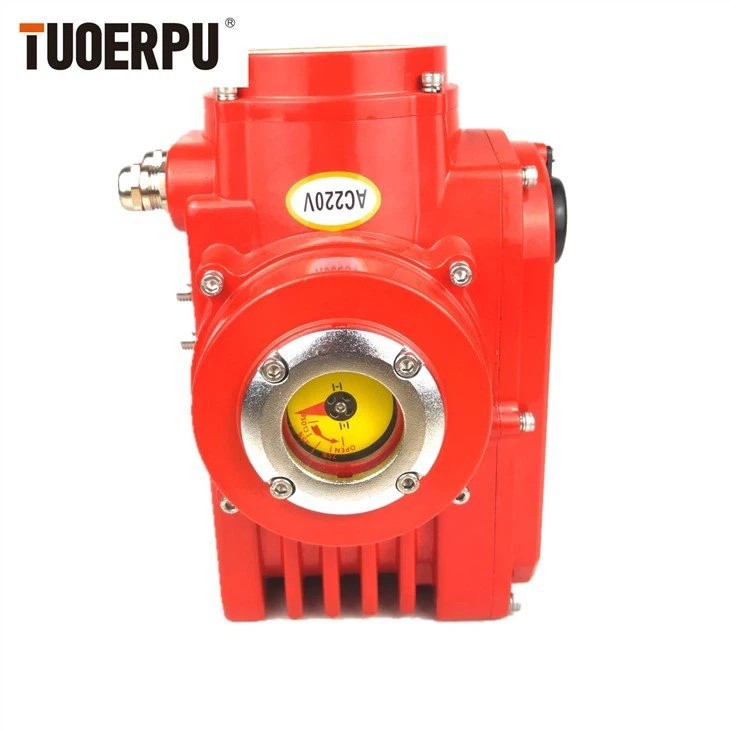

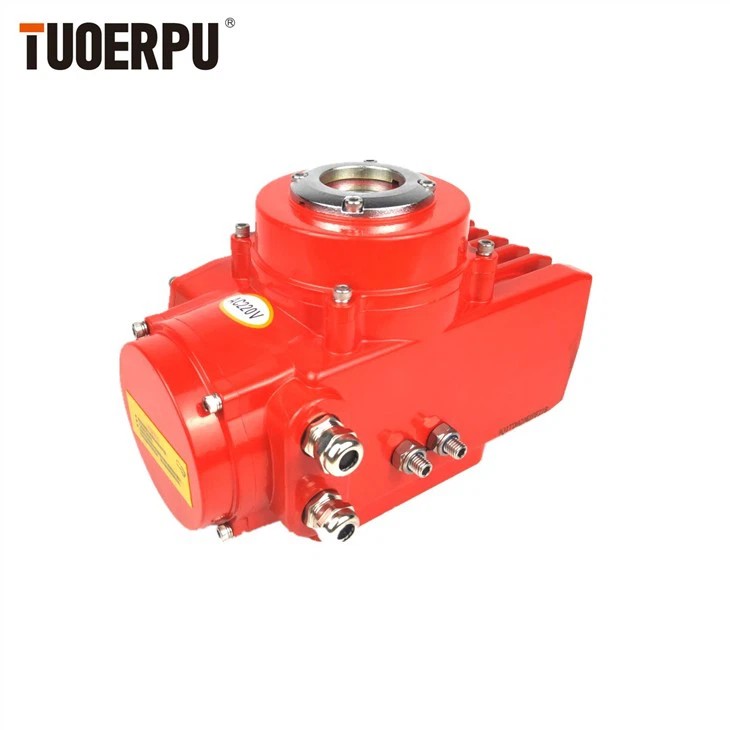

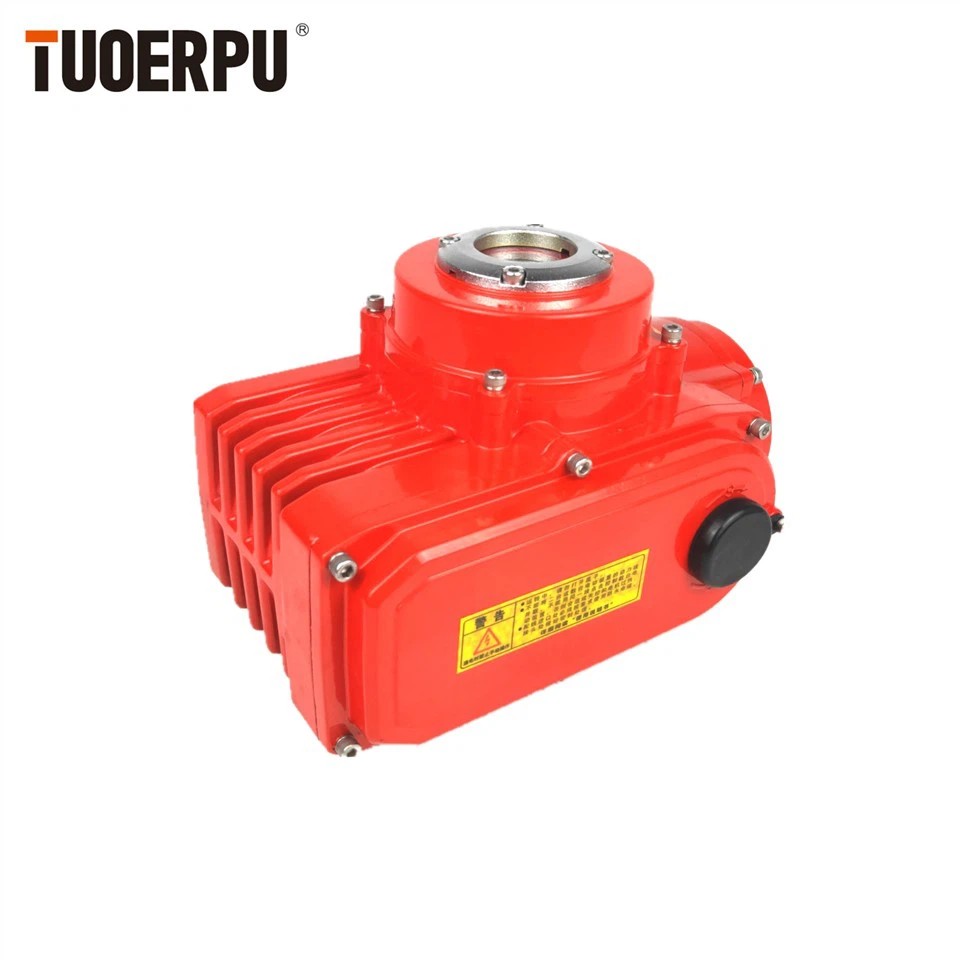

Electric actuator
This mechanism of the electric actuator can transform the output torque from different directions through the form of electric drive. Through the clever use of the motor combined with the application point, the cost of the relative direction of the force is transformed or transferred. The cost of the mobile electric actuator will be greatly different according to different components
| Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
| TOP-105 | 25s/50Nm |
4s/20Nm 10s/30Nm |
0-90° adjust able |
DC 24V AC 24V AC 110V AC 220V AC 380V |
| TOP-110 | 25S/100Nm | 15s/50Nm | ||
| TOP-116 | 25s/160Nm | 15s/80Nm | ||
| TOP-120 | 25s/200Nm | 15s/100Nm | ||
| TOP-140 | 25s/400Nm | 15s/200Nm | ||
| TOP-160 | 25s/600Nm | 15s/300Nm | ||
| TOP-1100 | 50s/1000Nm | 25s/500Nm | ||
| TOP-1200 | 50s/2000Nm | 25s/1000Nm | ||
|
Insulation Resistance |
100MΩ/500VDC | |||
|
Withstand Voltage Class |
1500VAC 1Minute | |||
| Protection Class | IP65(optional IP67/IP68) | |||
|
Installation Location |
360°install at any angle | |||
|
Electrical Interface |
2-G 1/2 metal connector,corresponding metal cable connector shall be added according to the selected cable during use |
|||
| Ambient Temperature | -20℃-60℃ | |||
| Function Optional |
Over torque protection,Dehumidification heater, Passive contact switch,Operating hand wheel |
|||
