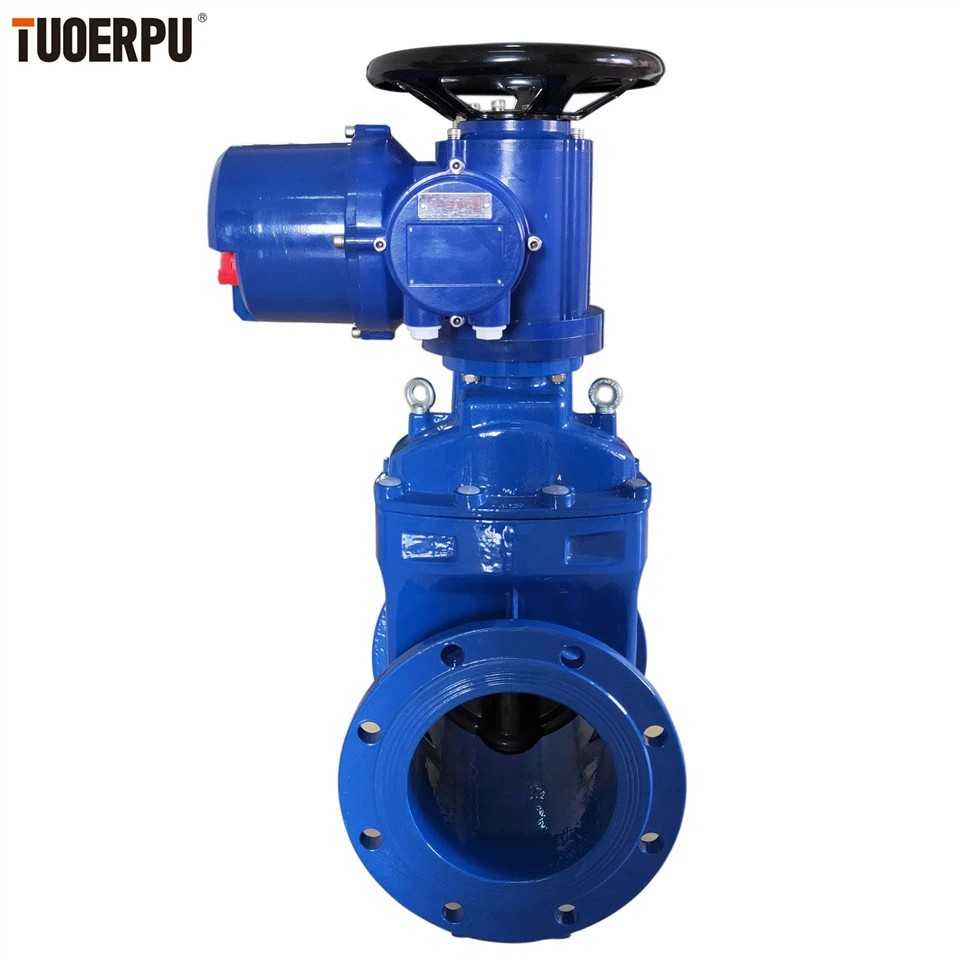

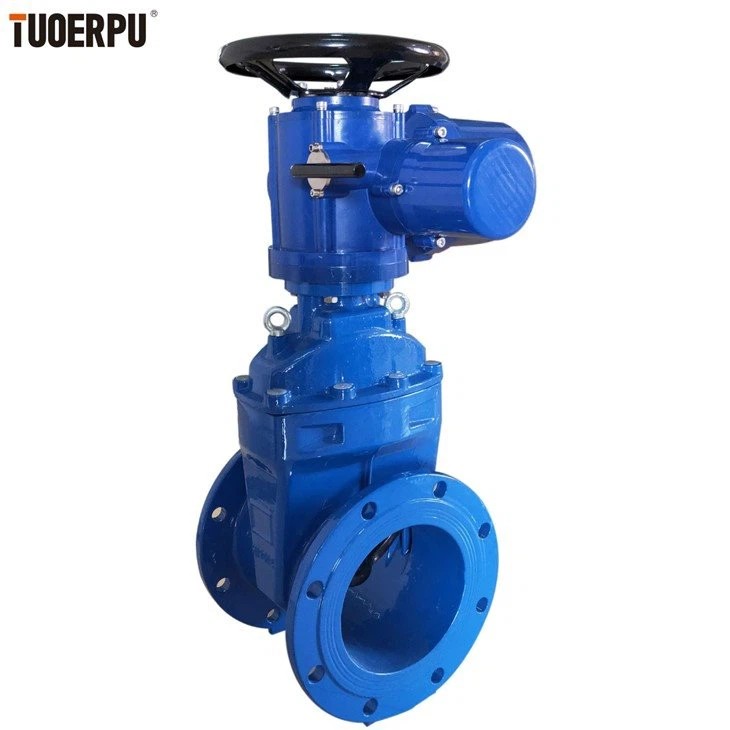

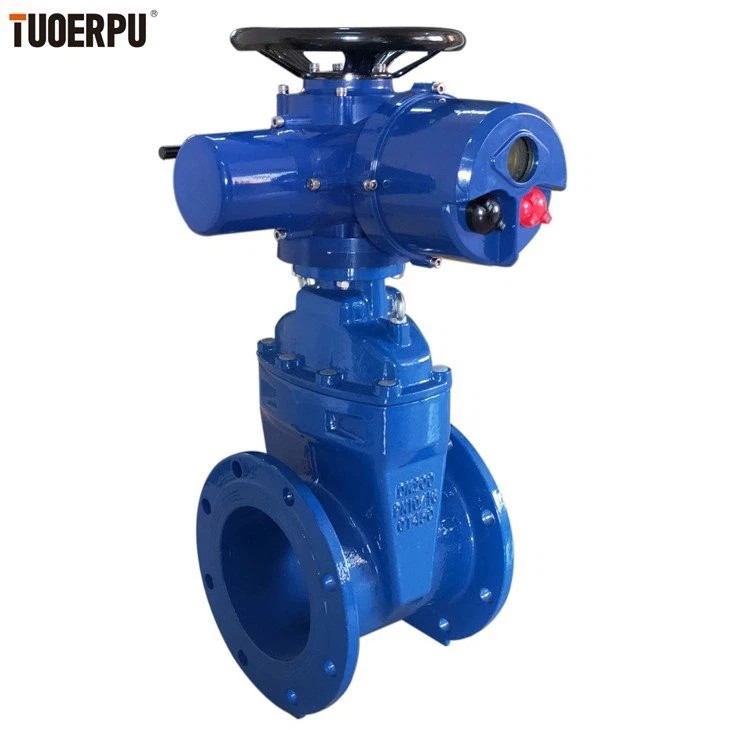

The intelligent non-intrusive electric actuator is a new generation of intelligent, digital, full Chinese menu display and remote control operation based on the technology of introducing foreign intelligent electric actuators and using the most cash available ultra-large-scale digital integrated circuits. Electric actuator.

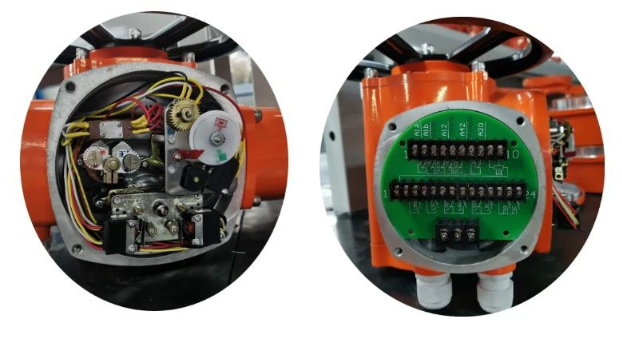

Non-invasive design: magnetic induction control knob, no through shaft passing through the control box; non-contact debugging: infrared remote control is used to set the work of the electric device, truly without opening the cover for debugging; double-sealed structure: during installation and debugging When the stage junction box is opened, the inside of the electric device is still well sealed and protected. The waterproof design enables the electric device to work normally within 48 hours of flooding;
Torque protection: The protection torque can be set arbitrarily within the range of 40%~120% of the rated torque, and the set protection value of the opening direction and the closing direction can be different to protect the valve and the electric device itself
Product Parameters
IV: Performance parameter table
Name
Parameler
Model
Nominal
torque
N.m
Maximum control
torqie
N.m
Minimum
control torque
N.m
Allowable
through stem
diameter
Manual
speed ratio
Output speed
rhnin
Motor Power
KW
Weight
Kg
TOP-Z5
50
75
≤25
28
1:1
18
0.12
TOP-Z10
100
150
≤50
0.18
TOP-Z15
150
225
≤75
0.25
TOP-Z20
200
300
≤100
40
0.37
TOP-Z201
28
TOP-Z30
300
450
≤150
40
0.55
TOP-Z301
28
TOP-Z45
450
675
≤225
48
24
1.1
100
36
1.5
TOP-Z60
600
900
≤300
24
1.5
103
36
2.2
TOP-Z90
900
1350
≤450
60
24
2.2
128
TOP-Z901
48
36
3.0
TOP-Z120
1200
1800
≤600
60
24
3.0
132
TOP-Z120I
48
TOP-Z180
2500
3000
≤1250
70
25:1
24
4.0
245
36
5.5
TOP-Z250
2500
3000
≤1250
24
5.5
250
TOP-Z350
3500
4200
≤1750
75
13:1
18
7.5
450
TOP-Z500
5000
6000
≤2500
10
460
List ofOutline Dimensions:
Dimension/
Model
L
L1
H
H1
F
F1
φD
TOP-Z5-15
382
228
233
87
335
150
300
TOP-Z20-30
435
278
248
90
375
157
350
TOP-Z45-60
810
515
440
195
500
245
470
TOP-Z90-120
830
540
450
200
685
360
550
TOP-Z180-250
870
565
600
250
740
385
320
TOP-Z350-500
1170
770
710
280
840
300
570
1
Body
GGG40 orS.S.
2
Disc
GGG40+EPDM or NBF
3
Stem Nut
Copper alloy
4
Stem
2Cr13 or 304
5
Gasket
NBR or EPDM
6
Cover
GGG40 orS.S.
7
Sealing Ring
NBR or EPDM
8
Connecting Yoke
GGG40 orS.S.
9
Spur Gear
Cast Iron
DN
500
600
700
800
900
1000
1200
1400
L
GB
457
508
610
660
711
811
960
1080
F4
350
390
430
470
510
550
630
710
F5
700
800
900
1000
1100
1200
1400
/
H
Bearing
1048
1208
1390
1594
1594
1860
2270
2620
H1
Spur Gear
350
350
360
360
360
425
425
/
