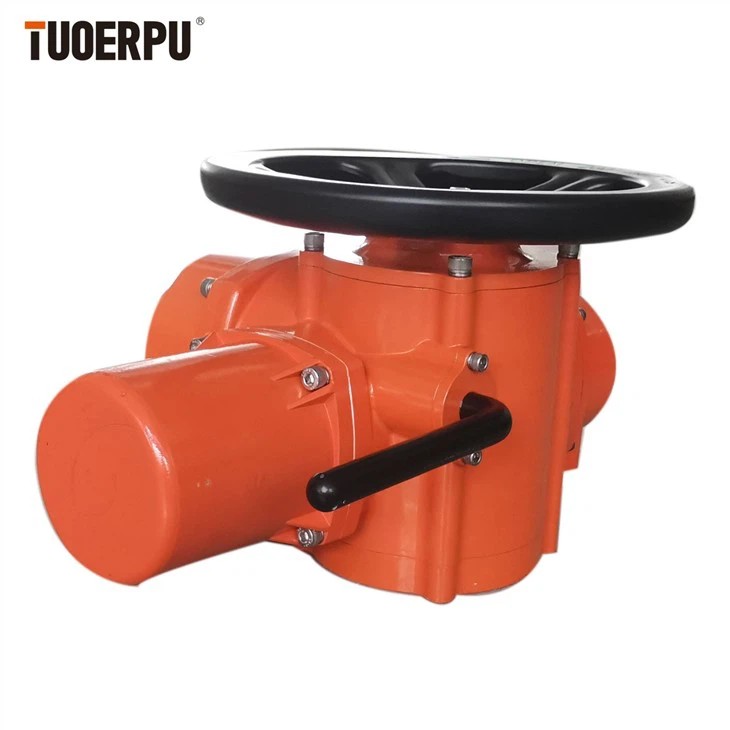

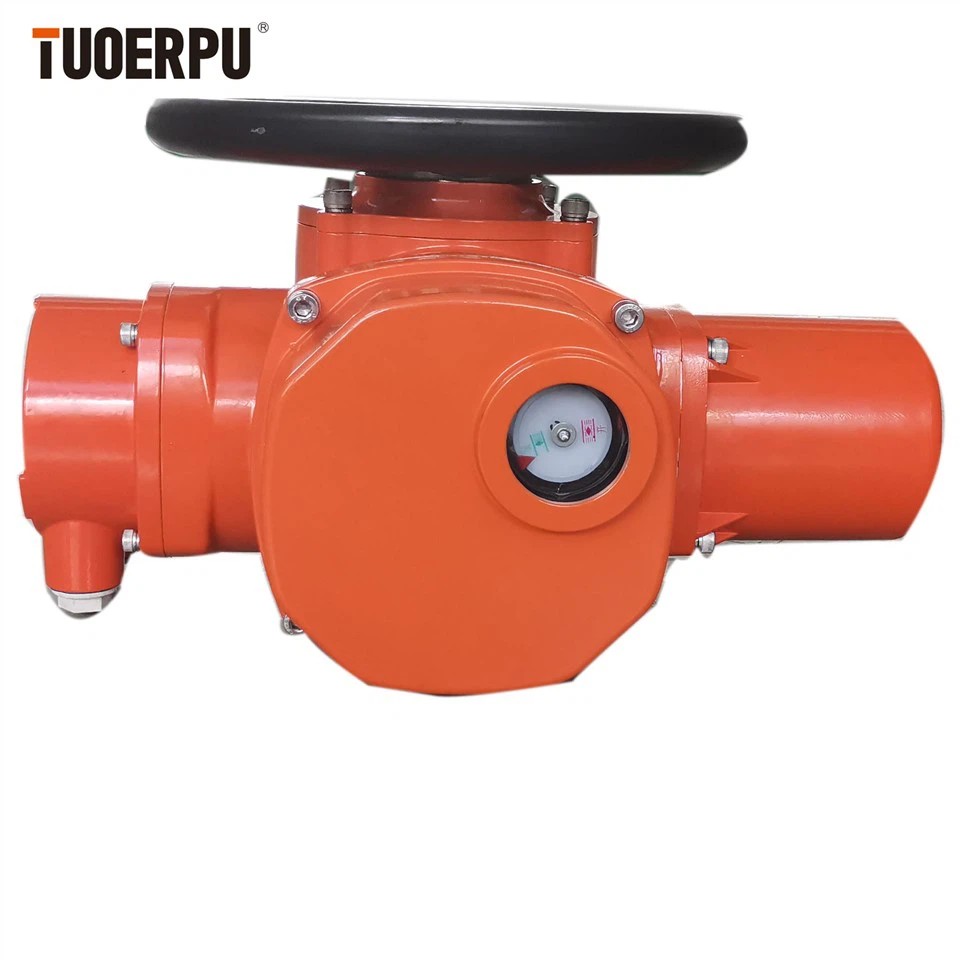

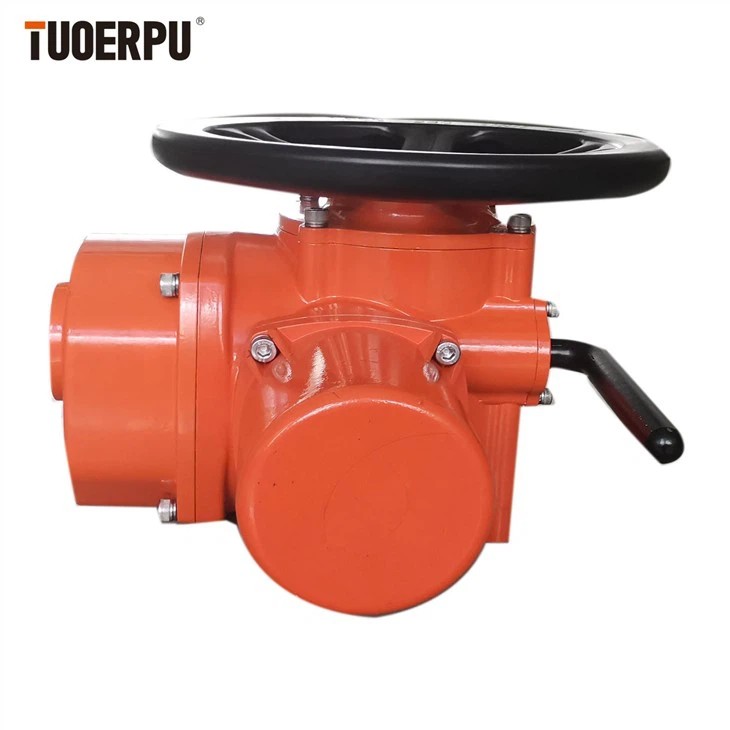

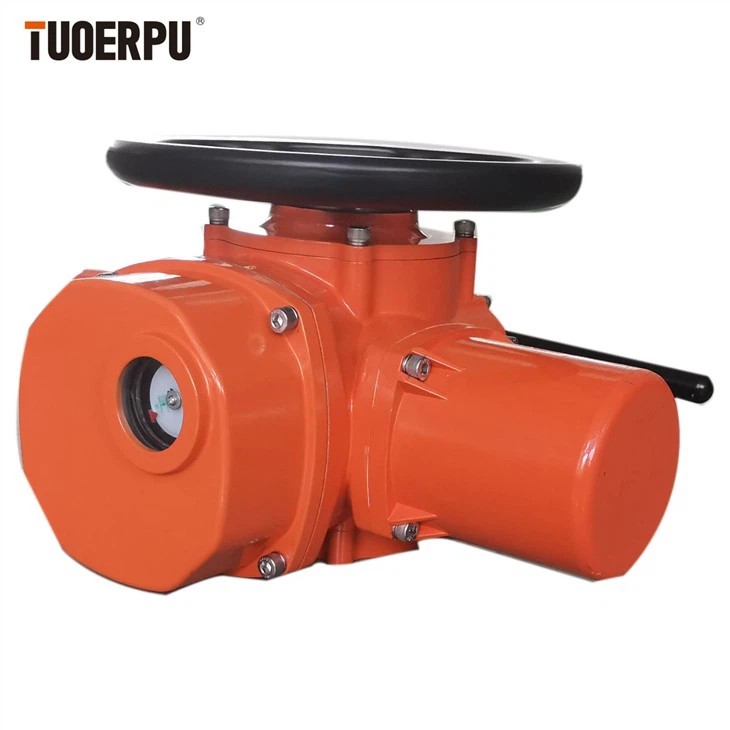

Multi-turn valve electric device is a driving device for valve to realize opening, closing or adjustment control. Z-type Denso is suitable for gate valves, globe valves, diaphragm valves, plunger valves, throttle valves, water gates, etc. It can be used for rising stem valves and concealed stem valves. This series of electric equipment has the characteristics of complete functions, reliable performance, advanced control system, small size, light weight, convenient use and maintenance, etc. The valve can be controlled remotely, centrally and automatically. It is widely used in electric power, metallurgy, petroleum, chemical, papermaking, sewage treatment and other industries.
Product Parameters
IV: Performance parameter table
Nare
Parameter
Model
Noninal
torque
N.m
Maximum control
torque
N.m
Minimum
control torque
N.m
Allowable
through stem
s
diameter
Manual
peed ratio
Output speed
rimin
Motar Power
KW
Weight
Kg
TOP-Z5
50
75
≤25
28
1:1
18
0.12
TOP-Z10
100
150
≤50
0.18
TOP-Z15
150
225
≤75
0.25
TOP-Z20
200
300
≤100
40
0.37
TOP-Z20L
28
TOP-Z30
300
450
≤150
40
0.55
TOP-Z301
28
TOP-Z45
450
675
225
48
24
1.1
100
36
1.5
TOP-Z60
600
900
≤300
24
1.5
103
36
2.2
TOP-Z90
900
1350
≤450
60
24
2.2
128
TOP-Z901
48
36
3.0
TOP-Z120
1200
1800
≤600
60
24
3.0
132
TOP-Z1201
48
TOP-Z180
2500
3000
≤1250
70
25:1
24
4.0
245
36
5.5
TOP-Z250
2500
3000
≤1250
24
5.5
250
TOP-Z350
3500
4200
≤1750
75
13:1
18
7.5
450
TOP-Z500
5000
6000
≤2500
10
460

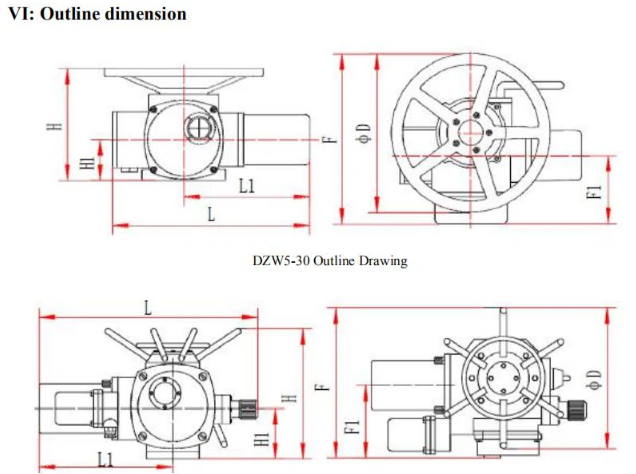

Dimension
/Model
L
L1
H
H1
F
F1
φD
TOP-Z5-15
382
228
233
87
335
150
300
TOP-Z20-30
435
278
248
90
375
157
350
TOP-Z45-60
810
515
440
195
500
245
470
TOP-Z90-120
830
540
450
200
685
360
550
TOP-Z180-250
870
565
600
250
740
385
320
TOP-Z350-500
1170
770
710
280
840
300
570
