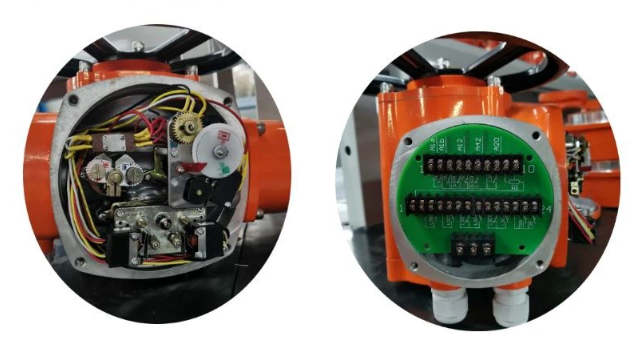

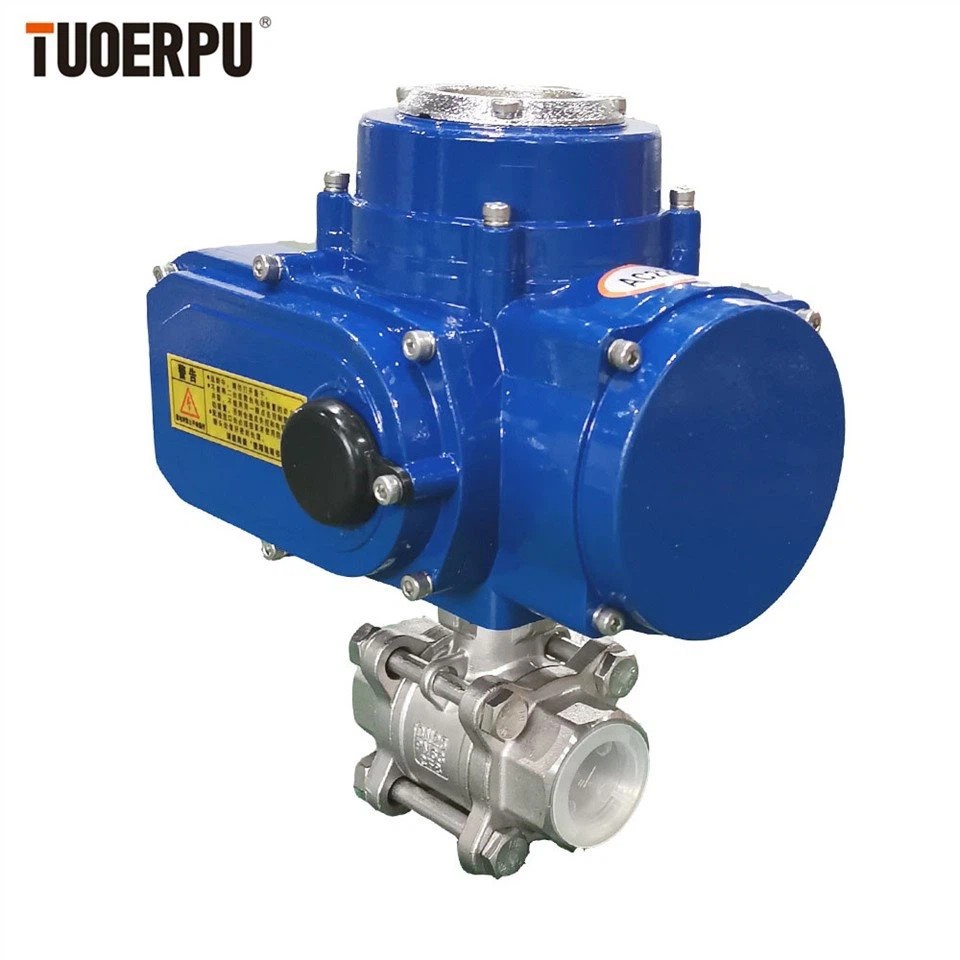

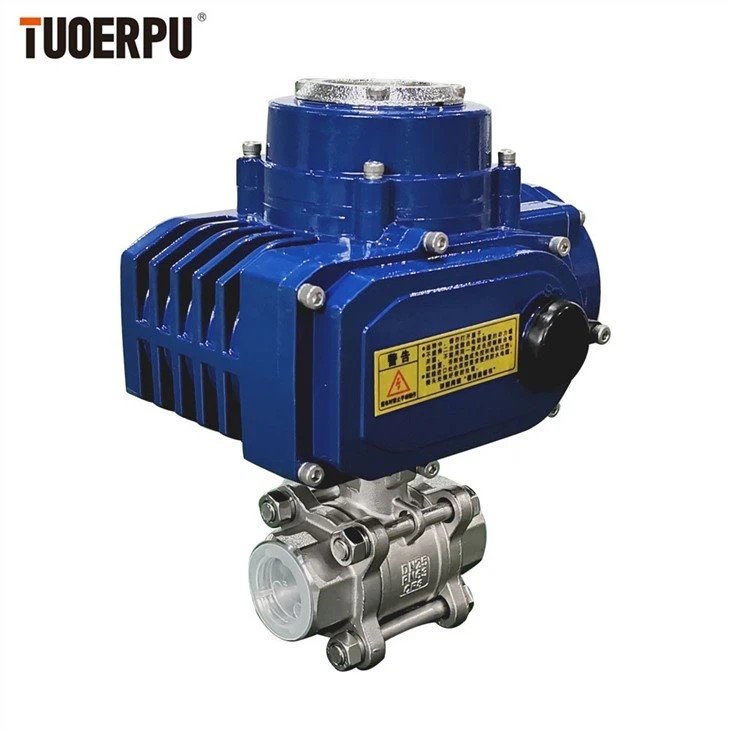

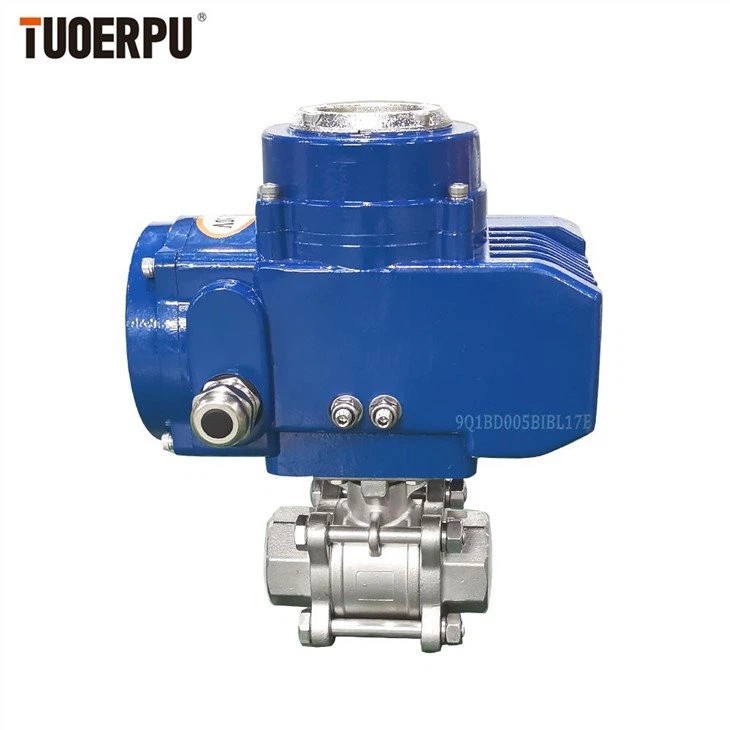

Q911F electric internal thread ball valve is suitable for two-position cut-off and adjustment occasions. The connection between the valve and the actuator adopts a direct connection method. The electric actuator has a built-in servo system, and no additional servo amplifier is required. Input 4-20mA signal and 220VAC power supply to control the operation. It has the advantages of simple connection, compact structure, small size, light weight, low resistance and stable movement. The actuator can be equipped with electronic electric actuators such as UNIC, PSQ, HQ, DHL or other pneumatic actuators such as GTX and AL according to user requirements.Product
Product Parameters
Model
Standard
Running
Tine/Torque
Optional
Running
Tine/Torque
Rotation
Angle
Range
Voltage
Type
TOP-105
25s/50Nm
4s/20Nm
10s/30Nn
0-
90°adjust
able
DC 24V
AC 24V
AC 110V
BC 220V
AC 380V
TOP-110
25S/100Nn
15s/50Nn
TOP-116
25s/160Nn
15s/80Nn
TOP-120
25s/200Nn
15s/100Nn
TOP-140
25s/400Nn
15s/200Nn
TOP-160
25s/600Nn
15s/300Nn
TOF-1100
50s/1000Nn
25s/500Nn
TOP-1200
50s/2000Nn
25s/1000Nn
Insulation
Resistance
100MΩ/500VDC
Withstand Voltage
Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68)
Installation
Location
360°install at any angle
Electrical
Interface
2-G 1/2 netal connector,corresponding metal cable
connector shall be added according to the selected
cable during use
Anbient Tenperature
-20℃-60℃
Function Optional
Over torque protection,Dehumidification heater,
Passive contact svitch,Operating hand wheel
Dimension
/Model
L
L1
H
H1
F
F1
φD
TOP-Z5-15
382
228
233
87
335
150
300
TOP-Z20-30
435
278
248
90
375
157
350
TOP-Z45-60
810
515
440
195
500
245
470
TOP-Z90-120
830
540
450
200
685
360
550
TOP-Z180-250
870
565
600
250
740
385
320
TOP-Z350-500
1170
770
710
280
840
300
570
