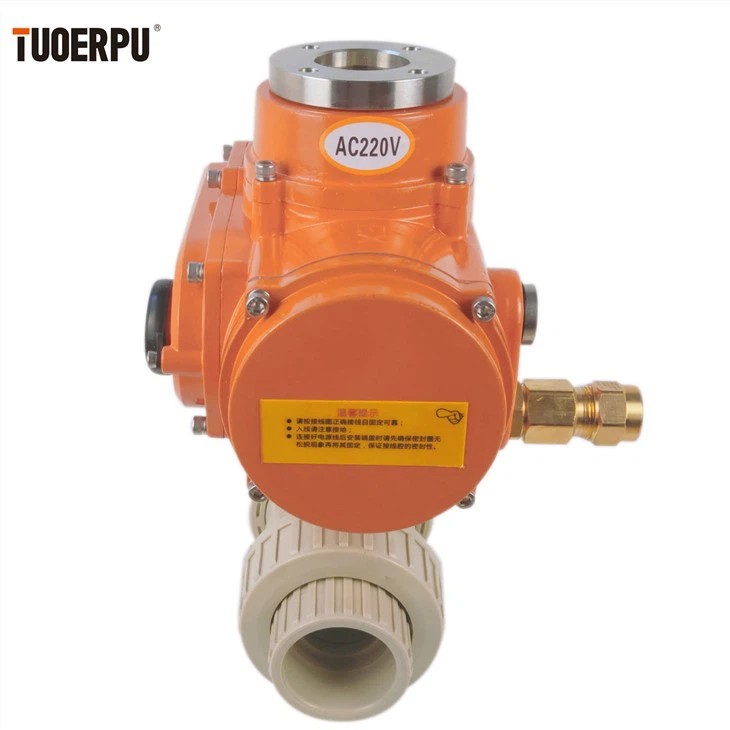

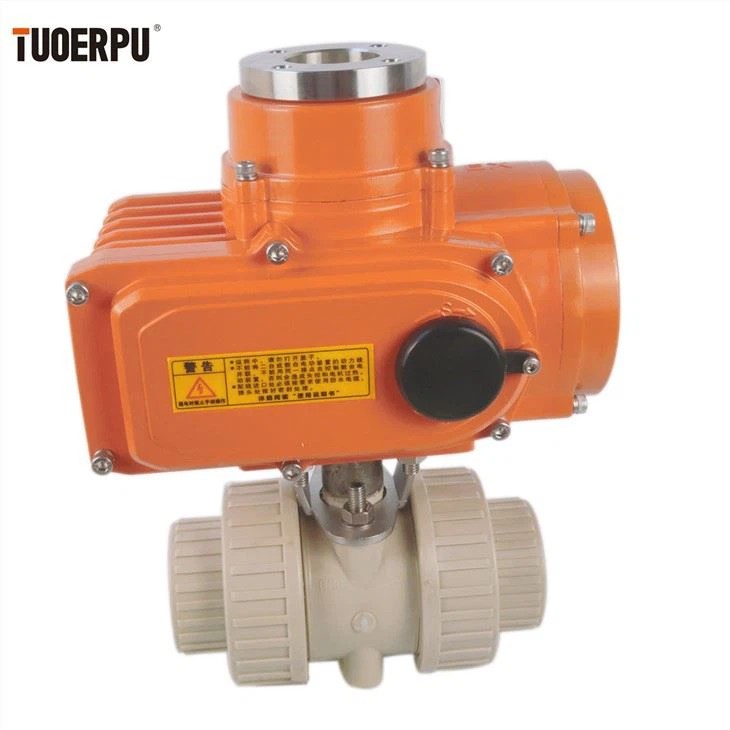

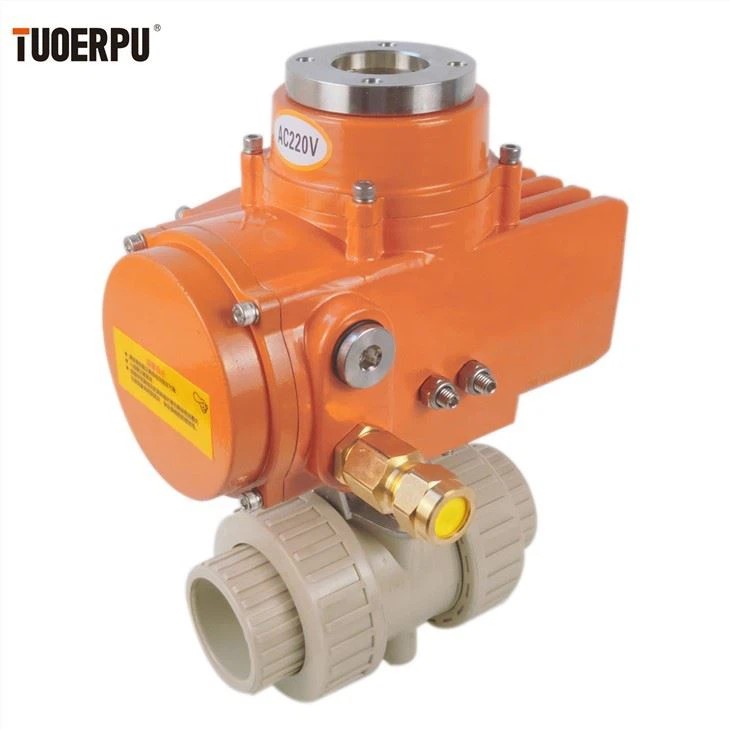

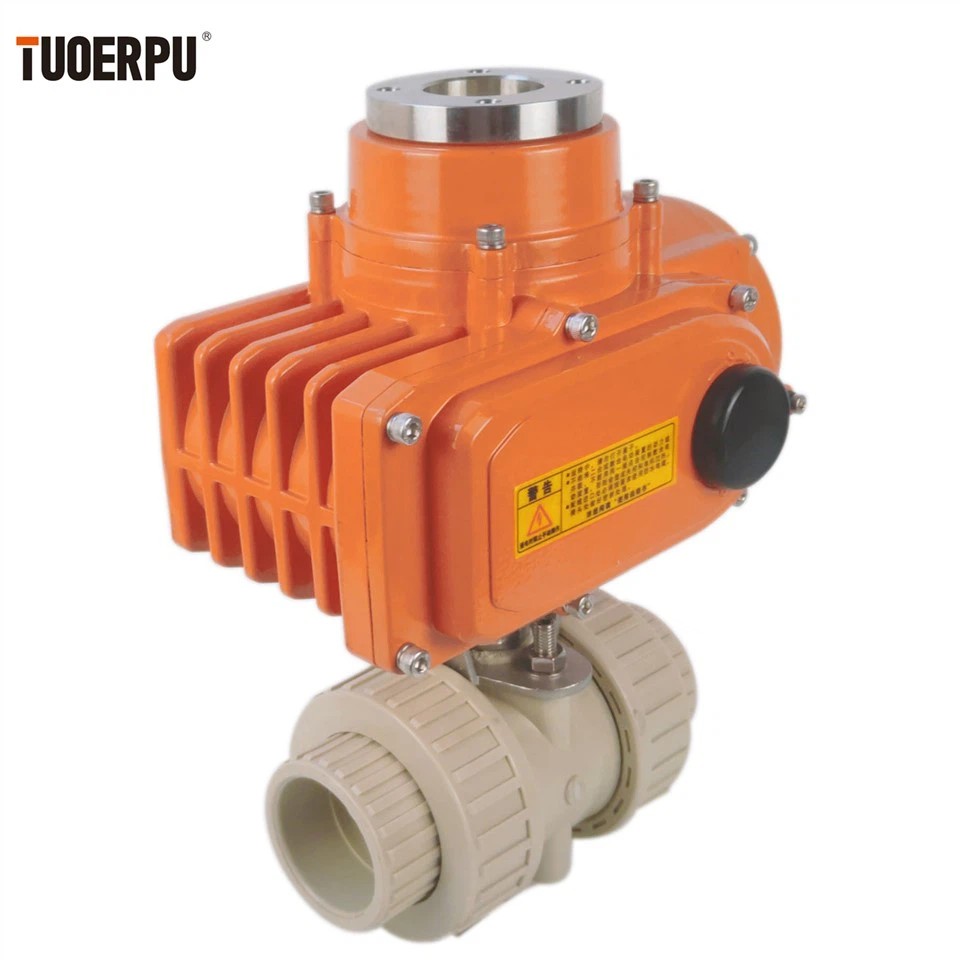

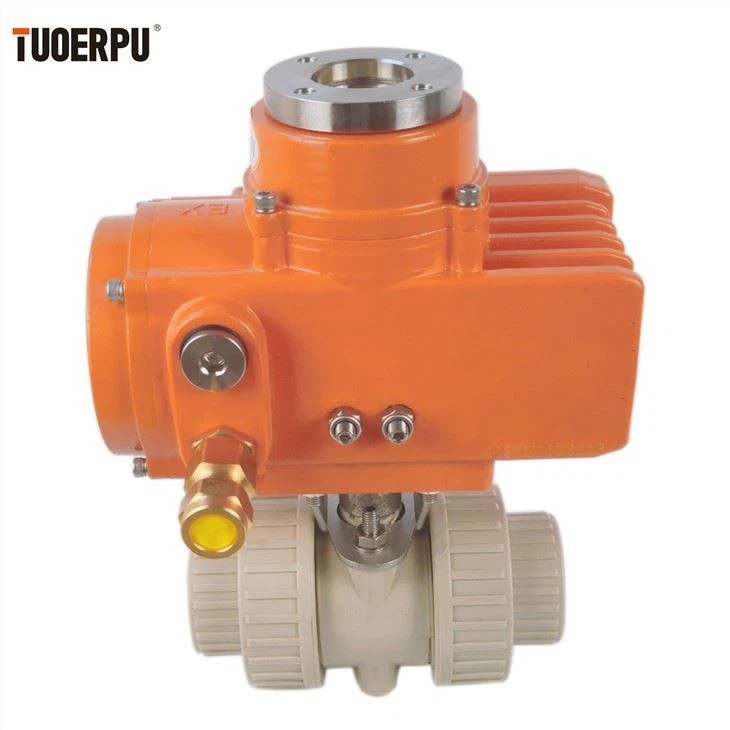

Electric PVC plastic ball valve has strong acid and alkali resistance, material for CPVC/UPVC/PVC, voltage 220VAC, 380VAC,24VDC, etc., control mode is switch type, regulating type, explosion-proof type, etc.The 4-20mA current signal or 0-10VDC voltage signal is the control signal to drive the valve to the desired position.
| Nominal Diameter DN(mm) | DN15~DN250 |
| Nominal Pressure | PN1.0/1.6/2.5/4.0/6.4MPa |
| Medium |
water,petroleum,nitric acid,acetic acid,viscous liquid,slurry,strong oxidizing |
| Temperature |
-40℃~+8℃(PTEE/PPL seal)-40℃~+350℃ (metal seal) |
| Leakage | ANSI B16104 standard |
| Sphere rotation angle | 90° |
| Body | WCB,304,316 |
| Seat | PTFE,PPL,Metal seal |

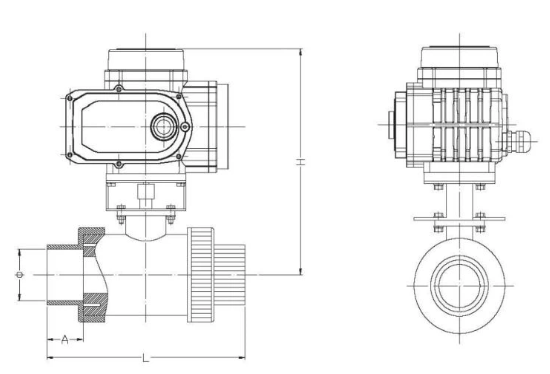

| Size | Model | ① | A | L | H |
| mm | |||||
| DN25 | TOP-105 | 32 | 21.5 | 12.1 | 207 |
| DN32 | TOP-105 | 40 | 26.5 | 137 | 211 |
| DN 40 | TOP-105 | 50 | 31 | 161 | 242 |
| DN50 | TOP-110 | 63 | 37.5 | 195 | 289 |
| DN65 | TOP-110 | 75 | 43.5 | 226 | 315 |
| DN80 | TOP-116 | 90 | 51 | 289 | 344 |
| DN 100 | TOP-120 | 110 | 61 | 342 | 376 |
