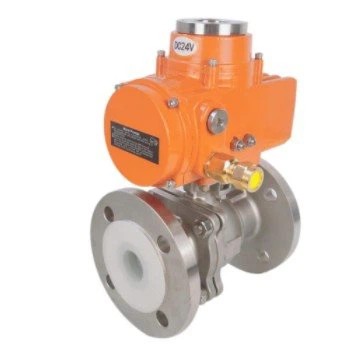

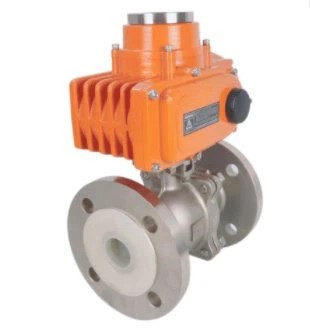

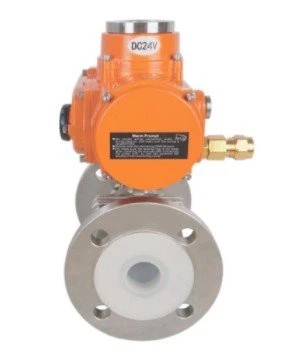

According to the working characteristics of the valve, the product has a high torque.At the same time, due to the regulation demand of the opening, the product has a small rotational inertia.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃ -60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 110C
AC 220V
AC 380V
Nominal dameter
DN50-DN600
Nominal pressure
PN 1.0,1.6Mpa
Applicable medium
fresh water,sea water,food,natural gas,alcohol,
salt,adid,alkal,ol,steam,alretc
Applcable temperature
-20℃~150℃
Malerials
Body
ductile iron,cast steel,gray cast iron,stainless steel
Plate
stainless steel CF8,stainless steel CF8M,nickel and phosphorus plating
on ductile iron,ductle iron coated wicth nylon,aluminium bronze
Stem
stainless steel,45#carbon steel
Seat
EPDM,NBR,PTFE,Viton,SEP

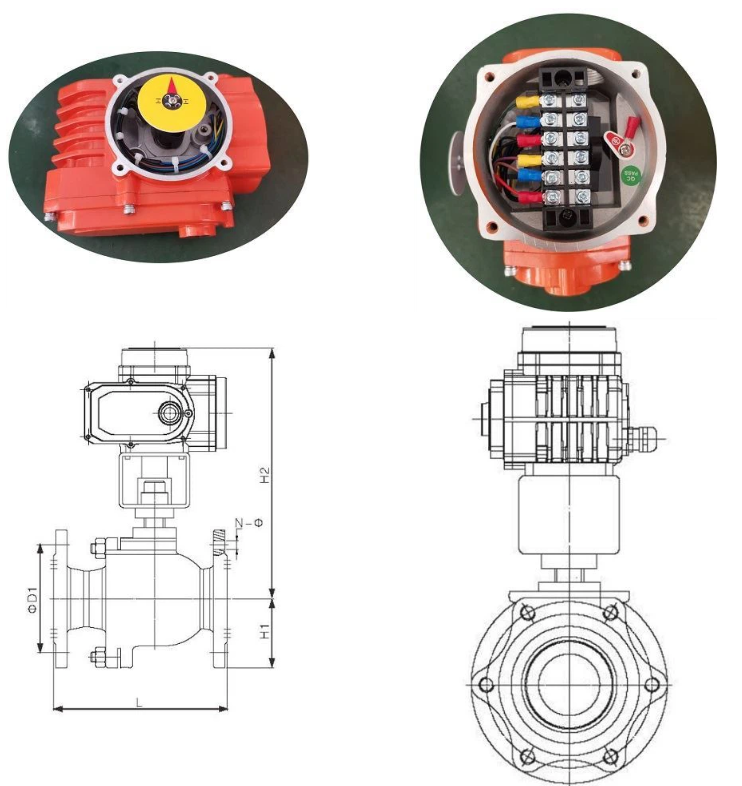

| Size | Model | φD1 | L | H2 | H1 | Nφ | |||
| mm | in | 1.0MPa | 1.6MPa | 1.0MPa | 1.6MPa | ||||
| DN50 | 2" | TOP-105 | 125 | 43 | 313 | 76 | 4-φ18 | ||
| DN65 | 21/2' | 145 | 46 | 326 | 89 | 4-φ18 | |||
| DN80 | 3" | 160 | 46 | 332 | 94 | 4-φ18 | 4-φ18 | ||
| DN100 | 4° | TOP-110 | 180 | 52 | 374 | 114 | 8-φ18 | ||
| DN125 | 5' | 210 | 56 | 387 | 127 | 8-φ18 | |||
| DN150 | 6° | TOP-120 | 240 | 56 | 433 | 140 | 8-φ23 | ||
| DN200 | 8" | 295 | 60 | 468 | 176 | 8-φ23 | 12-φ23 | ||
| DN250 | 10° | TOP-160 | 350 | 355 | 68 | 518 | 207 | 12-φ23 | 12-φ25 |
| DN300 | 12 | TOP-1100 | 400 | 410 | 78 | 594 | 240 | 12-φ23 | 12-φ25 |
| DN350 | 14° | 460 | 470 | 78 | 625 | 273 | 16-φ23 | 16-φ25 | |
| DN400 | 16° | TOP-1200 | 515 | 525 | 102 | 657 | 322 | 16-φ25 | 16-φ30 |
| DN450 | 18 | 565 | 585 | 114 | 679 | 340 | 20-φ25 | 20-φ30 | |
| DN500 | 20° | 620 | 650 | 127 | 737 | 380 | 20-φ28 | 20-φ34 | |
| DN600 | 24 | TOP-1400 | 725 | 770 | 154 | 881 | 467 | 20-φ31 | 20-φ37 |
If you have any enquiry about quotation or cooperation,please feel free to email us at tuoerpu@cntuoerpu.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
