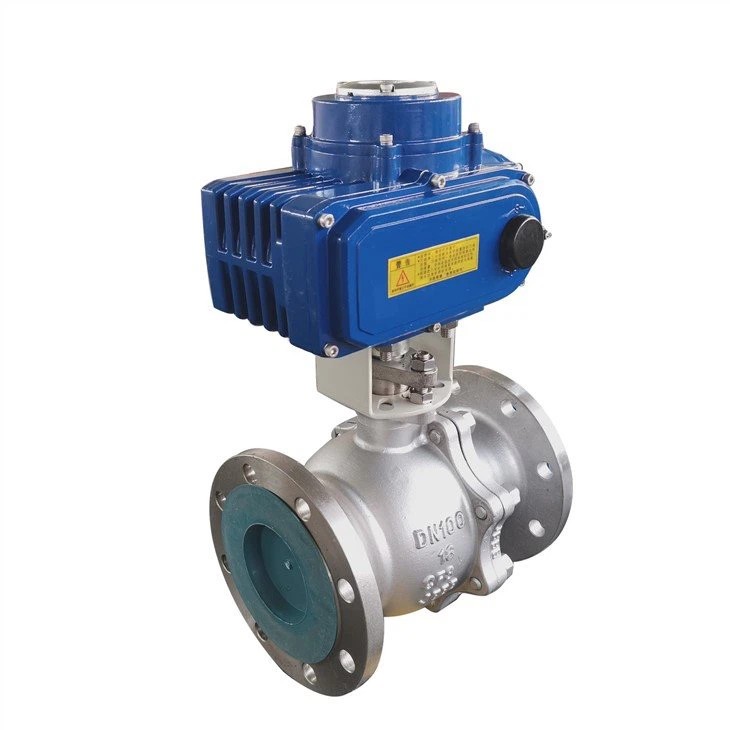

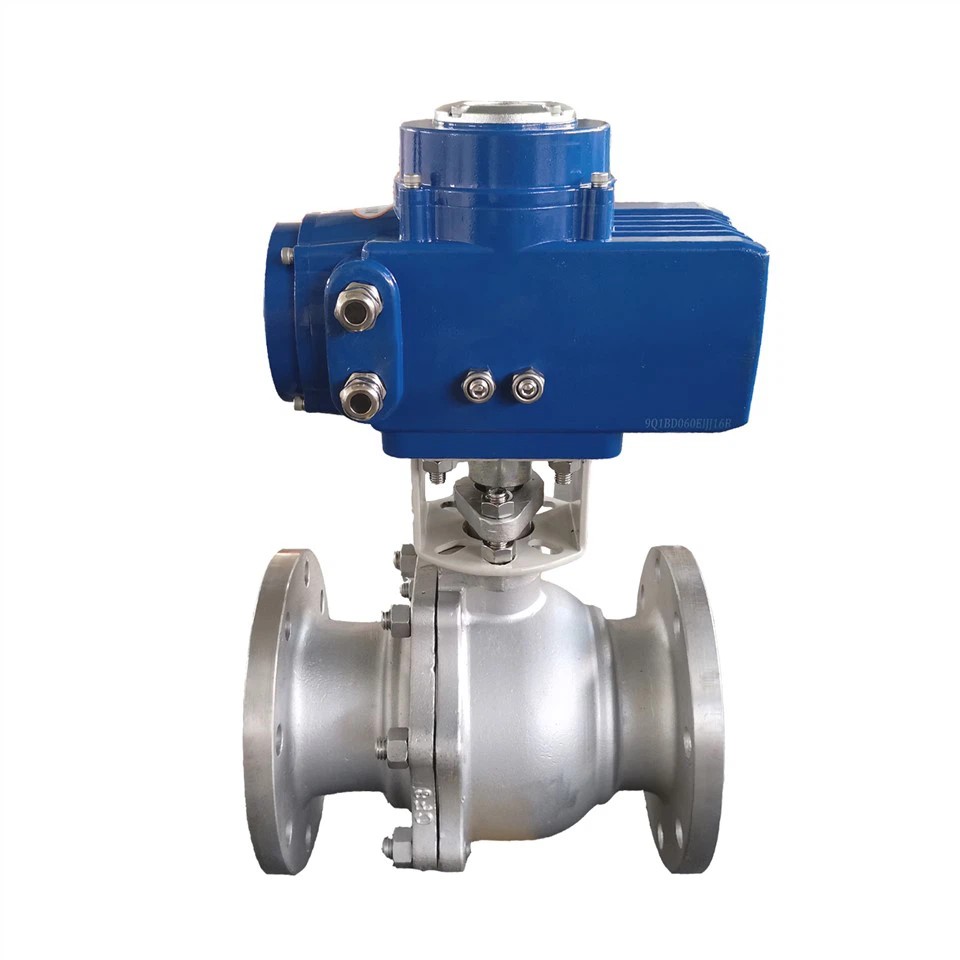

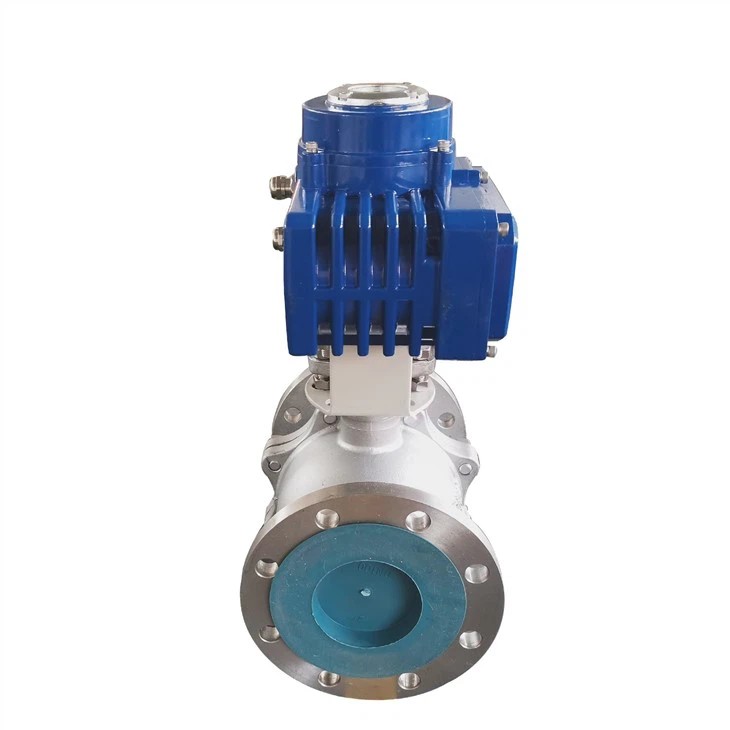

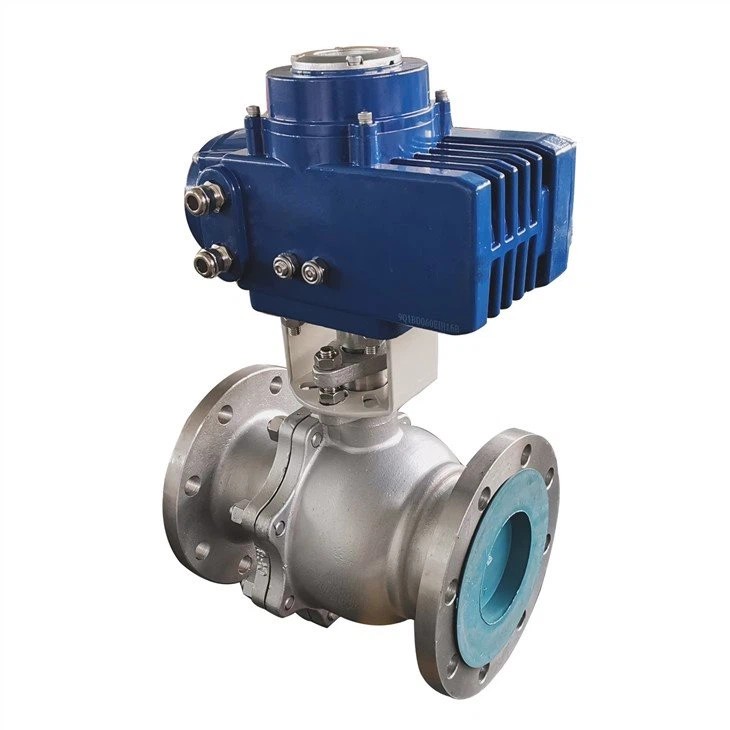

This product is developed, designed and manufactured according to the special working conditions and environment of pipeline control valves. It is equipped with 4-20MA valve position signal feedback unit for stronger signal output interference.
Product Parameters
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V AC 24V
AC 110V
AC 220V
AC 380V
|
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
| Nominal dameter | DN50-DN600 | |
| Nominal pressure | PN 1.0,1.6Mpa | |
| Applicable medium |
fresh water,sea water,food,natural gas,alcohol, salt,adid,alkal,ol,steam,alretc |
|
| Applcable temperature | -20℃~150℃ | |
| Malerials | Body | ductile iron,cast steel,gray cast iron,stainless steel |
| Plate |
stainless steel CF8,stainless steel CF8M,nickel and phosphorus plating on ductile iron,ductle iron coated wicth nylon,aluminium bronze |
|
| Stem | stainless steel,45#carbon steel | |
| Seat | EPDM,NBR,PTFE,Viton,SEP | |

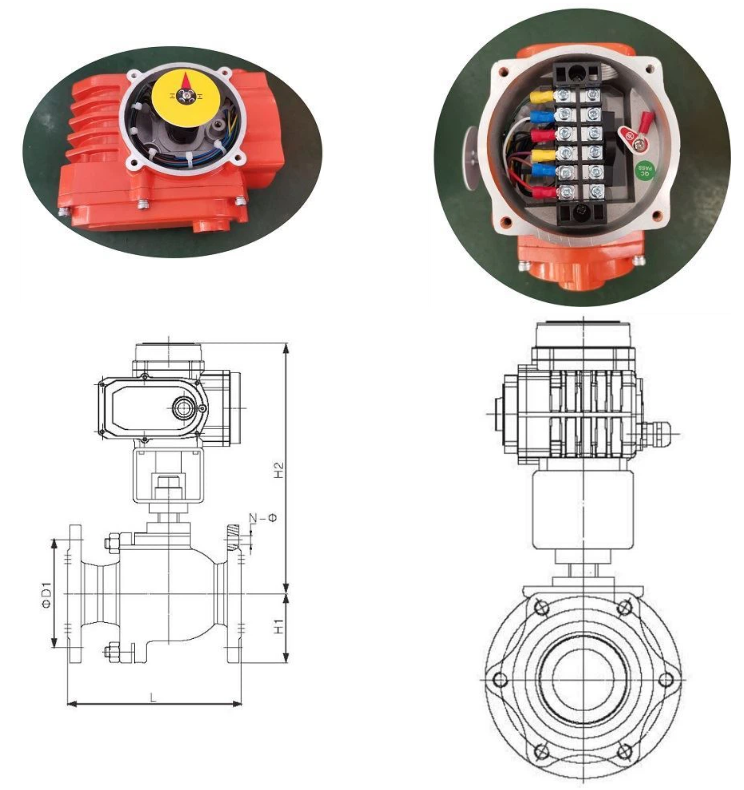

| Size | Model | φD1 | L | H2 | H1 | Nφ | |||
| mm | in | 1.0MPa | 1.6MPa | 1.0MPa | 1.6MPa | ||||
| DN50 | 2" | TOP-105 | 125 | 43 | 313 | 76 | 4-φ18 | ||
| DN65 | 21/2' | 145 | 46 | 326 | 89 | 4-φ18 | |||
| DN80 | 3" | 160 | 46 | 332 | 94 | 4-φ18 | 4-φ18 | ||
| DN100 | 4° | TOP-110 | 180 | 52 | 374 | 114 | 8-φ18 | ||
| DN125 | 5' | 210 | 56 | 387 | 127 | 8-φ18 | |||
| DN150 | 6° | TOP-120 | 240 | 56 | 433 | 140 | 8-φ23 | ||
| DN200 | 8" | 295 | 60 | 468 | 176 | 8-φ23 | 12-φ23 | ||
| DN250 | 10° | TOP-160 | 350 | 355 | 68 | 518 | 207 | 12-φ23 | 12-φ25 |
| DN300 | 12 | TOP-1100 | 400 | 410 | 78 | 594 | 240 | 12-φ23 | 12-φ25 |
| DN350 | 14° | 460 | 470 | 78 | 625 | 273 | 16-φ23 | 16-φ25 | |
| DN400 | 16° | TOP-1200 | 515 | 525 | 102 | 657 | 322 | 16-φ25 | 16-φ30 |
| DN450 | 18 | 565 | 585 | 114 | 679 | 340 | 20-φ25 | 20-φ30 | |
| DN500 | 20° | 620 | 650 | 127 | 737 | 380 | 20-φ28 | 20-φ34 | |
| DN600 | 24 | TOP-1400 | 725 | 770 | 154 | 881 | 467 | 20-φ31 | 20-φ37 |
If you have any enquiry about quotation or cooperation,please feel free to email us at tuoerpu@cntuoerpu.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
