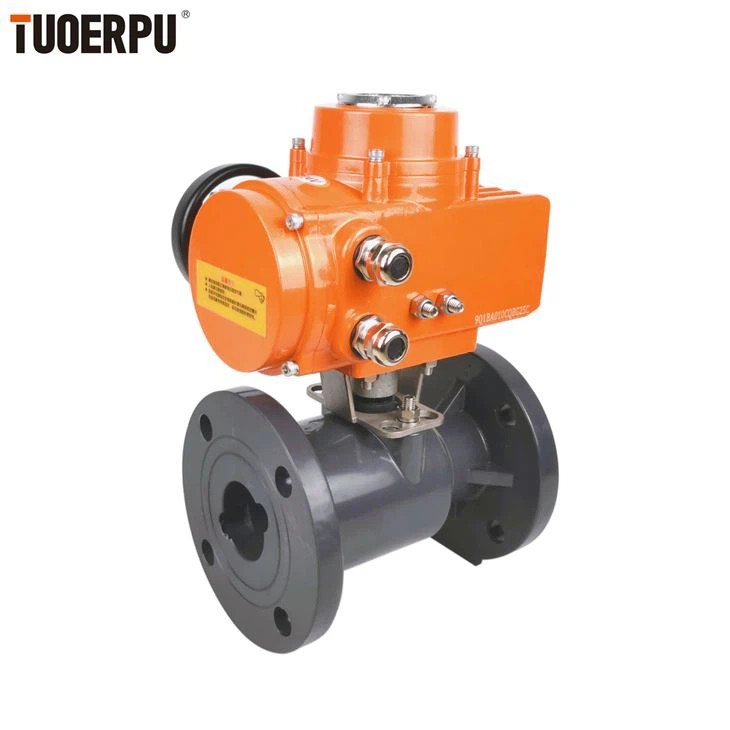

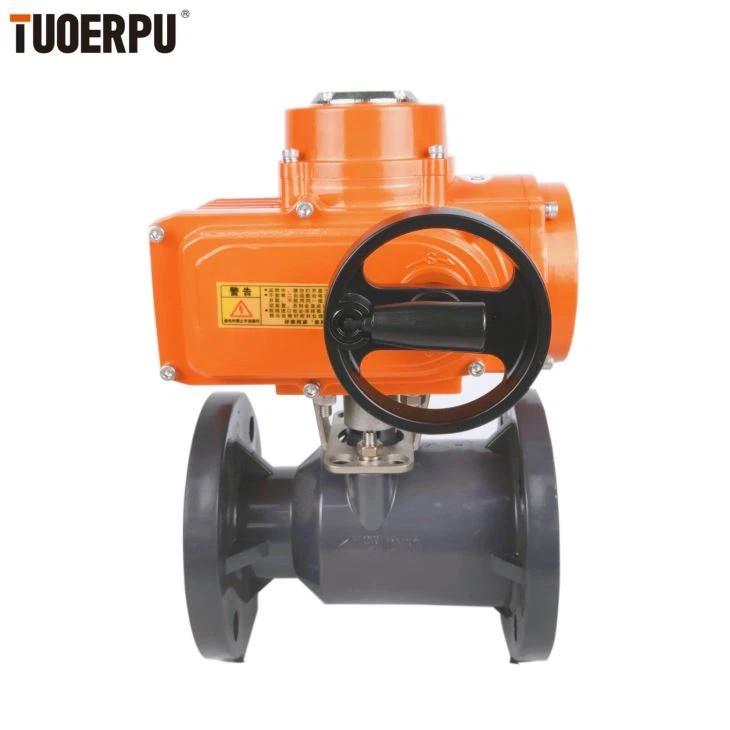

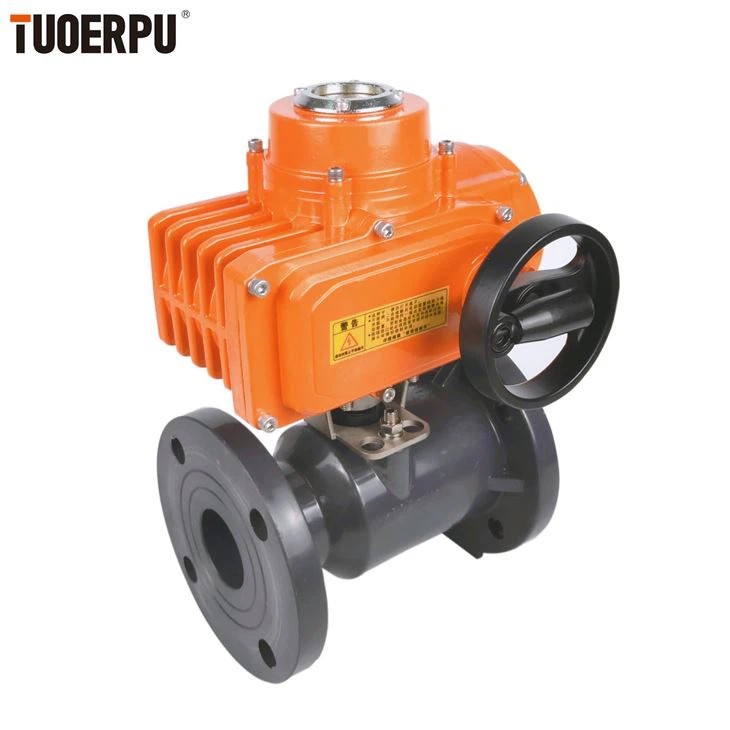

The electric UPVC flange ball valve adopts flange connection and can be quickly assembled without the use of special tools. It has the advantages of compact structure, wear resistance, easy assembly, convenient maintenance and simple maintenance. The valve body is hygienic and non-toxic, with strong corrosion resistance, light weight, and wide application range.
UPVC Ball valveParameters
Connection type
flange,union
Applicable medium
PVC compatible with food industry chemical solvents
Body material
UPVC(-10℃~70℃)、CPVC(-40℃~95℃)、
RPP(-14℃~100℃)、PVDF(-40℃~140℃)
Plug material
UPVC(-10℃~70℃)、CPVC(-40℃~95℃)、
RPP(-14℃~100℃)、PVDF(-40℃~140℃)
Sealing material
PTFE,EPDM,NBR
