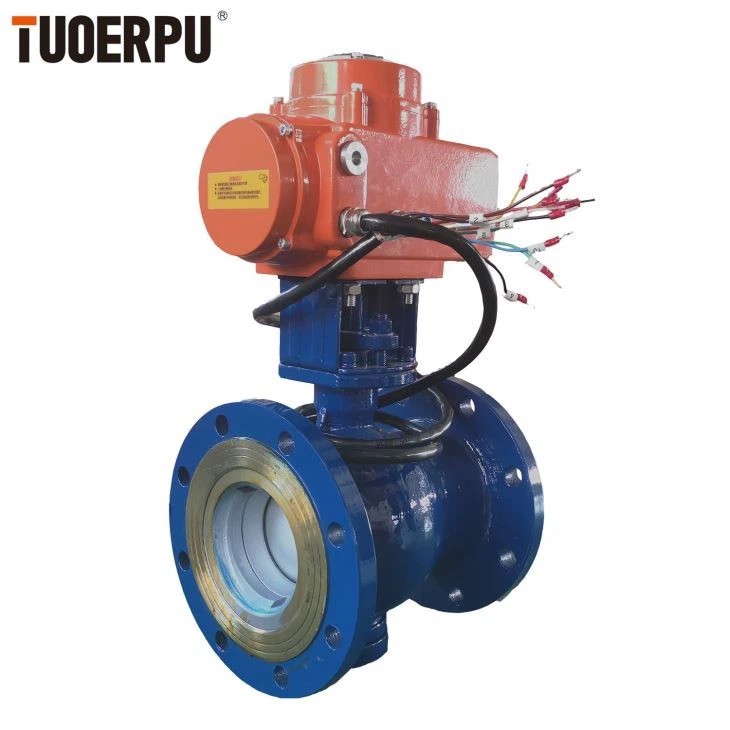

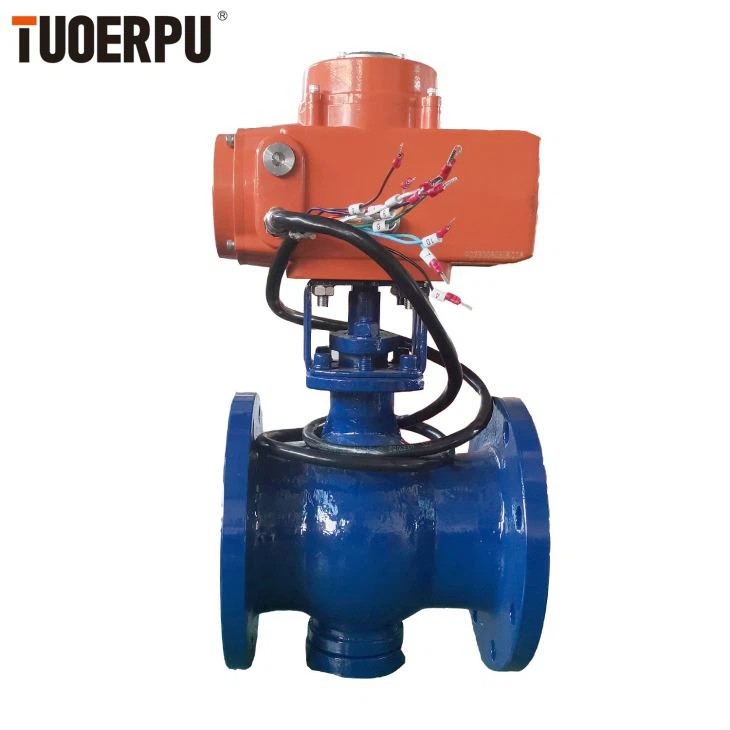

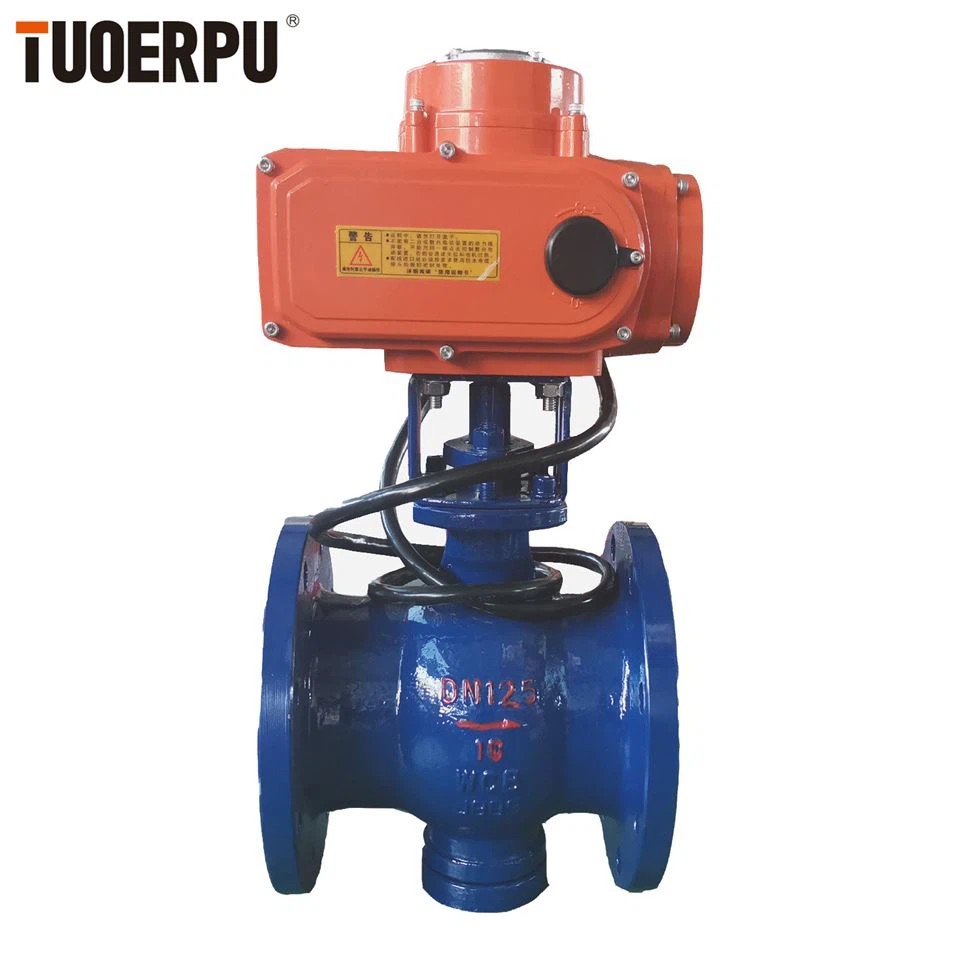

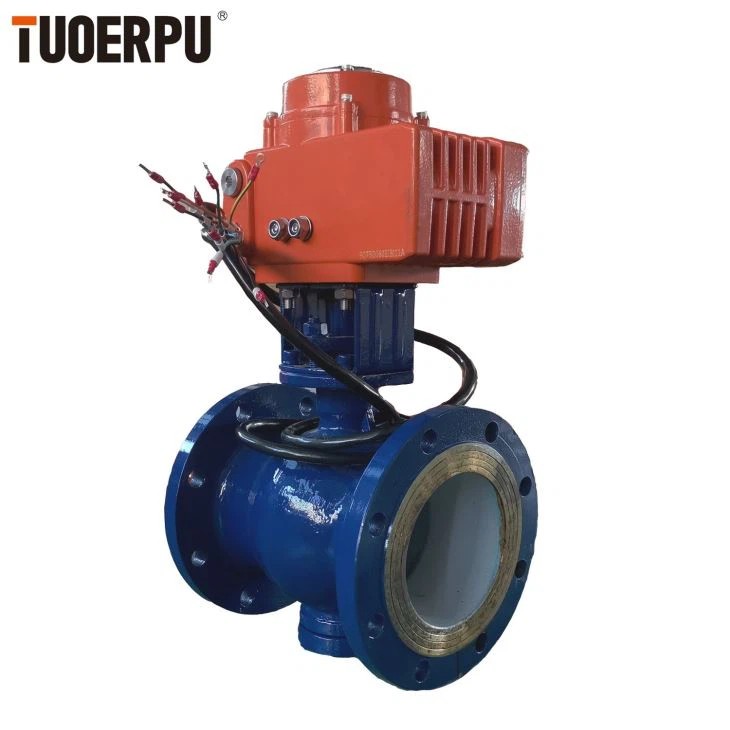

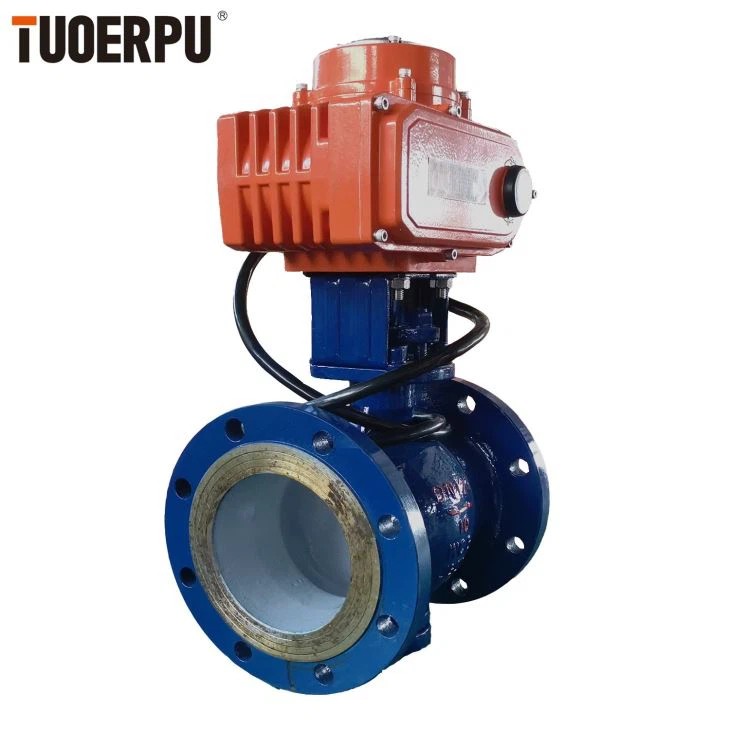

Electric V-shaped ball valve, matched with TOP series actuators, without additional servo amplifier, input (4-20mA, 0-10V, or 1-5v) signal and single-phase power supply to operate, to achieve pressure, flow, temperature, liquid Adjustment of parameters such as bits. The valve core is provided with a V-shaped cut, which produces shear force when rotating relative to the hard seal valve seat, which can cut the fiber and prevent the spinning from jamming. It has the characteristics of large circulation capacity, high adjustment accuracy, good sealing and light weight.
Product Parameters
Nominal diameter
DN15-DN250
Nominal pressure
PN 1.6-6.4Mpa
Test pressure
Strength test
PN2.4-9.6Mpa
Seal test
PN1.76-7.0Mpa
Applicable medium
water,steam,oil
nitrose
acetic acid
Applicable temperature
-28℃~400℃
-28℃~500℃
Connection type
butt clamp,flange(JB79-59)
Material code
C
P
R
Materials
Body
WCB
304
316
Plate
WCB
304
316
Stem
stainless steel
seal ring
PTFE,stainless steel,hard alloy
Packing
PTFE,flexible graphite
