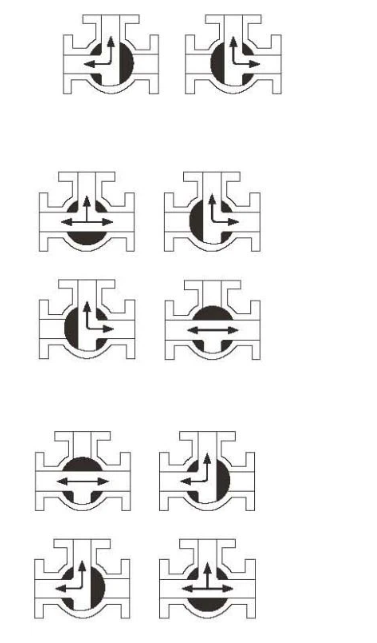

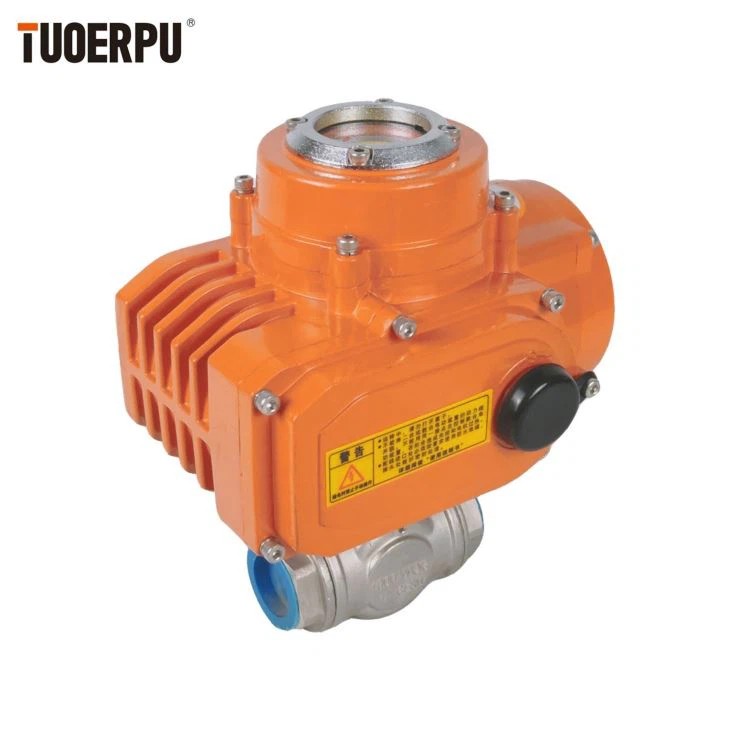

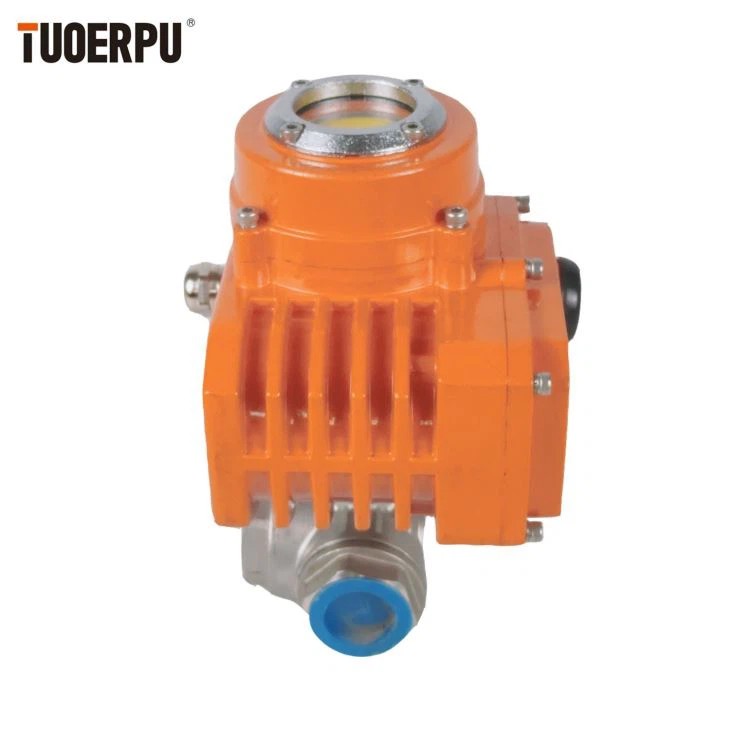

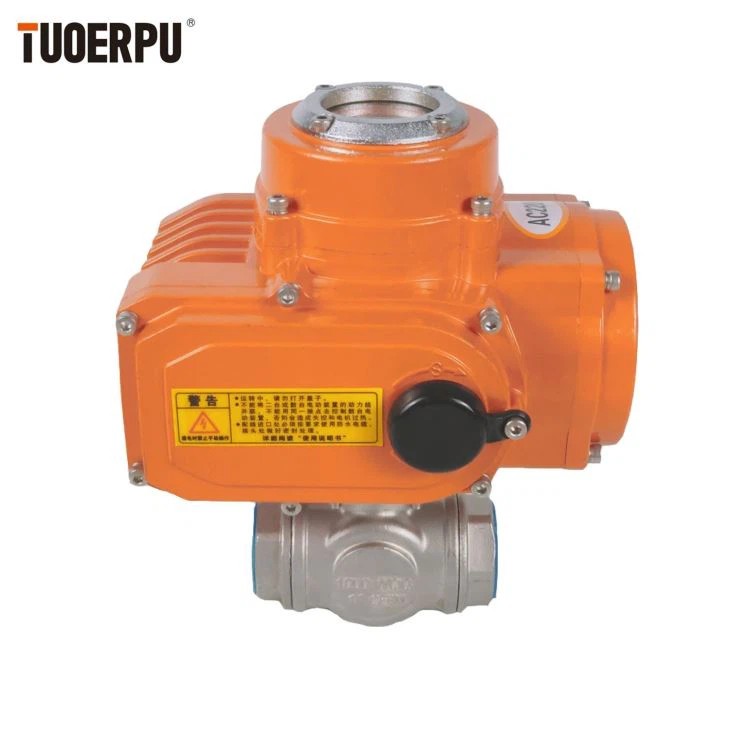

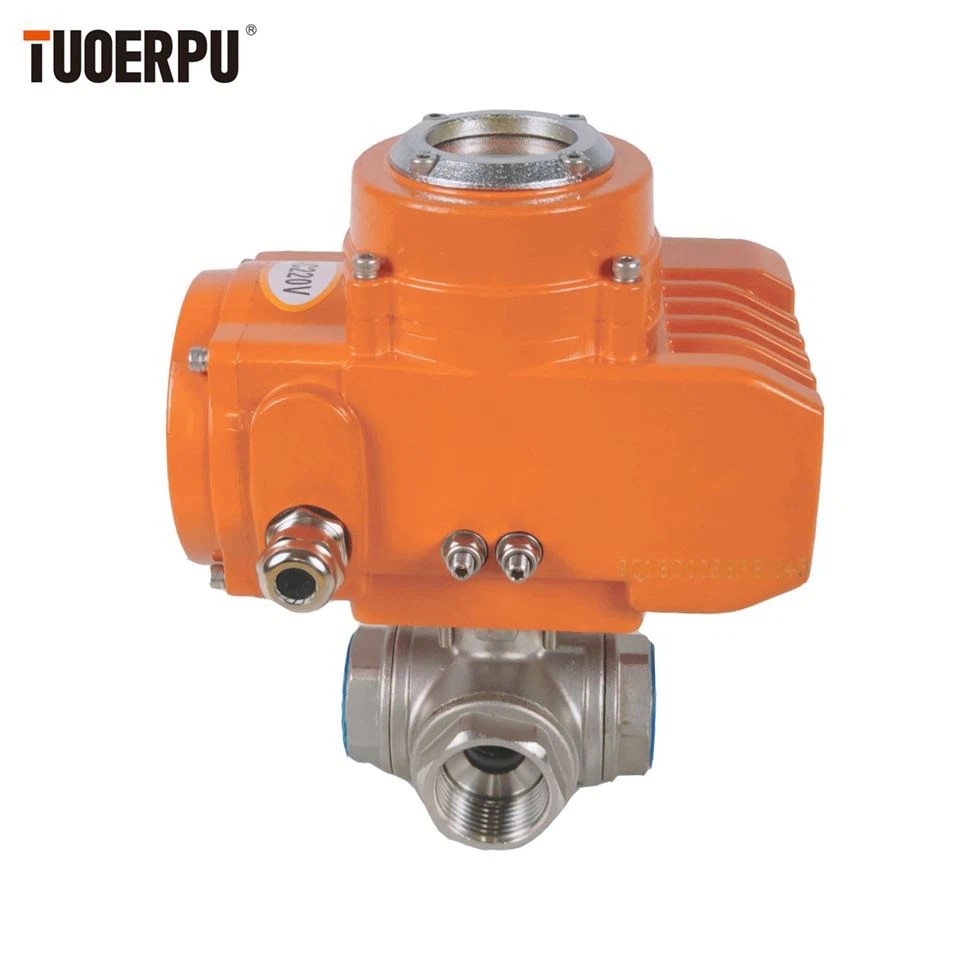

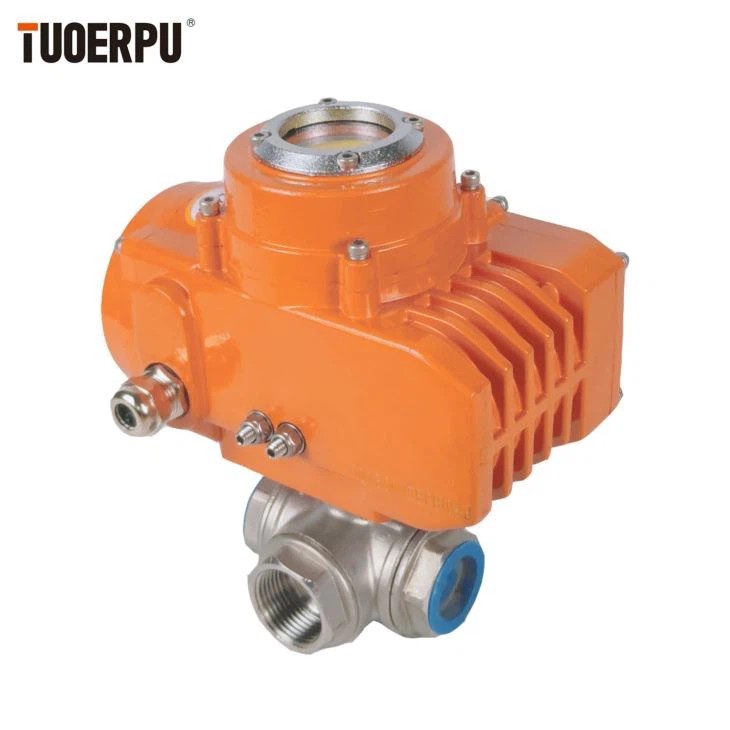

Electric screw type 3-way ball valve, standard ball core has L-type and T-type, change the relative Angle of ball core and pipe. Different combination control can be realized for three pipeline fluids. T - channel can play the matching function, suitable for liquid, gas, steam and other medium proportioning regulation and control.
Product Parameters
Nominal Diameter
DN(mm)
DN15~200mm
Seal filler
PTEF
Nominal Pressure
PN1.6,2.5,4.0,6.4MPa
Rotation angle
0-90°
Connection
Flange,Spiral
Protection class
IP-67
Boby Material
WCB,CF8,CF8M,CF3M
Humidity
≤95%
Ball Material
2Cr13,304,316
Temperature
-25~70℃
Size
Model
φD1
L
H2
H1
n-φ
mm
in
1.6MPa
1.6MPa
DN15
1/2"
TOP-105
65
140
128
47
4-14
DN20
3/4"
TOP-105
75
160
155
52
DN25
1"
TOP-105
85
180
176
57
DN32
11/4*
TOP-105
100
200
201
67
4-18
DN40
11/2°
TOP-110
110
220
212
77
DN50
2°
TOP-110
125
240
234
80
DN65
21/2
TOP-116
145
260
253
90
DN80
3'
TOP-120
160
280
266
97
8-18
DN100
4°
TOP-140
180
320
291
107
DN125
5'
TOP-160
210
380
292
122
DN150
6°
TOP-1100
240
440
320
140
8-22
DN200
8°
TOP-1200
295
550
357
167
12-22
If you have any enquiry about quotation or cooperation,please feel free to email us at tuoerpu@cntuoerpu.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
