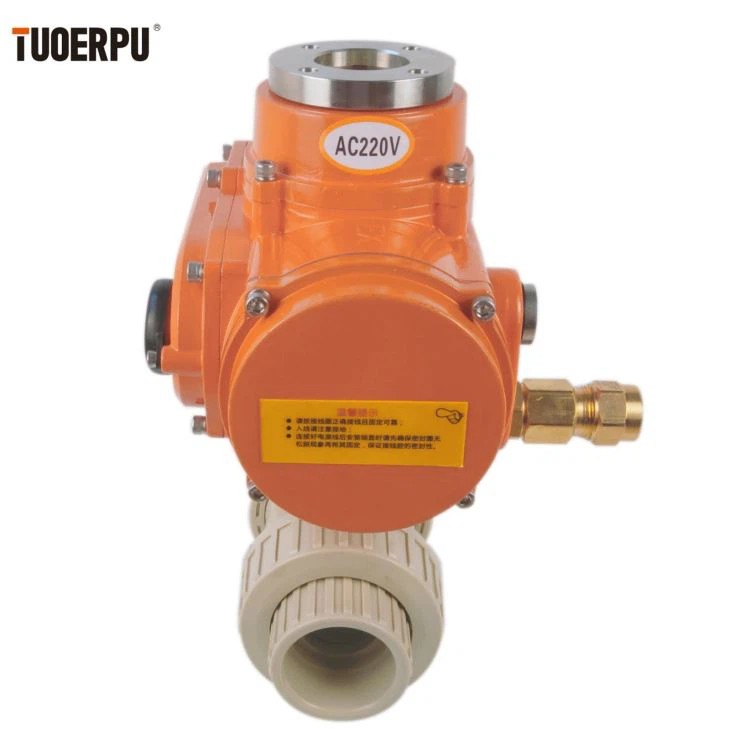

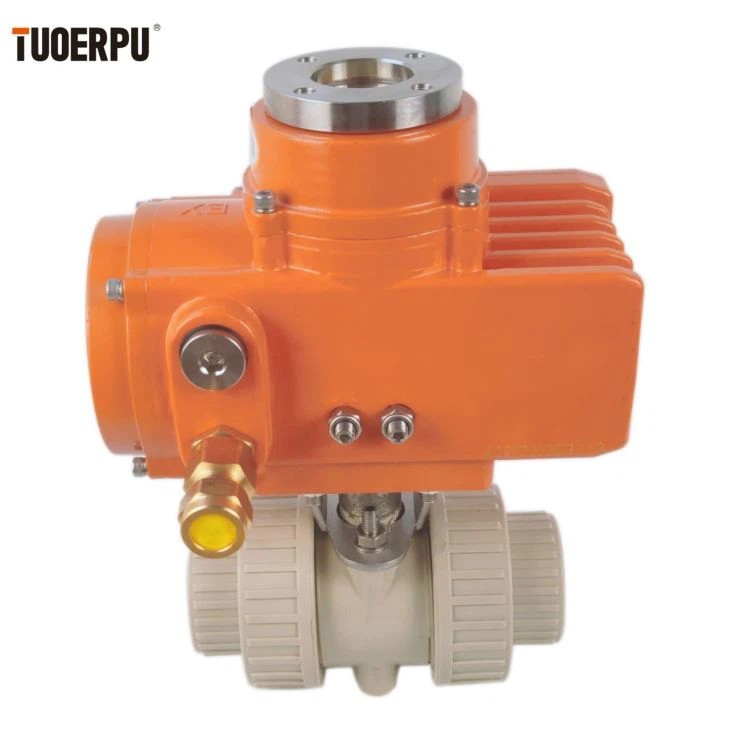

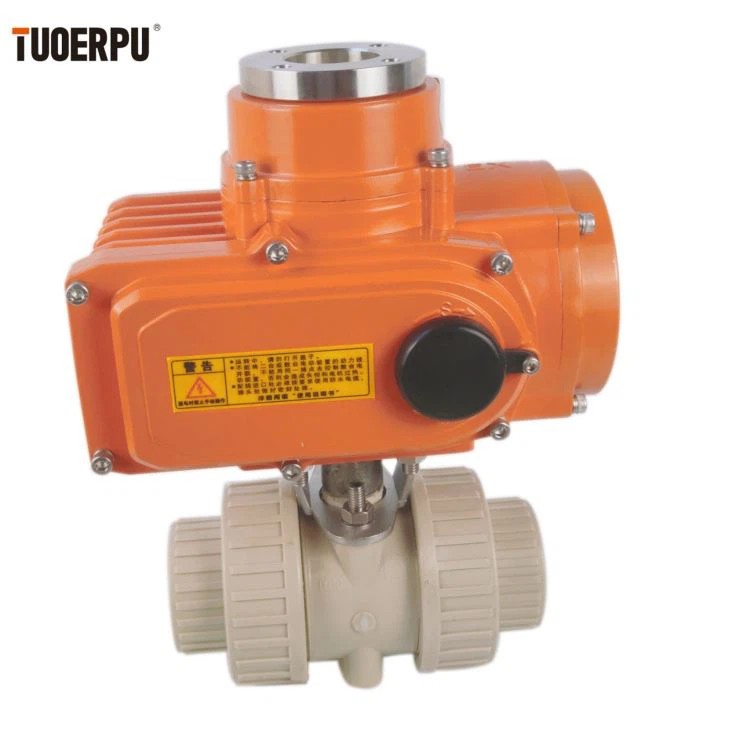

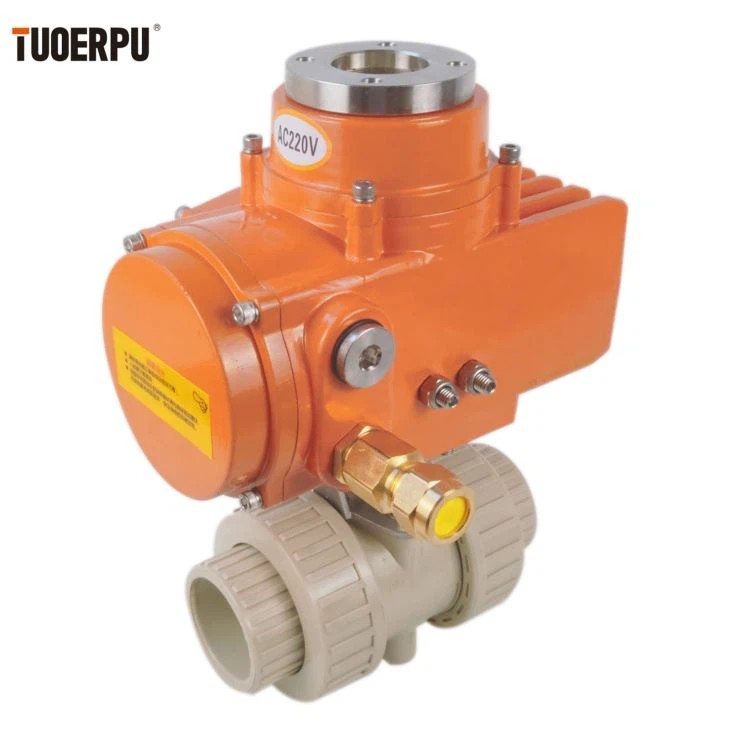

Explosion-proof electric actuator overheat protection, overload protection. Single - phase power supply, simple wiring. PVC ball valve has strong corrosion resistance and wide application range. Light weight and easy to install.
Product Parameters
OOFF TY
Nominal diameter
DN25-DN100
Connection type
flange
Applicable medium
PVC compatible with food industry chemical solvents
Body material
UPVC(-10℃~70℃)、CPVC(-40℃~95℃)、
RPP(-14℃~100℃)、PVDF(-40℃~140℃)
Plug material
UPVC(-10℃~70℃)、CPVC(-40℃~95℃)、
RPP(-14℃~100℃)、PVDF(-40℃~140℃)
Sealing material
PTFE,EPDM,NBR

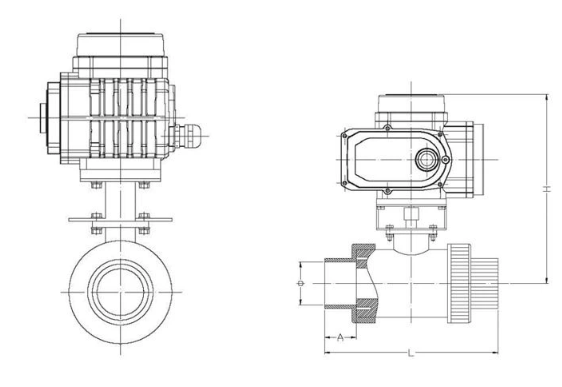

Size
Model
①
A
L
H
mm
DN25
TOP-105
32
21.5
12.1
207
DN 32
TOP-105
40
26.5
137
211
DN40
TOP-105
50
31
161
242
DN50
TOP-110
63
37.5
195
289
DN65
TOP-110
75
43.5
226
315
DN 80
TOP-116
90
51
289
344
DN 100
TOP-120
110
61
342
376
