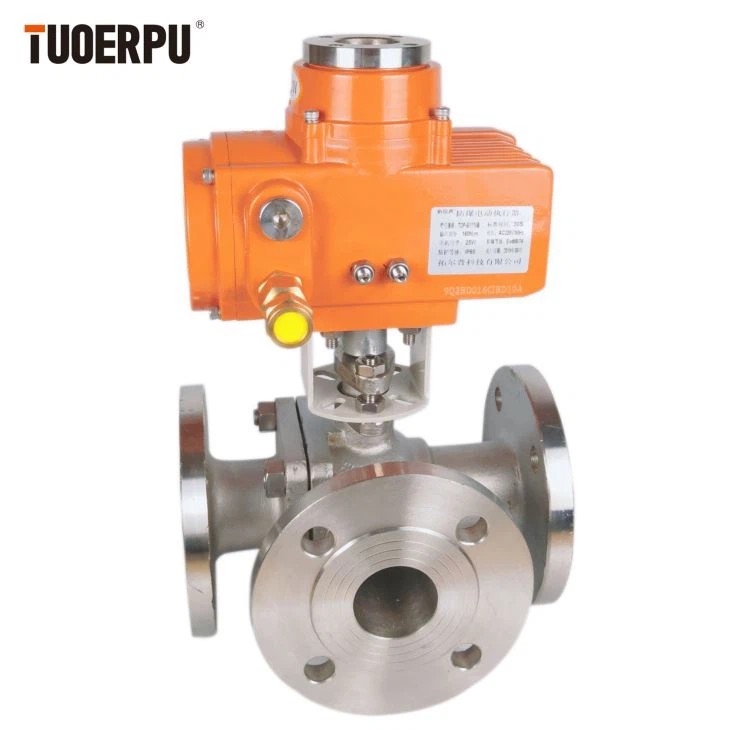

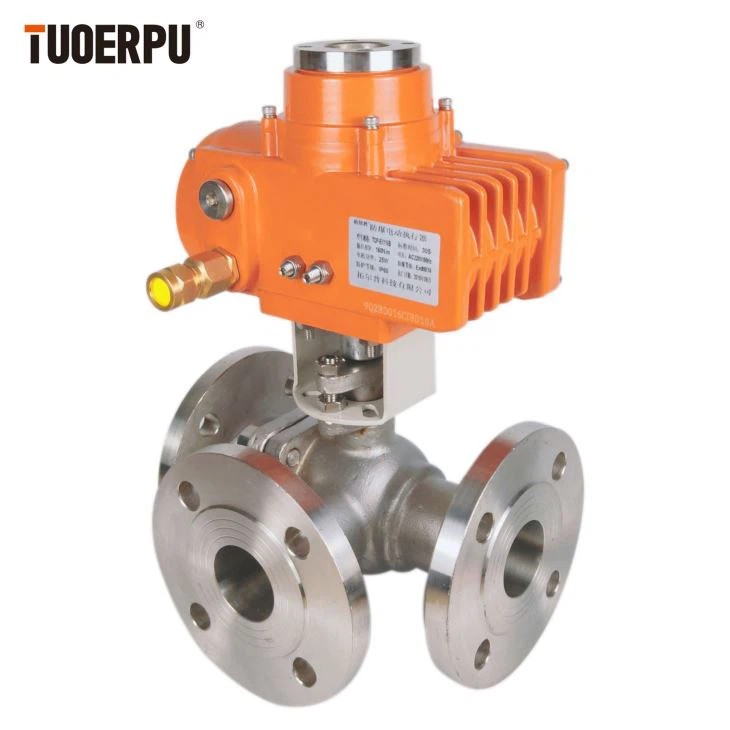

Electric three-way ball valve with rotary angle travel electric actuator, powered by AC220V.AC380V. Or DC24V power supply voltage, accepting (4-20mA) current information or voltage information input by industrial automation instrument control system, you can control the operation and realize Proportional adjustment or two-position switching control of process media.
Product Parameters
Nominal Diameter
DN(mm)
DN15~200mm
Seal filler
PTEF
Nominal Pressure
PN1.6,2.5,4.0,6.4MPa
Rotation angle
0-90°
Connection
Flange,Spiral
Protection class
IP-67
Boby Material
WCB,CF8,CF8M,CF3M
Humidity
≤95%
Ball Material
2Cr13,304,316
Temperature
-25~70℃
Size
Model
φD1
L
H2
H1
Nφ
mm
in
1.0MPa
1.6MPa
1.0MPa
1.6MPa
DN50
2"
TOP-105
125
43
313
76
4-φ18
DN65
21/2'
145
46
326
89
4-φ18
DN80
3"
160
46
332
94
4-φ18
4-φ18
DN100
4°
TOP-110
180
52
374
114
8-φ18
DN125
5'
210
56
387
127
8-φ18
DN150
6°
TOP-120
240
56
433
140
8-φ23
DN200
8"
295
60
468
176
8-φ23
12-φ23
DN250
10°
TOP-160
350
355
68
518
207
12-φ23
12-φ25
DN300
12
TOP-1100
400
410
78
594
240
12-φ23
12-φ25
DN350
14°
460
470
78
625
273
16-φ23
16-φ25
DN400
16°
TOP-1200
515
525
102
657
322
16-φ25
16-φ30
DN450
18
565
585
114
679
340
20-φ25
20-φ30
DN500
20°
620
650
127
737
380
20-φ28
20-φ34
DN600
24
TOP-1400
725
770
154
881
467
20-φ31
20-φ37
