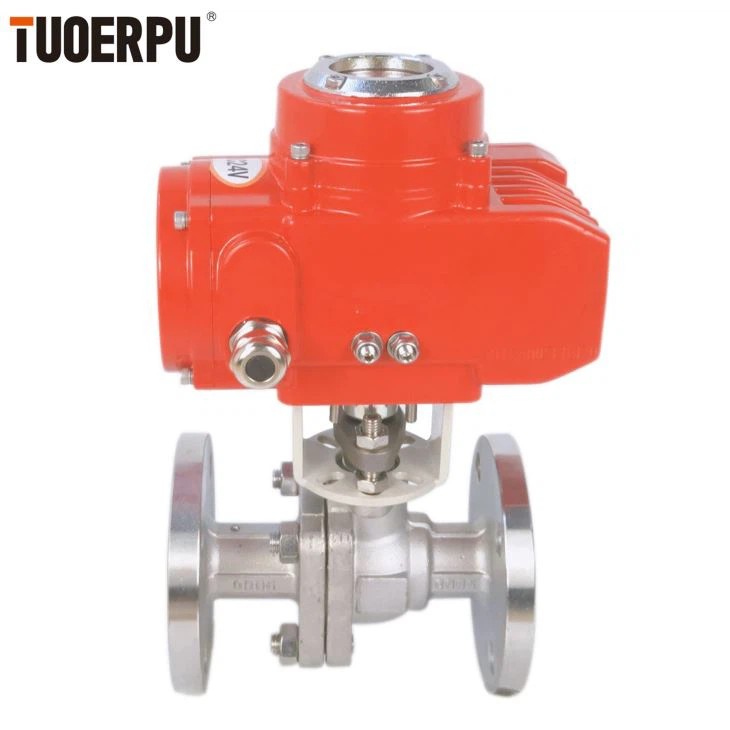

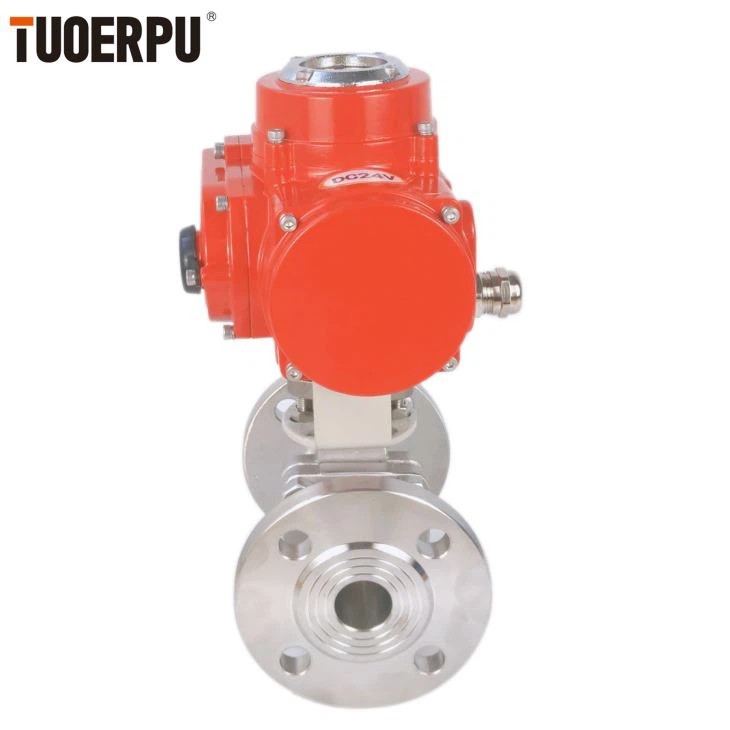

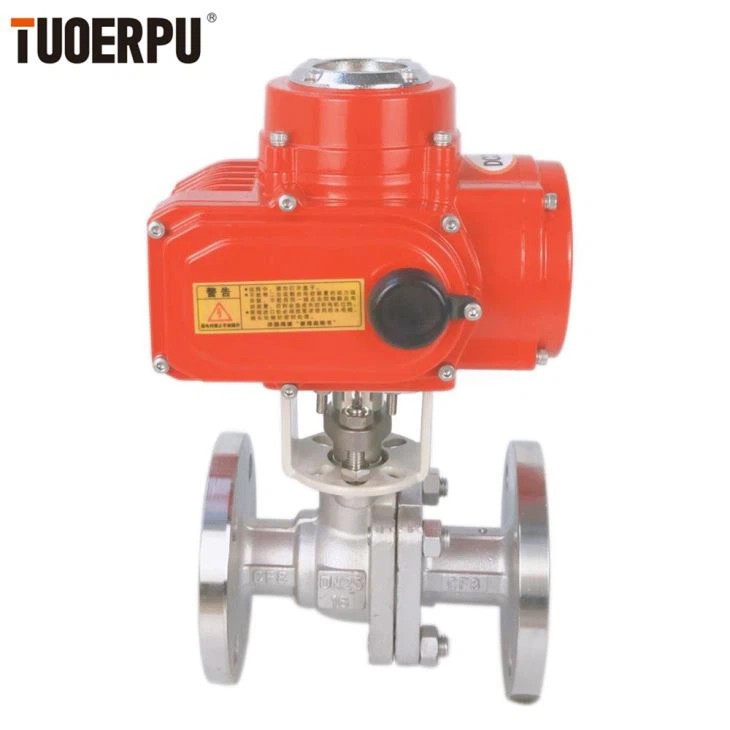

The electric high platform ball valve adopts the high platform design, which can be directly installed with the actuator without any support, providing convenience for the installation and replacement of the product, occupying small space and compact structure.
Product Parameters
Nominal Diameter DN(mm)
DN15~DN250
Nominal Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Medium
water,petroleum, nitric acid, acetic acid, viscous liquid, slurry, strong oxidizing
Temperature
-40℃~+8℃（PTEE/PPL seal）-40℃~+350℃（metal seal）
Leakage
ANSI B16 104 standard
Sphere rotation angle
90°
Body
WCB,304,316
Seat
PTFE,PPL,Metal seal
