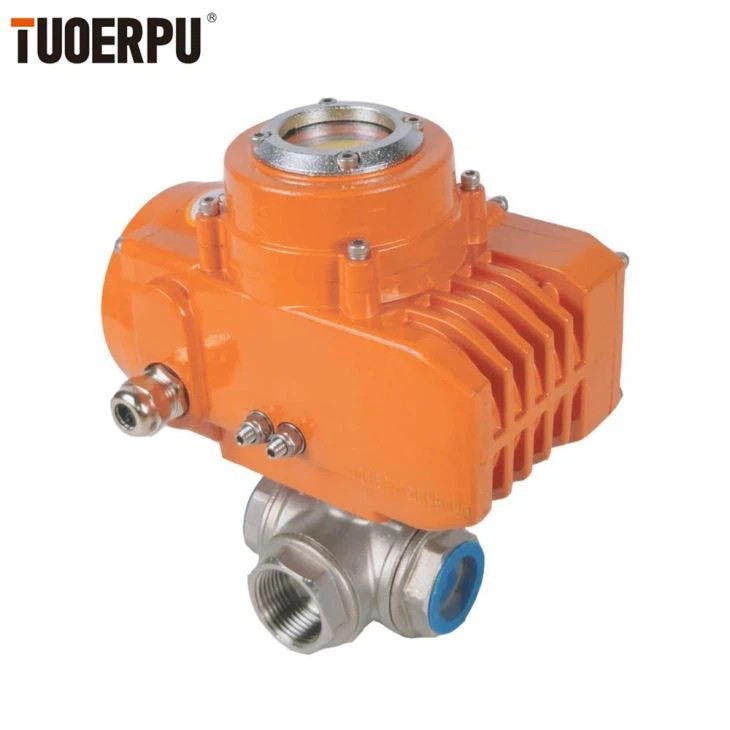

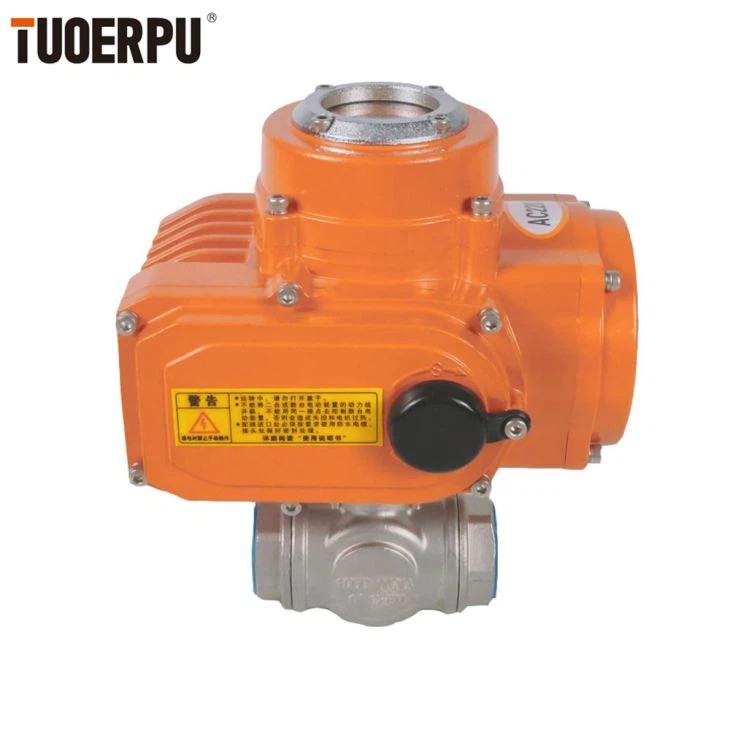

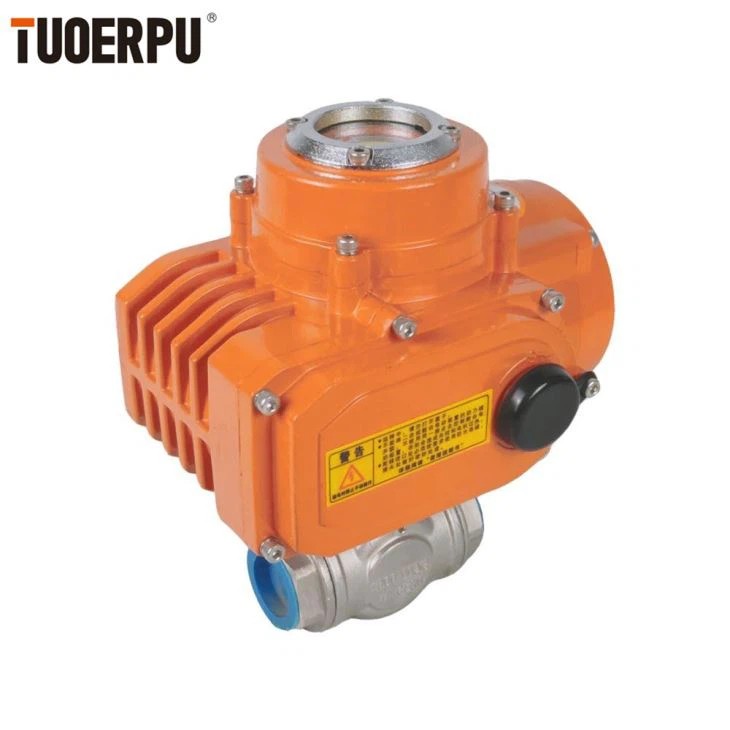

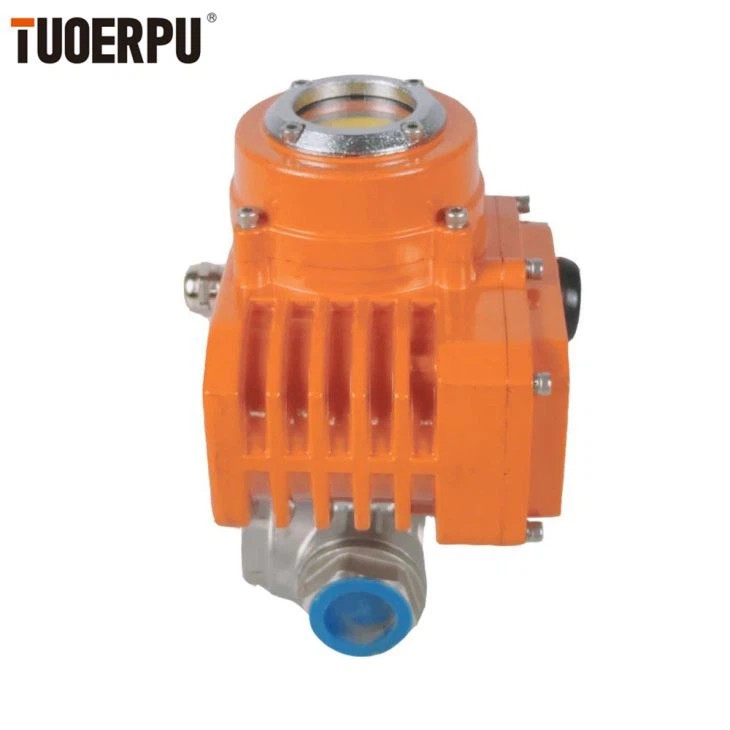

Electric three-way ball valve is a three-way switching type regulating ball valve that can reverse, separate or merge three pipeline media. Generally, it has flange or internal thread connection. According to different flow direction switching requirements, the ball core can be designed as L-type and T-type structures.
Product Parameters
Nominal Diameter DN(mm)
DN15～200mm
Seal filler
PTEF
Nominal Pressure
PN1.6,2.5,4.0,6.4MPa
Rotation angle
0-90°
Connection
Flange,Spiral
Protection class
IP-67
Boby Material
WCB,CF8,CF8M,CF3M
Humidity
≤95%
Ball Material
2Cr13,304,316
Temperature
-25~70℃
