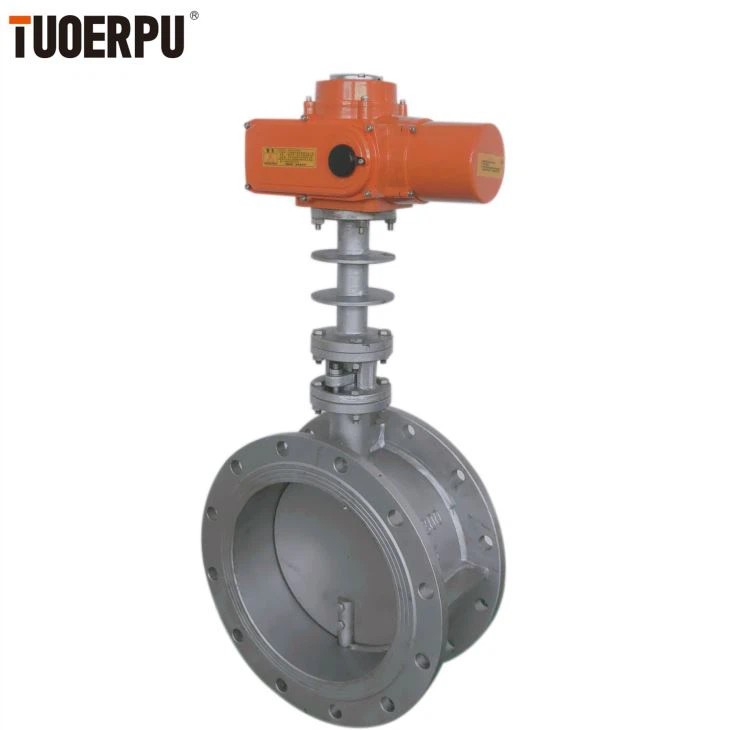

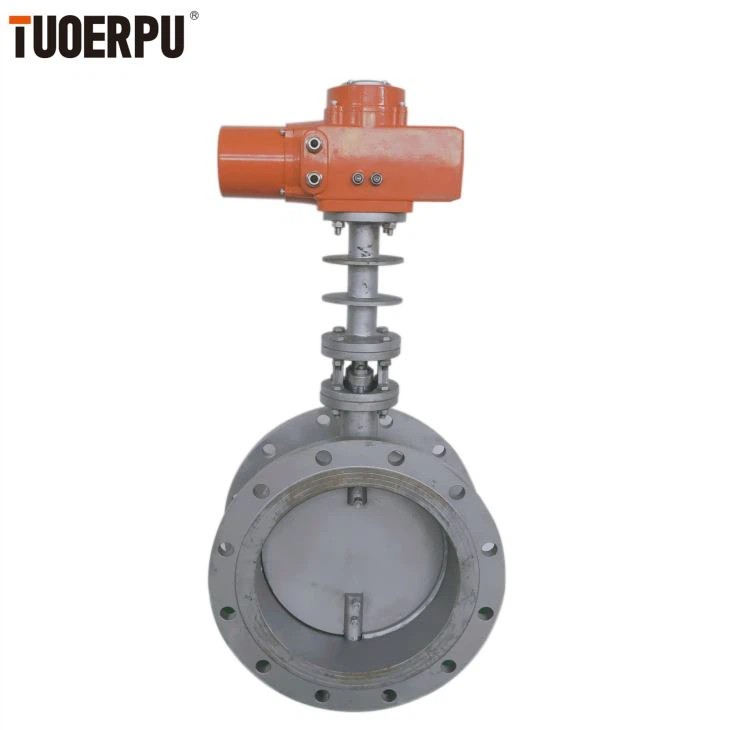

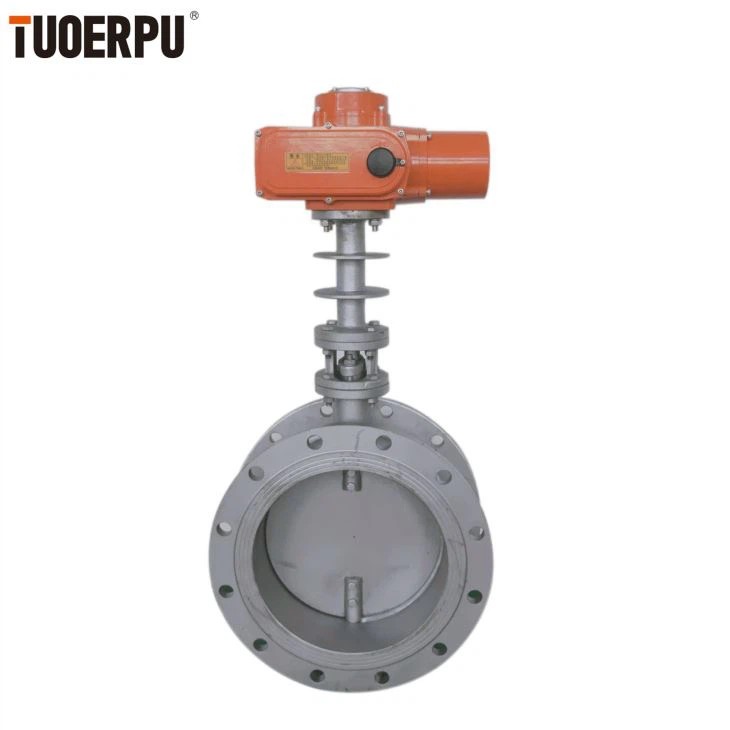

The ventilation butterfly valve is used in the ventilation of chemical industry, building materials, power plant, glass and other industries, the dusty cold air or hot air gas pipeline of environmental protection engineering, as the gas medium to regulate the flow or cut off the pipeline control device. This kind of valve should be installed horizontally in the pipeline.In the process of field use, sudden emergency fault, in the case of external power outage, power reset series electric actuators can be immediately valve command, a program to continue to work to the fully open or close the valve state power reduction effect, power is fully open or close the factory can set according to the requirement, this greatly satisfy the demands of various special pipeline protection, its widely used in power plants, chemical plants, environmental protection equipment, etc.
Produet Parameters

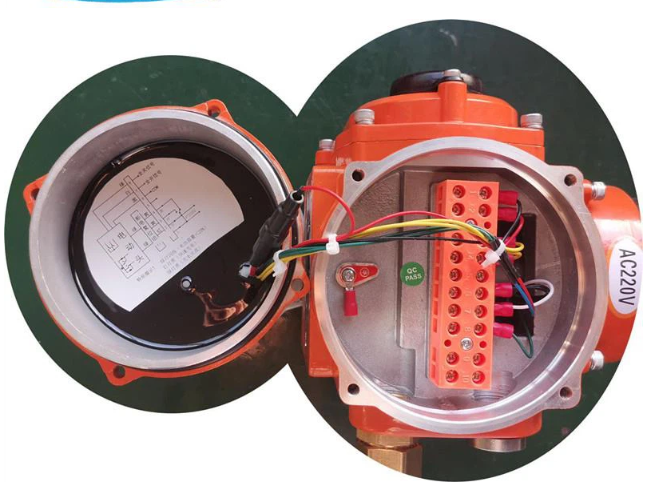

Internal diagram of power off and reset
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |

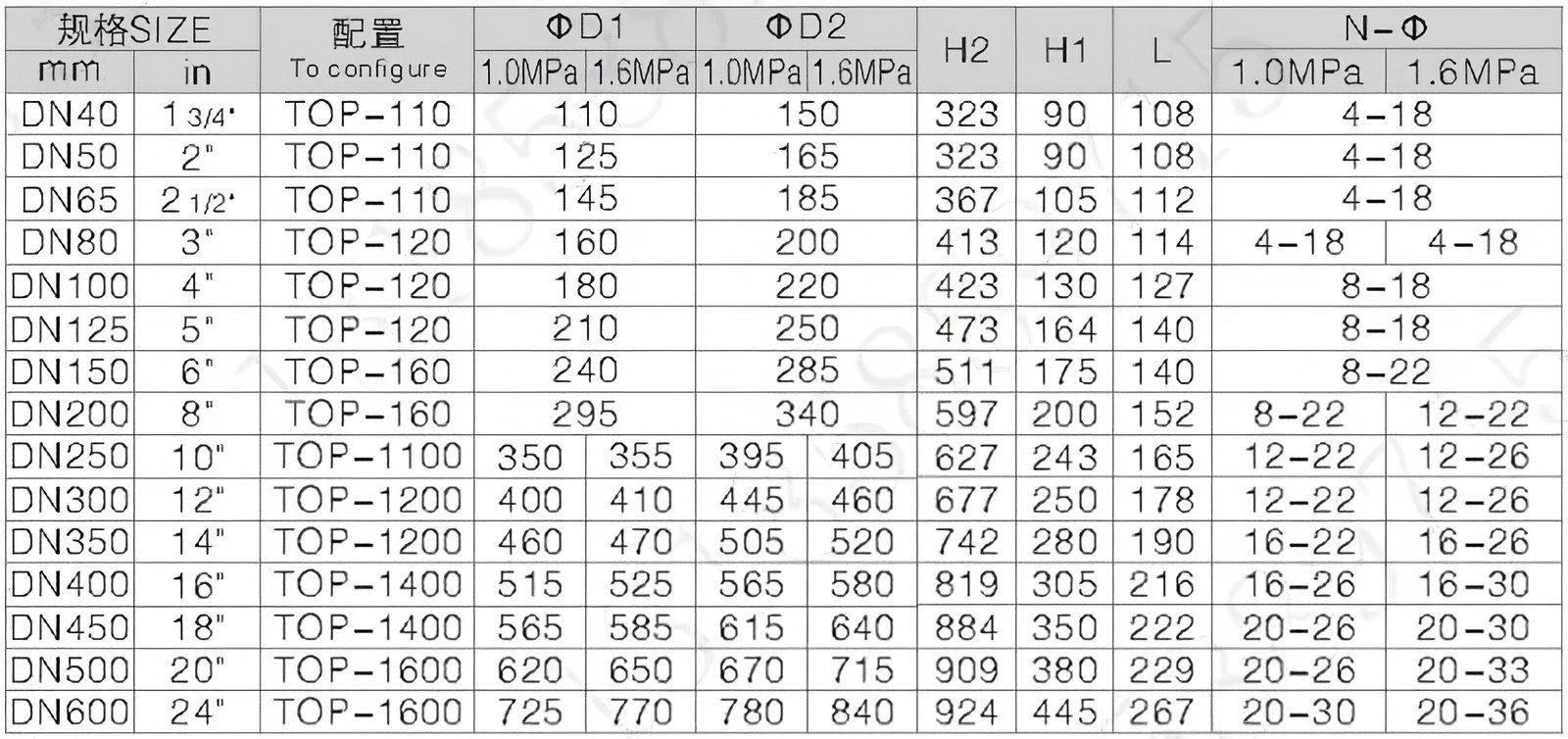

|||
| Nominal diameter DN(mm) | DN25-DN1600 |
| Nominal pressure | PN0.1/0.25/0.6Mpa |
| Rotation angle | 0-70° |
| Effect forms | Electric open or close |
| Flow characteristics | Approximate equal percentage |
| Alowable pressure difference | 0.6Mpa |
| Perfomance index | intrinsic error:+2.5%;retum difference ≤+2.0%;dead zone +3.0% |
| Supply voltage | AC220V AC380V DC24V |
| Modulating type signal range | 4-20mA、0-10V、1-5V |
| On-off type electrical signal | AC220V、AC380V、DC24V;Feedback signal;Active or passive contact signals |
