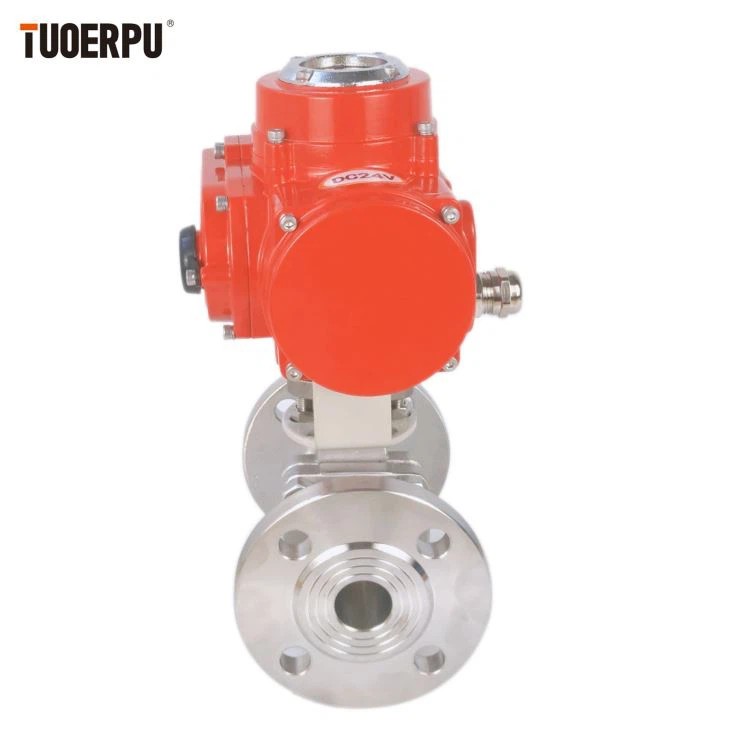

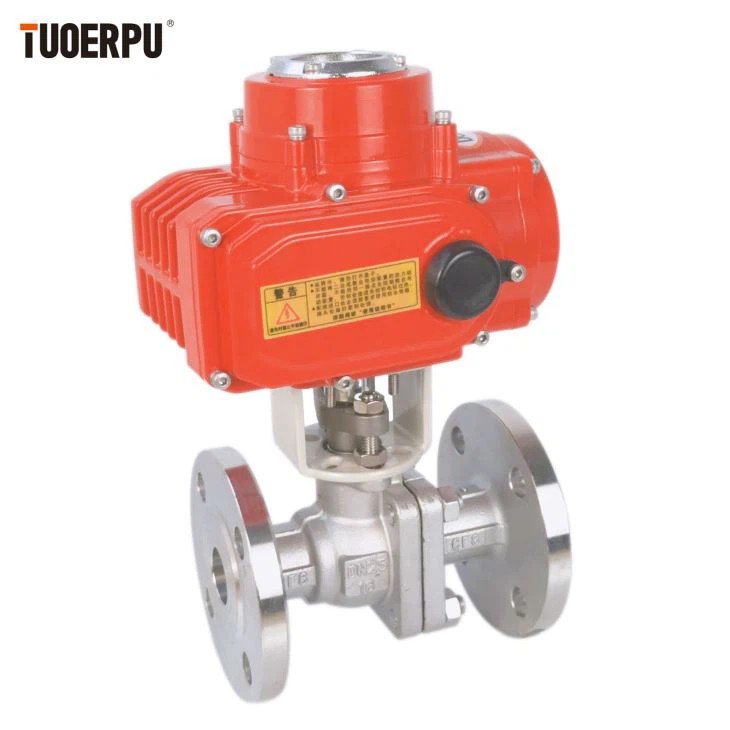

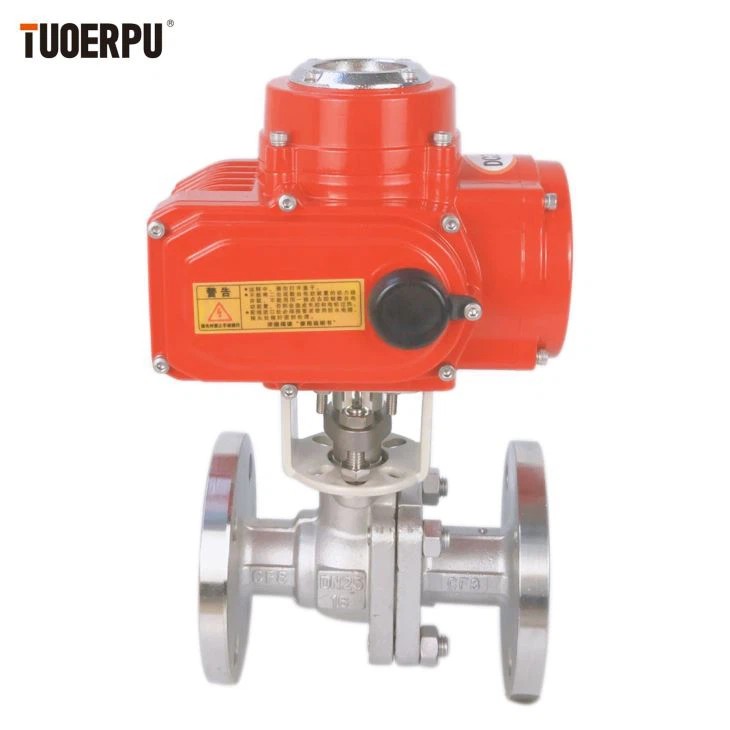

Electric ball valve is composed of an electric actuator and a ball valve. It is a kind of pipeline pressure element for industrial automation process control. It is usually used for remote opening and closing (turning on and off the medium) control of pipeline media. A valve driven by a valve stem and rotating around the axis of the valve stem.
| Nominal Diameter DN(mm) | DN15~DN250 |
| Nominal Pressure | PN1.0/1.6/2.5/4.0/6.4MPa |
| Medium | water,petroleum, nitric acid, acetic acid, viscous liquid, slurry, strong oxidizing |
| Temperature | -40℃~+8℃（PTEE/PPL seal）-40℃~+350℃（metal seal） |
| Leakage | ANSI B16 104 standard |
| Sphere rotation angle | 90° |
| Body | WCB,304,316 |
| Seat | PTFE,PPL,Metal seal |
