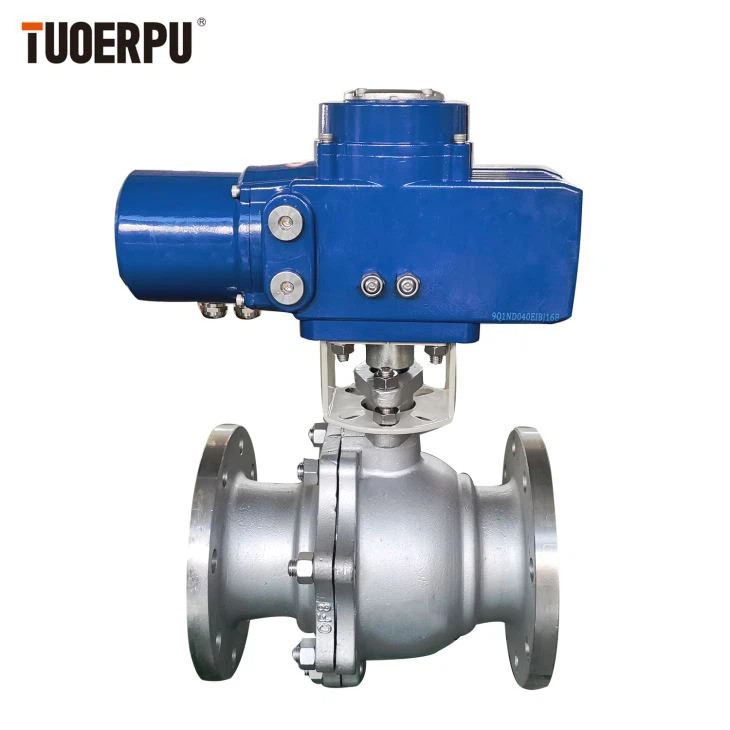

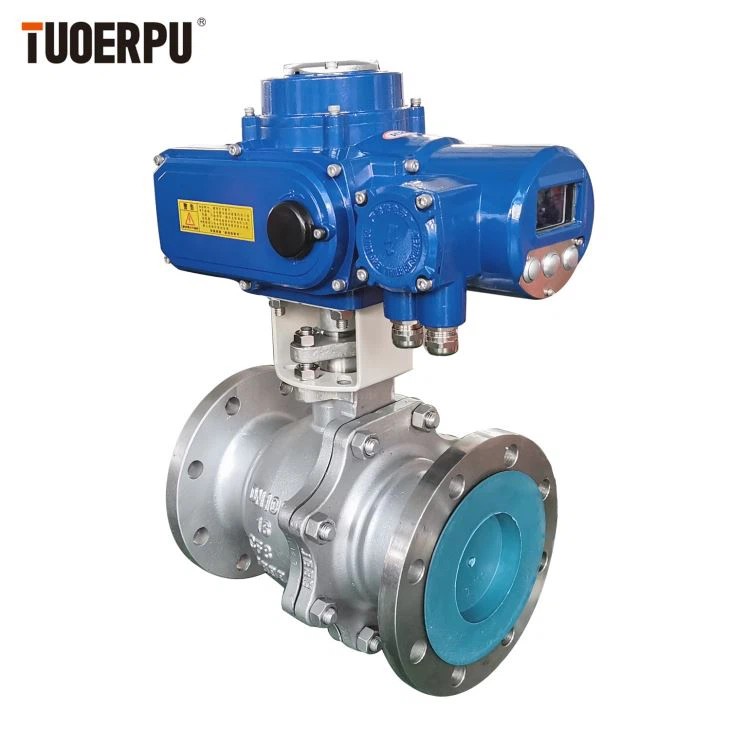

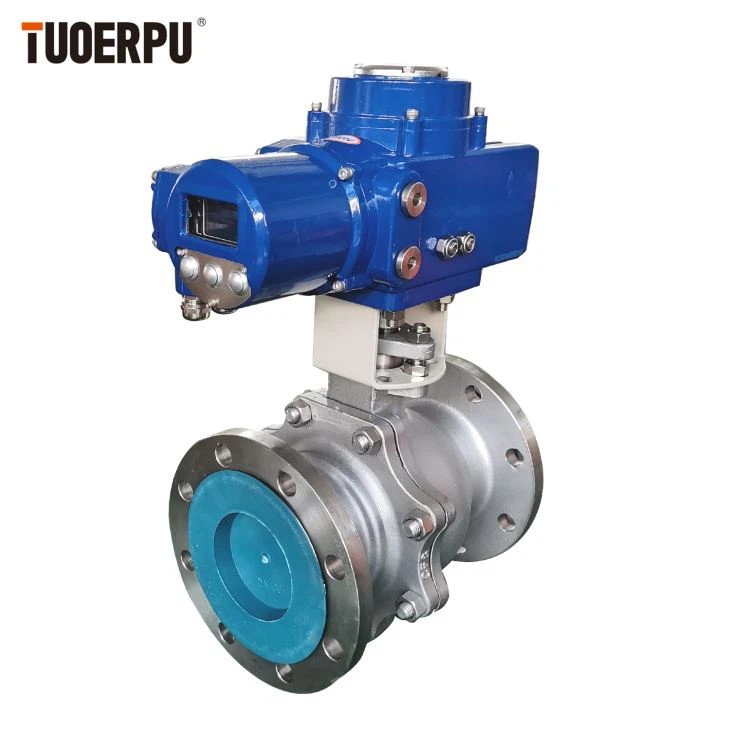

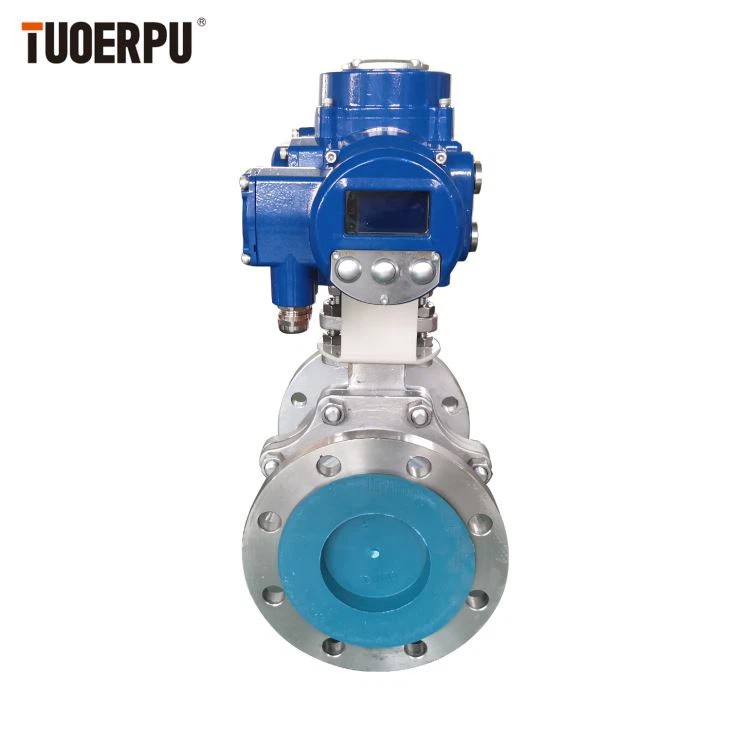

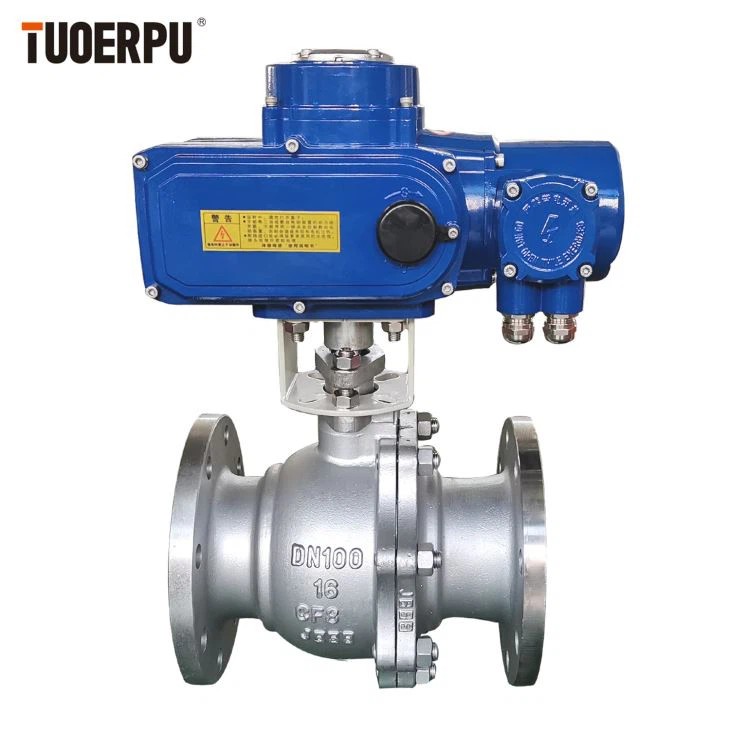

Electric ball valve is mainly used to cut, distribute and change the flow direction of the medium in the pipeline. It only needs to be rotated by 90 degrees and closed with a small torque. The intelligent electric actuator can set parameters, but it must be carried out when the ball valve is stopped, and the valve is actually opened, closed and adjusted, the operating torque is small, and the operation is convenient.
Product Parameters
Nominal Diameter DN(mm)
DN15~DN250
Nominal Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Medium
water,petroleum, nitric acid, acetic acid, viscous liquid, slurry, strong oxidizing
Temperature
-40℃~+8℃（PTEE/PPL seal）-40℃~+350℃（metal seal）
Leakage
ANSI B16 104 standard
Sphere rotation angle
90°
Body
WCB,304,316
Seat
PTFE,PPL,Metal seal
