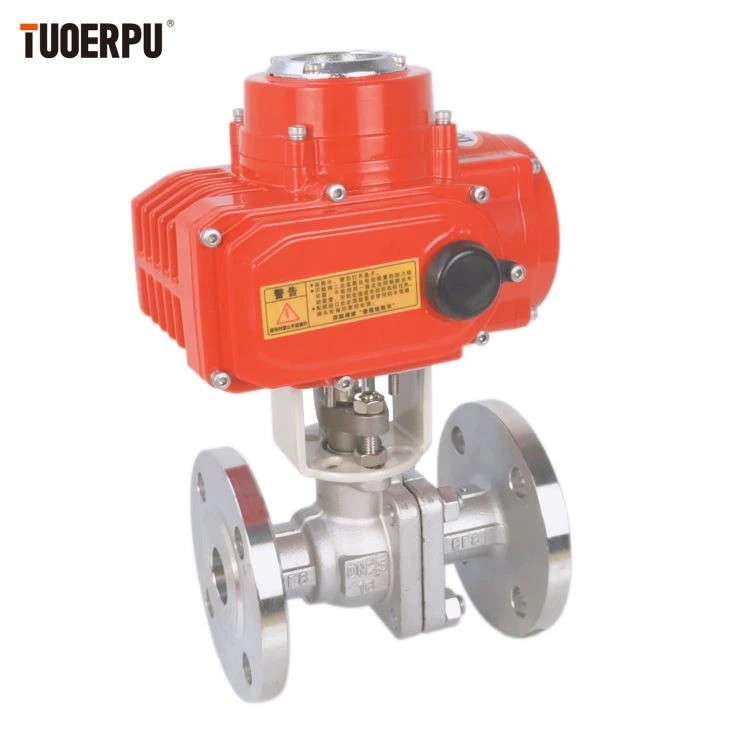

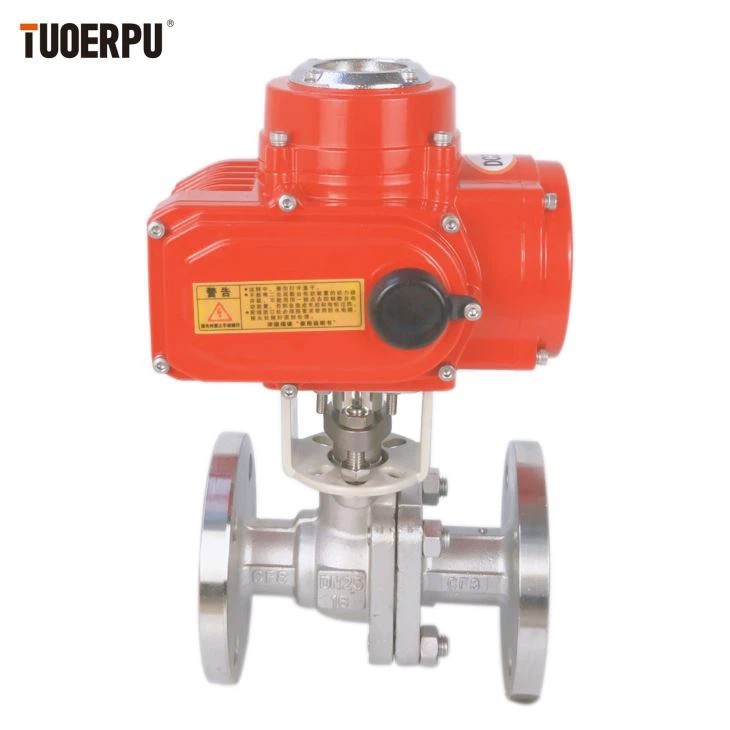

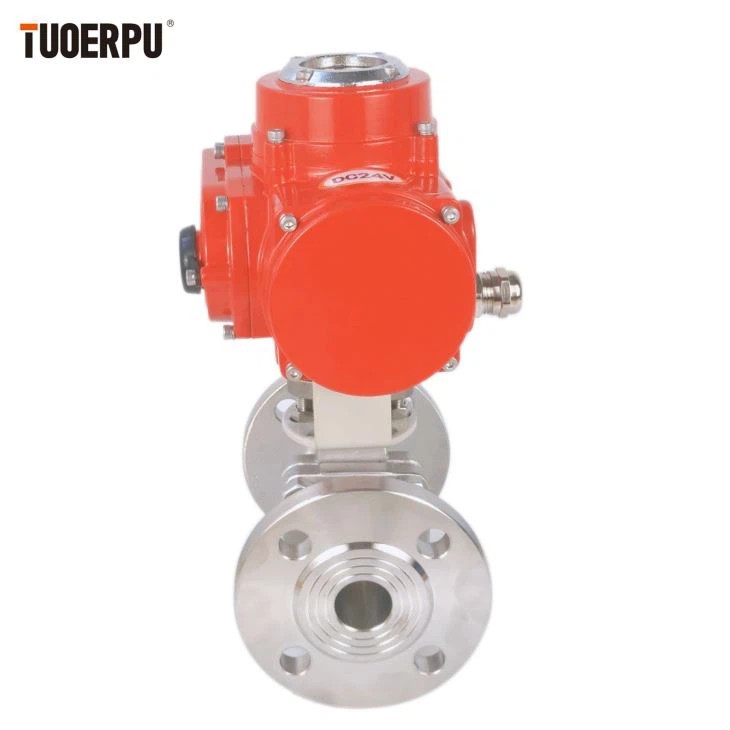

Electric fluorine-lined regulating ball valve, input control signal (4 ~ 20mADC or 1 ~ 5VDC) and single-phase power can control the operation, simple structure, light weight, small operating torque, rapid opening and closing, flexible action, large flow capacity, adjustment accuracy Higher Features.
Product Parameters
Nominal diameter
DN50-DN800
Nominal pressure
PN 1.0,1.6Mpa
Appicable medum
tresh water,sea water,food,natural gas,alcohol,
salt,acid,alkali,oil,steam,air,etc
Applicable temperature
20℃~150℃
Materials
Body
ductle ron,cast steel,gray castiron,stainless steel
Plate
staines seel CF8,stainess steel CF8M,nickel and phosphorus plating
on ducile iron,ducile iron coated with nyon,aluminium bronze
Stem
stanless stel,45#carbon steel
Seat
EPDM,NBR,PTFE,Von,SEP
