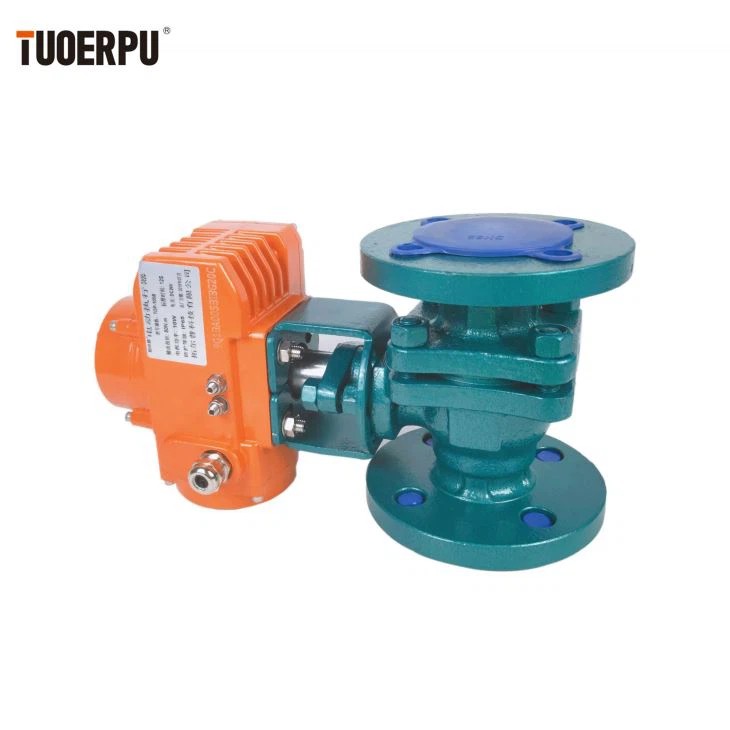

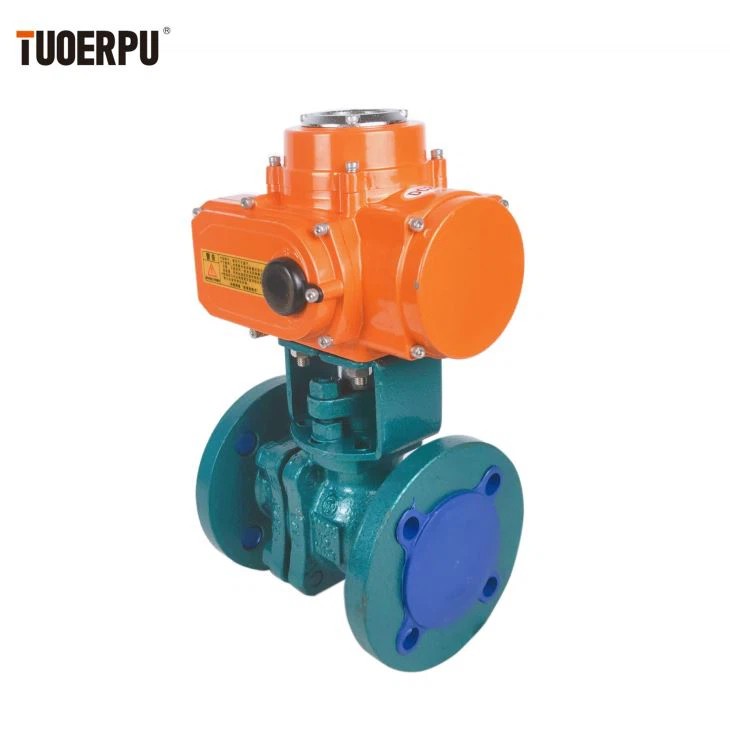

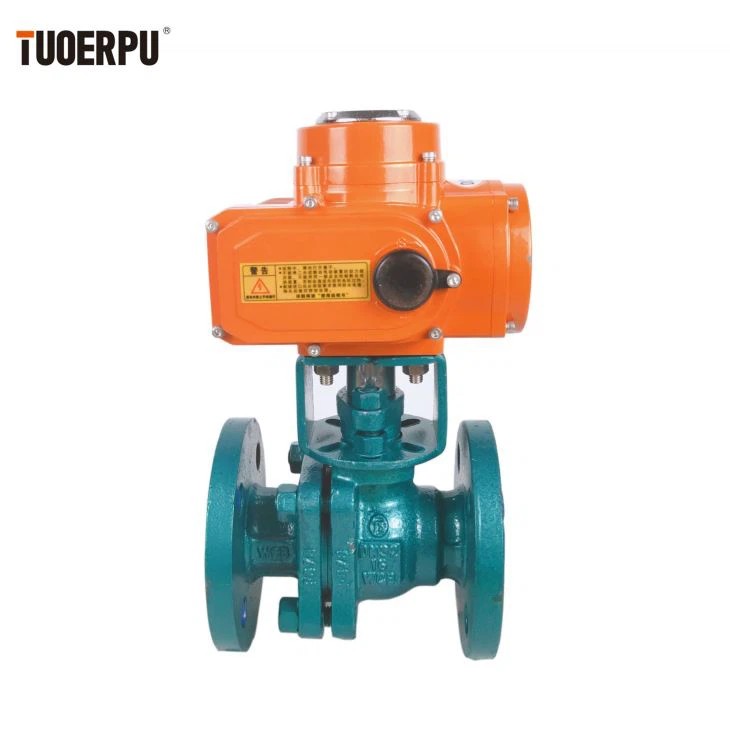

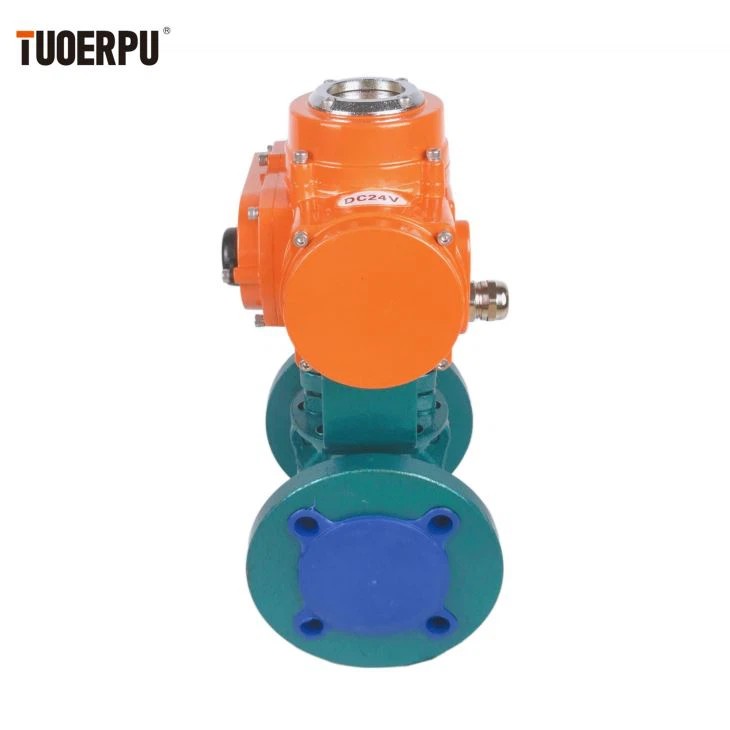

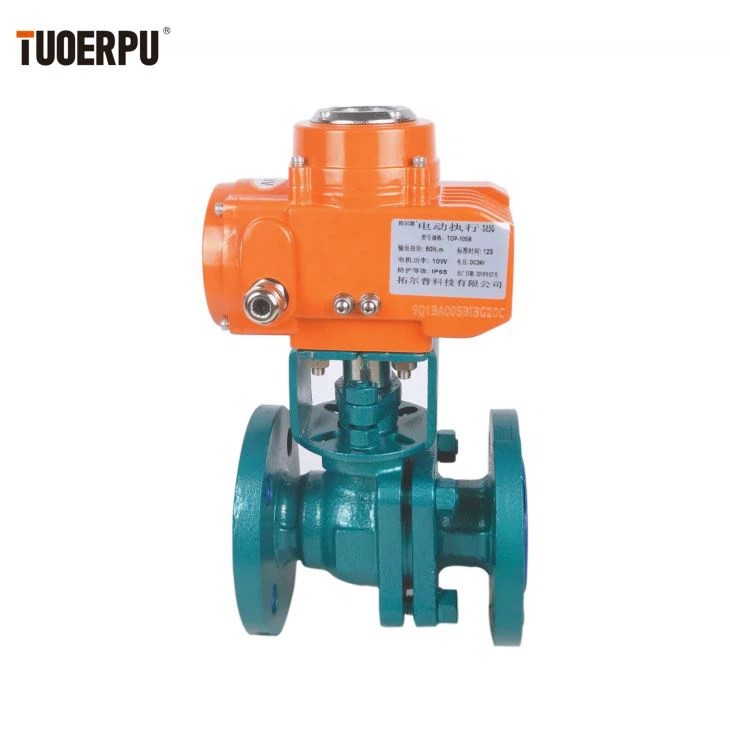

Electric flange ball valve is matched with TOP series electric actuators. The ordinary electric actuator can reach IP68. The time can be set to fast open or slow open. We can set it according to the time required by the customer. Digital display valve position, ball valve stem sealing performance is reliable, because the valve stem only rotates and does not perform lifting movements, the packing seal of the valve stem is not easy to break, and the sealing ability increases with the increase of the medium pressure.

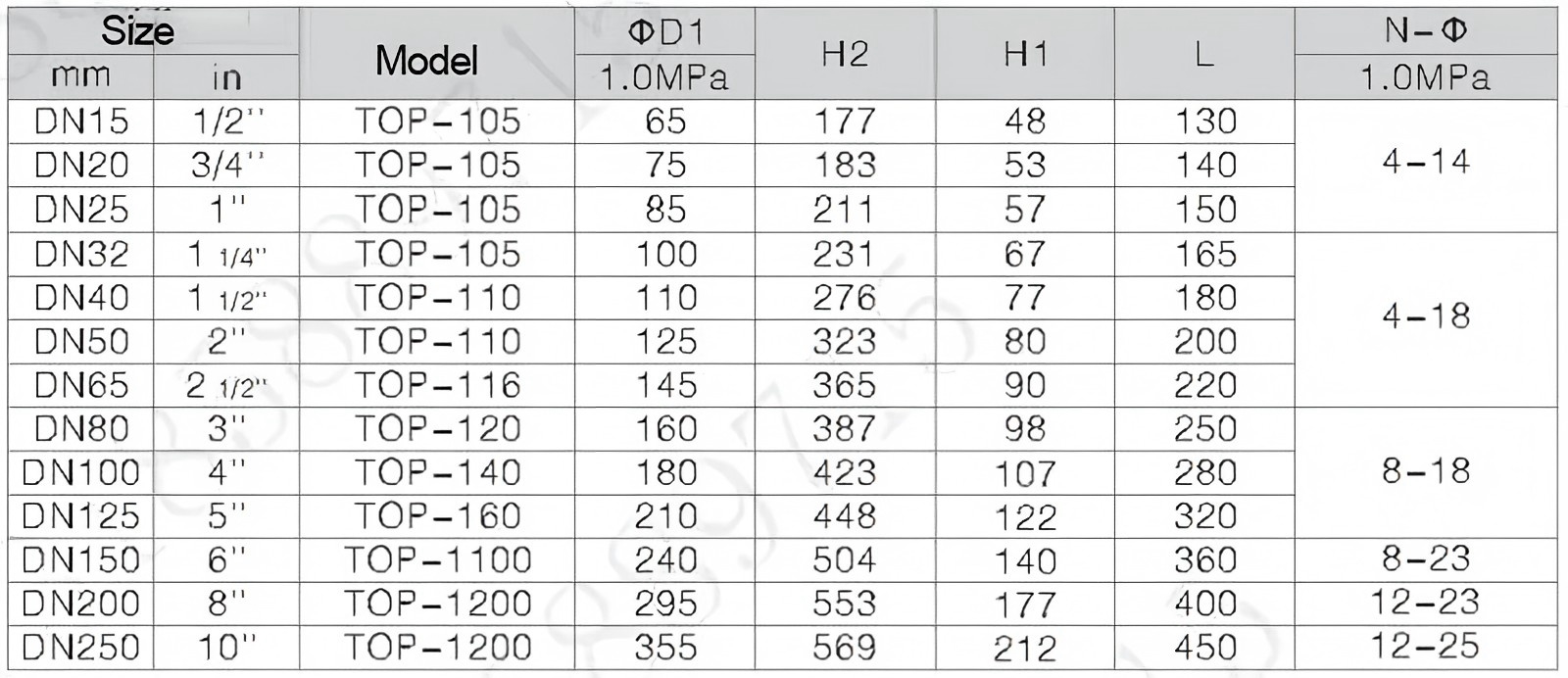

Product Parameters
Nominal Diameter DN(mm)
DN15~DN250
Nominal Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Medium
water,petroleum, nitric acid, acetic acid, viscous liquid, slurry, strong oxidizing
Temperature
-40℃~+8℃（PTEE/PPL seal）-40℃~+350℃（metal seal）
Leakage
ANSI B16 104 standard
Sphere rotation angle
90°
Body
WCB,304,316
Seat
PTFE,PPL,Metal seal
