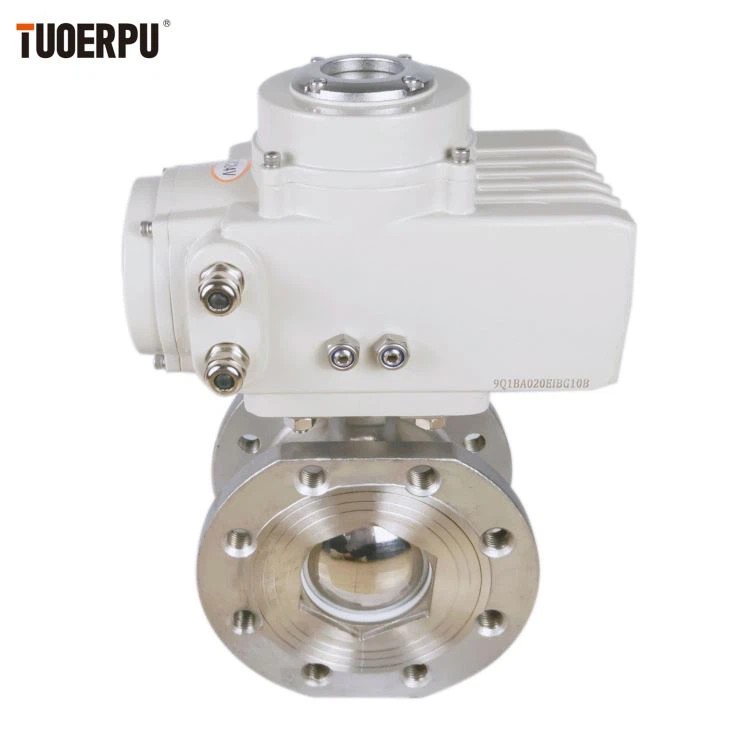

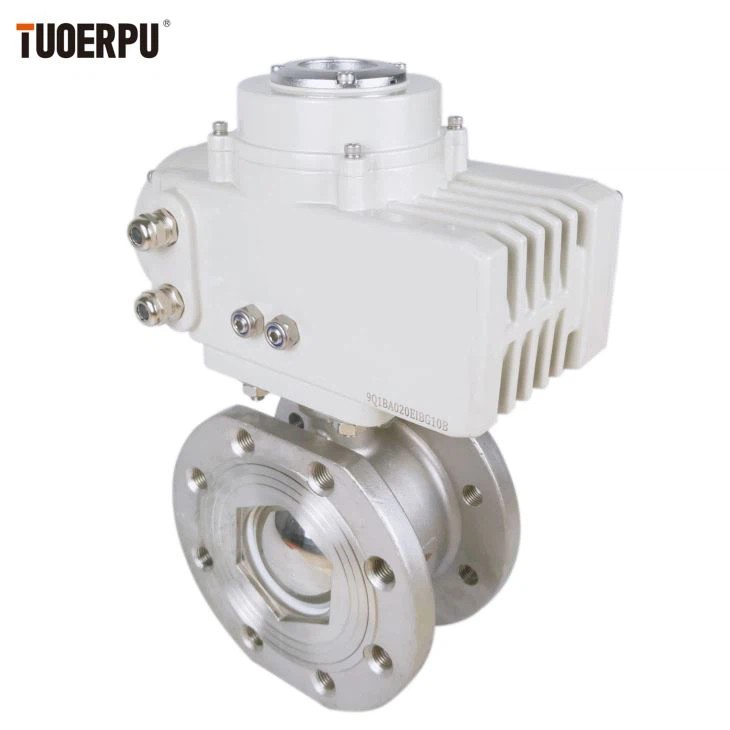

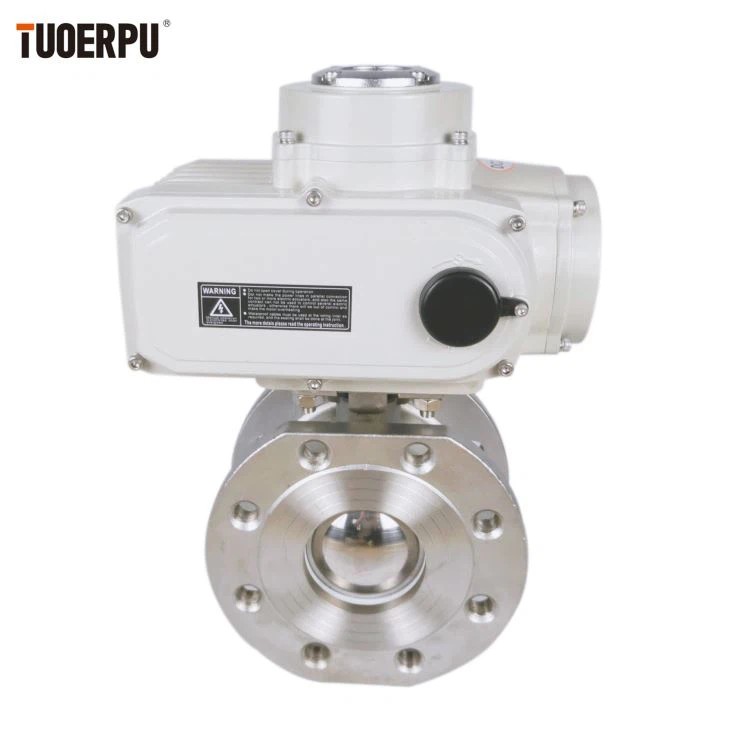

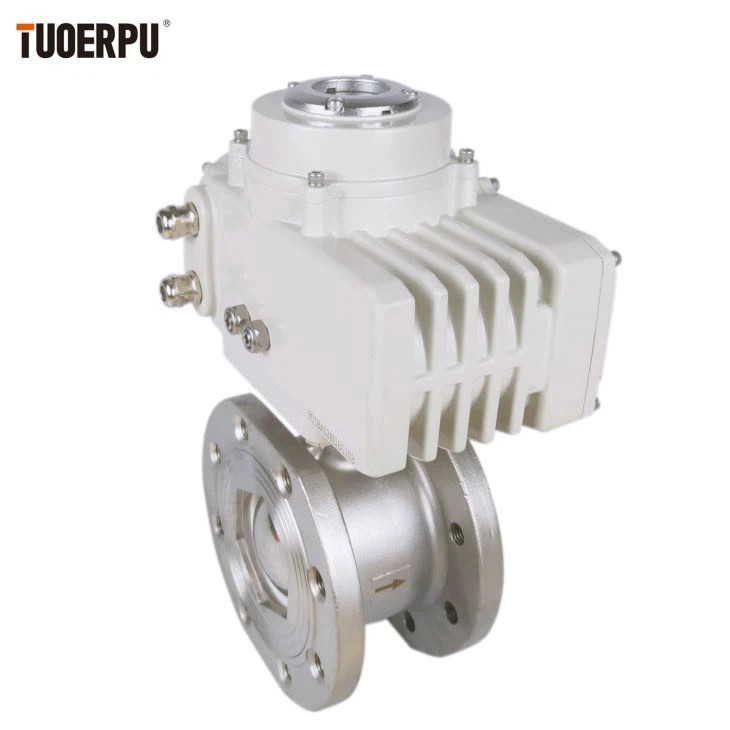

Electric V-type ball valve is matched with the TOP actuator. The electric V-type ball valve can be closed tightly with only a 90-degree operation and a small torque. The completely equal valve body cavity provides a low resistance, straight flow channel for the medium. That is, when the ball is rotated 90 degrees, the spherical surface should be present at the entrance and exit, so as to intercept the flow.
Produet Parameters
Nominal diameter
DN15-DN250
Nominal pressure
PN 1.6-6.4Mpa
Test pressure
Strength test
PN 2.4-9.6Mpa
Seal test
PN1.76-7.0Mpa
Applicable medium
water,steam,oil
nitrose
acetic acid
Applicable temperature
-28℃~400℃
-28℃~500℃
Connection type
butt clamp,flange(JB79-59)
Material code
C
P
R
Materials
Body
WCB
304
316
Plate
WCB
304
316
Stem
stainless steel
seal ring
PTFE,stainless steel,hard alloy
Packing
PTFE,flexible graphite
