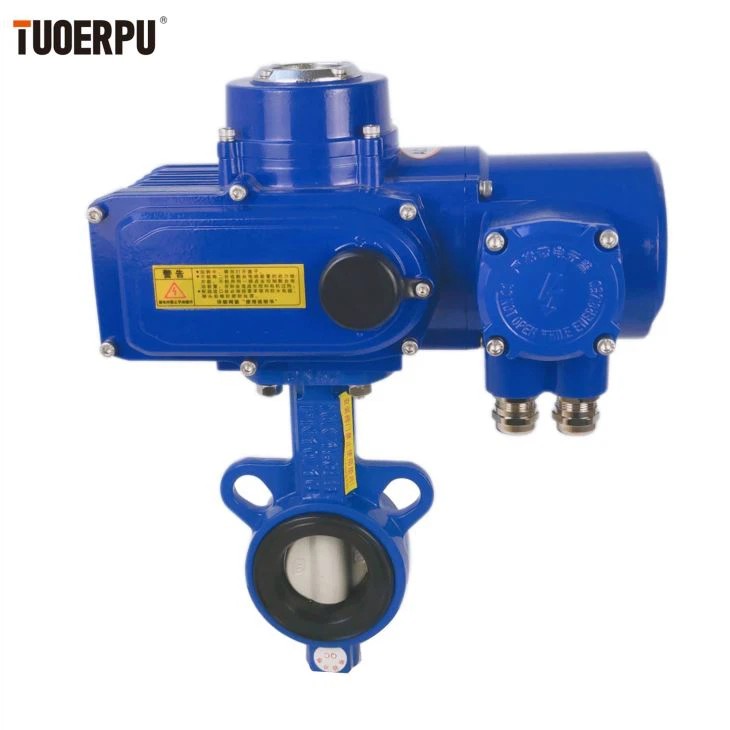

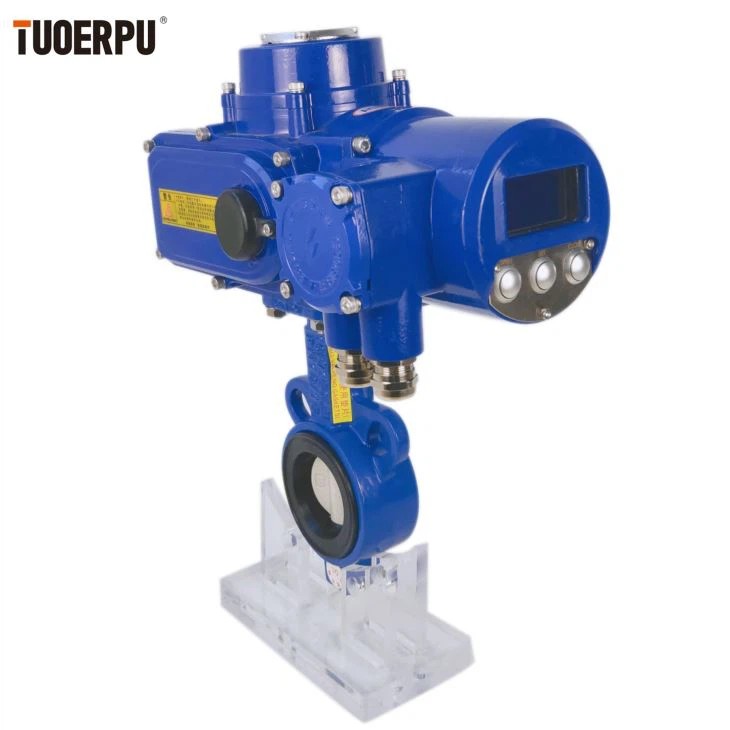

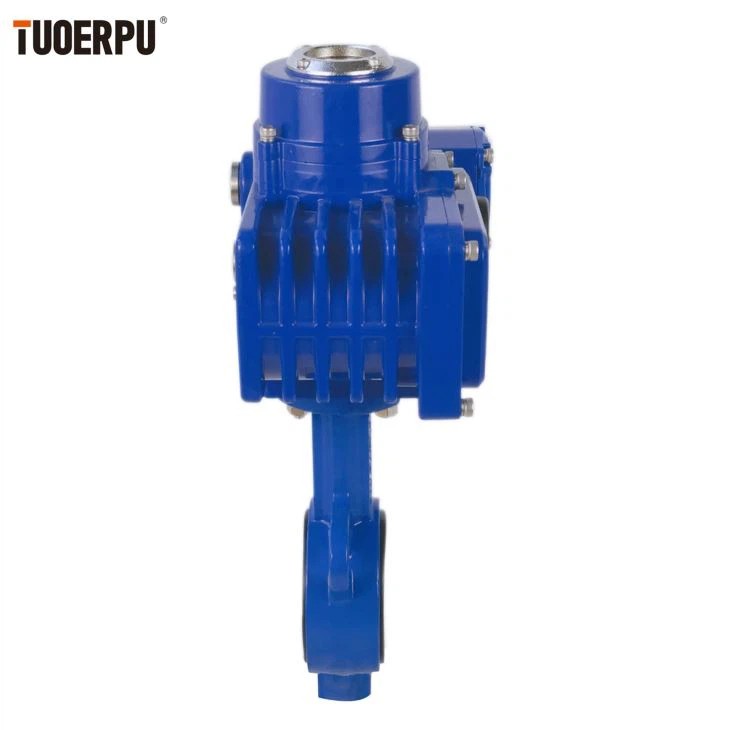

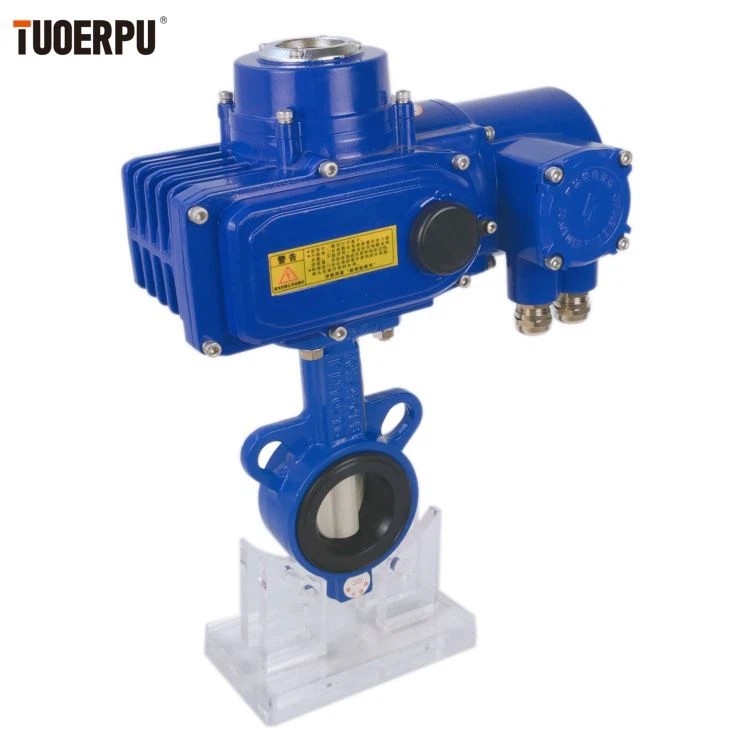

The electric butterfly valve can transport mud with minimal liquid accumulation at the mouth of the pipe. Good sealing at low pressures. Good regulation performance. Intelligent electric actuators contain intelligent modules for remote control.

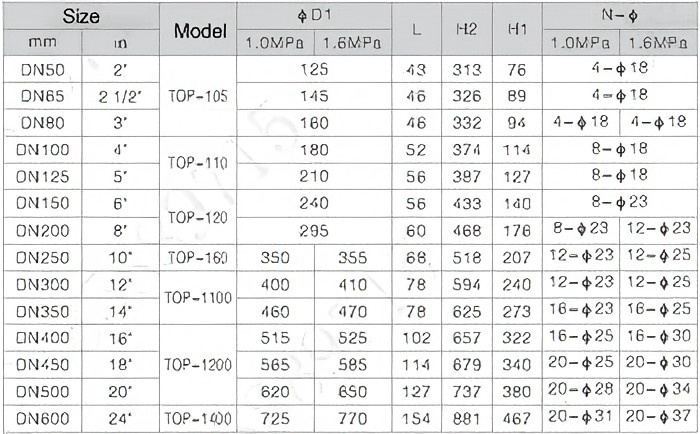

Product Parameters
Nominal diameter
DN50-DN800
Nominal pressure
PN 1.0,1.6Mpa
Appicable medum
tresh water,sea water,food,natural gas,alcohol,
salt,acid,alkali,oil,steam,air,etc
Applicable temperature
20℃~150℃
Materials
Body
ductle ron,cast steel,gray castiron,stainless steel
Plate
staines seel CF8,stainess steel CF8M,nickel and phosphorus plating
on ducile iron,ducile iron coated with nyon,aluminium bronze
Stem
stanless stel,45#carbon steel
Seat
EPDM,NBR,PTFE,Von,SEP
