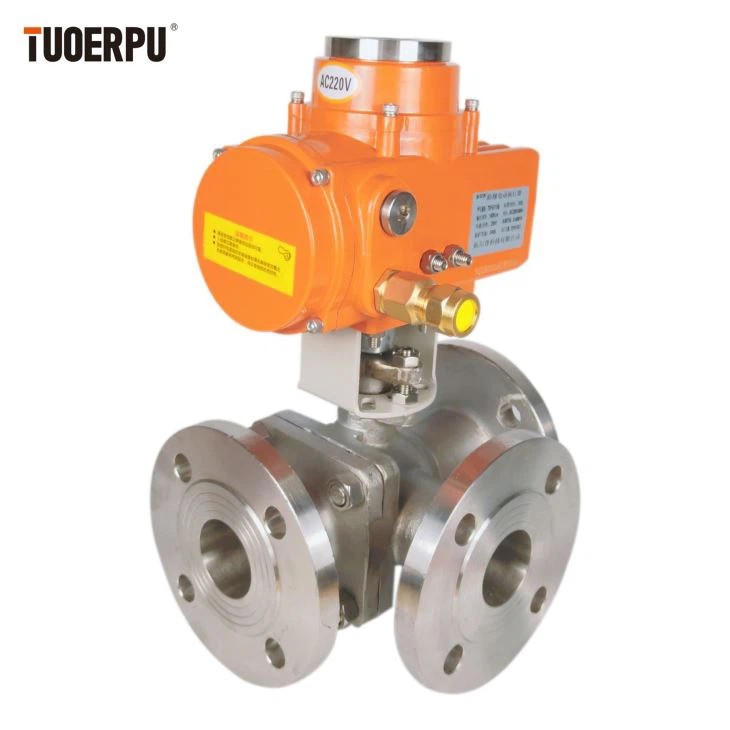

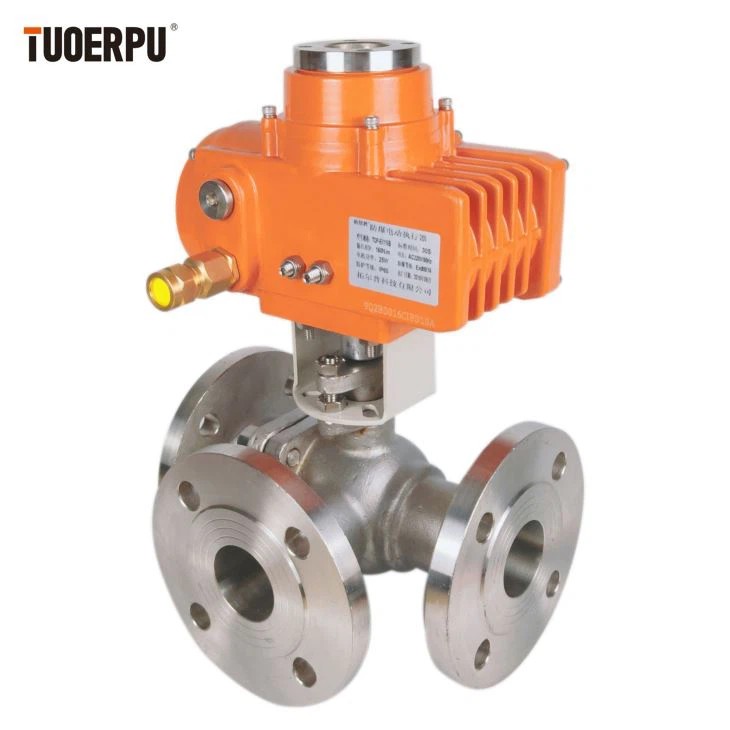

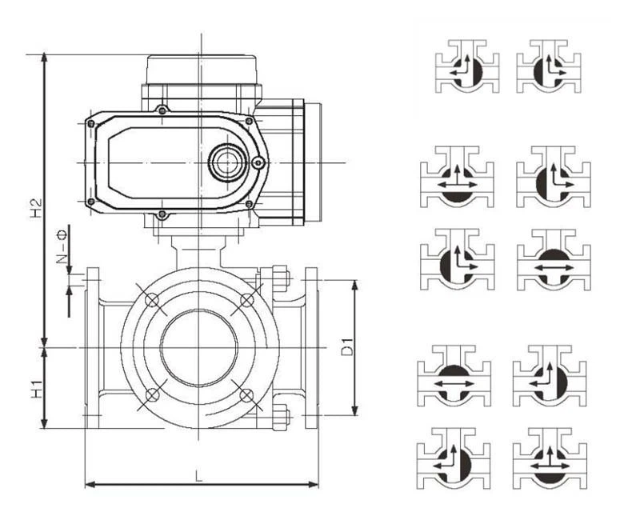

Electric three-way ball valve is divided into L-type and T-type. The flow direction of the medium is shown in the figure below. L-type three-way ball valve is suitable for switching the flow direction of the medium, which can connect two channels that are perpendicular to each other: T-type three-way ball valve is suitable for the flow division, confluence, or flow direction of medium. Two of them are connected.

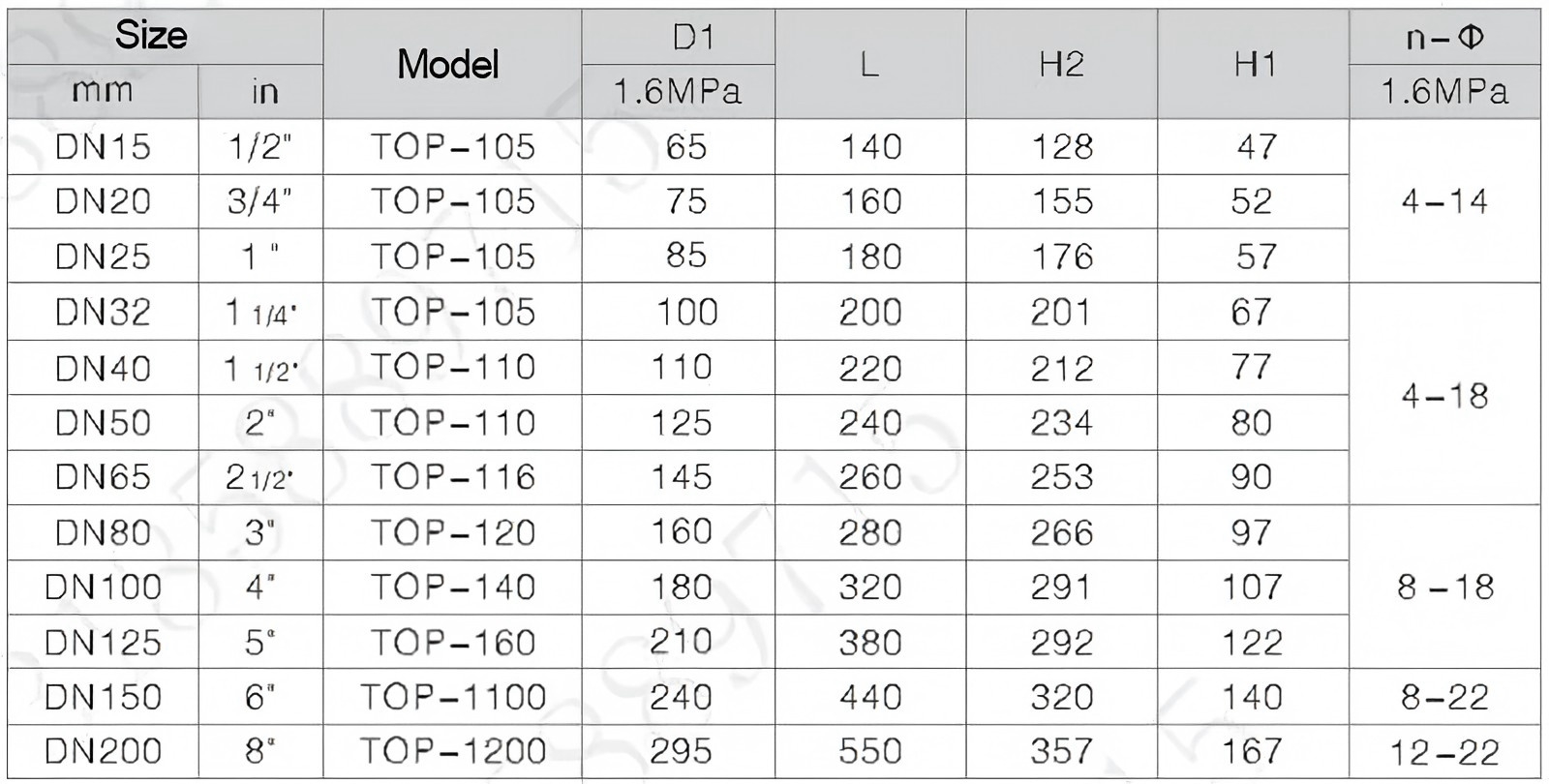

Nominal Diameter
DN(mm)
DN15~200mm
Seal filler
PTEF
Nominal Pressure
PN1.6,2.5,4.0,6.4MPa
Rotation angle
0-90°
Connection
Flange,Spiral
Protection class
IP-67
Boby Material
WCB,CF8,CF8M,CF3M
Humidity
≤95%
Ball Material
2Cr13,304,316
Temperature
-25~70℃
