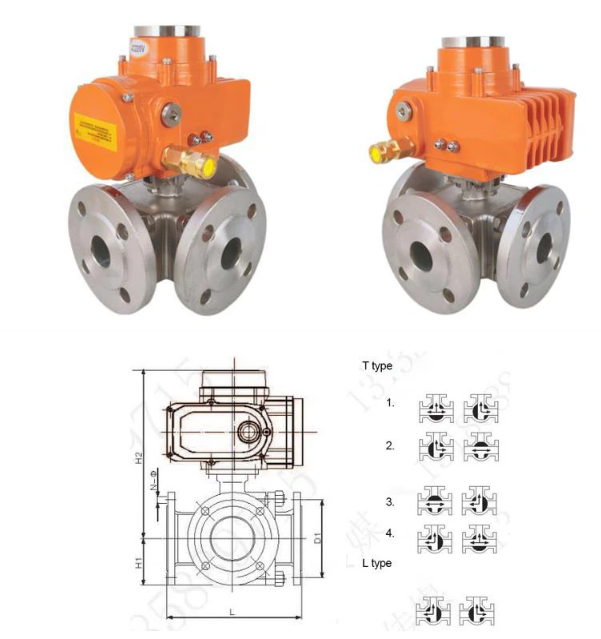

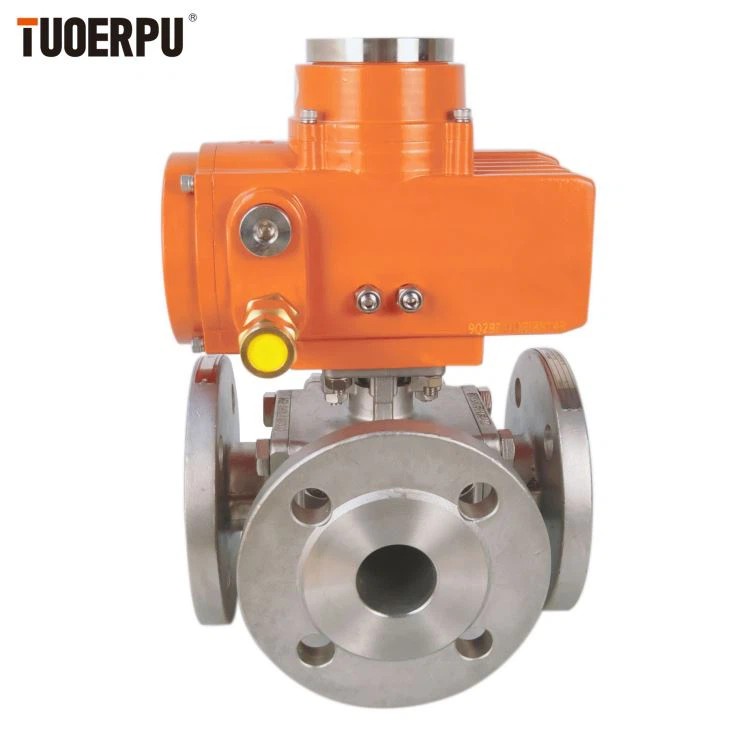

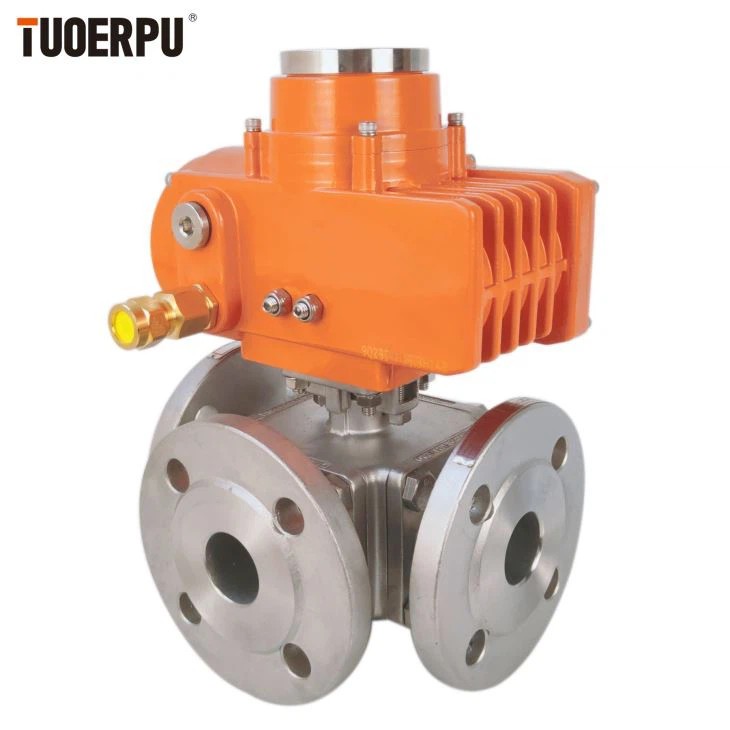

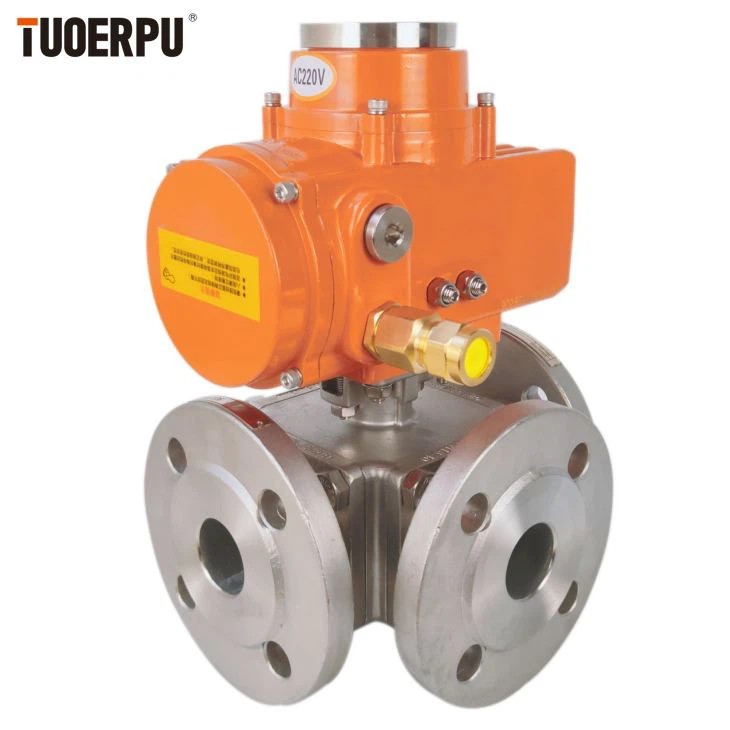

The electric three-way ball valve is powered by AC220V.AV380.DC24V power supply voltage, and receives the (4-20mA) current or voltage information input by the industrial automation instrument control system to control the operation and realize the proportional adjustment or two-position switching of the process medium.

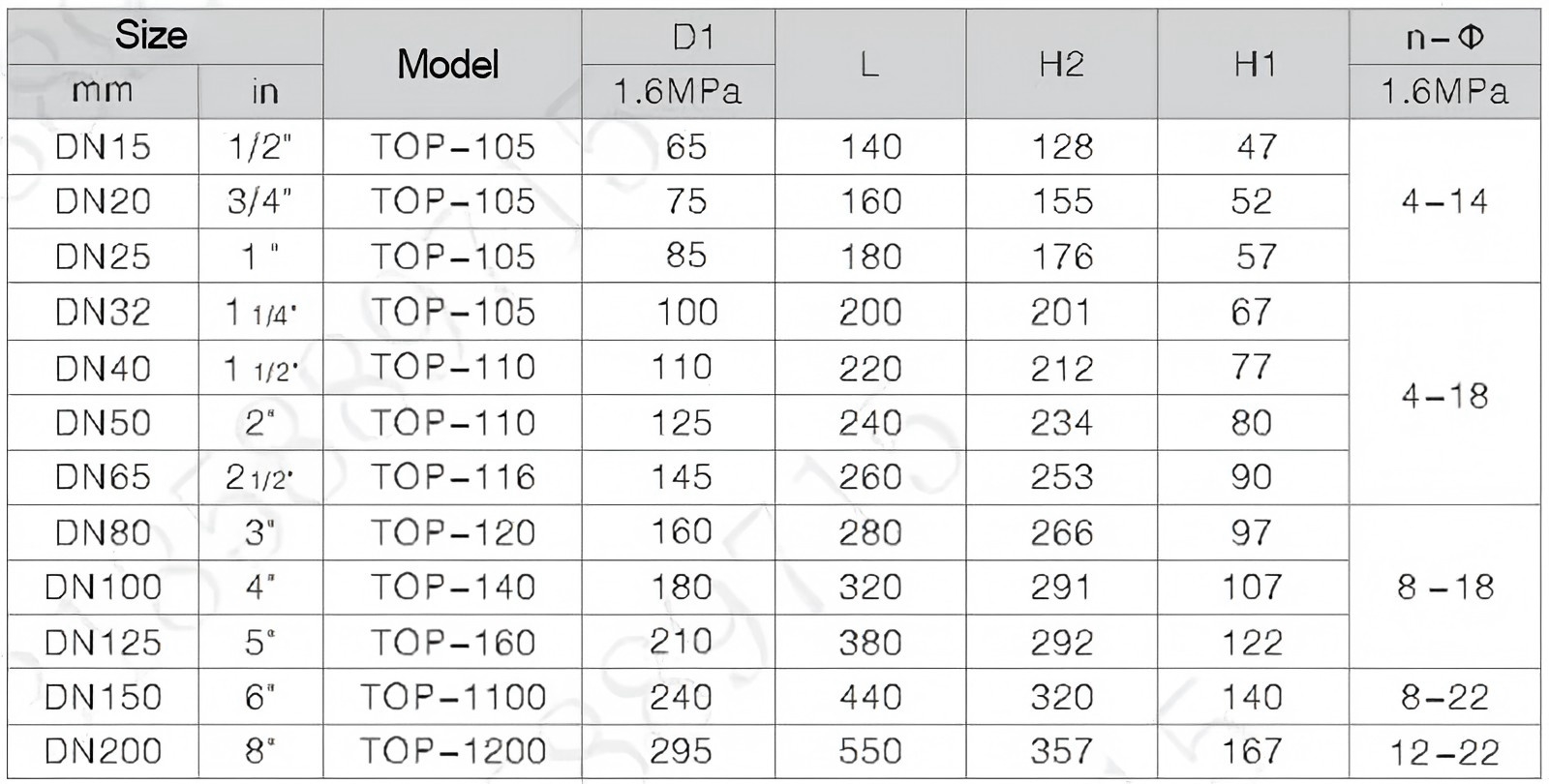

Product Parameters
Nominal Diameter
DN(mm)
DN15~200mm
Seal filler
PTEF
Nominal Pressure
PN1.6,2.5,4.0,6.4MPa
Rotation angle
0-90°
Connection
Flange,Spiral
Protection class
IP-67
Boby Material
WCB,CF8,CF8M,CF3M
Humidity
≤95%
Ball Material
2Cr13,304,316
Temperature
-25~70℃
