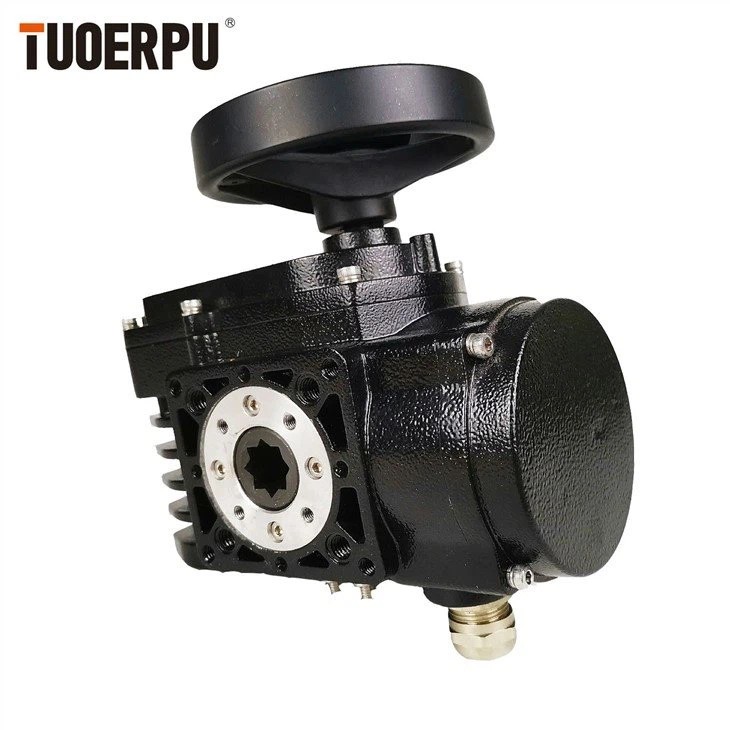

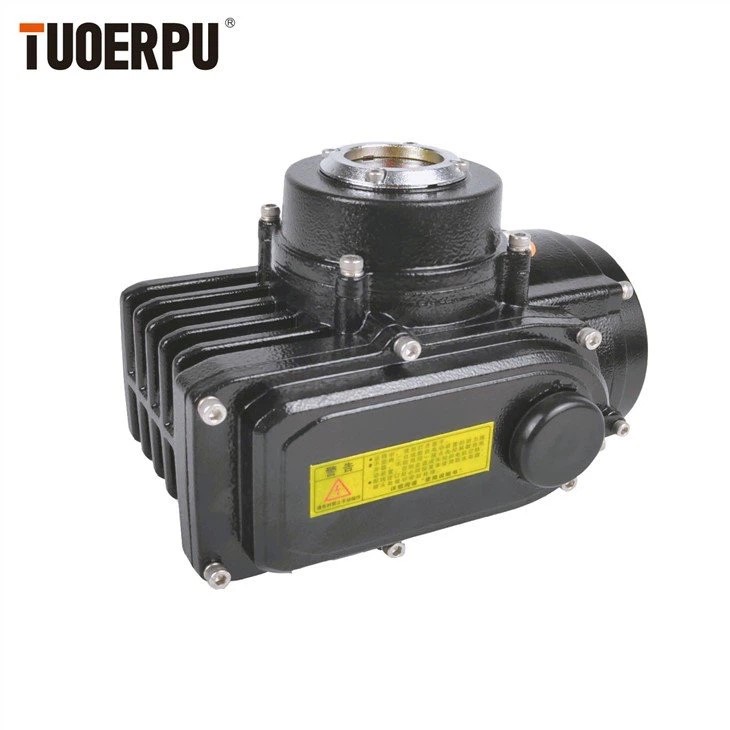

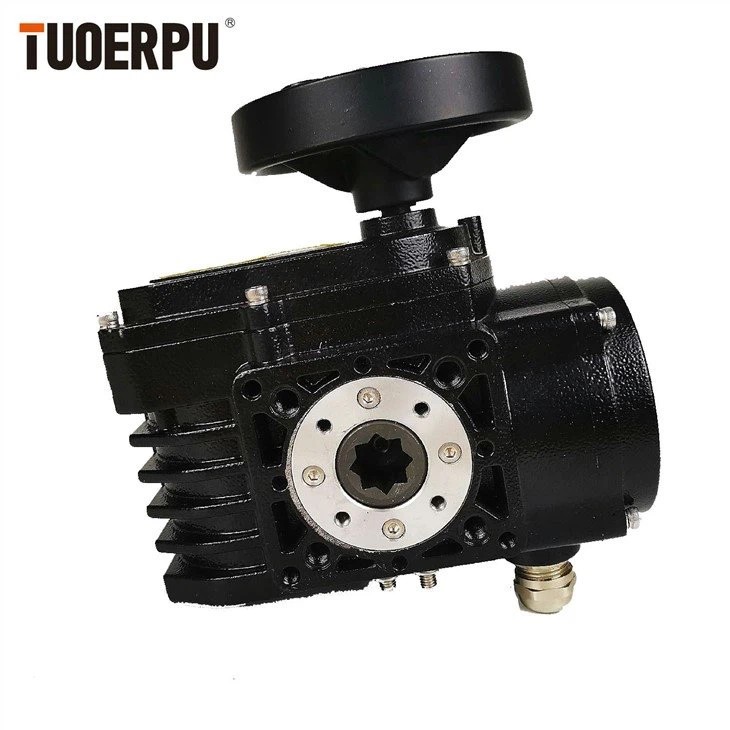

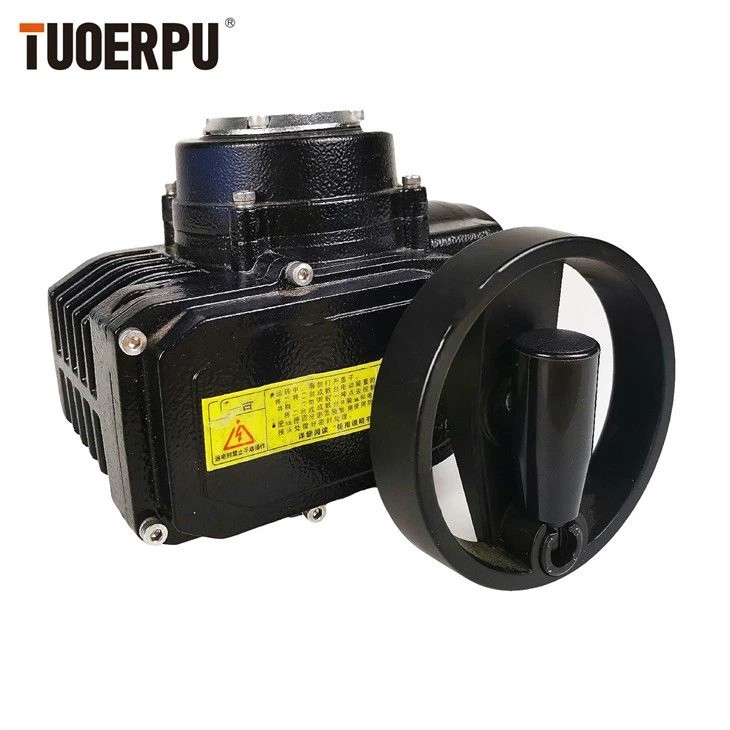

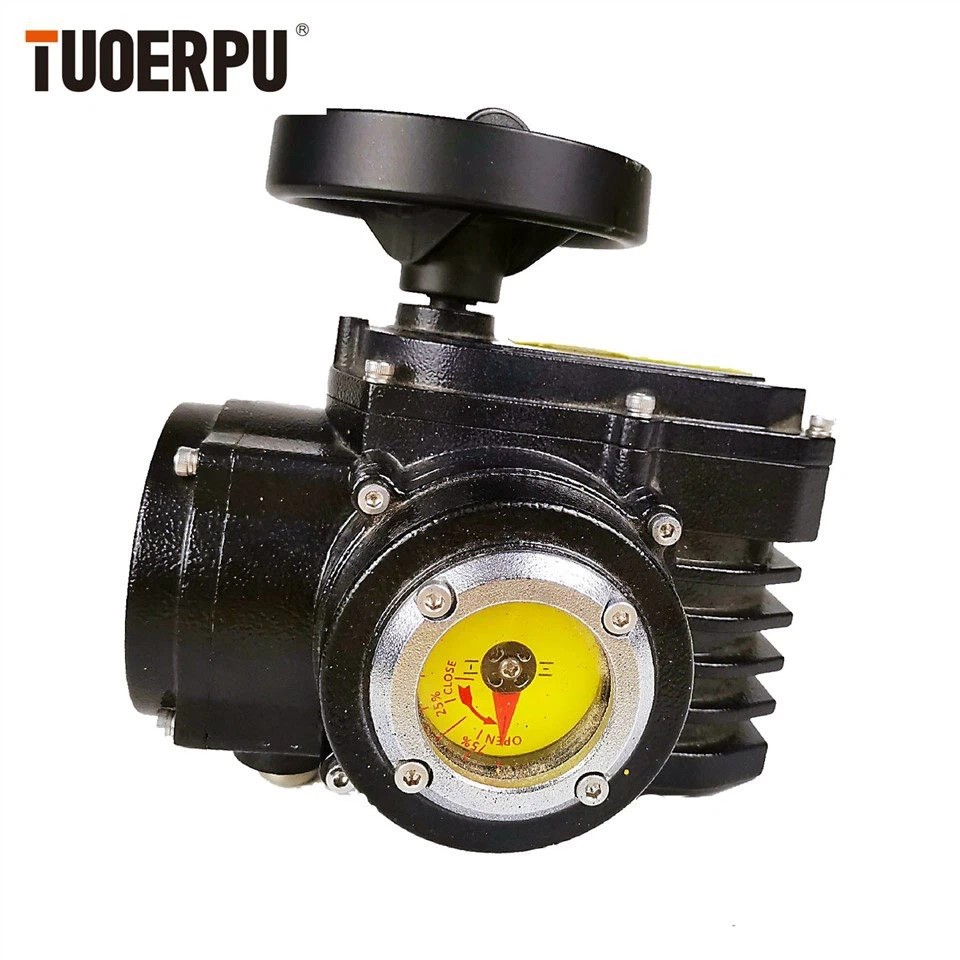

Top electric actuator Is the valve to achieve open, close or adjust the control of the driving equipment, suitable for butterfly valve, ball valve, plug valve and damper to do 90 degrees of rotation of the valve. This series of electric devices can be controlled remotely or operated on site. Widely used in electric power, metallurgy, petroleum, chemical, food, textile, paper making, pharmaceutical, water plant and sewage treatment and other industries.
Product Parameters
Model
Standard
Running
Tine/Torque
Optional
Running
Tine/Torque
Rotation
Angle
Range
Voltage
Type
TOP-105
25s/50Nm
4s/20Nm
10s/30Nn
0-
90°adjust
able
DC 24V
AC 24V
AC 110V
AC 220V
AC 380V
TOP-110
25S/100Nn
15s/50Nn
TOP-116
25s/160Nn
15s/80Nn
TOP-120
25s/200N
15s/100Nn
TOP-140
25s/400Nn
15s/200Nn
TOP-160
25s/600Nn
15s/300Nn
TOP-1100
50s/1000Nn
25s/500Nn
TOP-1200
50s/2000Nn
25s/1000Nn
Insulation
Resistance
100MΩ/500VDC
Withstand Voltage
Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68)
Installation
Location
360°install at any angle
Electrical
Interface
2-G 1/2 metal connector,corresponding metal cable
connector shall be added according to the selected
cable during use
Anbient Tenperature
-20℃-60℃
Function Optional
Over torque protection,Dehumidification heater,
Passive contact svitch,Operating hand wheel
