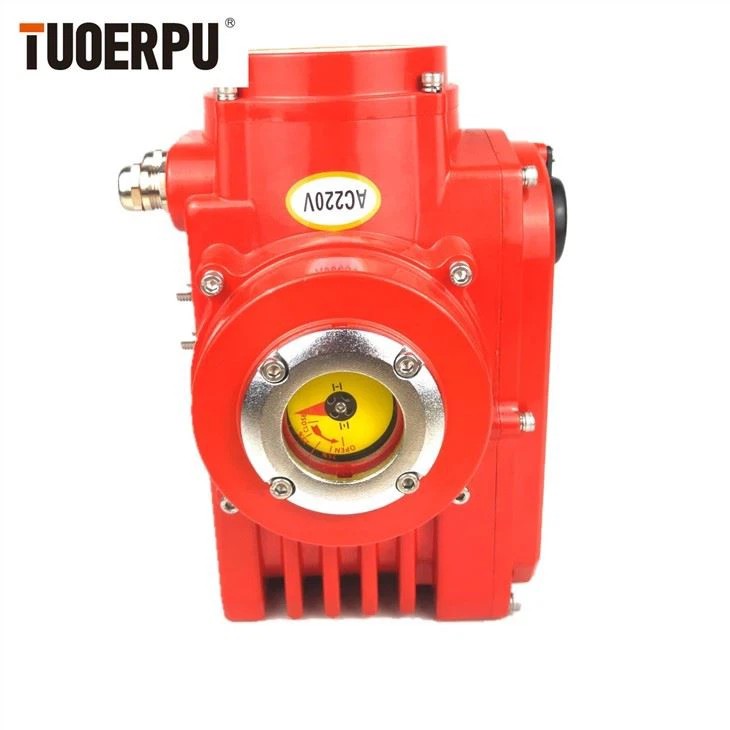

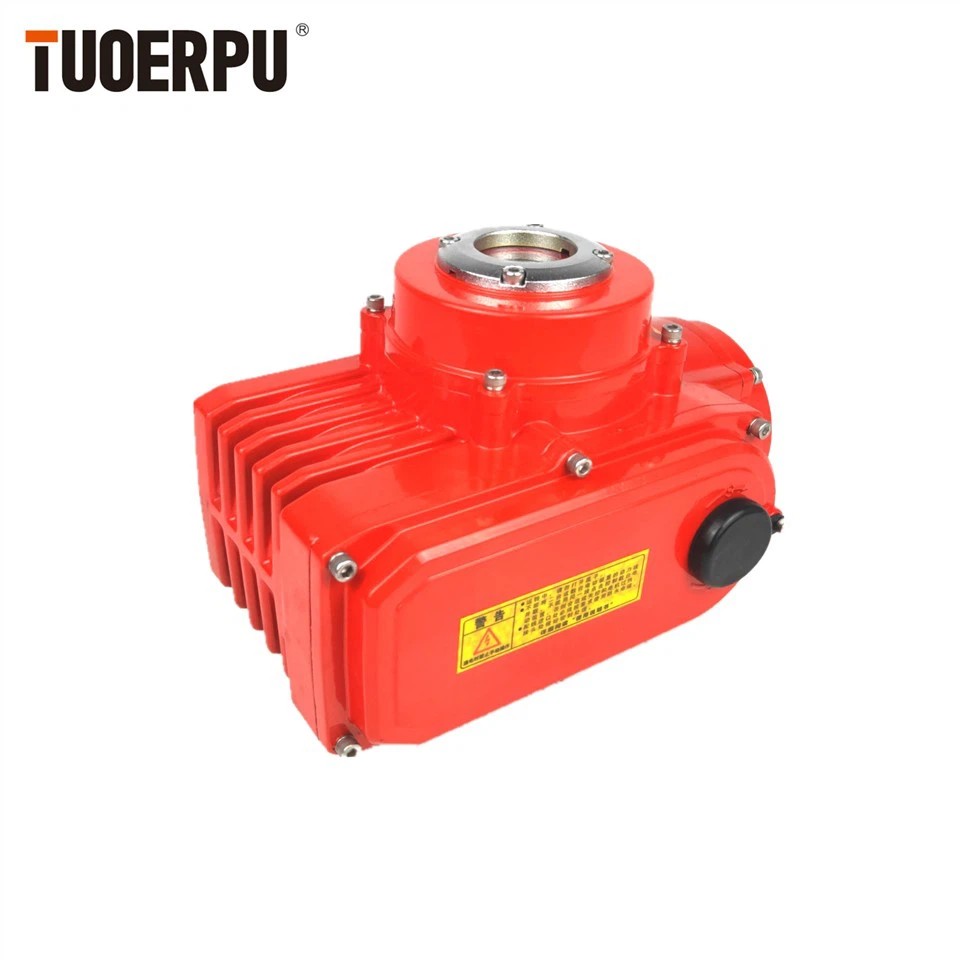

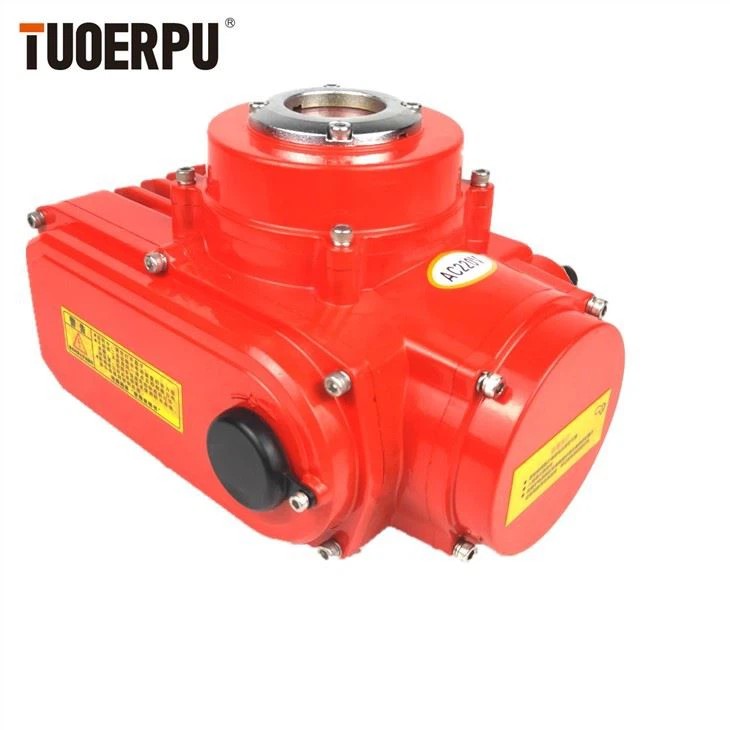

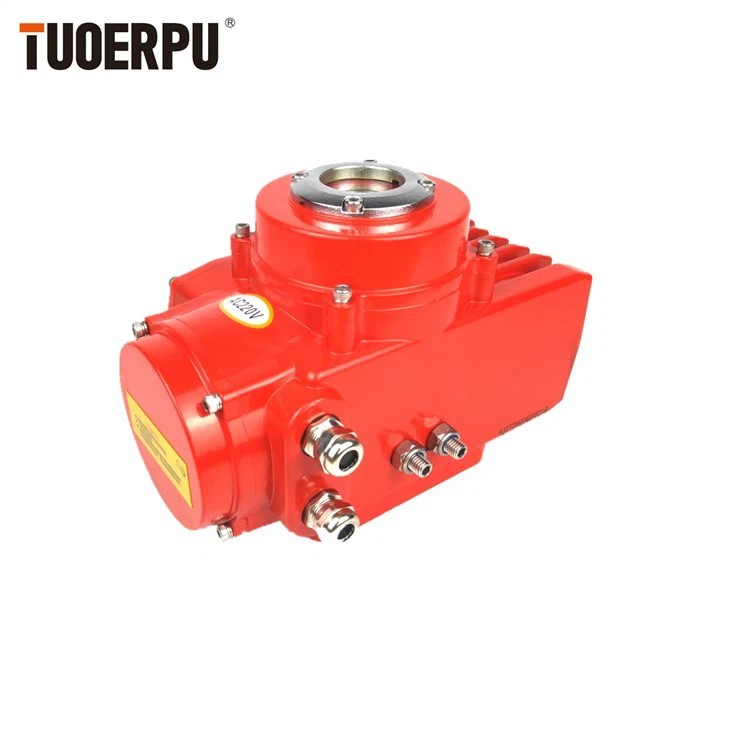

Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\380V\110V\24V,DC12V\24V etc; Special voltage can be customized.

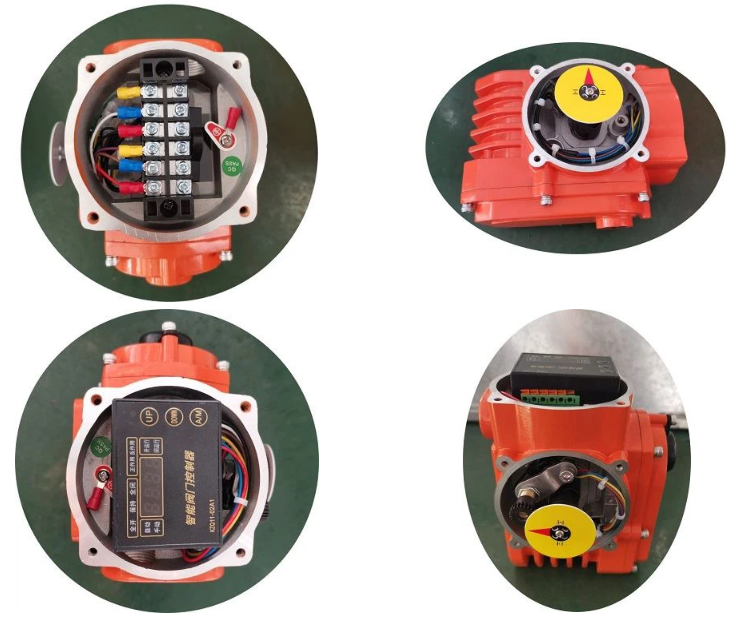

Explosion-proof class: Can be choose explosion-proof type EX d IIBT4 Manual operation can be performed using the included crank handle. In case of falling into a load state, in order to prevent the motor from overheating, an overheat protector is installed in the motor. Wiring work is simple. Wiring work is easy because of the internal terminal block. Fine small valve actuator
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
