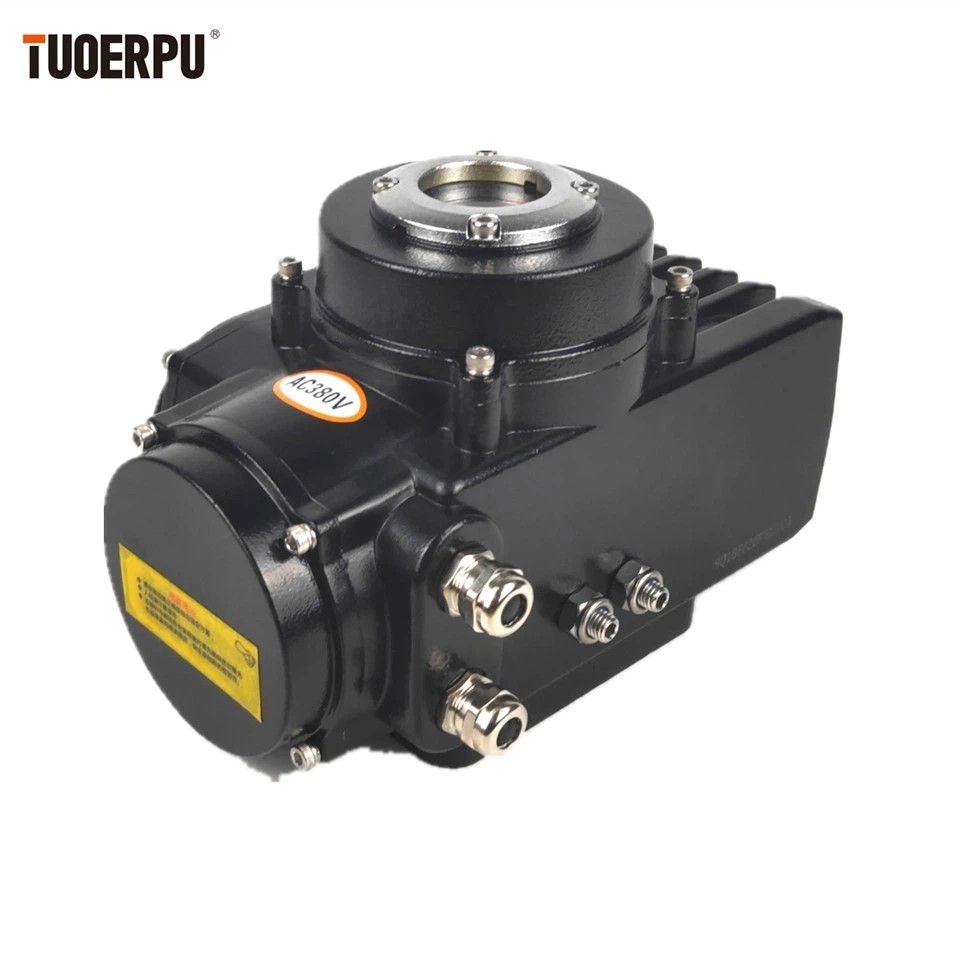

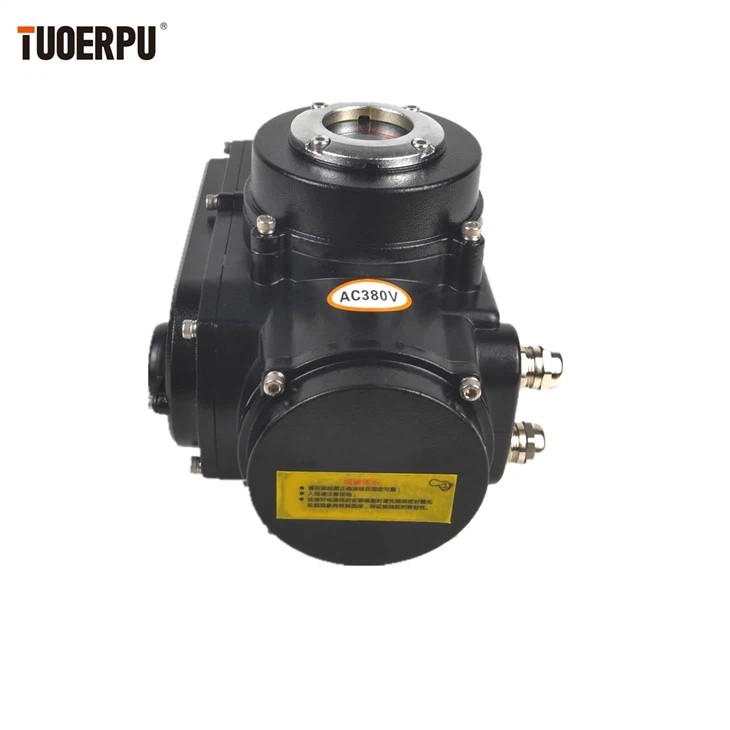

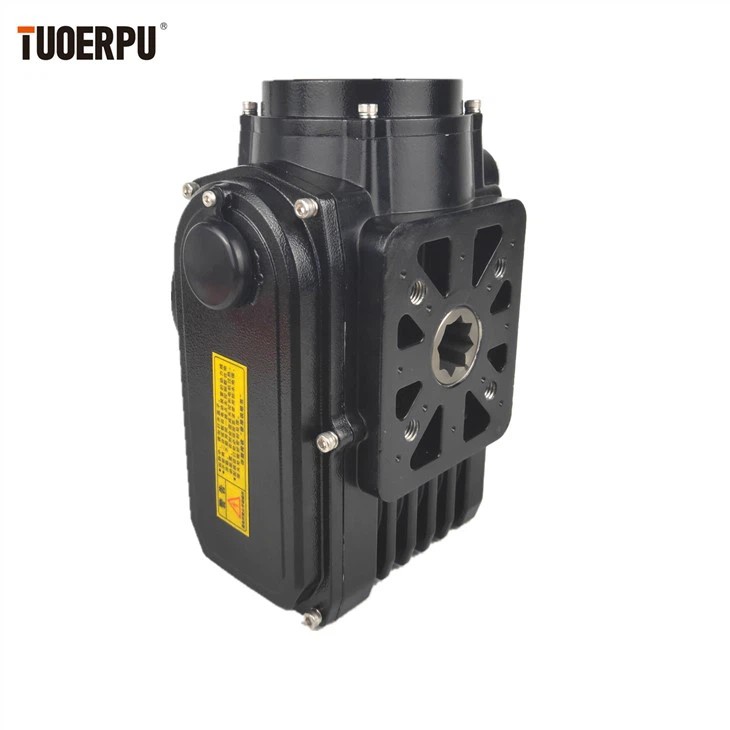

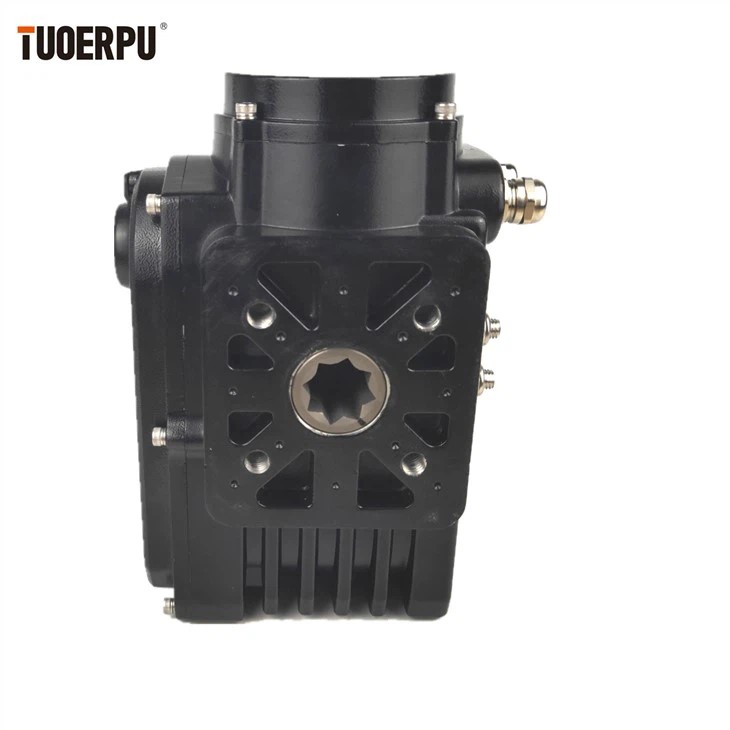

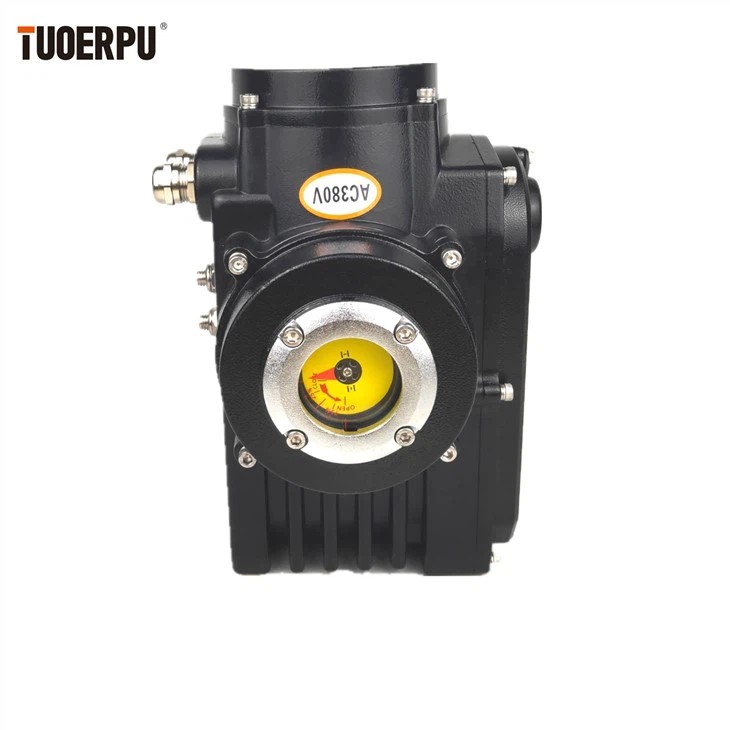

Normal electric actuators are suitable for some rotary valves (such as butterfly valves, ball valves and damper plates, etc.) and similar equipment.High quality aluminum alloy die-casting shell, exquisite appearance, small size, light weight, maintenance free, strong corrosion resistance and other excellent properties.4~20mA current signal or 0~10VDC voltage signal is the control signal.
Product introduction
| Model | Standard Running Time/Torque | Optional Running Time/Torque | Rotation Angle Range | Voltage Type |
| TOP-105 | 25s/50Nm | 4s/20Nm | 0-90°adjustable | DC 24V |
| 10s/30Nm | AC 24V | |||
| AC 110V | ||||
| AC 220V | ||||
| AC 380V | ||||
| TOP-110 | 25S/100Nm | 15s/50Nm | ||
| TOP-116 | 25s/160Nm | 15s/80Nm | ||
| TOP-120 | 25s/200Nm | 15s/100Nm | ||
| TOP-140 | 25s/400Nm | 15s/200Nm | ||
| TOP-160 | 25s/600Nm | 15s/300Nm | ||
| TOP-1100 | 50s/1000Nm | 25s/500Nm | ||
| TOP-1200 | 50s/2000Nm | 25s/1000Nm | ||
| Insulation Resistance | 100MΩ/500VDC | |||
| Withstand Voltage Class | 1500VAC 1Minute | |||
| Protection Class | IP65(optional IP67/IP68） | |||
| Installation Location | 360° install at any angle | |||
| Electrical Interface | 2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use | |||
| Ambient Temperature | -20℃-60℃ | |||
| Function Optional | Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel | |||
