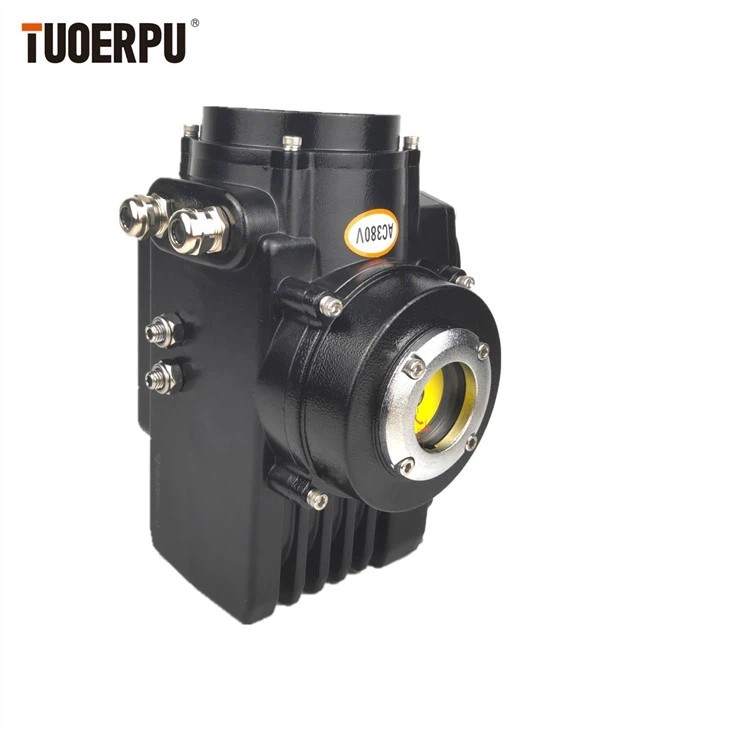

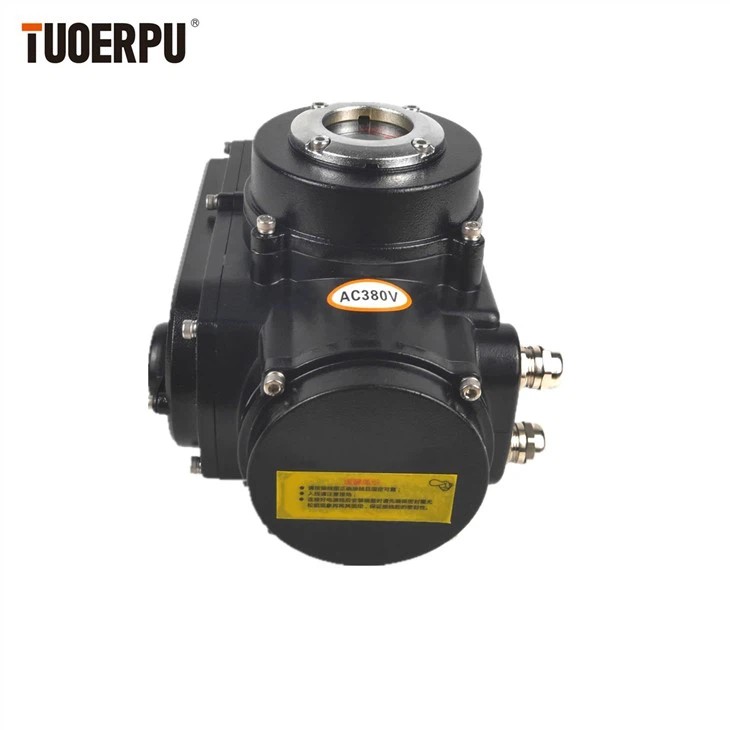

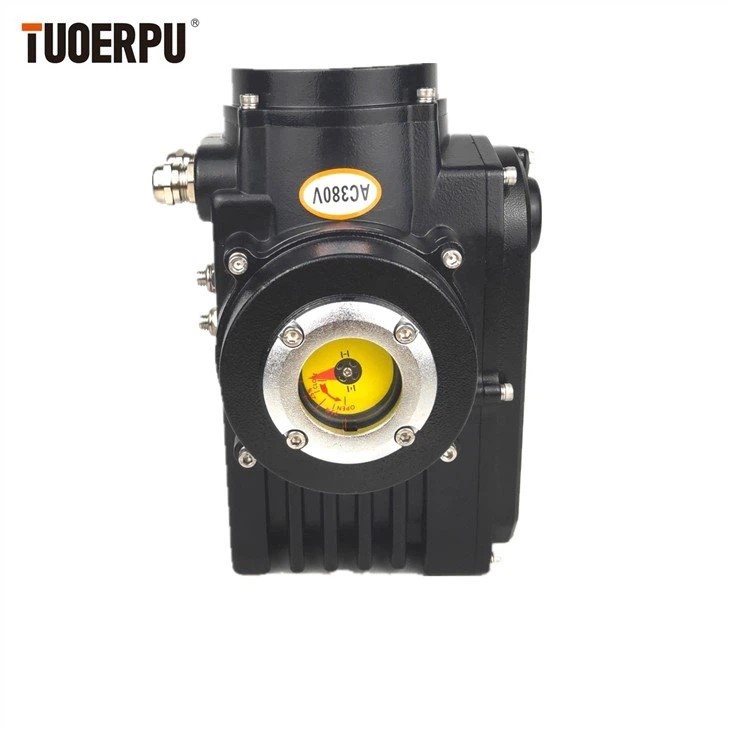

For some small torque valves, precise and small-sized electric valves are also applied, 24V Aluminum Electric Valve, using 4-20MA current signal or O-10VDC voltage signal as the control signal, which makes the valve move to the required position and realizes its automatic control.
Produet Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 11VC
AC 220V
AC 380V
