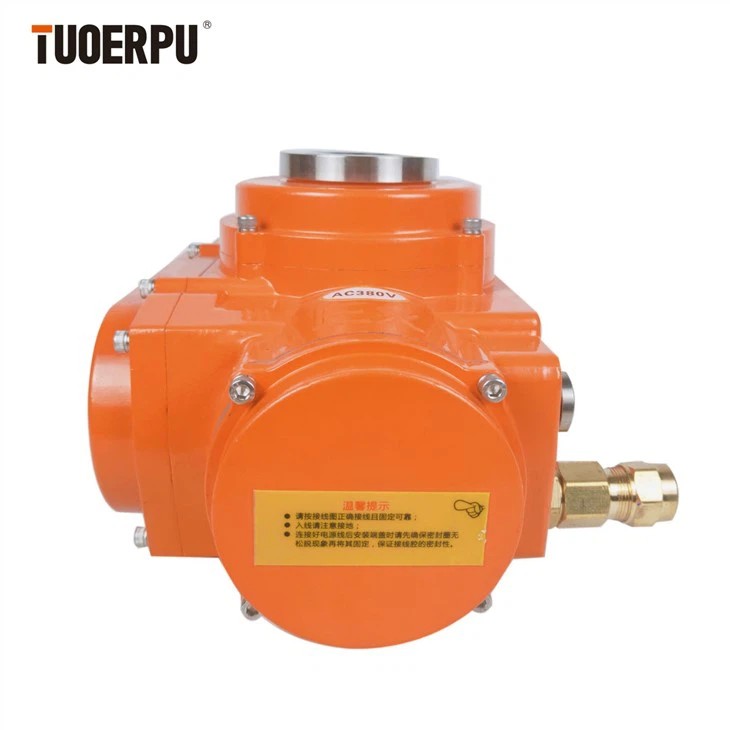

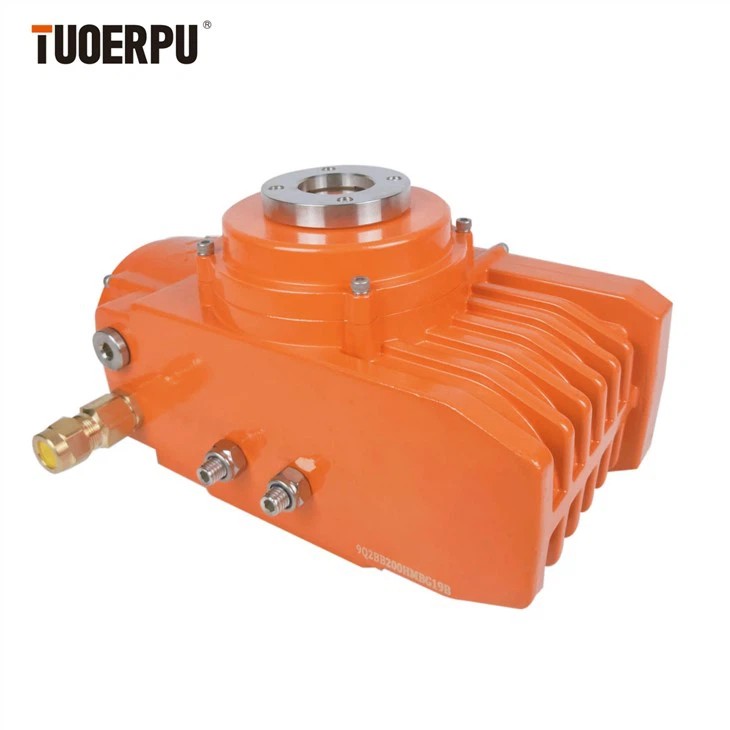

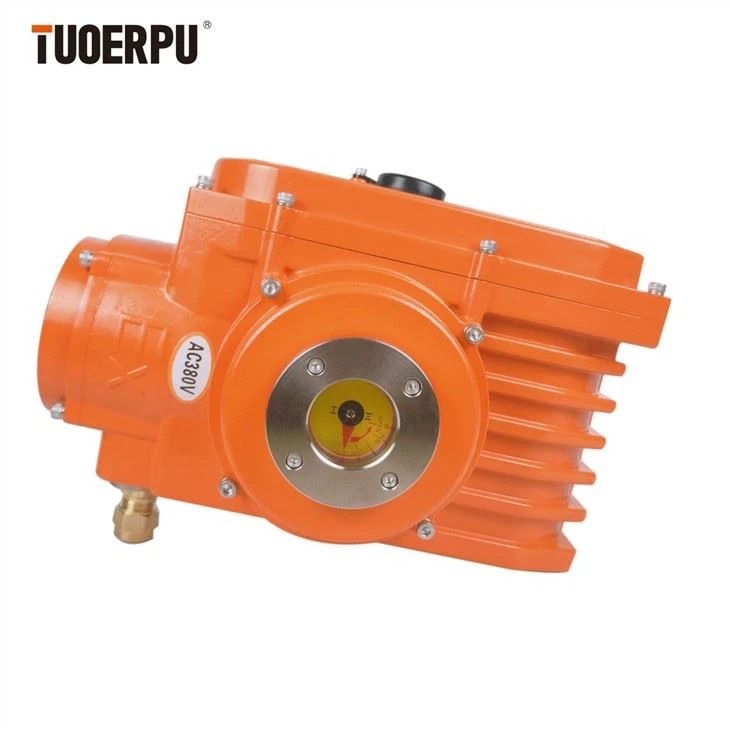

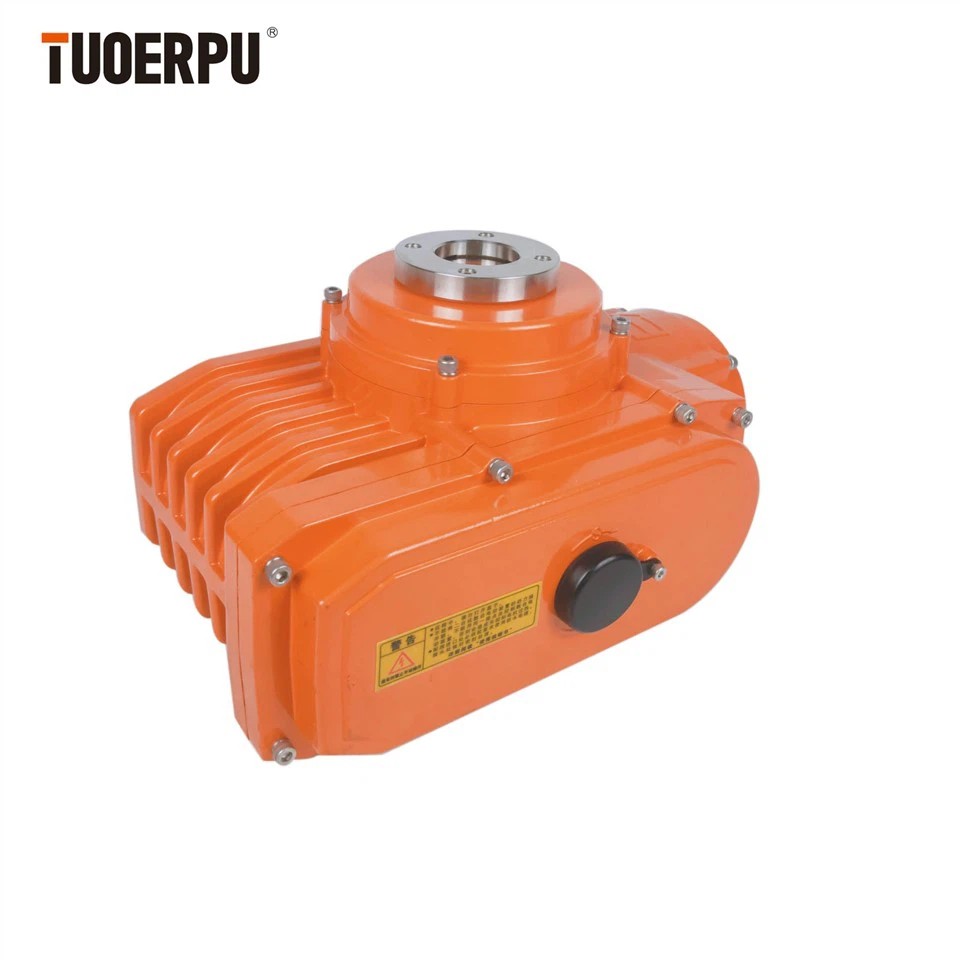

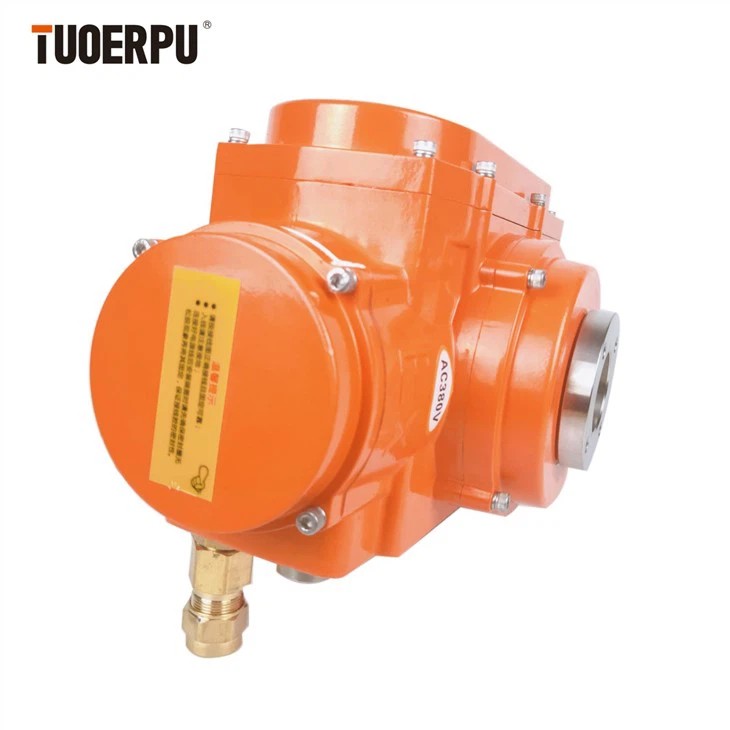

EX explosion-proof electric actuator, the maximum torque of this type of electric actuator is up to 2000nm.Ex explosion-proof electric actuator internal electrical equipment can be suitable for explosive environment, explosion-proof actuator internal motor cavity, electrical components cavity, wire cavity is designed and manufactured in accordance with the standard of flameproof type.
Product Parameters
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-EX110 |
25S/100Nm |
15s/50Nm |
0-90°adjustable |
DC 24V |
|
TOP-EX116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-EX120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-EX140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-EX160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-EX1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-EX1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Explosion-poof Grade |
ExdI IBT4 GB |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
