TOP series actuator electric cavity can be equipped with electronic heating elements, used in places with large temperature difference between day and night and relatively large and humid places, to prevent damage to electrical components due to condensation, the heater is a continuous working system, so The charged state is charged even when the actuator is not running.
Product Parameters
Model
Standard Running
Time/Torque
Optional
Running
Time/Torque
Rotation Angle
Range
Voltage
Type
TOP-105
26s/5ONm
4s/20Nm
10s/30Nm
0-90°adjustable
DC 24V
AC 24V
AC 110V
AC 220V
AC 380V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/100ONm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/P68)
Installation Location
360°install at any angle
Electrical Interface
2-G 1/2 metal connector,corresponding metal cable connector shall
be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection,Dehumidification heater,Passive contact

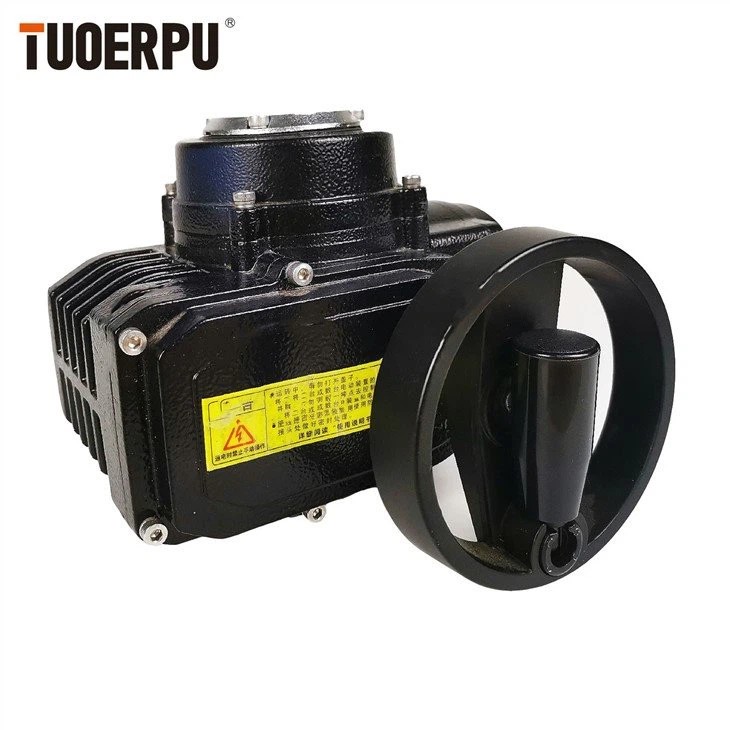

switch,Operating hand wheel
