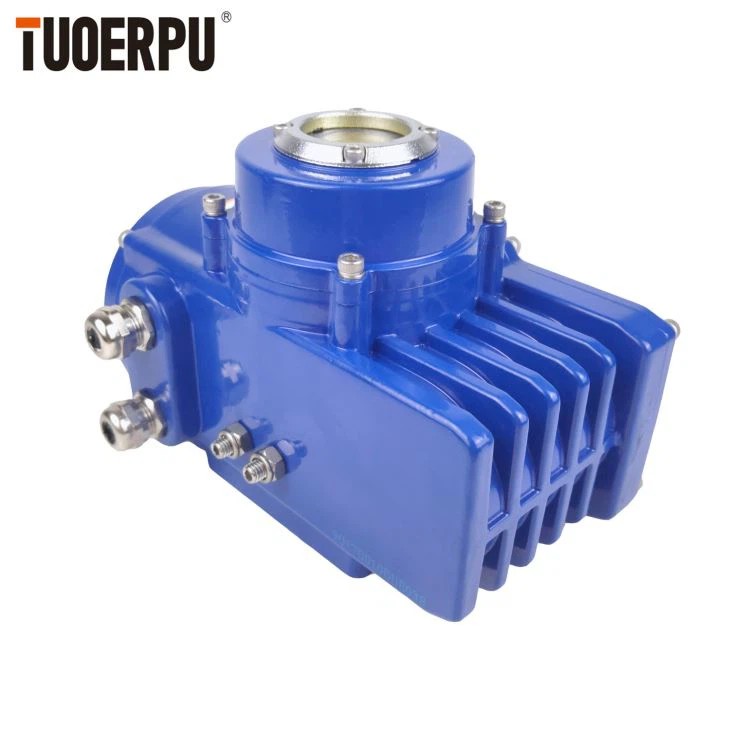

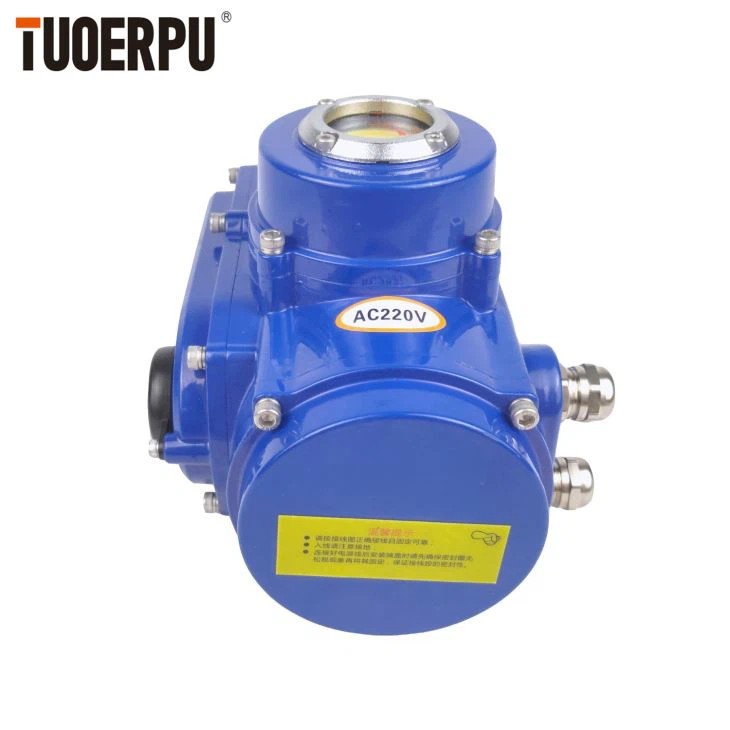

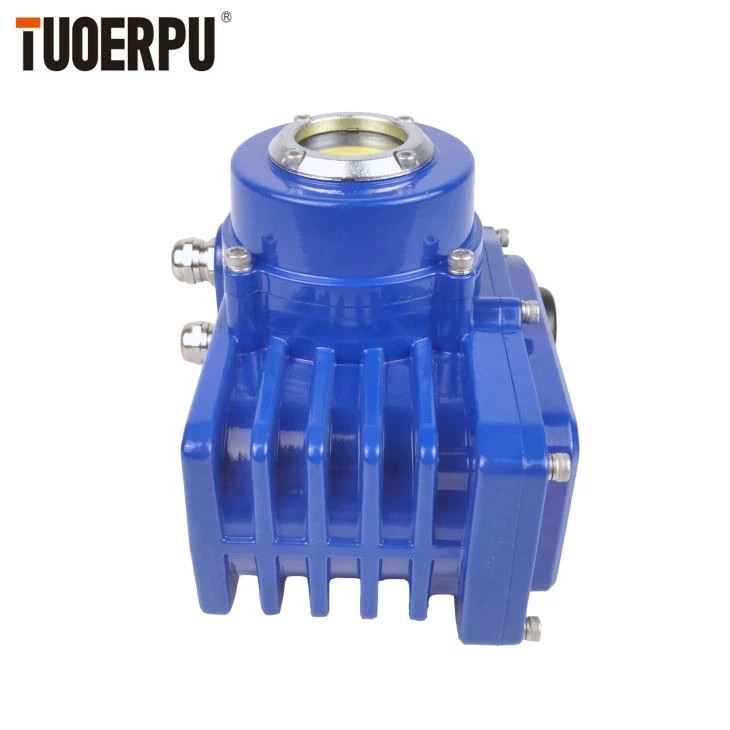

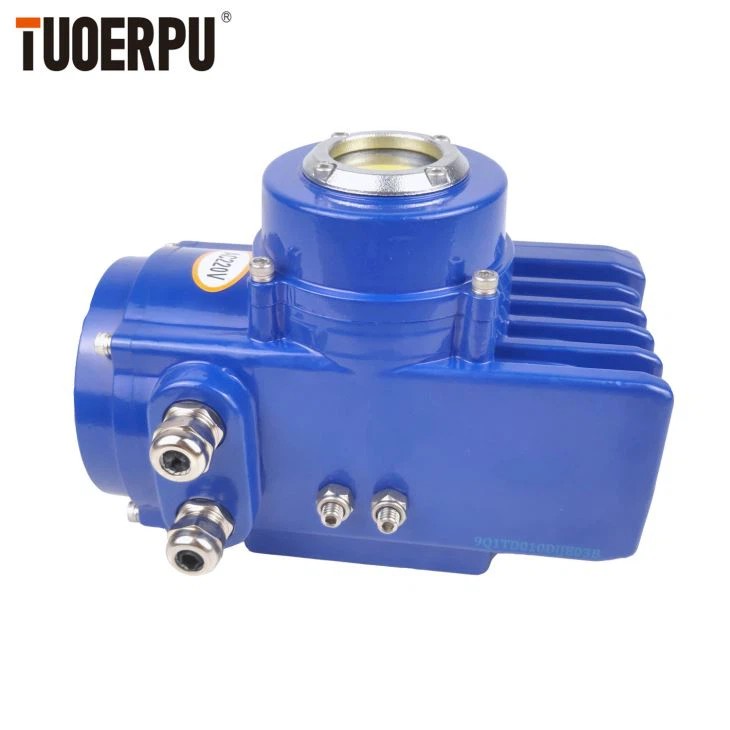

There are many kinds of actuators used for air valves. The following mainly introduces the switch-type electric actuators used for air valves. Our electric actuators are easy to operate, convenient to debug, and reliable in performance. It can be widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, paper industry, energy, water treatment, shipbuilding, textile, food processing, building automation and other industrial fields.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25S/50Nm
4s/20Nm
0-90° adjustable
DC 24V
10S/30Nm
AC 24V
AC 110V
AC 220V
AC 380V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G1/2 metal joint ,the user should install the corresponding metal cable connector according to the cable selected
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidifying heater, Passive contact switch, Operating hand wheel
