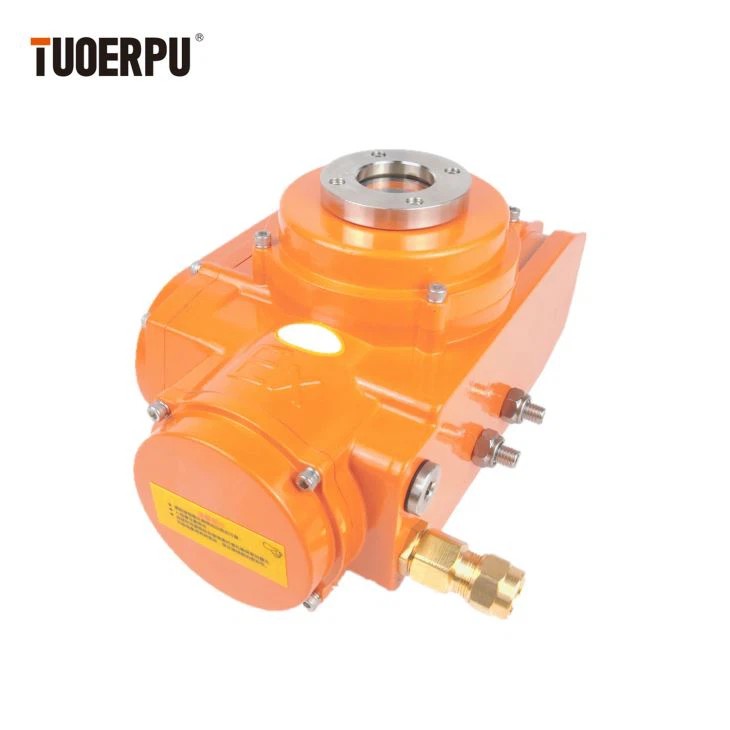

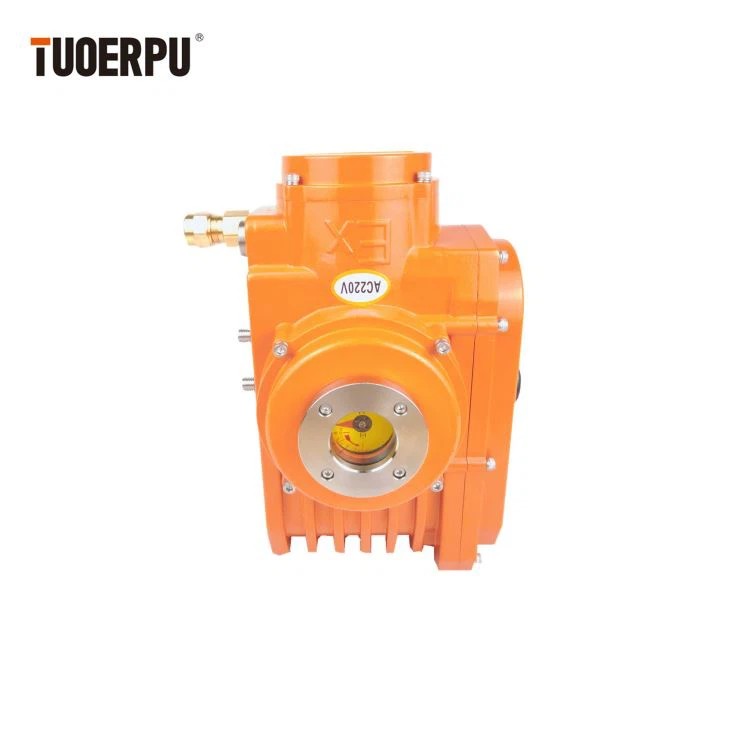

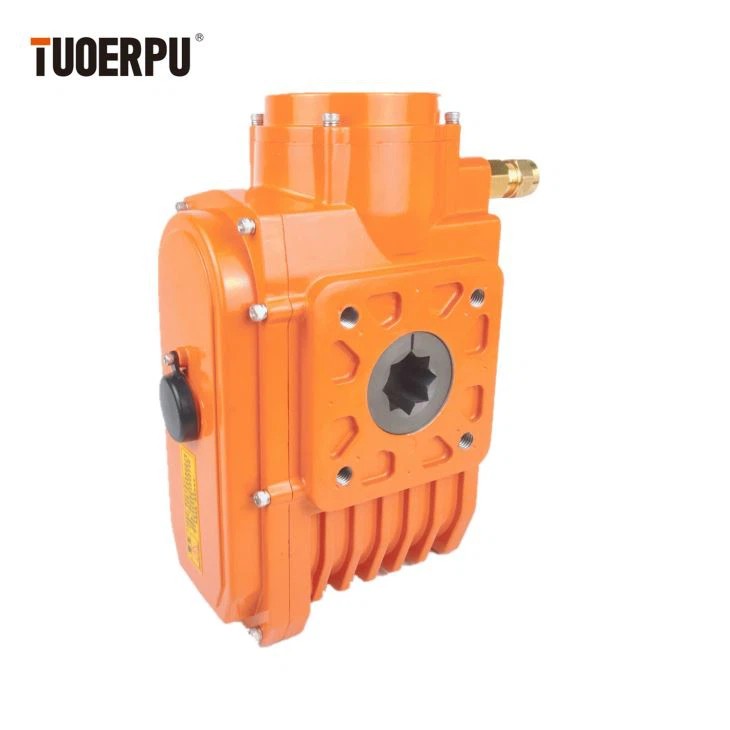

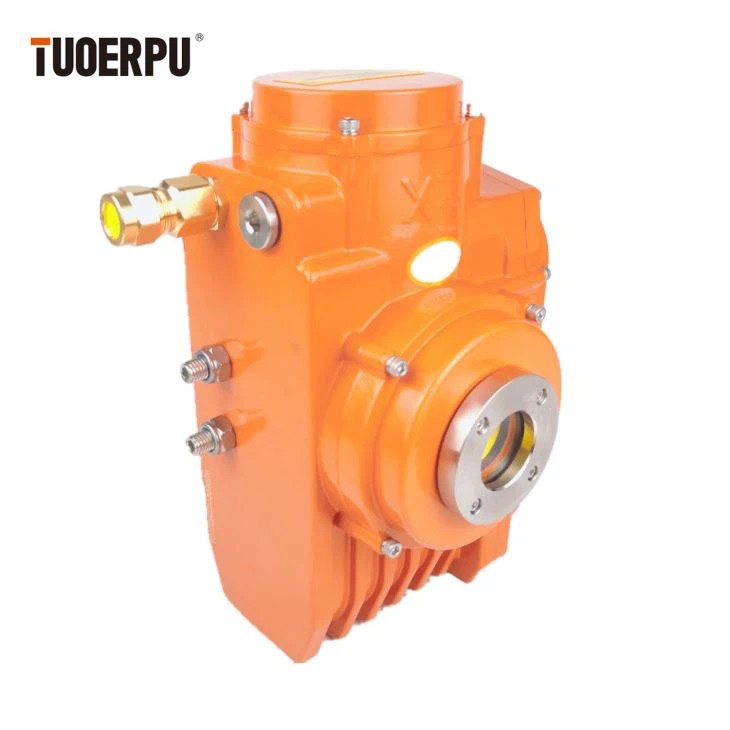

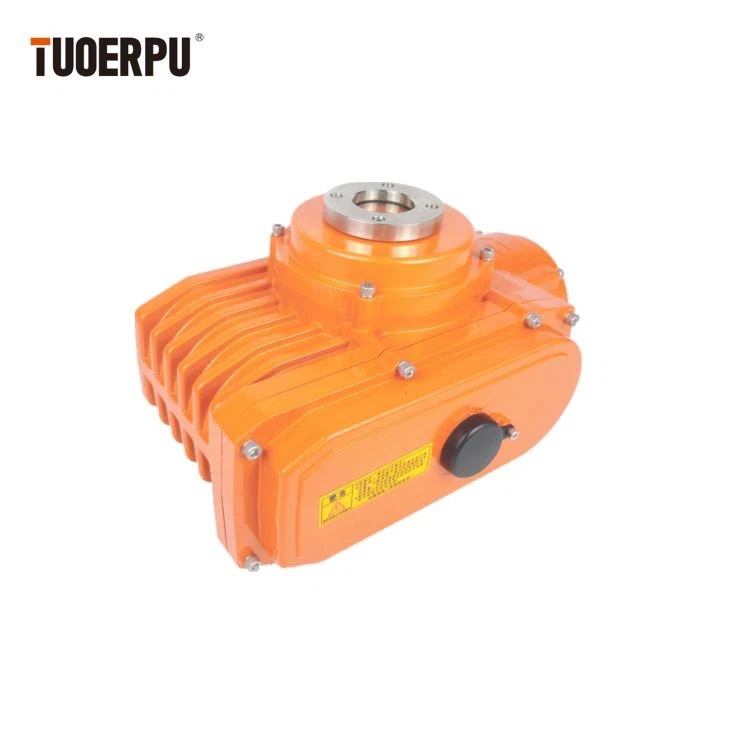

90 degree rotating electric actuator explosion-proof series, long diving time, protection level reaches IP68. The electric actuator is energized, beautiful in appearance, unique in structure, and realizes automatic control. The maximum output torque is 6000N. m.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-110
25S/100Nm
15s/50Nm
0-90°adjustable
DC 24V
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Explosion-poof Grade
ExdI IBT4 GB
Installation Location
360° install at any angle
Electrical Interface
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
AC 24V
AC 11VC
AC 220V
AC 380V
