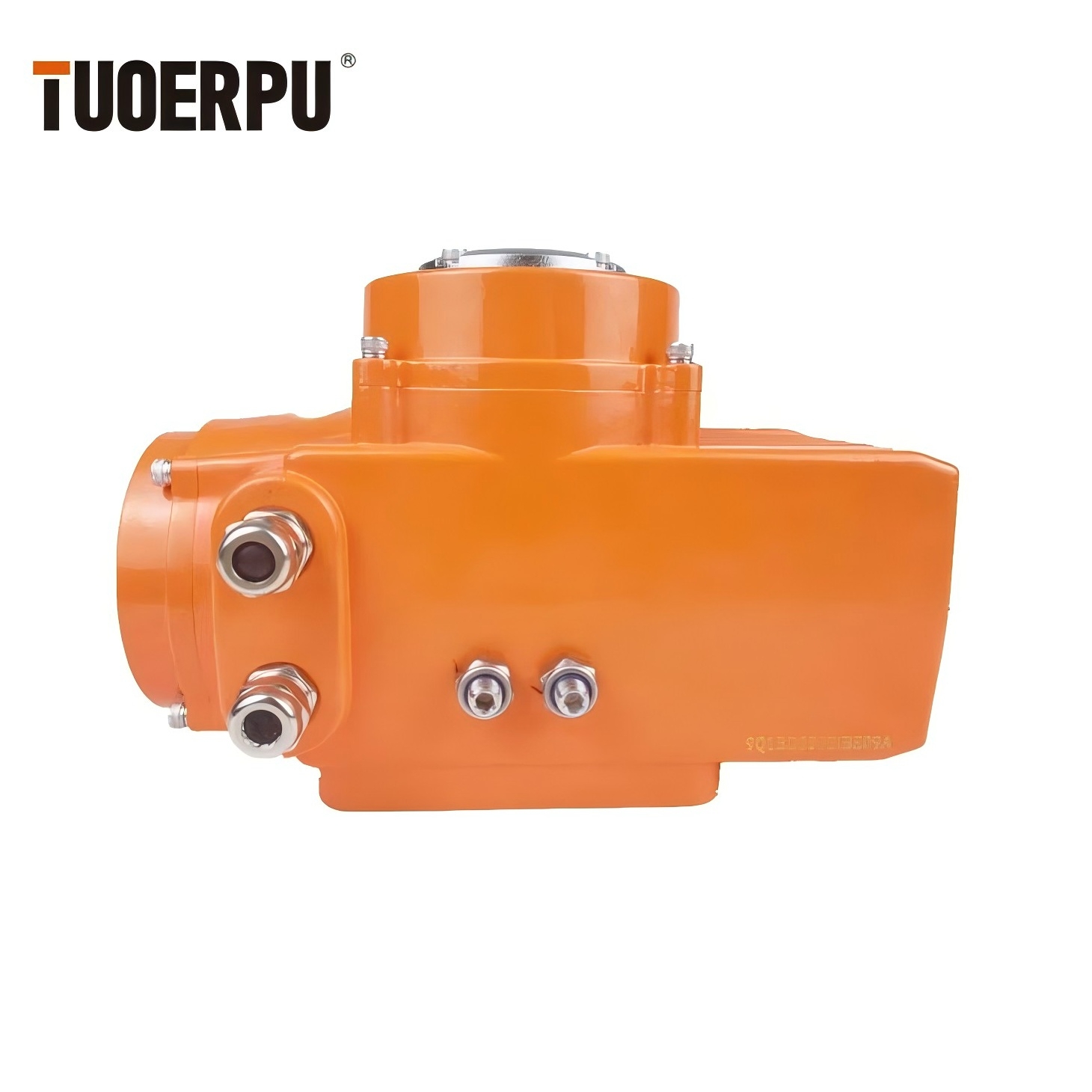

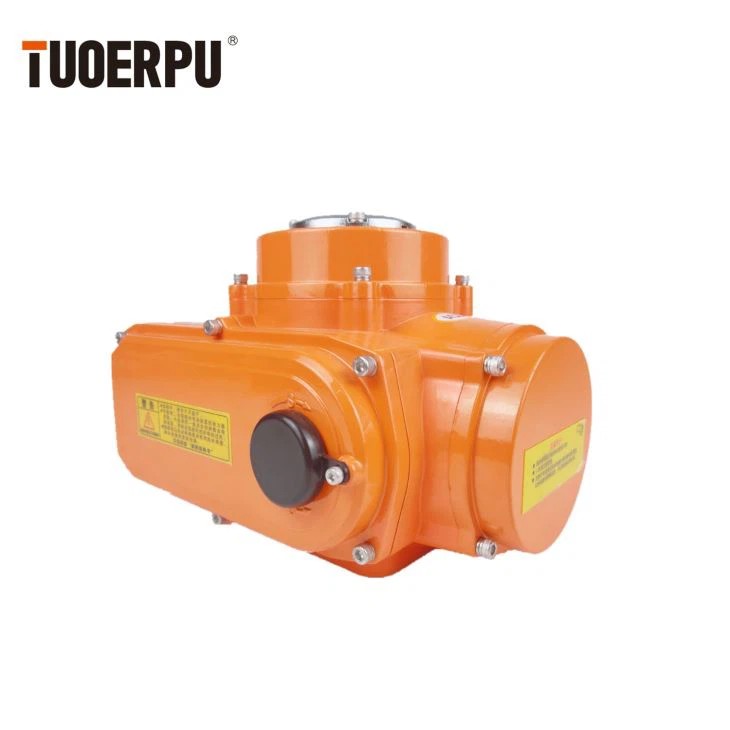

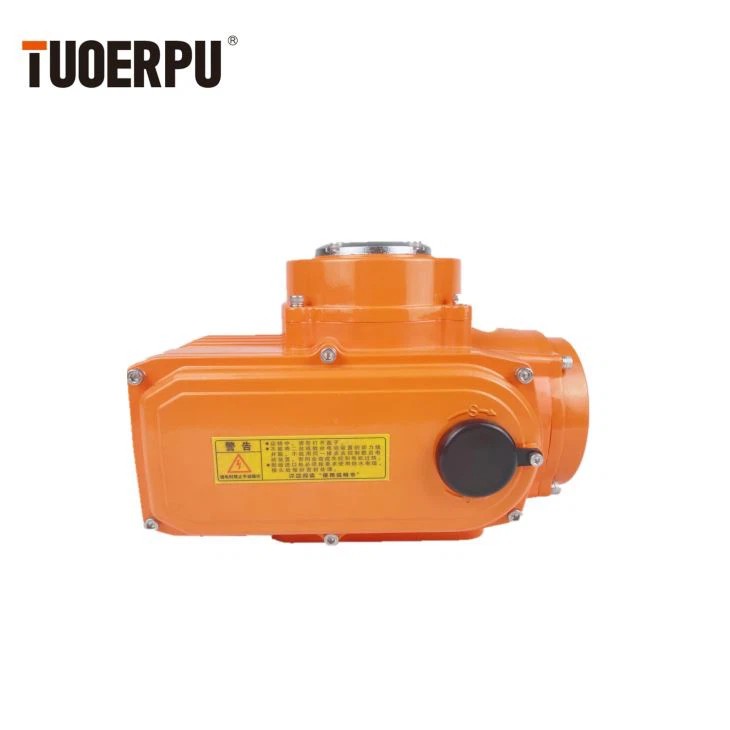

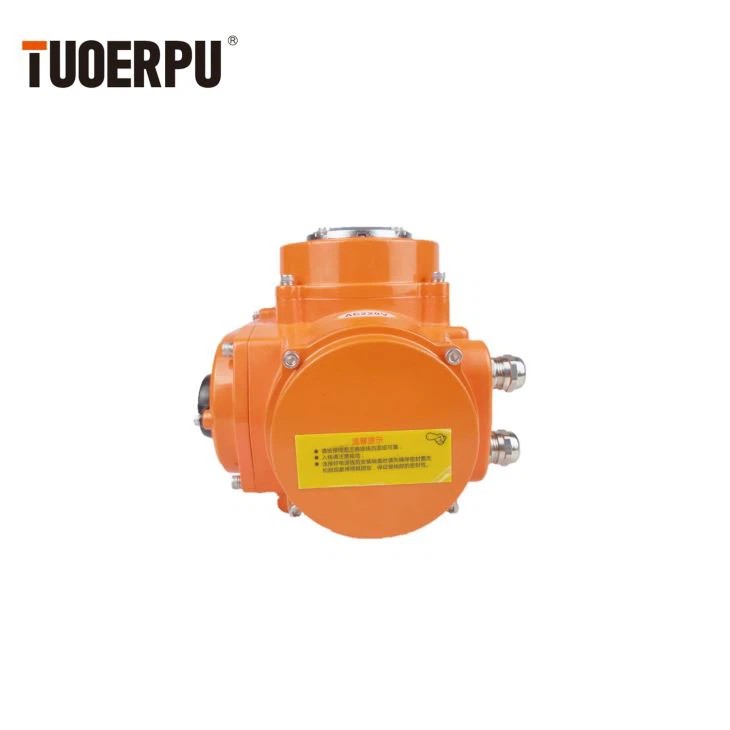

The on-off type electric actuator generally realizes the opening or closing control of the valve. The valve is either in the fully open position or in the fully closed position. Such valves do not need to accurately control the medium flow. It should be noted that the switch type electric actuator can also be divided into a separate structure and an integrated structure due to different structural forms. This must be explained when selecting the model, otherwise it will often occur in the field installation and control system conflicts and other mismatches.
Product Parameter
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 110V
AC 220V
AC 380V
