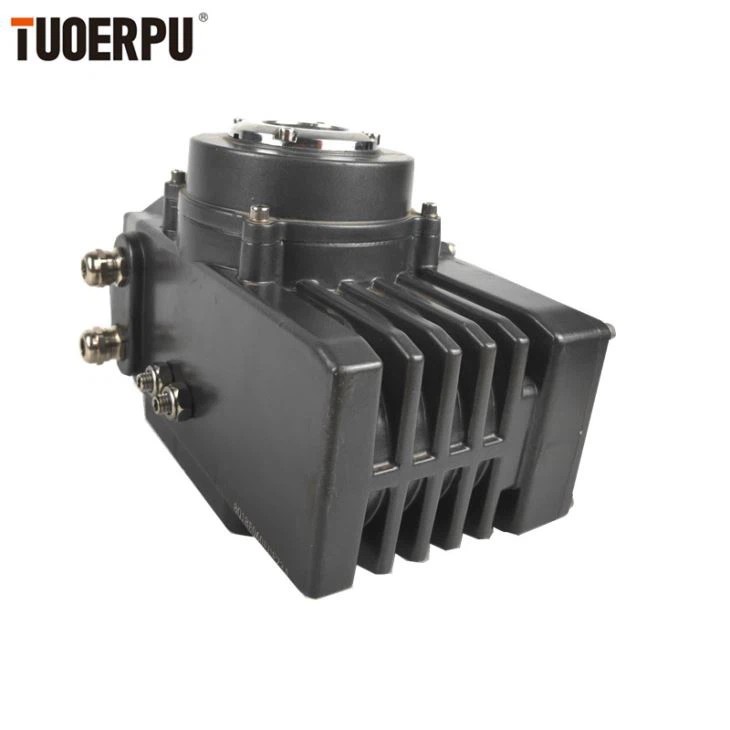

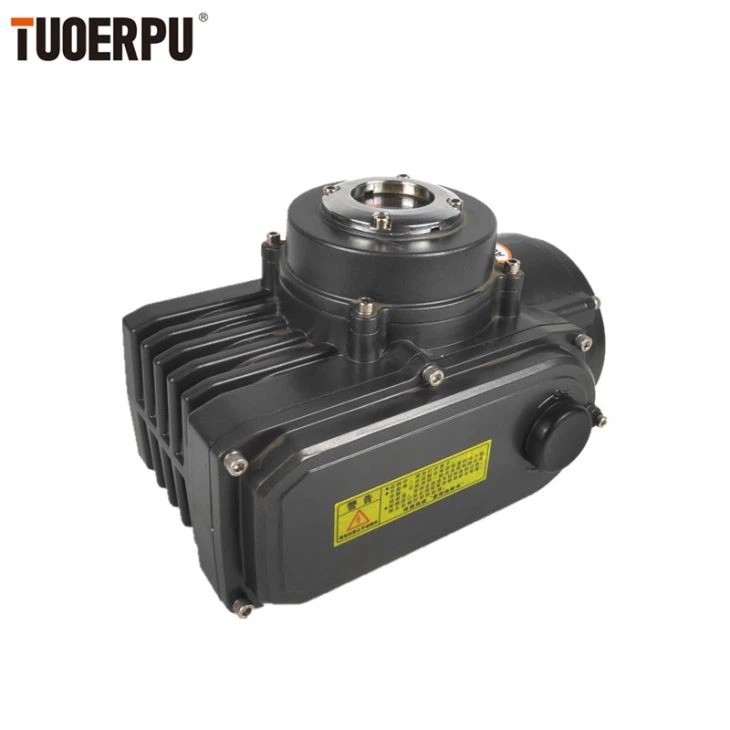

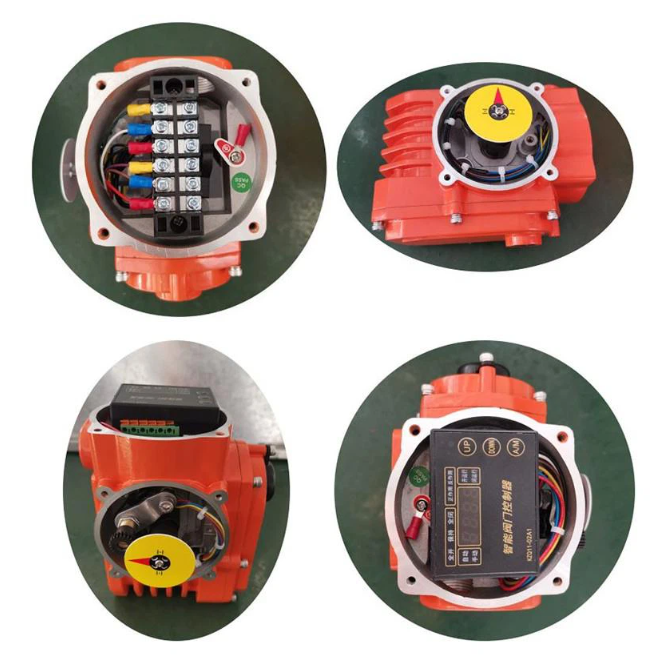

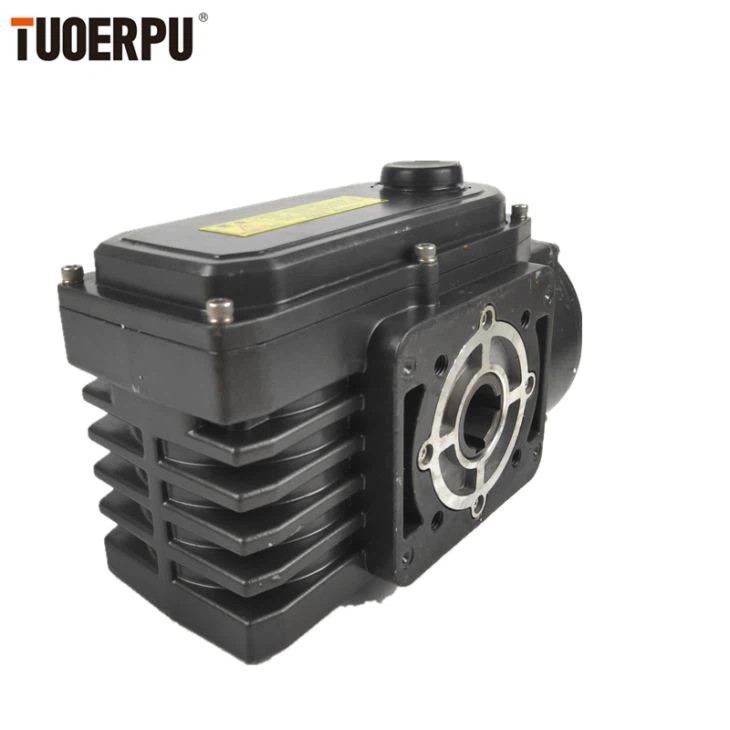

Although most actuators are used to switch valves, the design of today's actuators goes far beyond simple switching functions, including position sensing device, torque sensing device, electrode protection device, logic control device, digital communication module and PID control module, which are all installed in a compact shell. The electric device of partial rotary valve is the driving equipment for the valve to realize opening, closing or regulating control. It is suitable for the valve with 90 degree rotation, such as butterfly valve, ball valve, plug valve and air valve. This series of electric devices can be controlled remotely or operated on site.
Product Parameters
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
