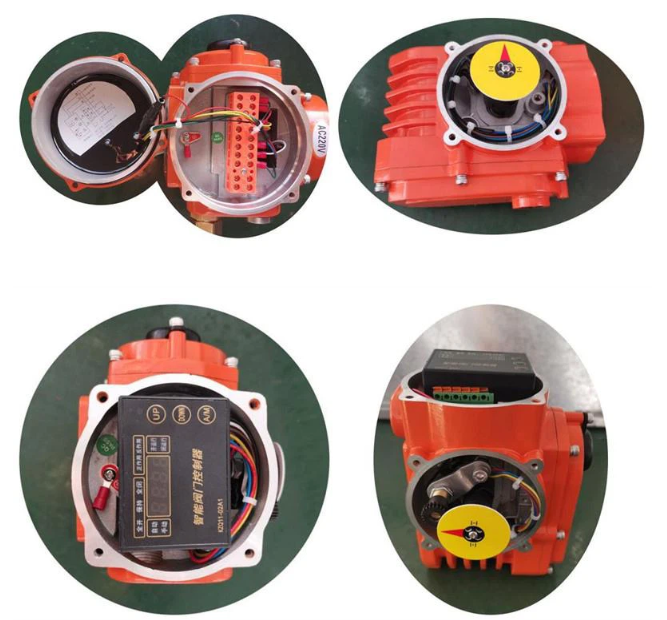

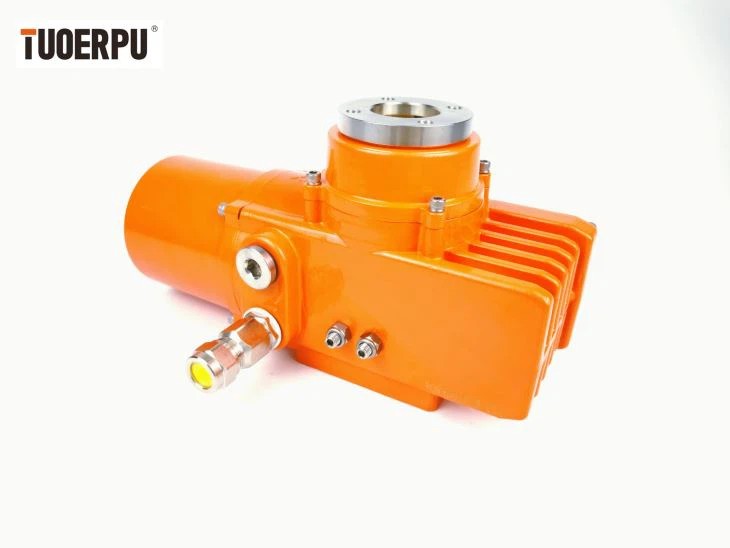

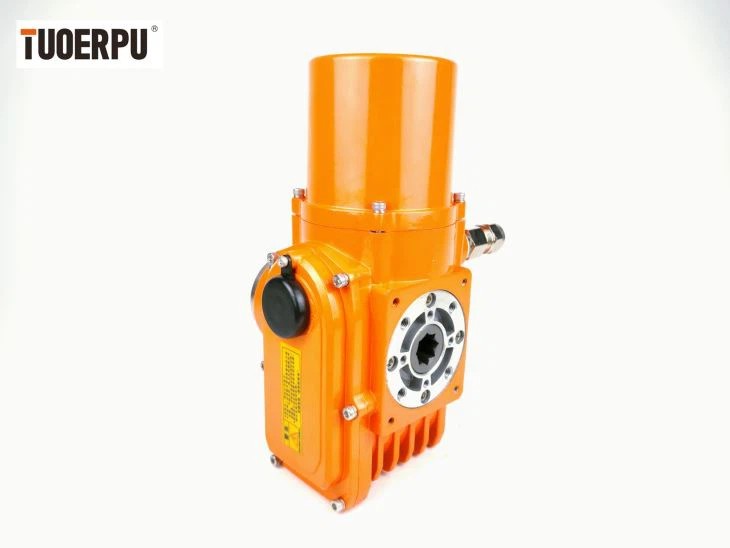

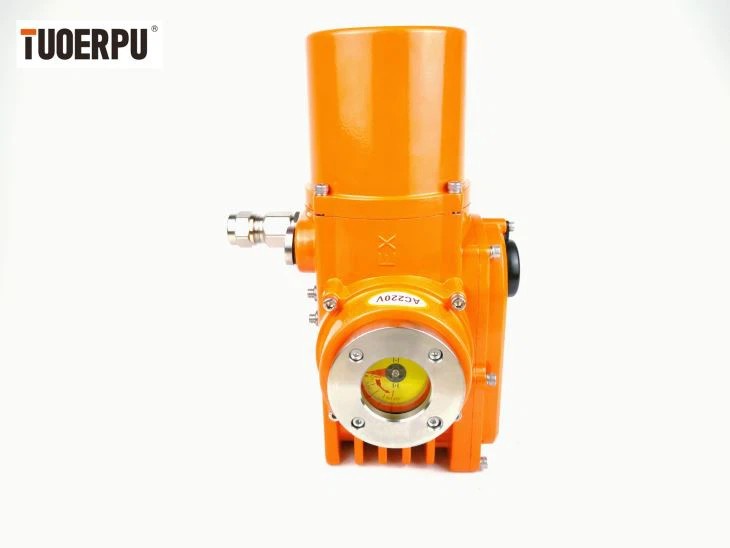

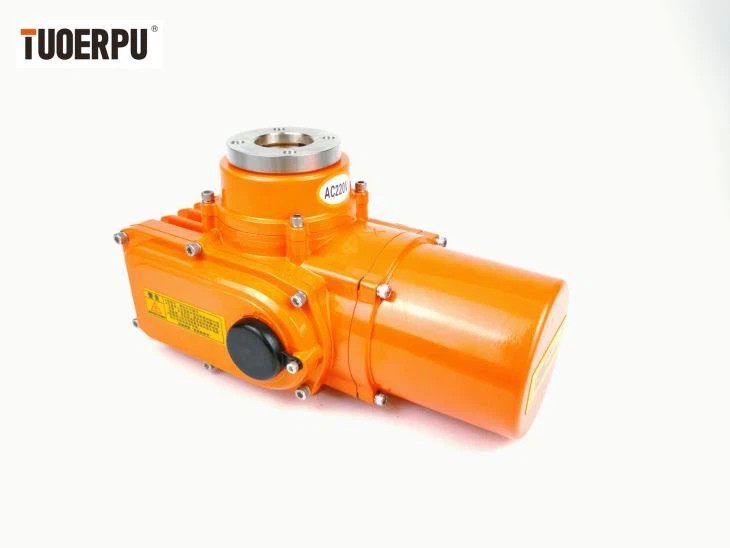

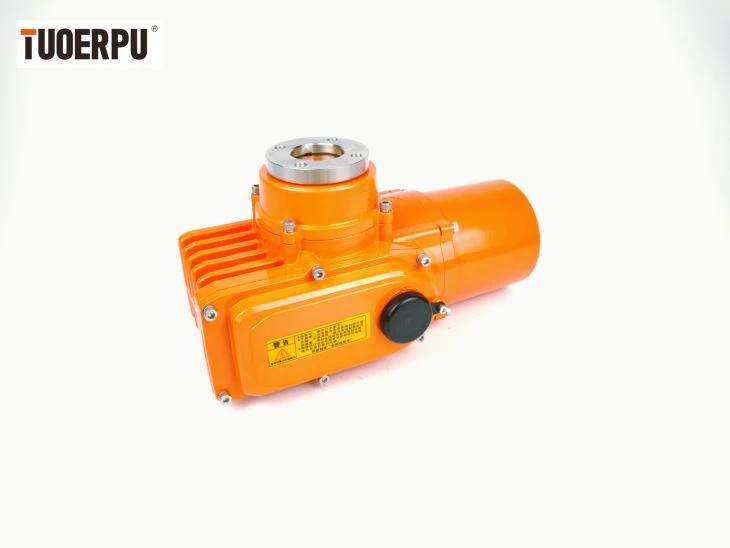

TOP series IP68 protection class electric actuator can be used to control 0 ° -90 ° rotation valves and other products. Fully enclosed squirrel cage motor, small size, large torque, small inertia force, good sealing performance, water will not enter the electric actuator through the gap. DC type control batteries are disposable batteries.
Product Parameters
Model/Parameter
Output Torque
Power Supply Voltage
Motor Power (W)
Current (A)
Running Time
Connection Dimension
Square Hole
Round Hole
TOP-105
50
DC24V
13
1.28
30s(5-10s speed up,35-60s slow down)
11×11
φ13
AC24V
10
1.5
14×14
AC110V
10
0.24
AC220V
10
0.16
TOP-110
100
DC24V
25
2.03
17×17
φ16.1
AC24V
25
2.12
AC110V
25
0.57
AC220V
25
0.35
TOP-116
160
DC24V
40
3
17×17
φ19.1
AC24V
40
0.63
AC110V
40
0.45
AC220V
40
0.35
TOP-120
200
DC24V
35
3.57
22×22
φ22.3
AC24V
40
3.65
AC110V
40
0.45
AC220V
40
0.37
TOP-140
400
DC24V
70
5.13
30s(10s speed up,35-60s slow down)
22×22
φ22.3
AC24V
90
6.8
AC110V
90
1.12
AC220V
90
0.57
TOP-160
600
DC24V
70
6.04
45s(15s speed up,60s slow down)
22×22
φ28.7
AC24V
90
6.8
AC110V
90
1.18
AC220V
90
0.6
TOP-1100
1000
DC24V
100
8.5
50s(30s speed up,60s slow down)
27×27
φ32
AC24V
100
9
AC110V
120
1.93
AC220V
120
0.94
(N.m)
(optional)
(optional)
(optional)
(optional)
