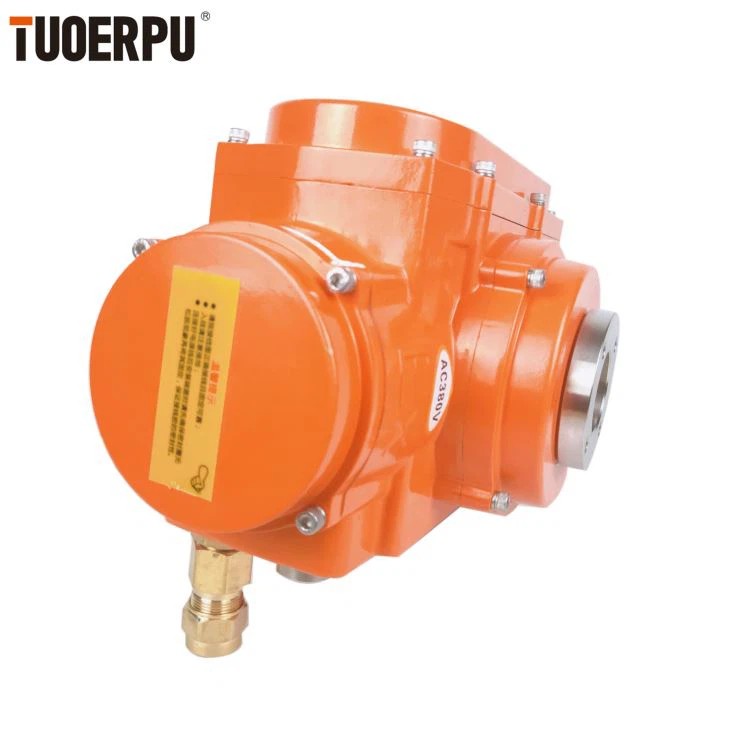

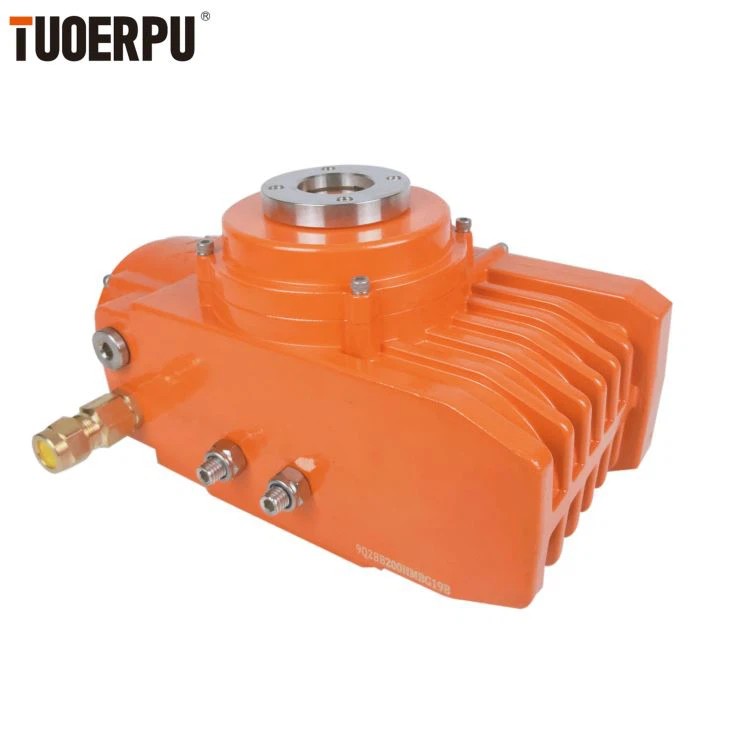

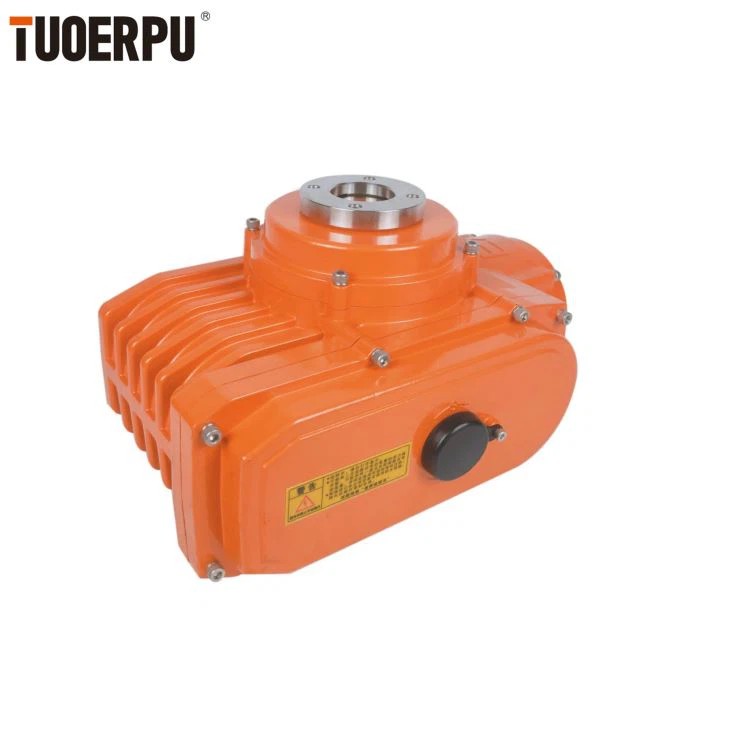

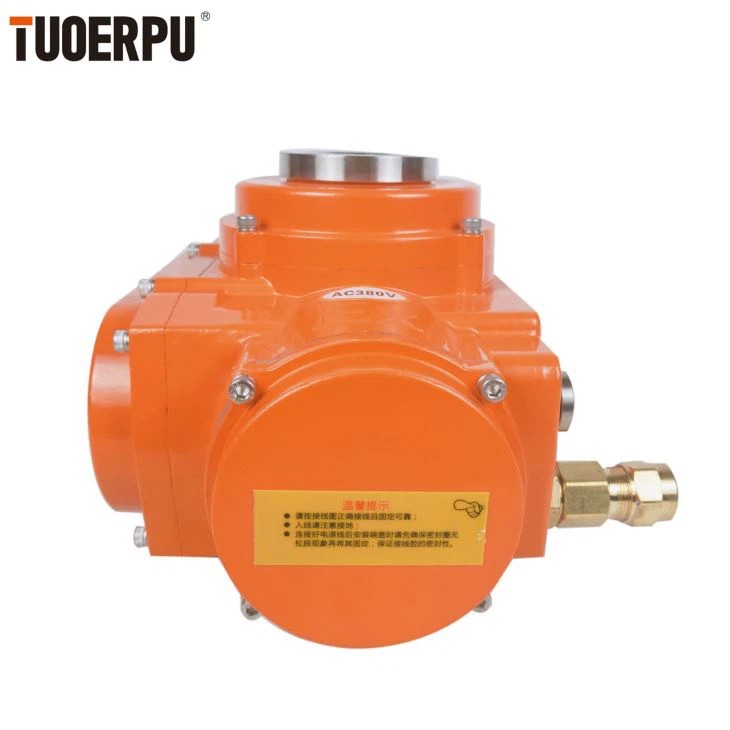

Explosion - proof electric physical:The shell is made of hard aluminum alloy, anodized and coated with polyester powder, with strong corrosion resistance. The protection class is IP67, NEMA4 and 6.. And IP68 is Fully enclosed squirrel cage motor, small size, large torque, small inertia force, insulation grade F, built - in the thermal protection switch, can prevent damage to the motor.Outdoor type is used in places without inflammable, explosive and corrosive medium.Flameproof products are d Ⅰ and d Ⅱ BT4 two kinds, d Ⅰ is applicable to coal mine of mining coal face;D Ⅱ BT4 used for factory, apply to the environment A category A and B Ⅱ Ⅱ T1 ~ T4 group of explosive gas mixture.
Product Parameters
Explosion-proof type
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-110
25S/100Nm
15s/50Nm
0-90°adjustable
DC 24V
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Explosion-poof Grade
ExdI IBT4 GB
Installation Location
360° install at any angle
Electrical Interface
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
AC 24V
AC 110V
AC 220V
AC 380V
