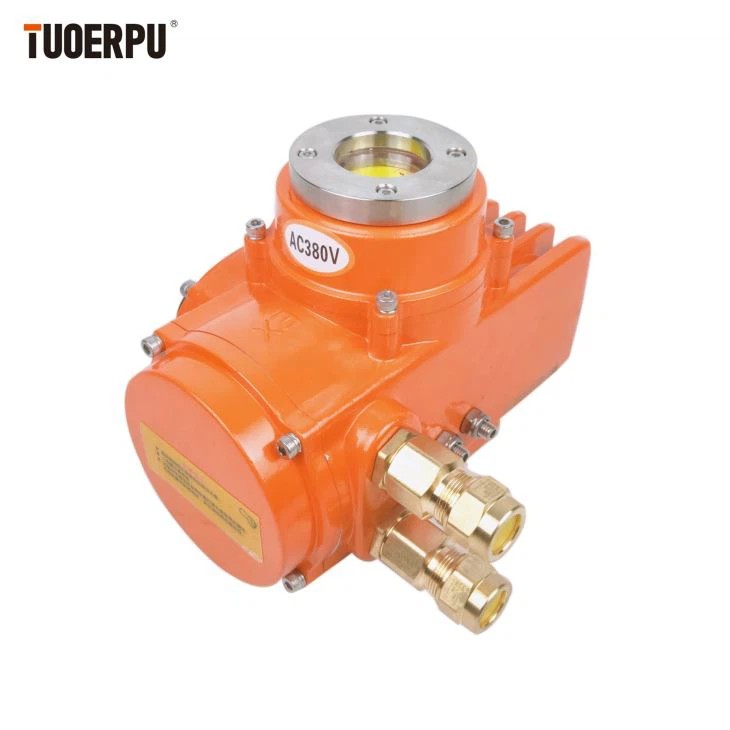

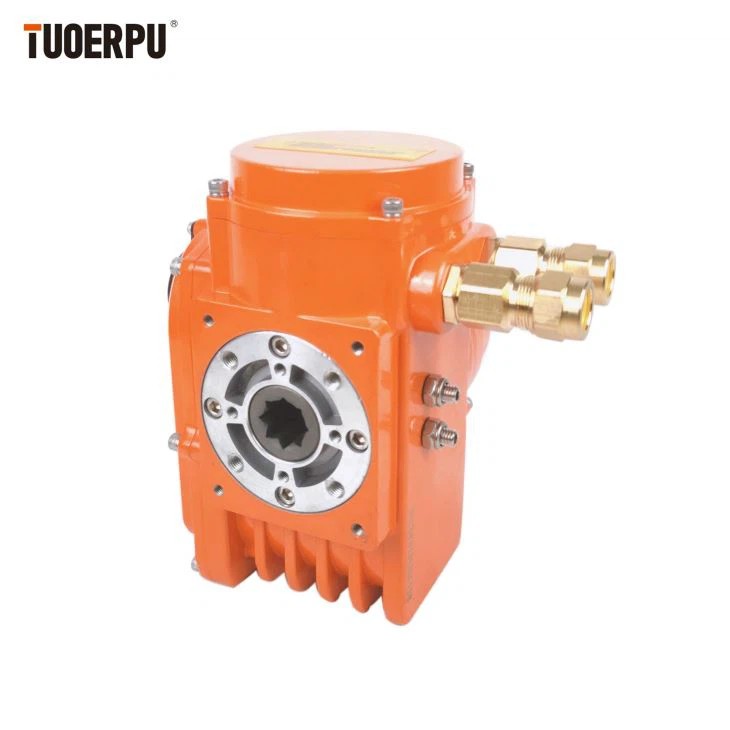

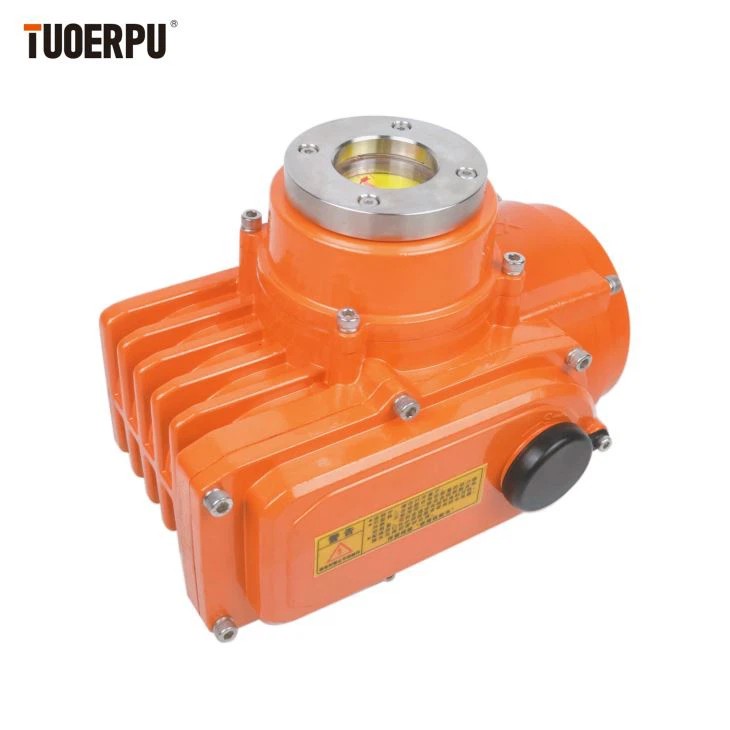

The power explosion-proof actuator is powered by 380V / 220V / 110V AC power. Controlled by 4-20mA power signal or 0-10VDC power signal. Automatically control to the desired position.=
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-EX110
25S/100Nm
15s/50Nm
0-90°adjustable
DC 24V
TOP-EX116
25s/160Nm
15s/80Nm
TOP-EX120
25s/200Nm
15s/100Nm
TOP-EX140
25s/400Nm
15s/200Nm
TOP-EX160
25s/600Nm
15s/300Nm
TOP-EX1100
50s/1000Nm
25s/500Nm
TOP-EX1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Explosion-poof Grade
ExdI IBT4 GB
Installation Location
360° install at any angle
Electrical Interface
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
AC 24V
AC 110V
AC 220V
AC 380V
