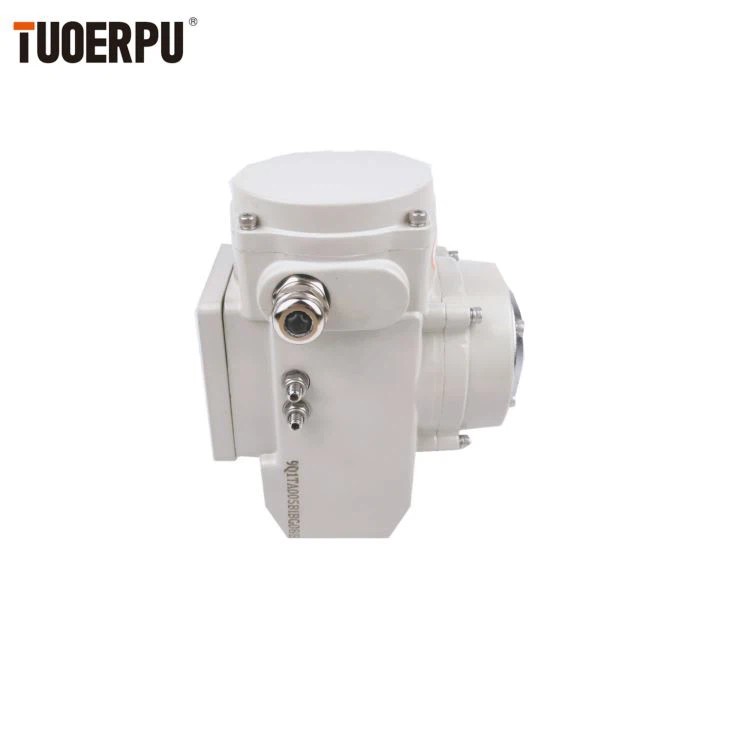

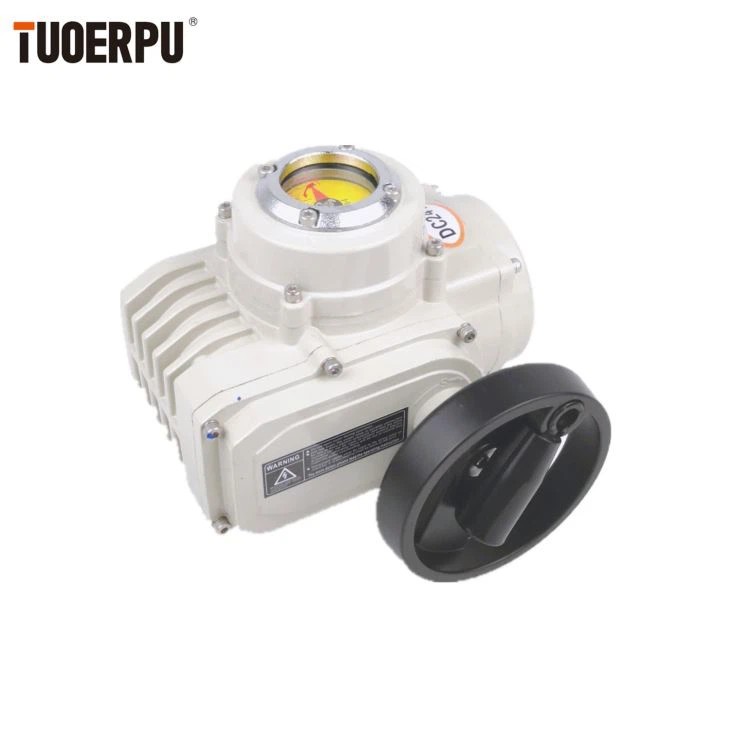

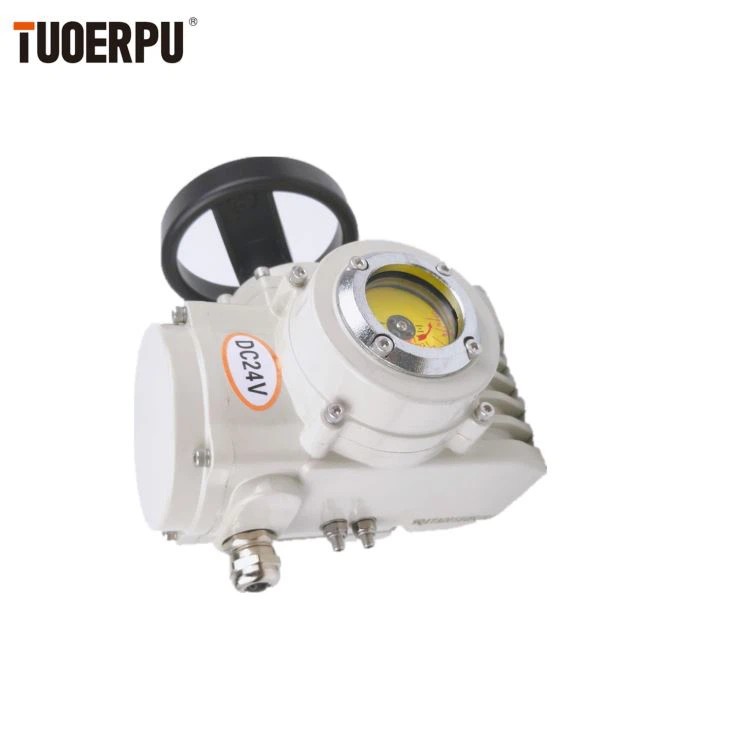

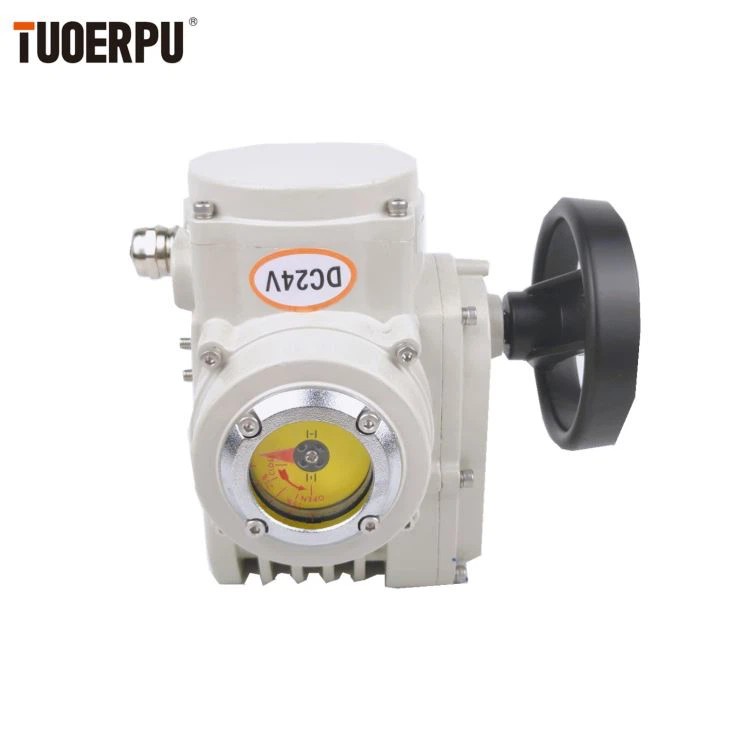

The TOP series electric actuators are used to control 0~90° rotation valve and other similar products,such as butterfly valve,ball valve,throttle,plug valve,louver valve,etc.They can be widely apply to petroleum,chemical industry,electric power,metallurgy,pharmaceutical,papermaking,energy,water treatment,ship,textile,food processing,building automation and other fields.
Product Parameters
Model
Standard
Running
Time/Torque
Optional
Running
Time/Torque
Rotation
Angle
Range
Voltage
Type
TOP-105
25s/50Nm
4s/20Nm
10s/30Nm
0-
90°adjust
able
DC 24V
AC 24V
AC 11VC
AC 220V
AC 380V
TOP-110
25S/100N
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nn
TOP-1100
50s/1000Nm
25s/500N
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation
Resistance
100MΩ/500VDC
Withstand Voltage
Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68)
Installation
Location
360°install at any angle
Electrical
Interface
2-G 1/2 metal connector,corresponding metal cable
connector shall be added according to the selected
cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection,Dehumidification heater,
Passive contact switch,Operating hand wheel
