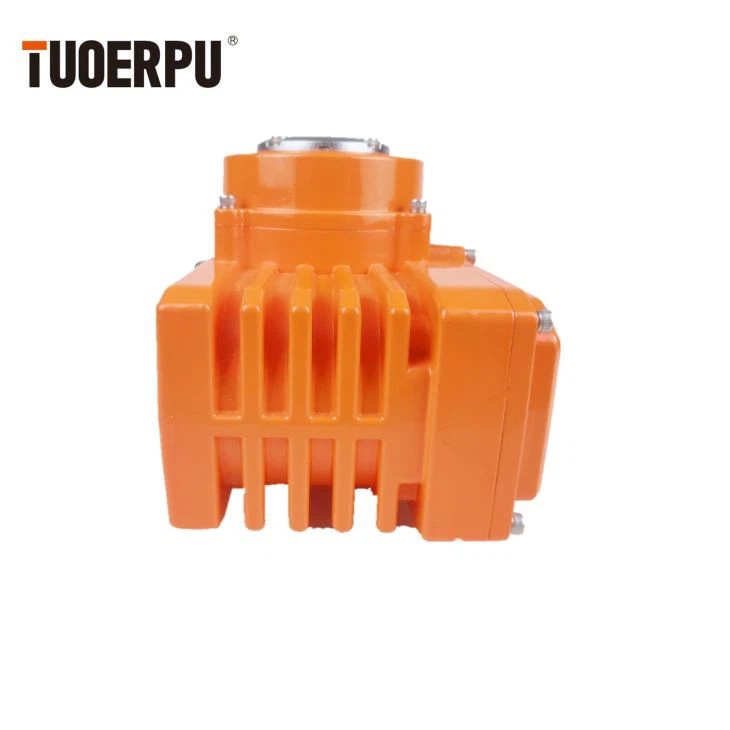

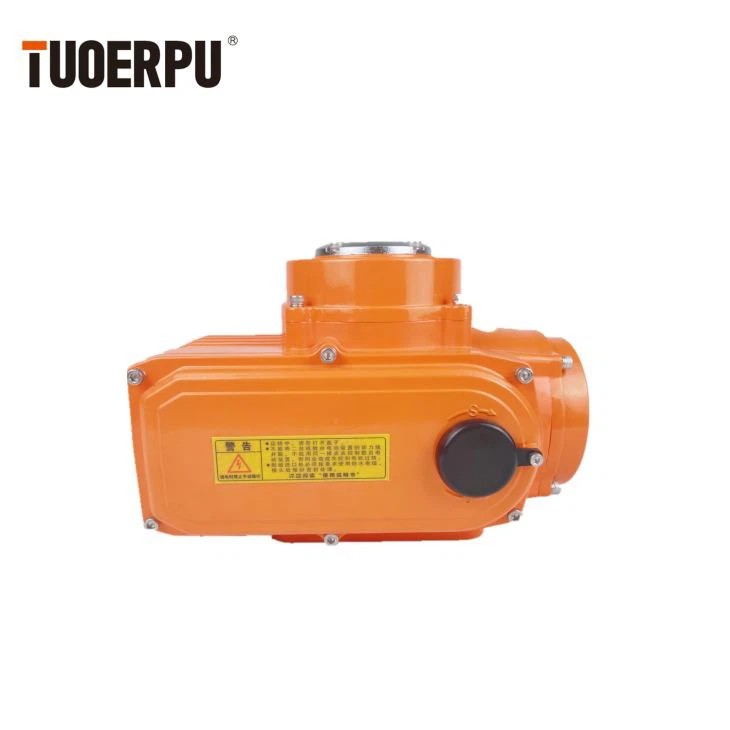

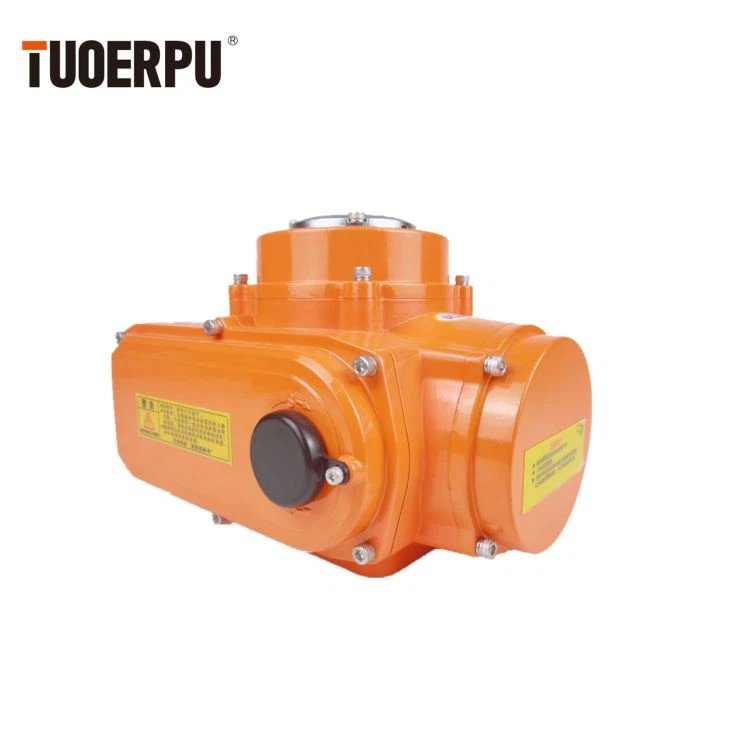

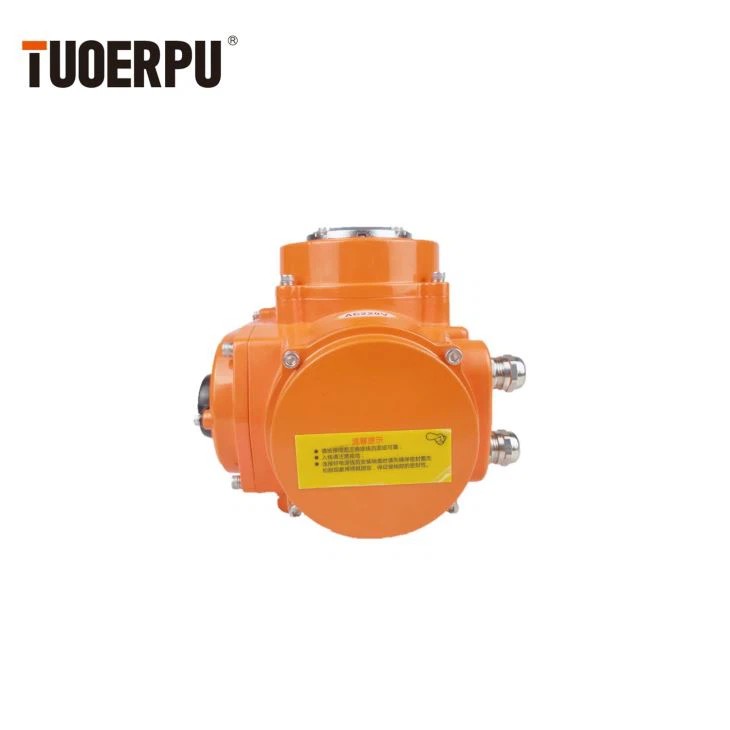

Regulator motor actuators are usually integral actuators.It can meet the requirements of increasingly advanced automatic control.The regulating electric actuator is a new generation product developed by introducing foreign technology. 90% of the components are imported, which fully guarantees the stability of the product.FLOWX series electric actuators are characterized by high intelligence, high protective performance, small size, high integration, long service life and stable performance.It can be operated on site or controlled remotely, suitable for ball valve, butterfly valve, phoenix door baffle and other equipment suitable for 90° rotation.
Product Parameters
ON–OFF TYPE
MODULATION TYPE
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|

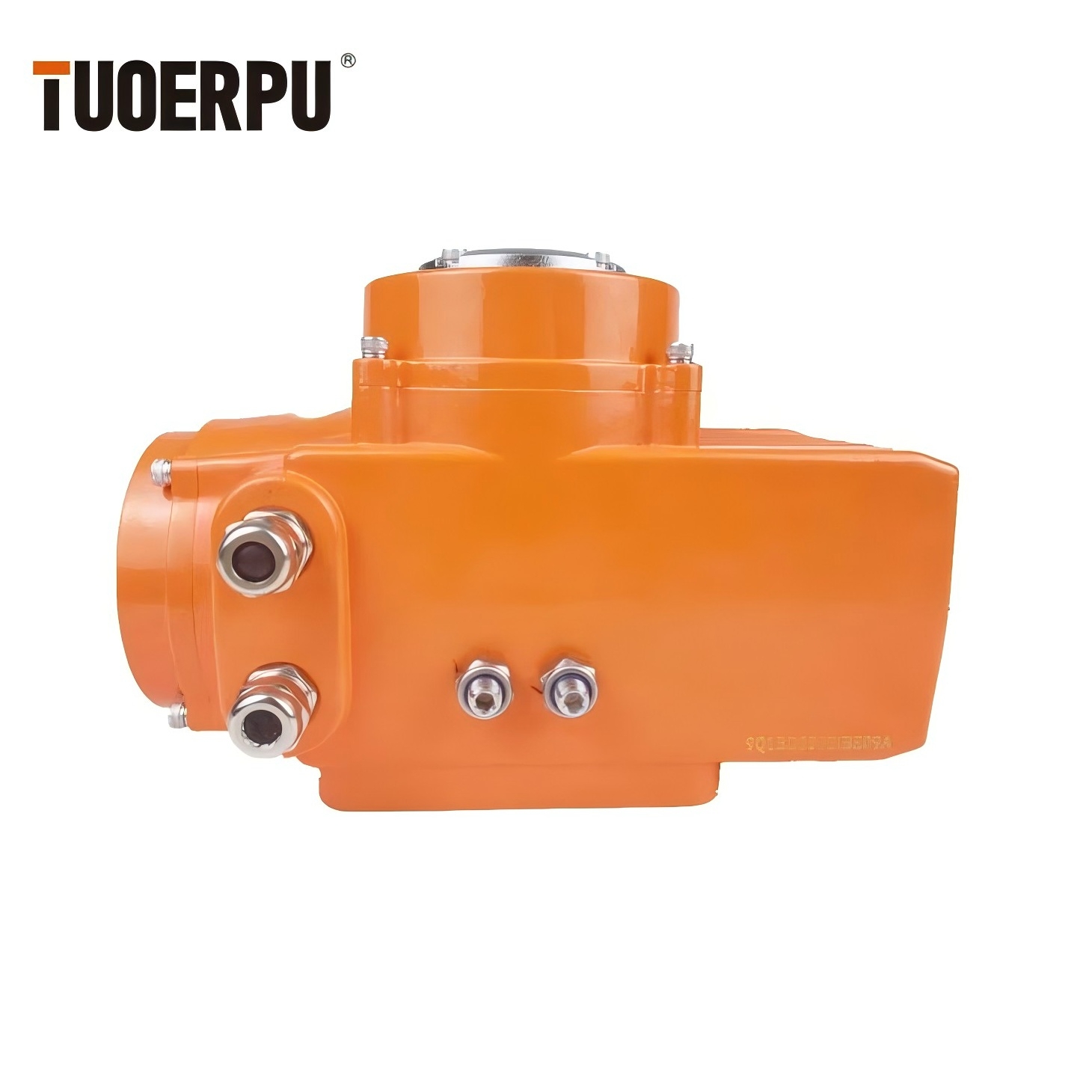

Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |

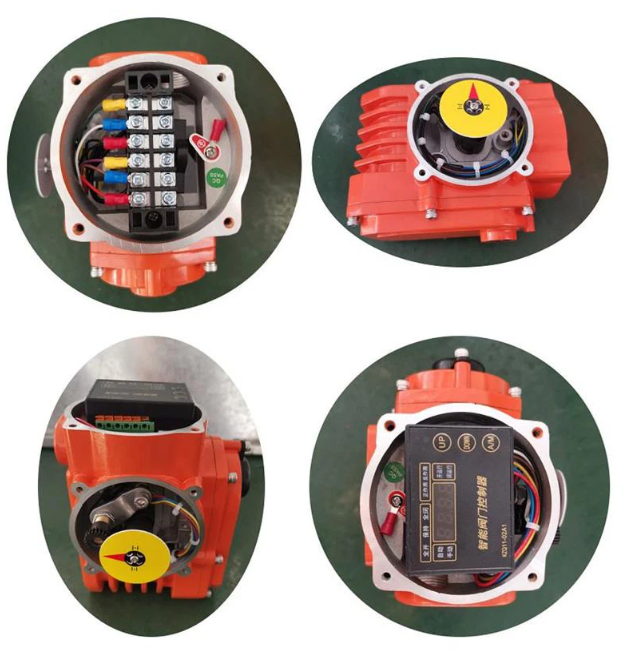

Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
