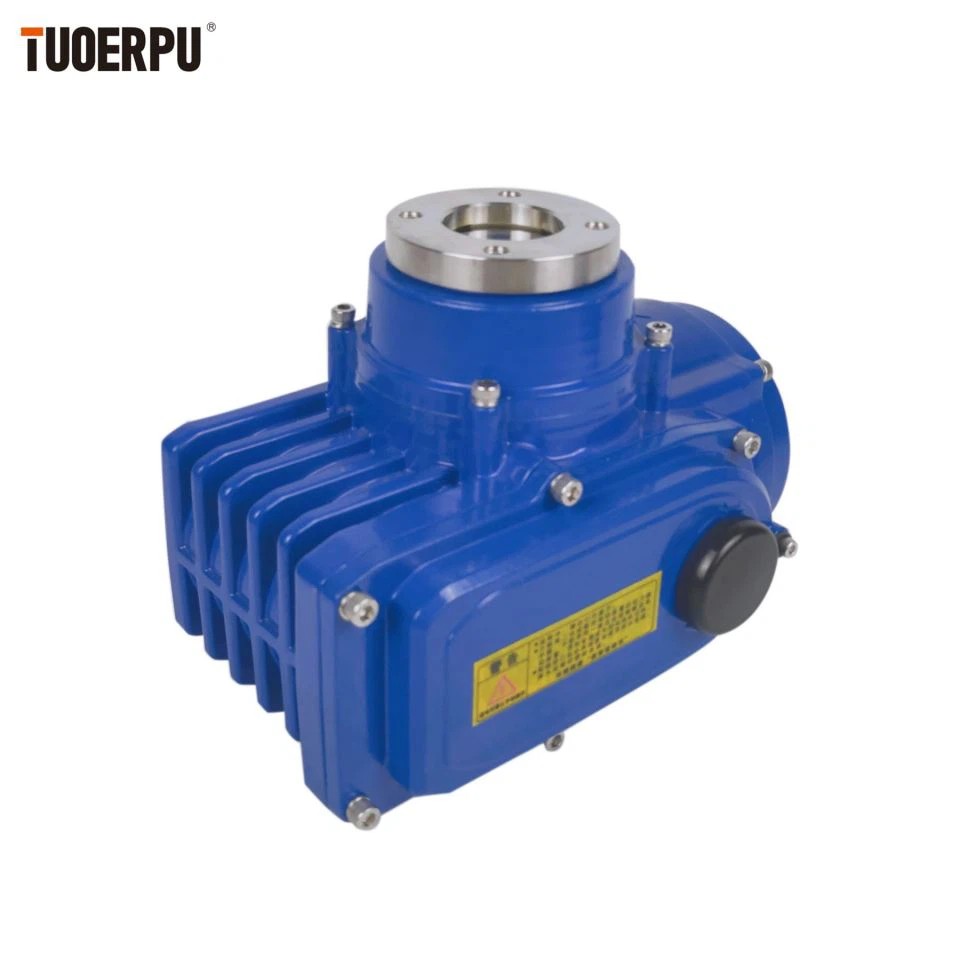

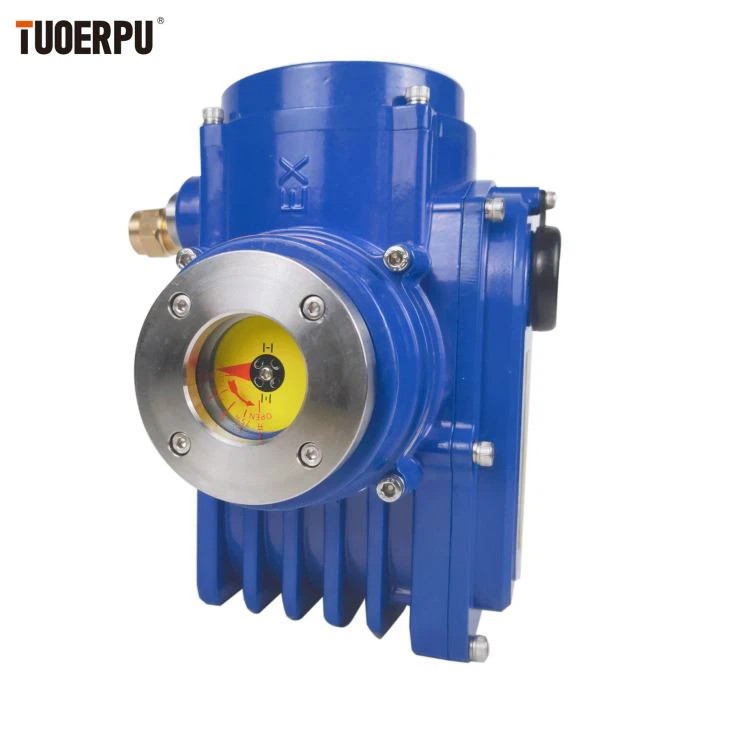

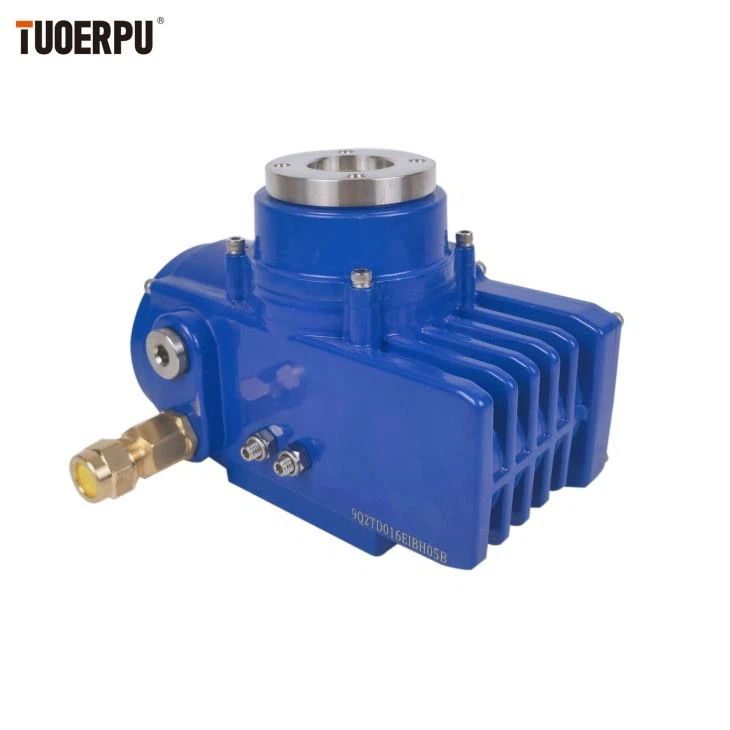

Explosion-proof electric actuator, which can be used in the mixed working environment, contains a variety of control signals, easy to install, and contains an explosion-proof plug and an explosion-proof cable connector.
Product Parameters
| Model | Standard Running Time/Torque | Optional Running Time/Torque | Rotation Angle Range | Voltage Type |
| TOP-EX110 | 25S/100Nm | 15s/50Nm | 0-90°adjustable | DC 24V |
| TOP-EX116 | 25s/160Nm | 15s/80Nm | AC 24V | |
| TOP-EX120 | 25s/200Nm | 15s/100Nm | AC 110V | |
| TOP-EX140 | 25s/400Nm | 15s/200Nm | AC 220V | |
| TOP-EX160 | 25s/600Nm | 15s/300Nm | AC 380V | |
| TOP-EX1100 | 50s/1000Nm | 25s/500Nm | ||
| TOP-EX1200 | 50s/2000Nm | 25s/1000Nm | ||
| Insulation Resistance | 100MΩ/500VDC | |||
| Withstand Voltage Class | 1500VAC 1Minute | |||
| Protection Class | IP65(optional IP67/IP68） | |||
| Explosion-poof Grade | ExdI IBT4 GB | |||
| Installation Location | 360° install at any angle | |||
| Electrical Interface | 1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector | |||
| Ambient Temperature | -20℃-60℃ | |||
| Function Optional | Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel | |||
