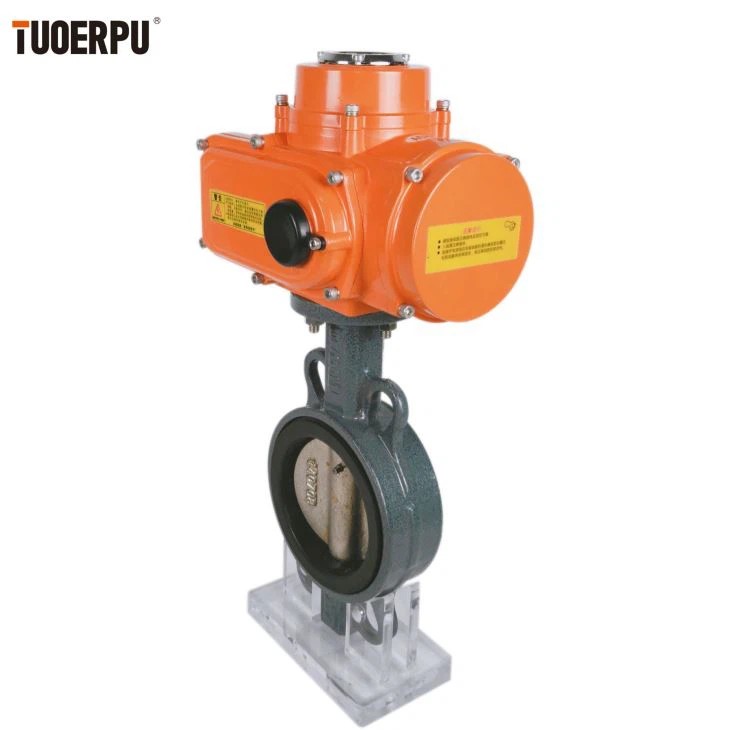

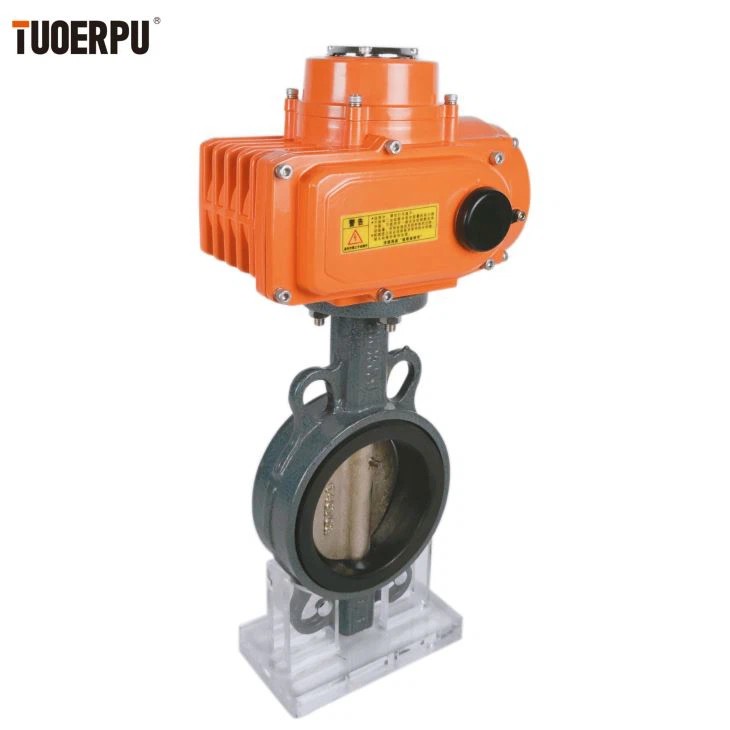

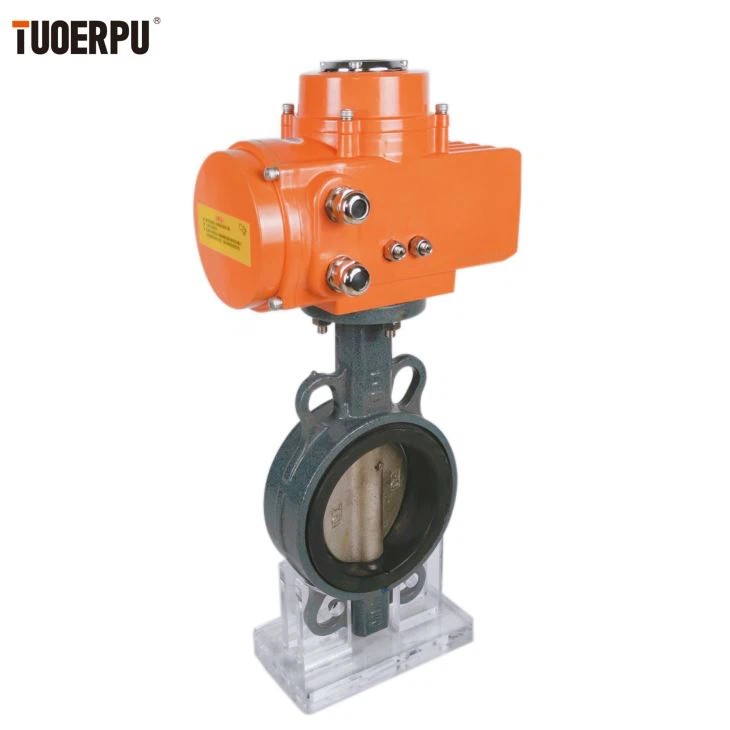

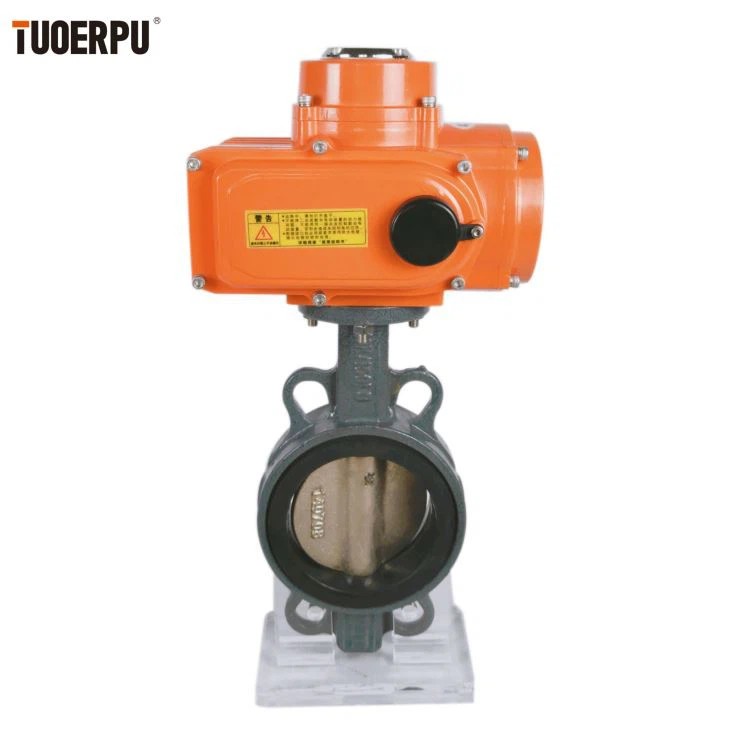

High quality precision small electric actuator butterfly valve.It is composed of butterfly valve and stainless steel valve plate and stem.Suitable for temperature ≤150℃.Applicable medium: fresh water, sea water and natural gas, nominal diameter: DN50~DN600.
Product Parameters
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
| Nominal pressure | PN0.6-1.6Mpa | |
| Test pressure | Strength test | PN0.9-2.4Mpa |
| Seal test | PN0.66-1.76Mpa | |
| Applicable medium | air,water,steam,oil,etc. | |
| Applicable temperature |
NBR:-30~80℃ EPDM:-30～120℃ PTFE:-30~130℃ |
|
| Connection type | Quick-fiing type,clamp type,extermal thread,welding type,etc | |
| Materials | body | 304、316、316L |
| seal ring | NBR、EPDM、Silicone rubber | |
| Nominal pressure | PN0.6-1.6Mpa | |
| Test pressure | Strength test | PN0.9-2.4Mpa |
| Seal test | PN0.66-1.76Mpa | |
| Applicable medium | air,water,steam,oil,etc. | |
| Applicable temperature |
NBR:-30~80℃ EPDM:-30～120℃ PTFE:-30~130℃ |
|
| Connection type | Quick-fiing type,clamp type,extermal thread,welding type,etc | |
| Materials | body | 304、316、316L |
| seal ring | NBR、EPDM、Silicone rubber | |

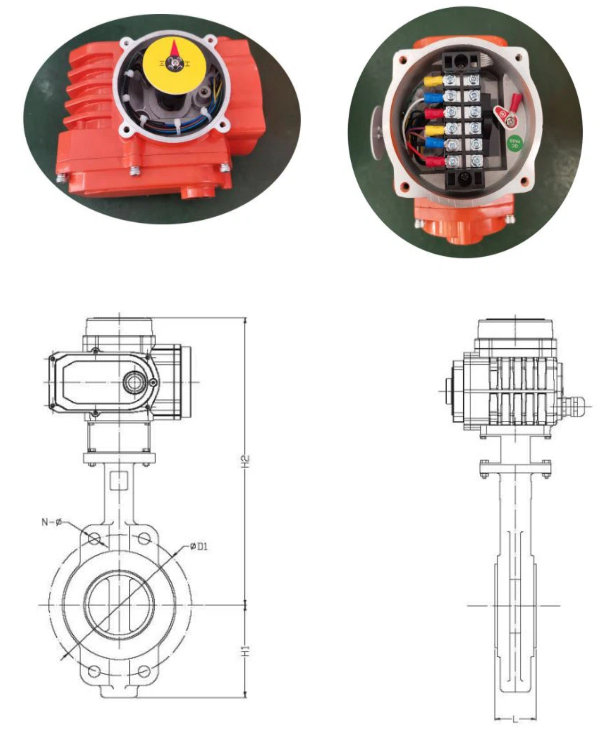

| mm | in | 1.0MPa | 1.6MPa | 1.0MPa | 1.6MPa | ||||
| DN50 | 2" | TOP-105 | 125 | 43 | 313 | 76 | 4-φ18 | ||
| DN65 | 21/2' | 145 | 46 | 326 | 89 | 4-φ18 | |||
| DN80 | 3" | 160 | 46 | 332 | 94 | 4-φ18 | 4-φ18 | ||
| DN100 | 4° | TOP-110 | 180 | 52 | 374 | 114 | 8-φ18 | ||
| DN125 | 5° | 210 | 56 | 387 | 127 | 8-φ18 | |||
| DN150 | 6" | TOP-120 | 240 | 56 | 433 | 140 | 8-φ23 | ||
| DN200 | 8" | 295 | 60 | 468 | 176 | 8-φ23 | 12-φ23 | ||
| DN250 | 10° | TOP-160 | 350 | 355 | 68 | 518 | 207 | 12-φ23 | 12-φ25 |
| DN300 | 12' | TOP-1100 | 400 | 410 | 78 | 594 | 240 | 12-φ23 | 12-φ25 |
| DN350 | 14° | 460 | 470 | 78 | 625 | 273 | 16-φ23 | 16-φ25 | |
| DN400 | 16' | TOP-1200 | 515 | 525 | 102 | 657 | 322 | 16-φ25 | 16-φ30 |
| DN450 | 18' | 565 | 585 | 114 | 679 | 340 | 20-φ25 | 20-φ30 | |
| DN500 | 20' | 620 | 650 | 127 | 737 | 380 | 20-φ28 | 20-φ34 | |
| DN600 | 24° | TOP-1400 | 725 | 770 | 154 | 881 | 467 | 20-φ31 | 20-φ37 |
