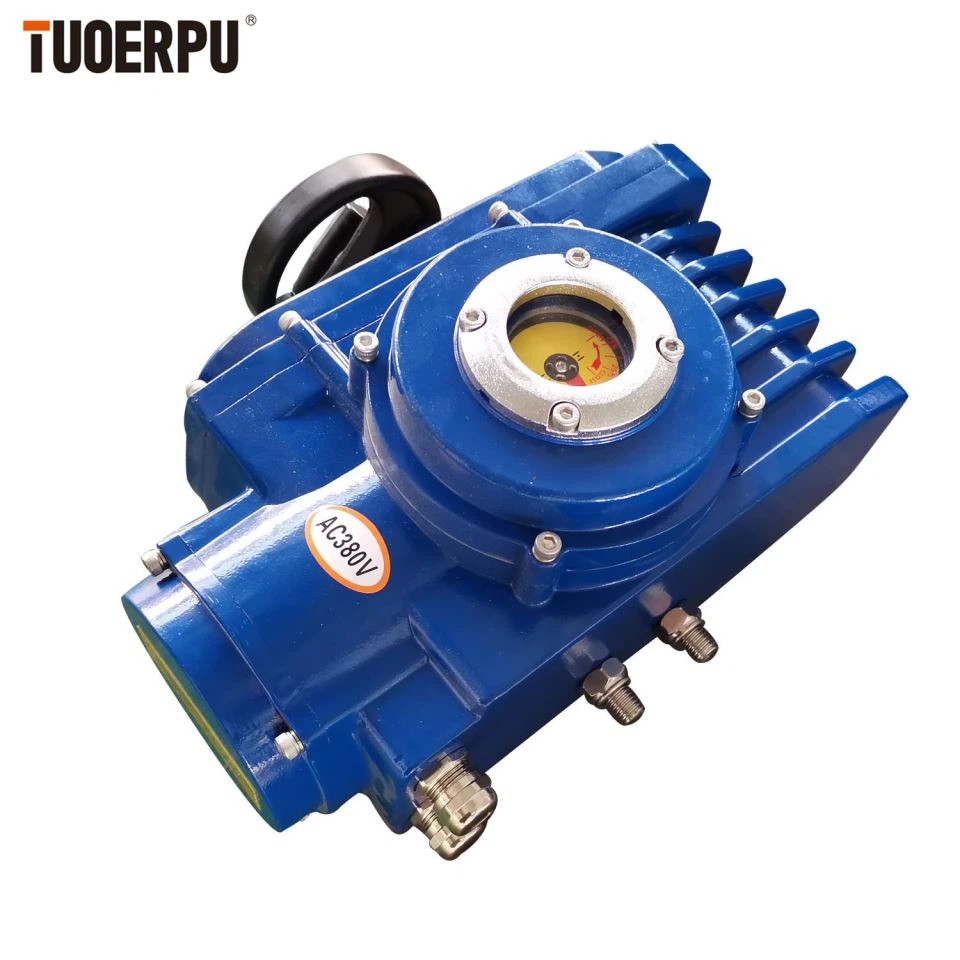

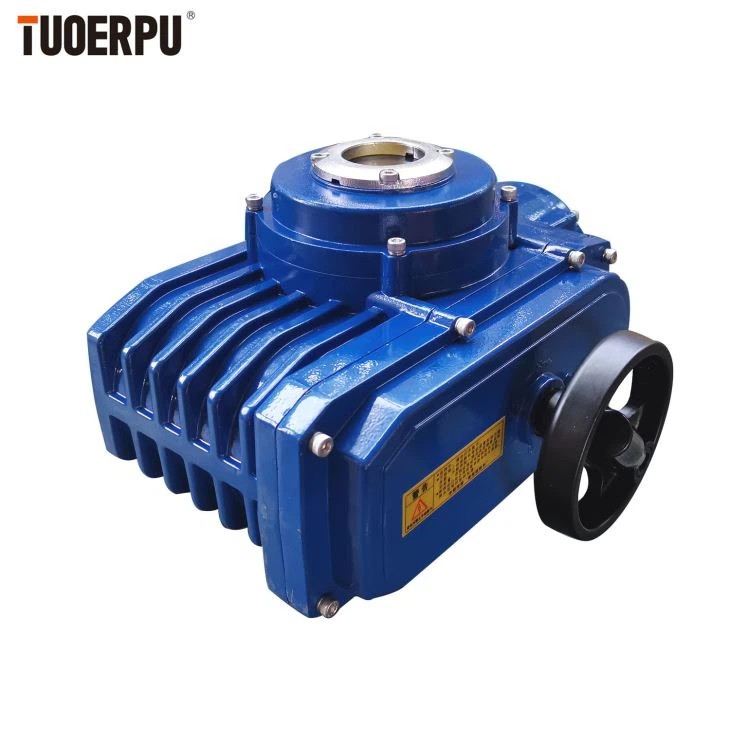

Normal type electric actuator 380V, electric actuator connection mode has octagonal and shaft keys, electrical interface, when using the user according to the cable selected, install the corresponding cable connector.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
10s/30Nm
AC 24V
TOP-110
25S/100Nm
15s/50Nm
AC 11VC
TOP-116
25s/160Nm
15s/80Nm
AC 220V
TOP-120
25s/200Nm
15s/100Nm
AC 380V
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle

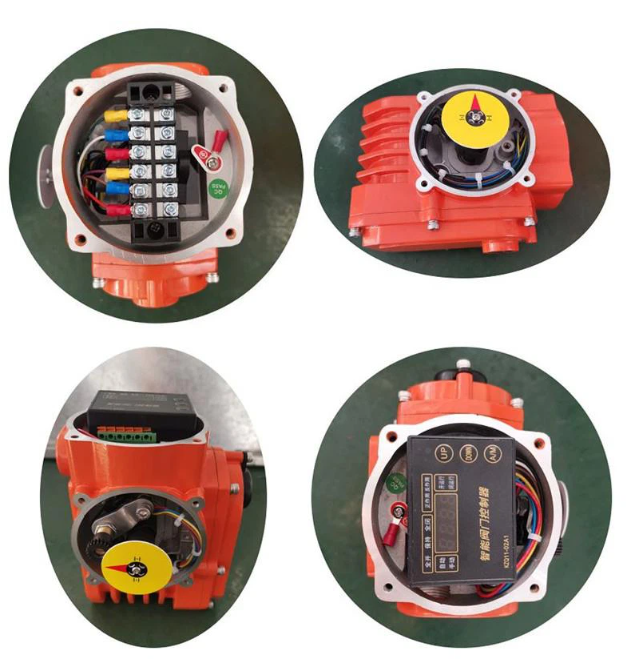

Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional

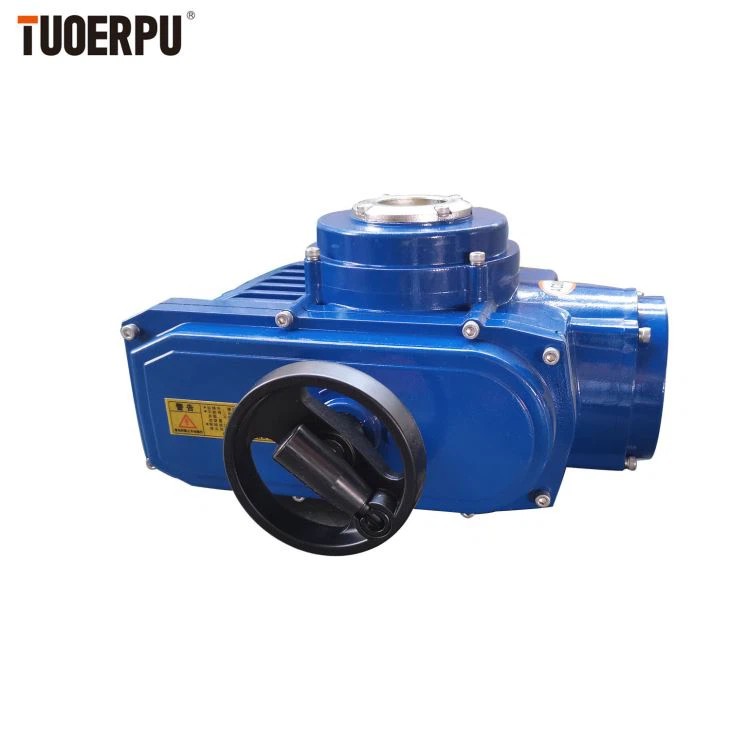

Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
