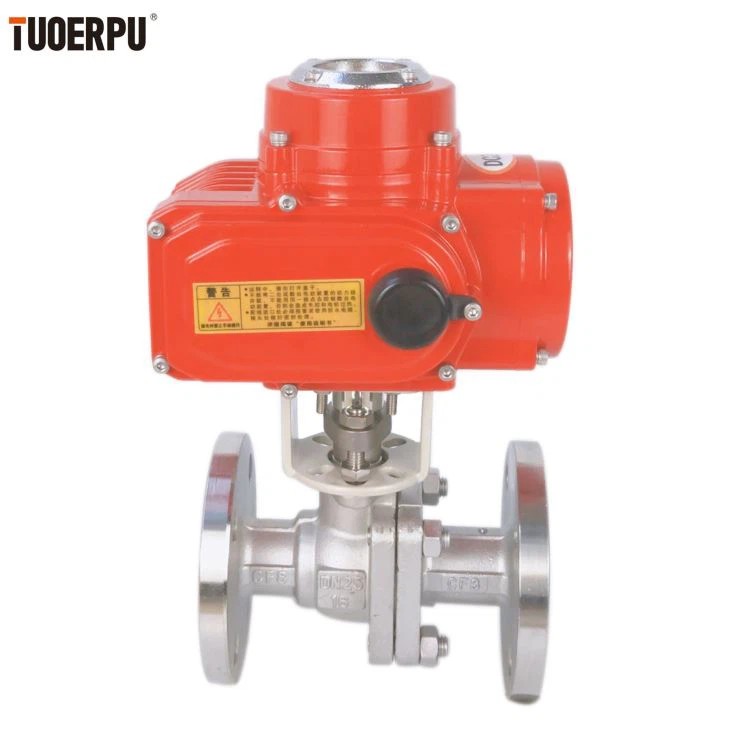

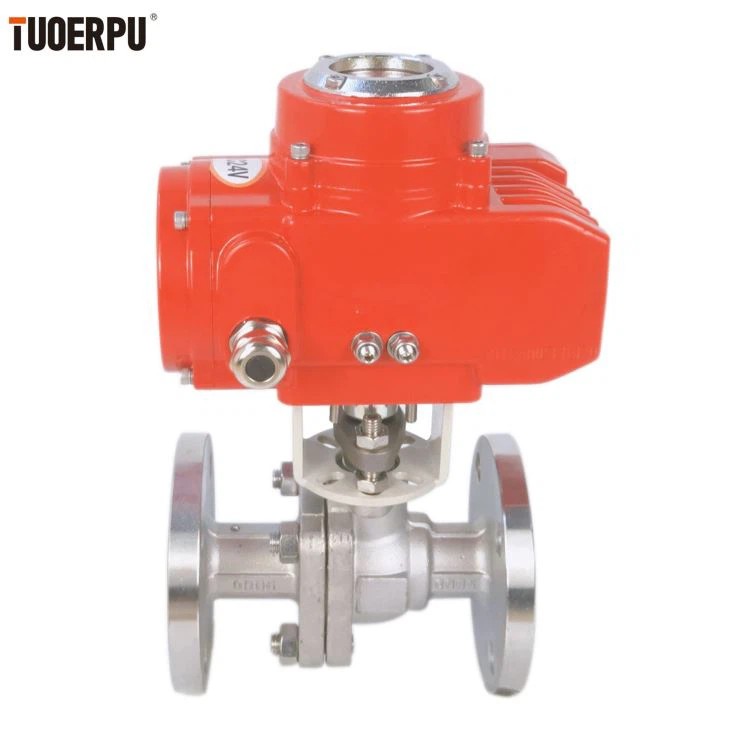

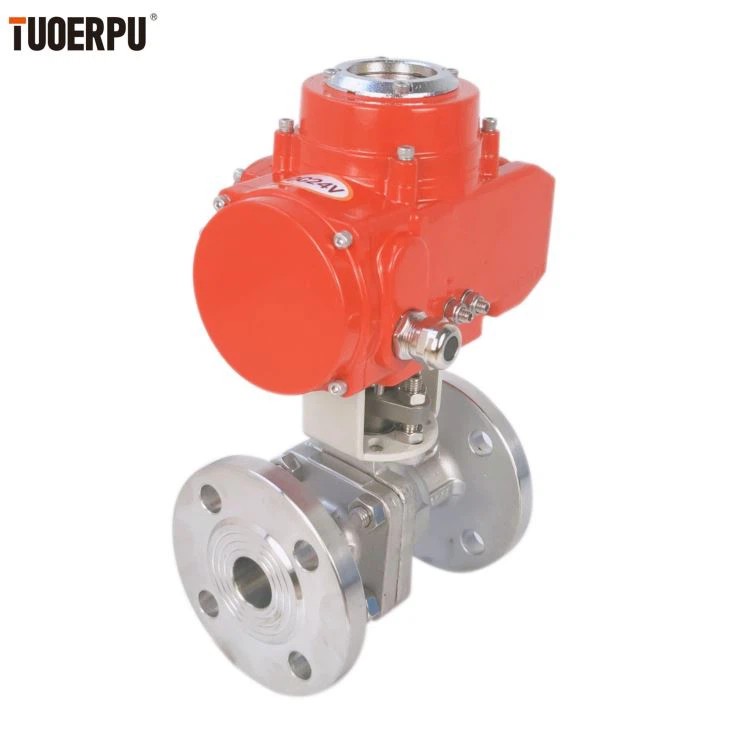

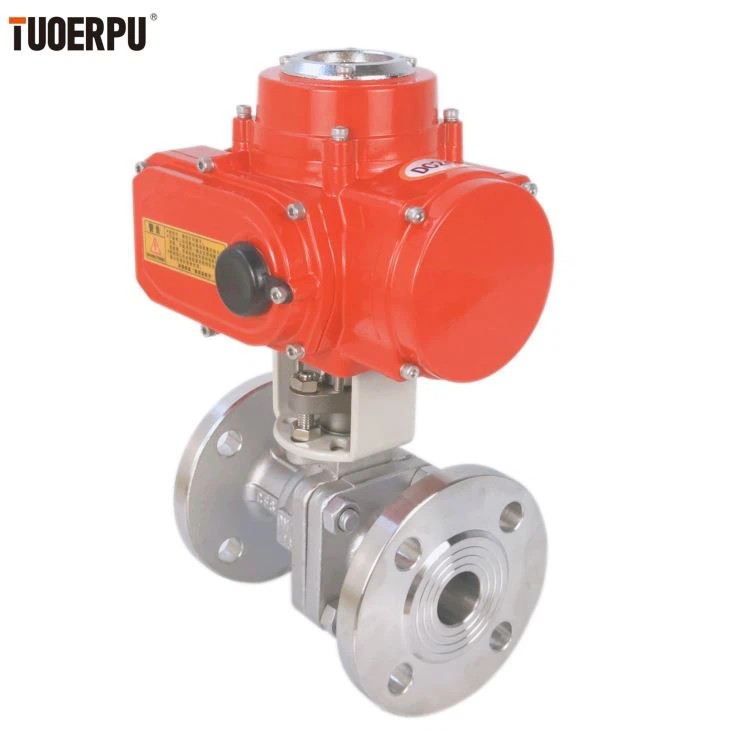

4-20ma Ball Valve Electric, the Valve seat material is made of teflon (normal temperature), special PPL(high temperature), metal seal (high temperature), nominal pressure is 1.0, 1.6, 2.5, 4.0, 6.4MPa.The motion of the actuator is controlled by the 4-20ma input control signal.Any change in the control input will result in a corresponding and proportional change in the position of the ball.
Product Parameters
Nominal Diameter DN(mm)
DN15~DN250
Nominal Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Medium
water,petroleum,nitric acid,acetic acid,viscous
liquid,slury,strong oxidizing
Temperature
-40℃~+8℃(PTEE/PPL seal)-40℃~+350℃
(metal seal)
Leakage
ANSI B16104 standard
Sphere rotation angle
90°
Body
WCB,304,316
Seat
PTFE,PPL,Metal seal

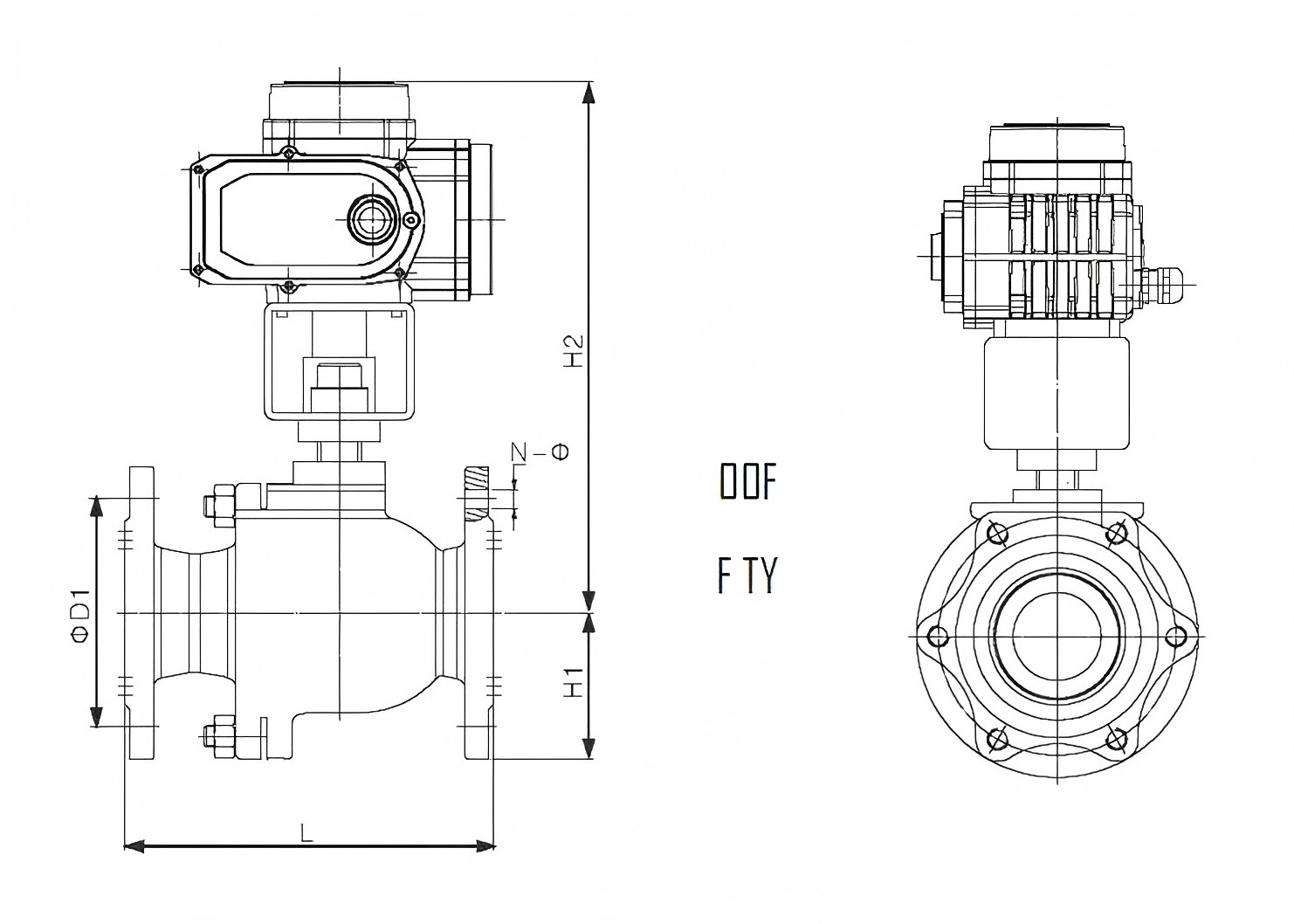

Size
Model
ΦD1
H2
H1
L
N-Φ
mm
in
1.0MPa
1.0MPa
DN15
1/2"
TOP-105
65
177
48
130
45761
DN20
3/4"
TOP-105
75
183
53
140
DN25
1"
TOP-105
85
211
57
150
DN32
11/4"
TOP-105
100
231
67
165
45765
DN40
11/2"
TOP-110
110
276
77
180
DN50
2"
TOP-110
125
323
80
200
DN65
21/2"
TOP-116
145
365
90
220
DN80
3"
TOP-120
160
387
98
250
45887
DN100
4"
TOP-140
180
423
107
280
DN125
5"
TOP-160
210
448
122
320
DN150
6"
TOP-1100
240
504
140
360
45892
DN200
8"
TOP-1200
295
553
177
400
46014
DN250
10"
TOP-1200
355
569
212
450
46016
