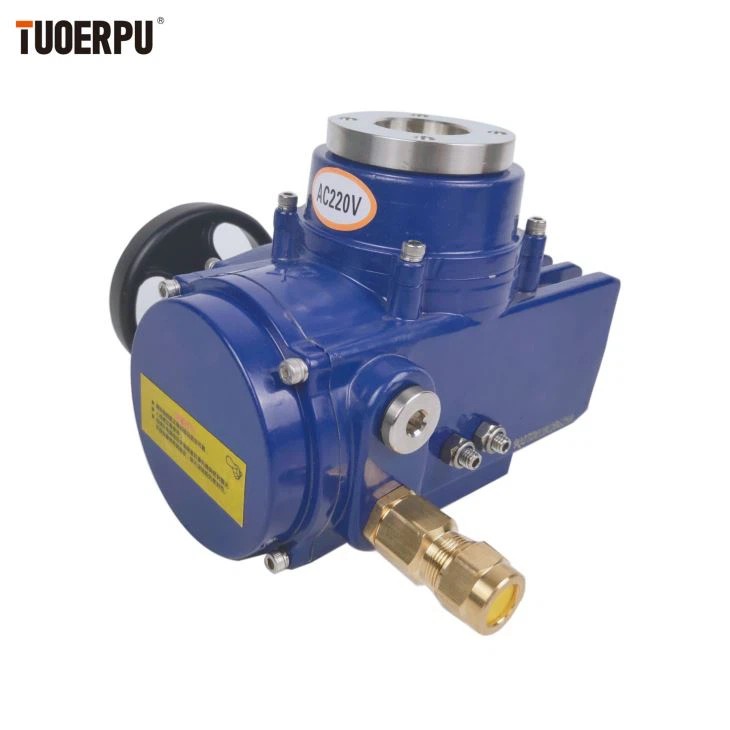

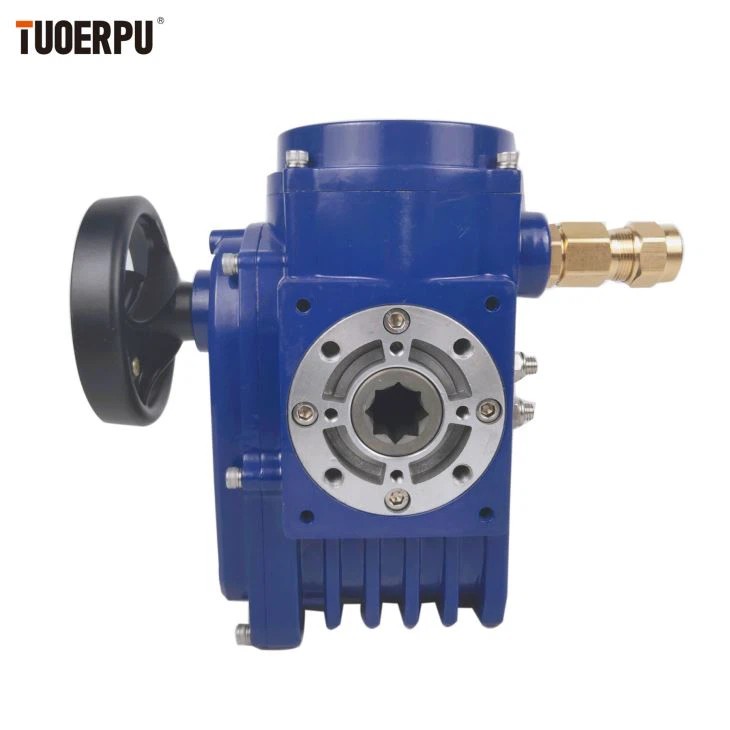

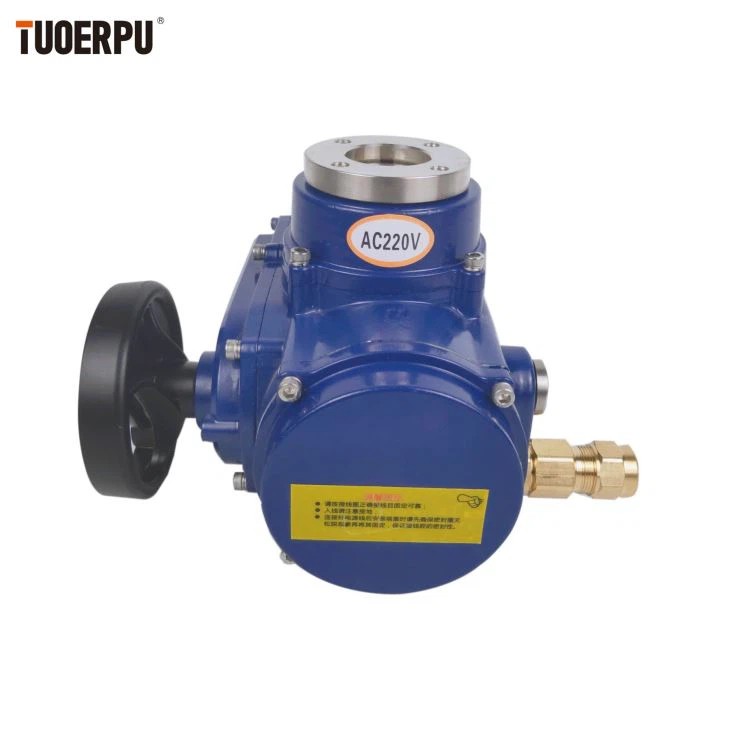

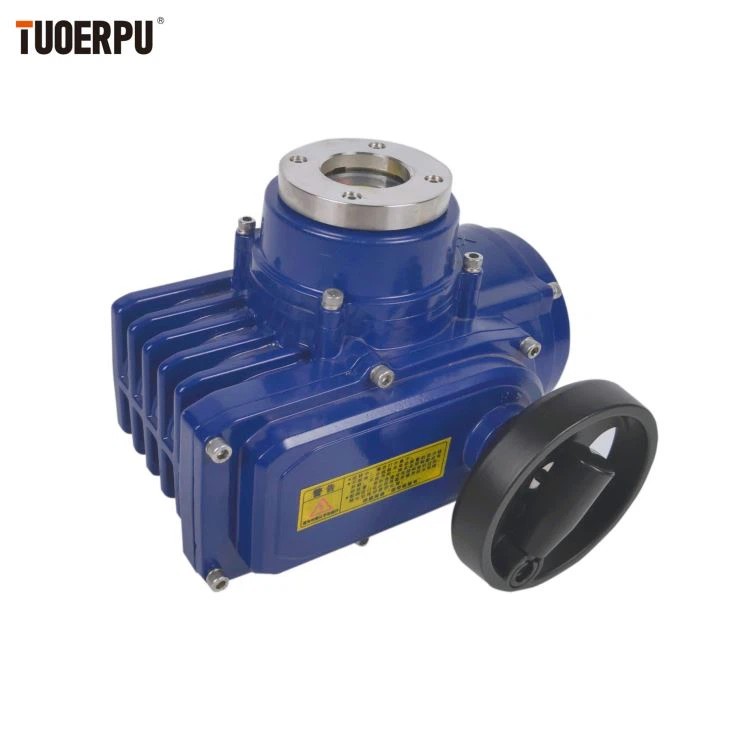

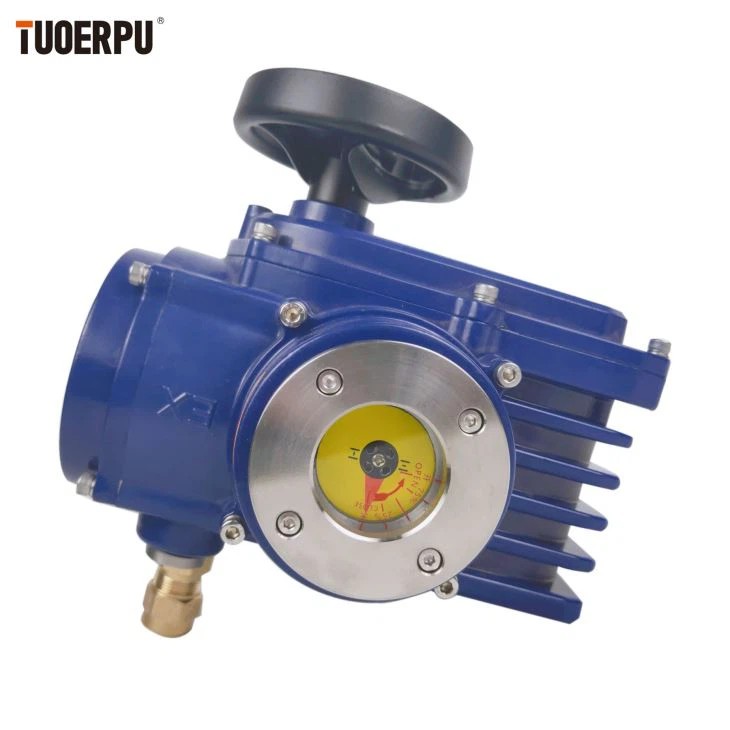

Explosion-proof electric actuator device design is unique, with a handwheel, in the absence of power, you can turn the handwheel to make the valve operate, electric actuator voltage is various.Those who are interested can consult us directly for more specific information.
Product Parameters
OOFF TYPE
MODULATION TYPE
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-EX110 |
25S/100Nm |
15s/50Nm |
0-90°adjustable |
DC 24V |
|
TOP-EX116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-EX120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-EX140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-EX160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-EX1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-EX1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Explosion-poof Grade |
ExdI IBT4 GB |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
