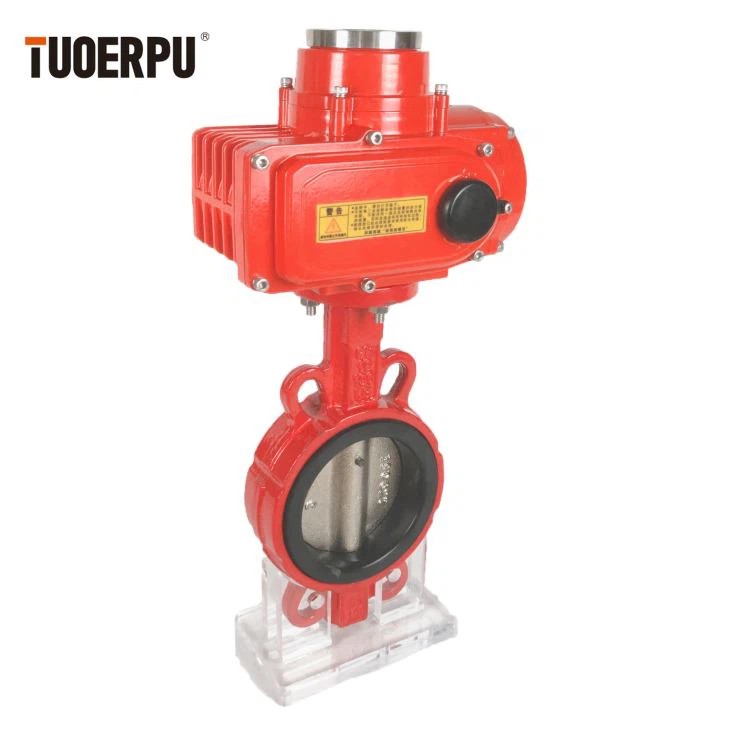

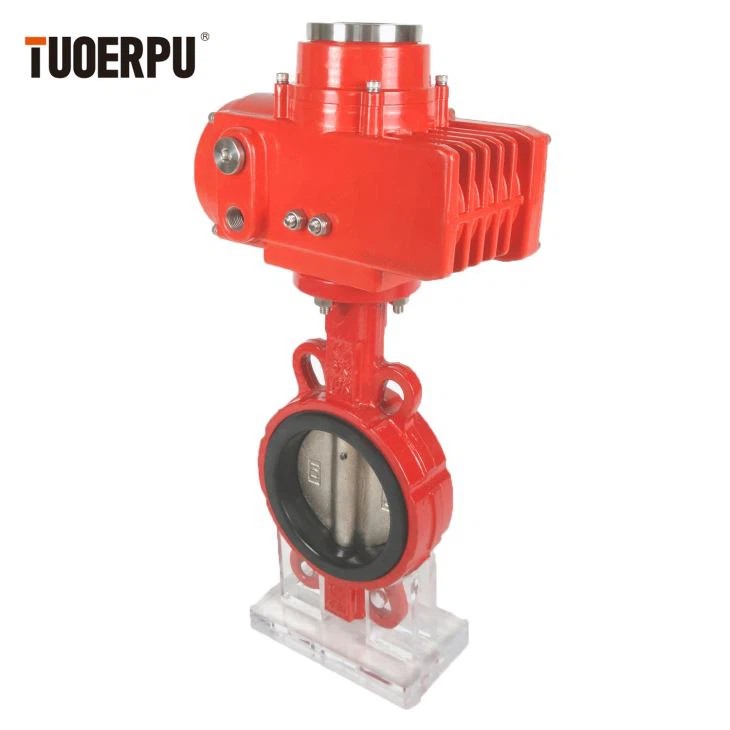

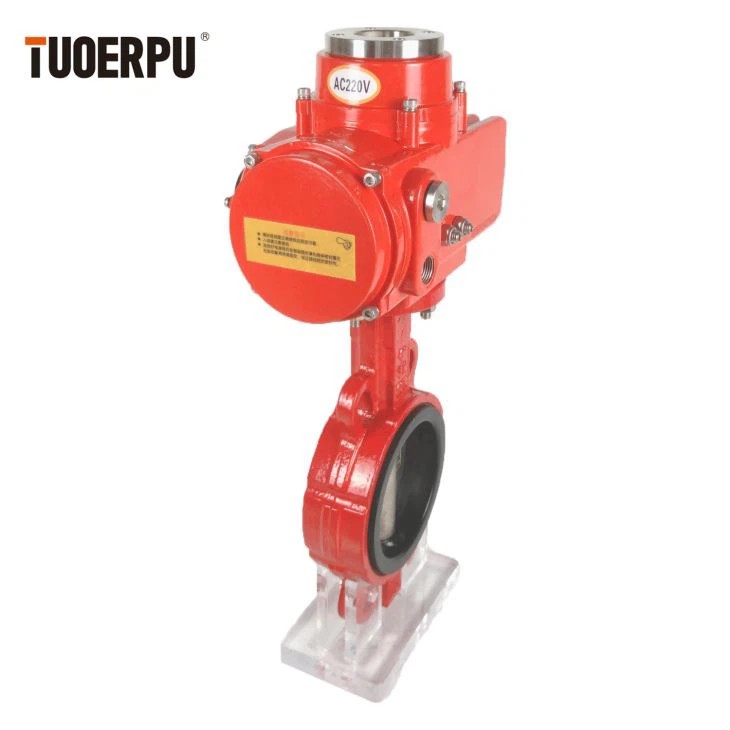

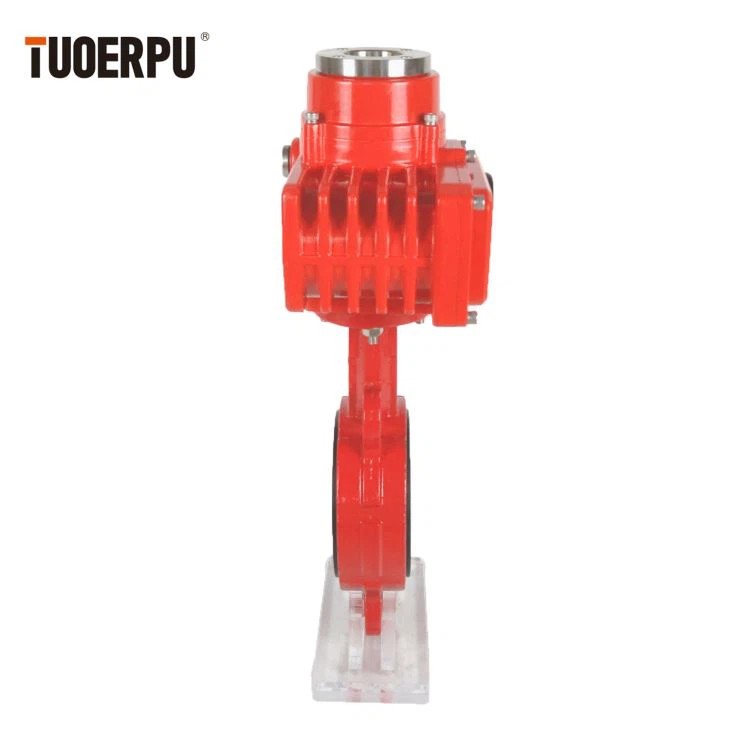

Electric Wafer Butterfly Valve, matched with TOP electric actuator,Small electric motorized valve actuator easy 90 ° rotary switch, reliable seal, long service life.The applicable temperature is -20 ℃ ~ 150 ℃. The suitable medium for electric wafer soft seal butterfly valve is fresh water, sea water, food, natural gas, oil, steam, etc.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 110V
AC 220V
AC 380V
Nominal pressure
PN 1.0,1.6Mpa
Applicable medium
fresh water,sea water,food,natural gas,alcohol,
salt,acid,alkali,oil,steam,air,etc
Applicable temperature
-20℃~150℃
Materials
Body
ductle iron,cast steel,gray cast iron,stalnless steel
Plate
stainless steel CF8,stainless steel CF8M,nickel and phosphorus plating
on ductile iron,ductile iron coated with nylon,aluminium bronze
Stem
stainless steel,45#carbon steel
Seat
EPDM,NBR,PTFE,Viton,SEP

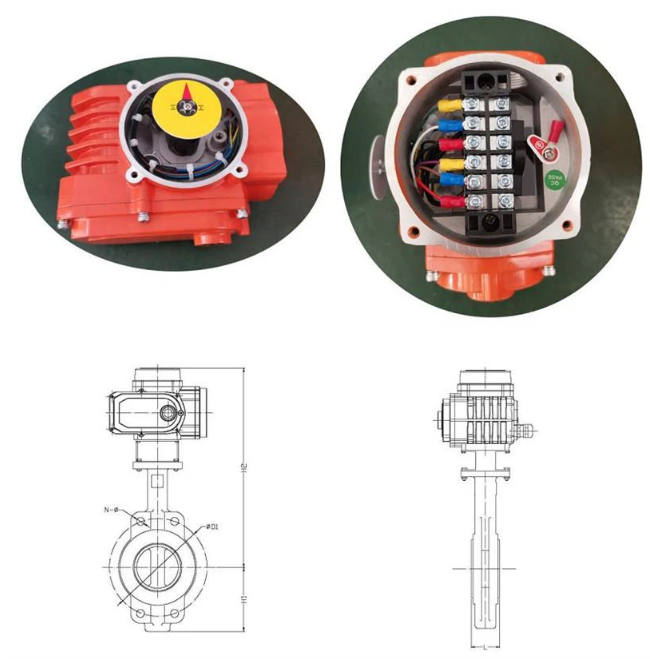

mm
in
1.0MPa
1.6MPa
1.0MPa
1.6MPa
DN50
2"
TOP-105
125
43
313
76
4-φ18
DN65
21/2'
145
46
326
89
4-φ18
DN80
3"
160
46
332
94
4-φ18
4-φ18
DN100
4°
TOP-110
180
52
374
114
8-φ18
DN125
5°
210
56
387
127
8-φ18
DN150
6"
TOP-120
240
56
433
140
8-φ23
DN200
8"
295
60
468
176
8-φ23
12-φ23
DN250
10°
TOP-160
350
355
68
518
207
12-φ23
12-φ25
DN300
12'
TOP-1100
400
410
78
594
240
12-φ23
12-φ25
DN350
14°
460
470
78
625
273
16-φ23
16-φ25
DN400
16'
TOP-1200
515
525
102
657
322
16-φ25
16-φ30
DN450
18'
565
585
114
679
340
20-φ25
20-φ30
DN500
20'
620
650
127
737
380
20-φ28
20-φ34
DN600
24°
TOP-1400
725
770
154
881
467
20-φ31
20-φ37
