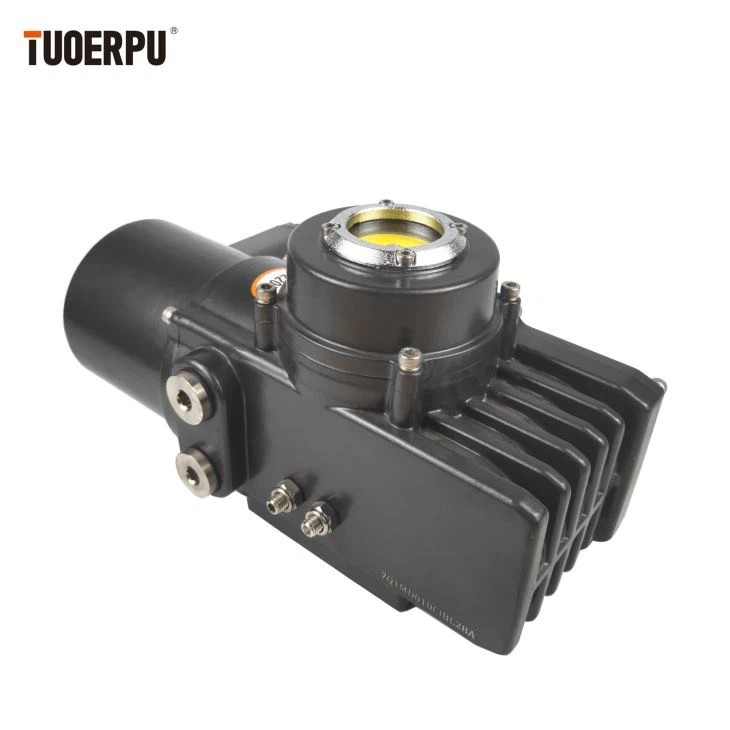

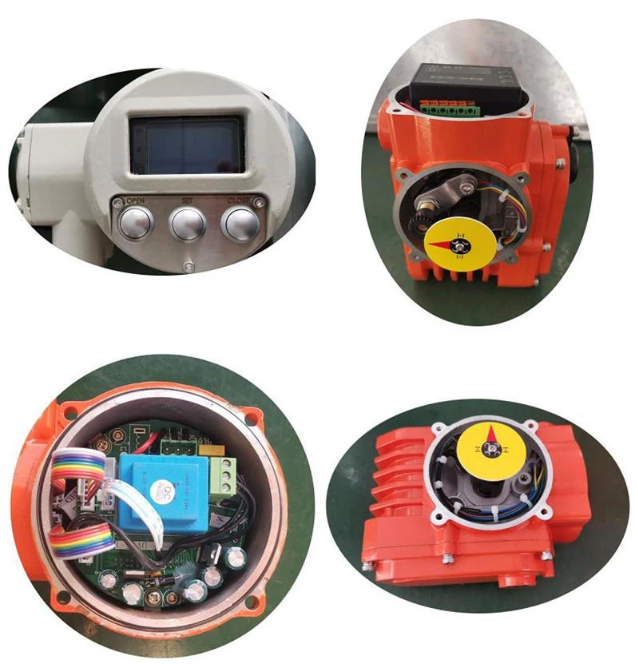

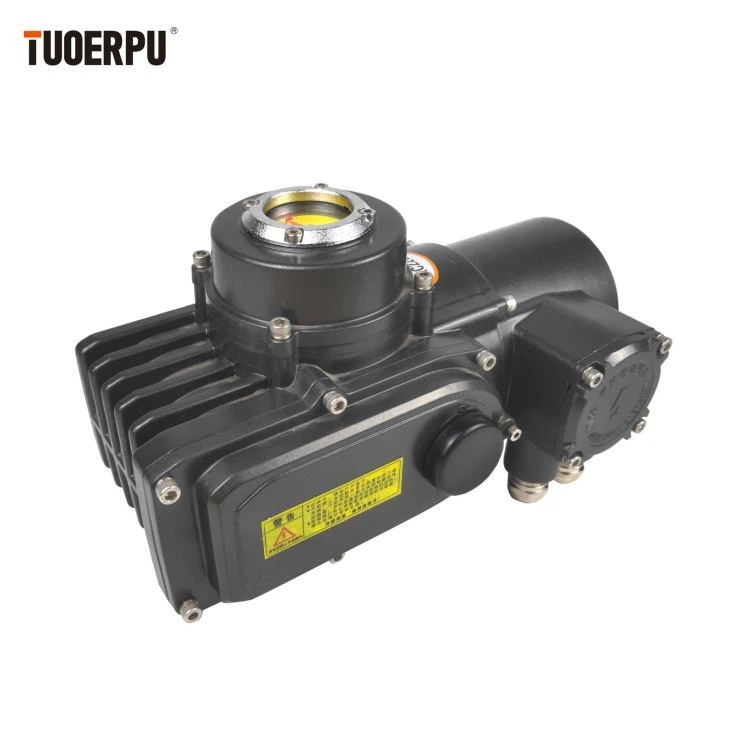

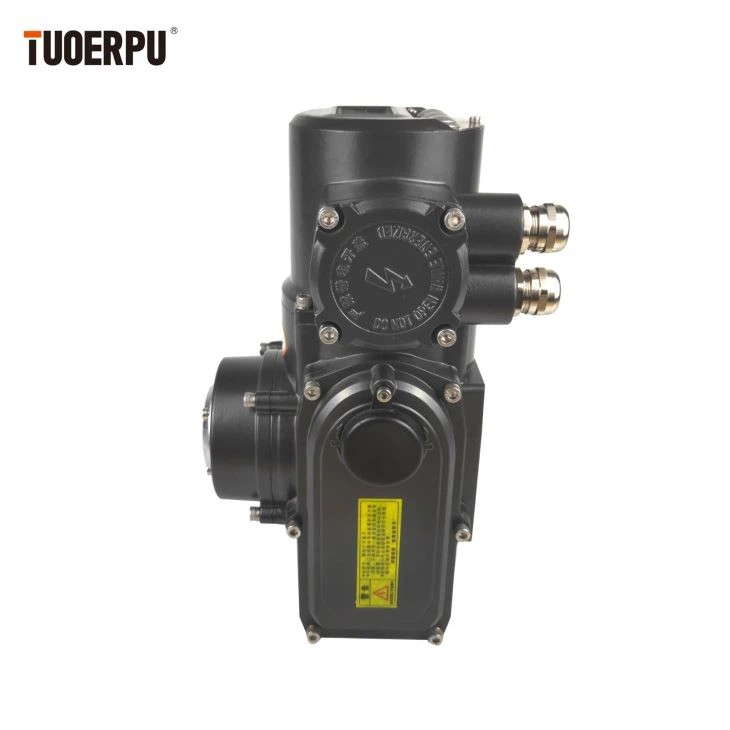

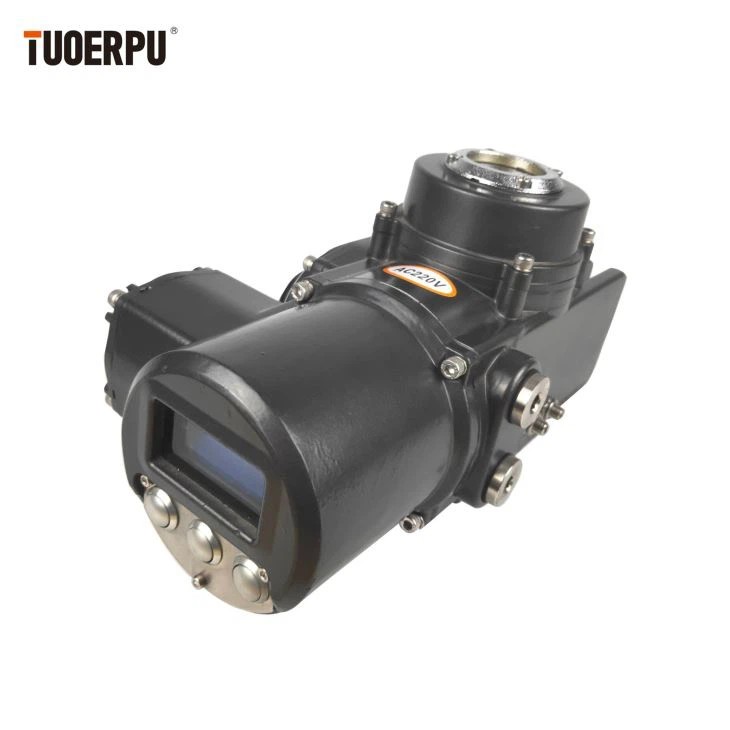

TOP intelligent electric actuators have a built-in reset function. When a failure occurs in the electric mechanism, the fault display can be quickly diagnosed and dealt with through the fault display on the LCD without opening the cover.It has small size, quick opening and closing, easy installation, convenient operation, and digital display valve position.
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-EX110
25S/100Nm
15s/50Nm
0-90°adjustable
DC 24V
TOP-EX116
25s/160Nm
15s/80Nm
TOP-EX120
25s/200Nm
15s/100Nm
TOP-EX140
25s/400Nm
15s/200Nm
TOP-EX160
25s/600Nm
15s/300Nm
TOP-EX1100
50s/1000Nm
25s/500Nm
TOP-EX1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Explosion-poof Grade
ExdI IBT4 GB
Installation Location
360° install at any angle
Electrical Interface
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
AC 24V
AC 110V
AC 220V
AC 380V
