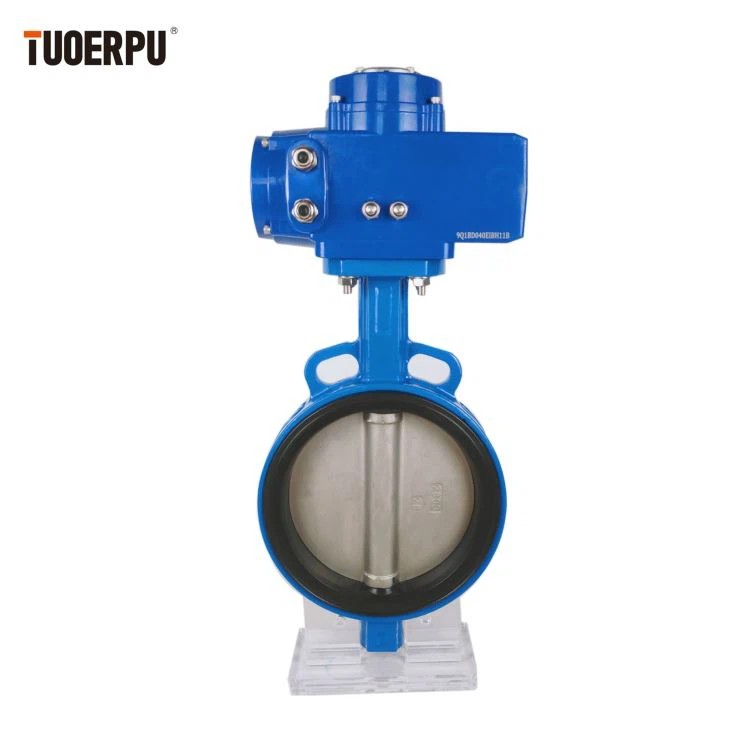

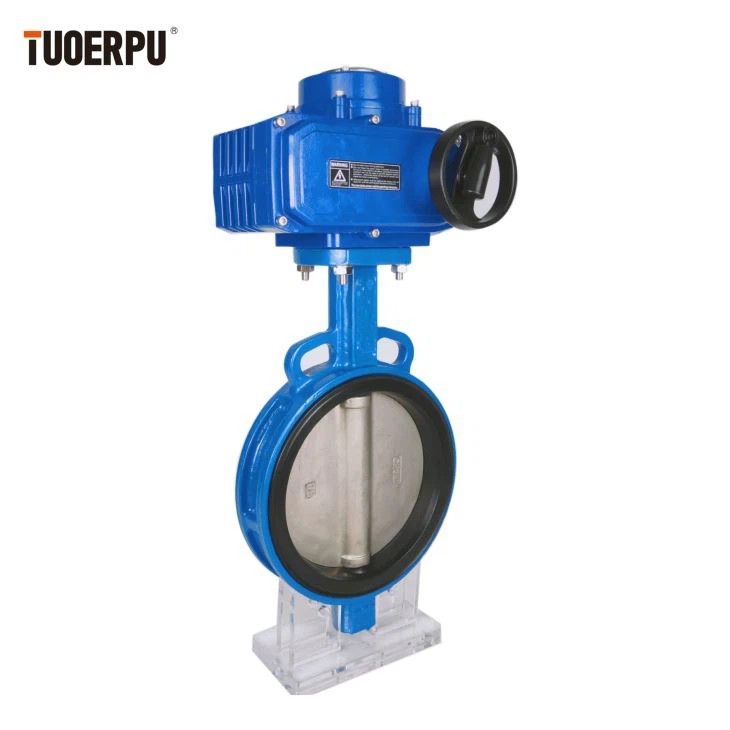

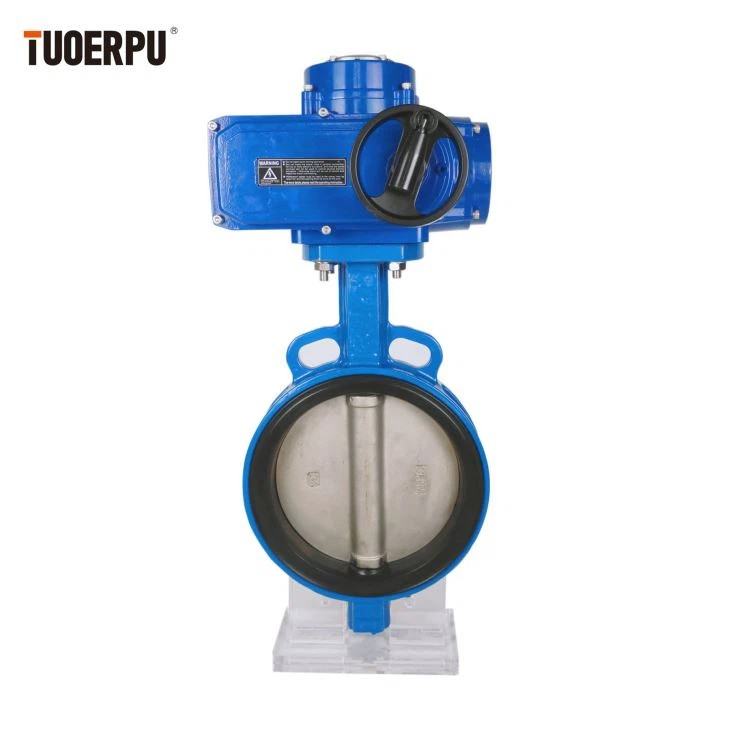

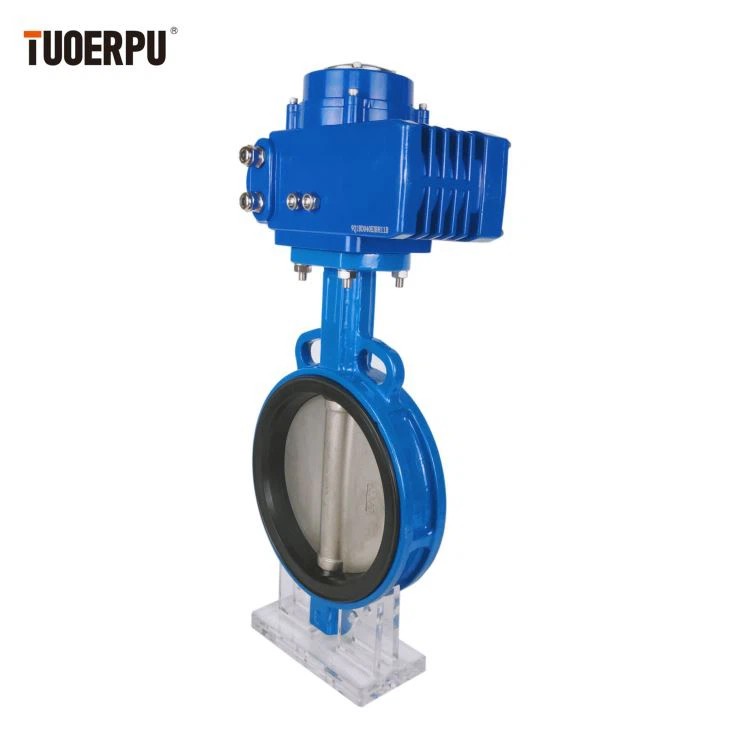

It adopts an integrated structure, which can be controlled by input control signals (4-20mADC or 1-5VDC) and unit-phase power. It has strong functions, small size, light and cheap, reliable performance, simple matching, large circulation capacity, and At normal temperature and clean medium, the valve plate and soft seal (rubber ring, PTFE ring) can be selected to reduce leakage (up to 0.01%), and three-eccentric hard-sealed valve body can be used at high temperature and high pressure. Just indicate when ordering. The actuator can be configured with UNIC, PSQ, HQ, CH and other electronic electric actuators according to user requirements. It can be widely used in food, environmental protection, light industry, petroleum, chemical industry, teaching equipment, papermaking
Product Parameters
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 110V
AC 220V
AC 380V
Nominal pressure
PN 1.0,1.6Mpa
Applicable medium
fresh water,sea water,food,natural gas,alcohol,
salt,acid,alkali,oil,steam,air,etc
Applicable temperature
-20℃~150℃
Materials
Body
ductle iron,cast steel,gray cast iron,stalnless steel
Plate
stainless steel CF8,stainless steel CF8M,nickel and phosphorus plating
on ductile iron,ductile iron coated with nylon,aluminium bronze
Stem
stainless steel,45#carbon steel
Seat
EPDM,NBR,PTFE,Viton,SEP

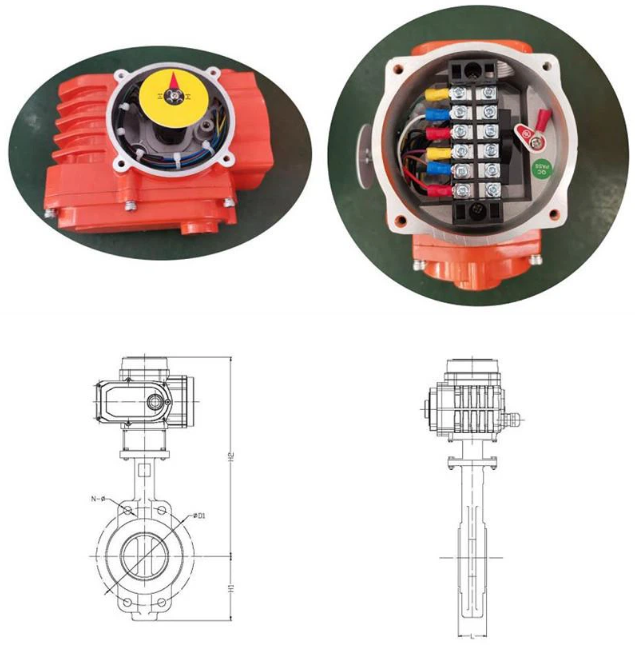

mm
in
1.0MPa
1.6MPa
1.0MPa
1.6MPa
DN50
2"
TOP-105
125
43
313
76
4-φ18
DN65
21/2'
145
46
326
89
4-φ18
DN80
3"
160
46
332
94
4-φ18
4-φ18
DN100
4°
TOP-110
180
52
374
114
8-φ18
DN125
5°
210
56
387
127
8-φ18
DN150
6"
TOP-120
240
56
433
140
8-φ23
DN200
8"
295
60
468
176
8-φ23
12-φ23
DN250
10°
TOP-160
350
355
68
518
207
12-φ23
12-φ25
DN300
12'
TOP-1100
400
410
78
594
240
12-φ23
12-φ25
DN350
14°
460
470
78
625
273
16-φ23
16-φ25
DN400
16'
TOP-1200
515
525
102
657
322
16-φ25
16-φ30
DN450
18'
565
585
114
679
340
20-φ25
20-φ30
DN500
20'
620
650
127
737
380
20-φ28
20-φ34
DN600
24°
TOP-1400
725
770
154
881
467
20-φ31
20-φ37
