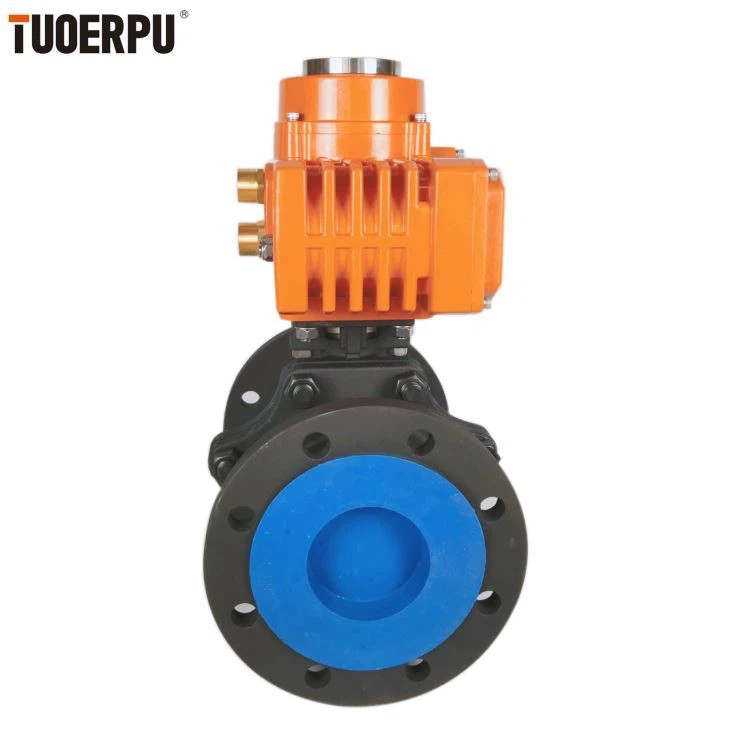

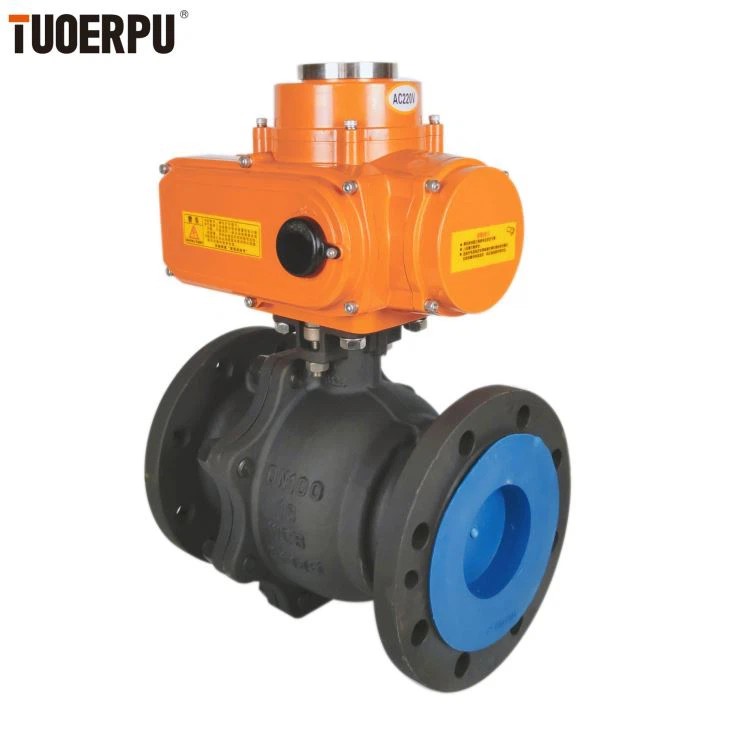

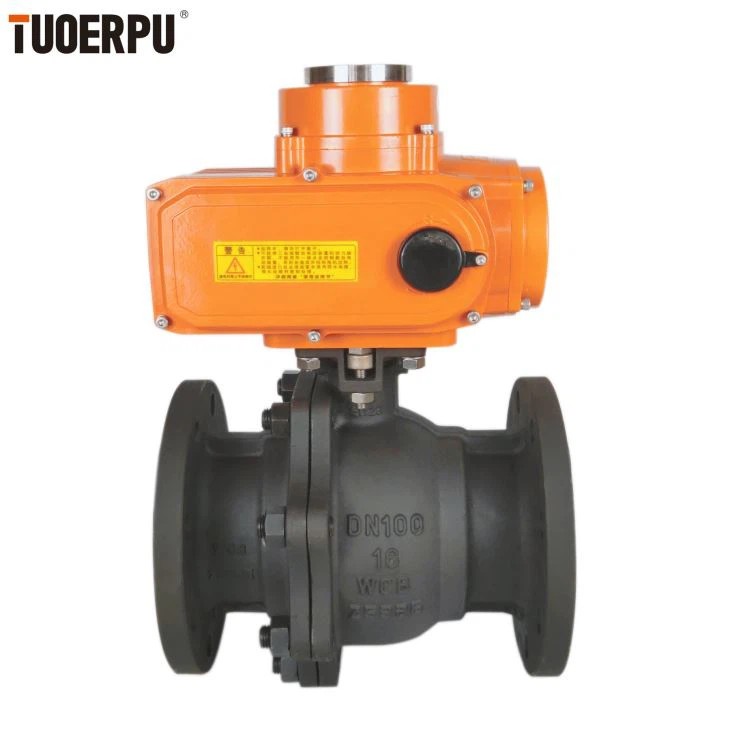

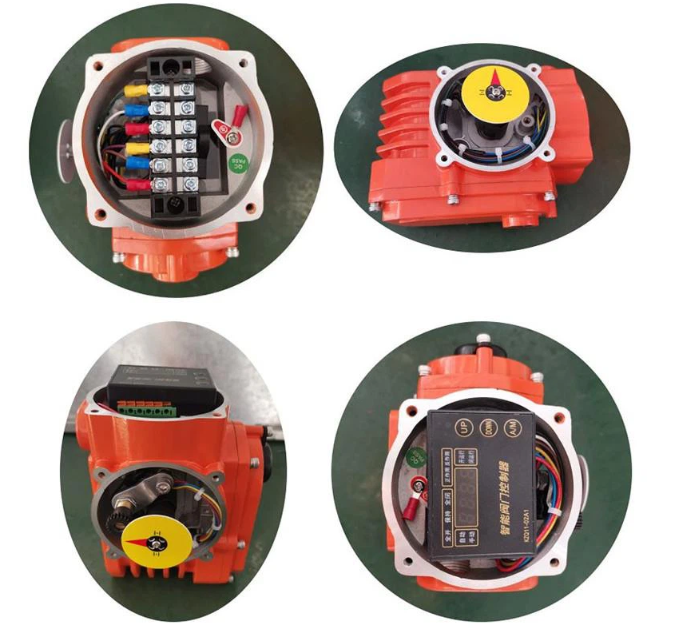

The compact electric actuator adopts the mounted structure, reducing the connection bolt of the valve body itself under the condition of high pressure and large diameter, enhancing the reliability of the valve and overcoming the influence of system dead weight on the normal operation of the valve.Fine miniature electric actuators are widely used in coal chemical industry, petrochemical industry, rubber, paper, pharmaceutical pipeline as a medium of the diversion and confluent flow or flow switching device
Product Parameters
ON-OFE TYPE
MODULATION TYPE
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-105
25s/50Nm
4s/20Nm
0-90°adjustable
DC 24V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500Nm
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Installation Location
360° install at any angle
Electrical Interface
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
10s/30Nm
AC 24V
AC 11VC
AC 220V
AC 380V
Nominal Diameter DN(mm)
DN15~DN250
Nominal Pressure
PN1.0/1.6/2.5/4.0/6.4MPa
Medium
water,petroleum,nitric acid,acetic acid,viscous
liquid,slurry,strong oxidizing
Temperature
-40℃~+8℃(PTEE/PPL seal)-40℃~+350℃
(metal seal)
Leakage
ANSI B16104 standard
Sphere rotation angle
90°
Body
WCB,304,316
Seat
PTFE,PPL,Metal seal
Siz
e
Model
ΦD1
H2
H1
L
N-Φ
mm
in
1.0MPa
1.0MPa
DN15
1/2"
TOP-105
65
177
48
130
4-14
DN20
3/4"
TOP-105
75
183
53
140
DN25
1"
TOP-105
85
211
57
150
DN32
11/4"
TOP-105
100
231
67
165
4-18
DN40
11/2"
TOP-110
110
276
77
180
DN50
2"
TOP-110
125
323
80
200
DN65
21/2"
TOP-116
145
365
90
220
DN80
3"
TOP-120
160
387
98
250
8-18
DN100
4"
TOP-140
180
423
107
280
DN125
5"
TOP-160
210
448
122
320
DN150
6"
TOP-1100
240
504
140
360
8-23
DN200
8"
TOP-1200
295
553
177
400
12-23
DN250
10"
TOP-1200
355
569
212
450
12-25
