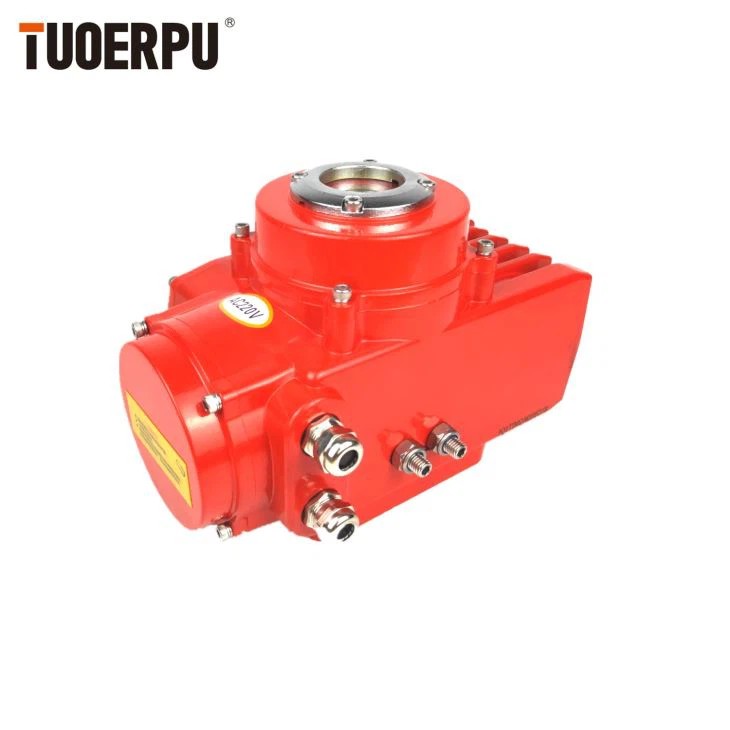

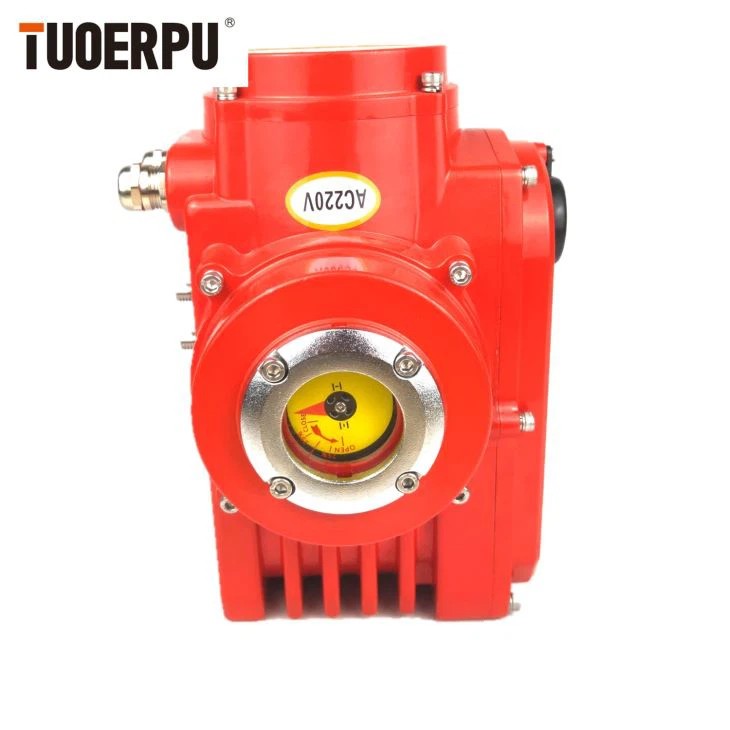

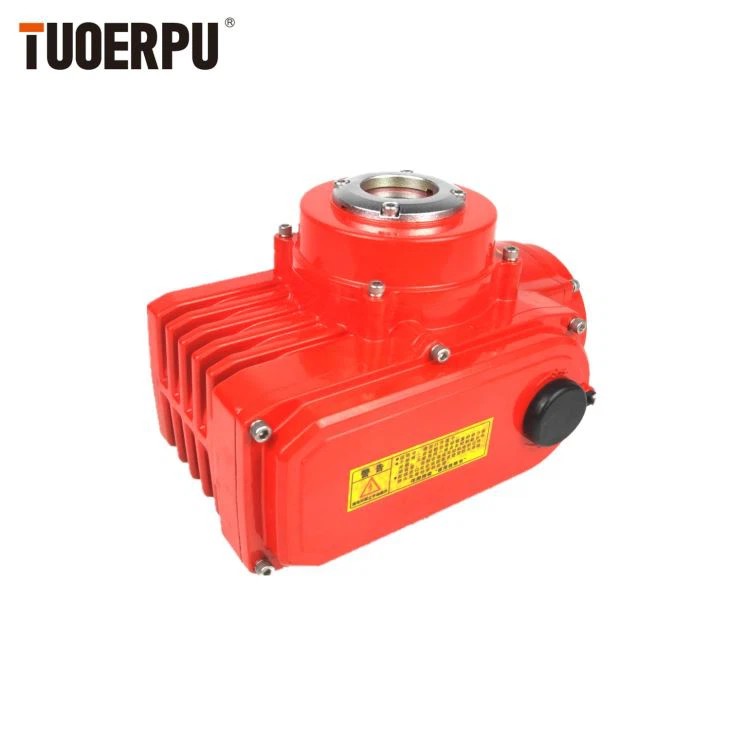

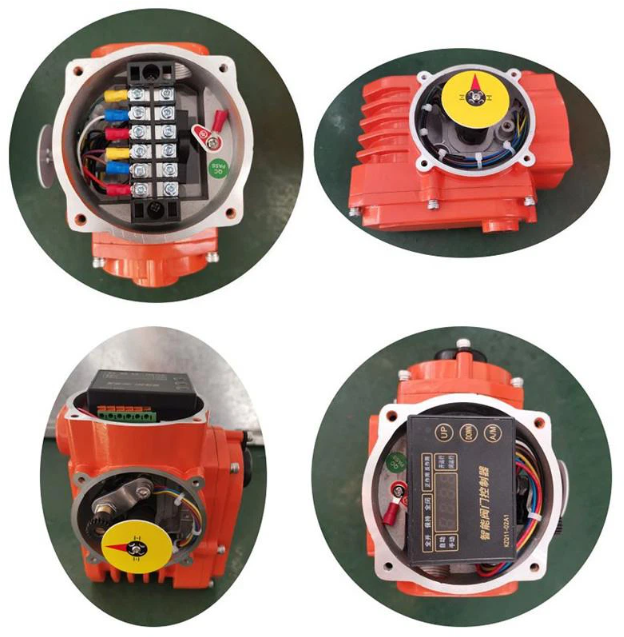

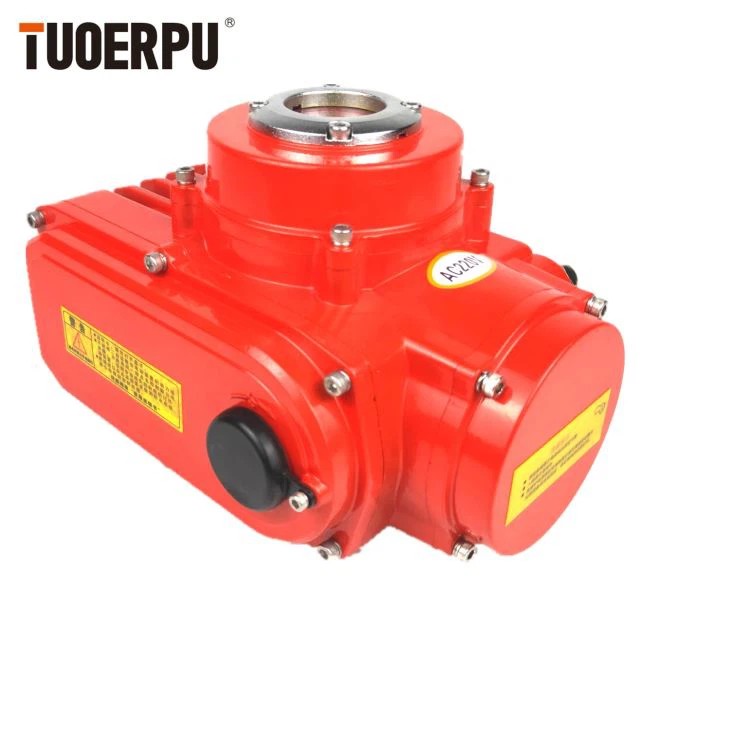

The TOP series is small, lightweight, and compact. Easy to use and can be used in narrow places. It is easy to connect, maintain and inspect the valve. Manual operation function Manual operation can be performed after the power is cut off. Manual operation can be performed using the included crank handle. In case of falling into a load state, in order to prevent the motor from overheating, an overheat protector is installed in the motor. Wiring work is simple. Wiring work is easy because of the internal terminal block. Fine small valve actuator
Product Parameters
Model
Standard
Running
Time/Torque
Optional
Running
Time/Torque
Rotation
Angle
Range
Voltage
Type
TOP-105
25s/50Nm
4s/20Nm
10s/30Nm
0-
90°adjust
able
DC 24V
AC 24V
AC 110V
AC 220V
AC 380V
TOP-110
25S/100Nm
15s/50Nm
TOP-116
25s/160Nm
15s/80Nm
TOP-120
25s/200Nm
15s/100Nm
TOP-140
25s/400Nm
15s/200Nm
TOP-160
25s/600Nm
15s/300Nm
TOP-1100
50s/1000Nm
25s/500N
TOP-1200
50s/2000Nm
25s/1000Nm
Insulation
Resistance
100MΩ/500VDC
Withstand Voltage
Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68)
Installation
Location
360°install at any angle
Electrical
Interface
2-G 1/2 metal connector,corresponding metal cable
connector shall be added according to the selected
cable during use
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection,Dehumidification heater,
Passive contact switch,Operating hand wheel
