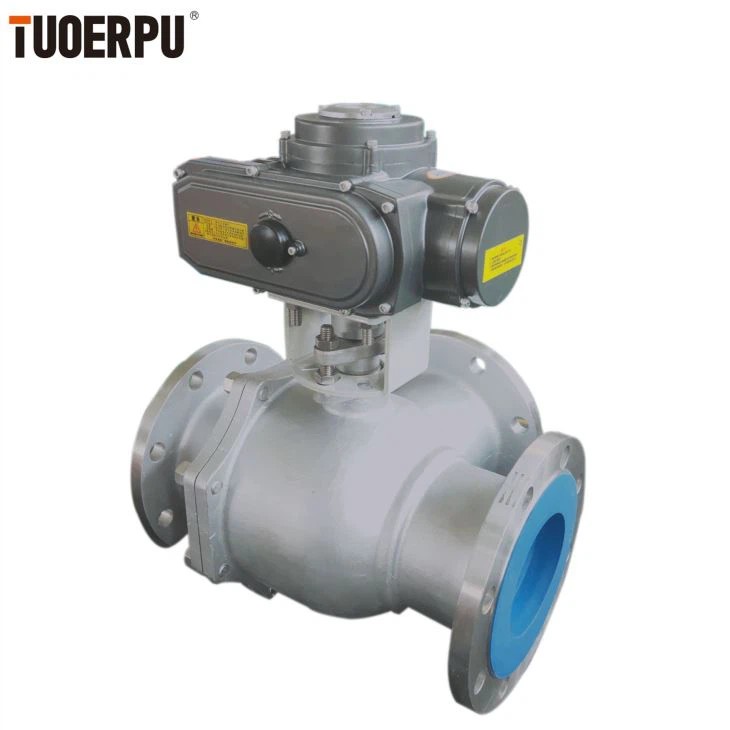

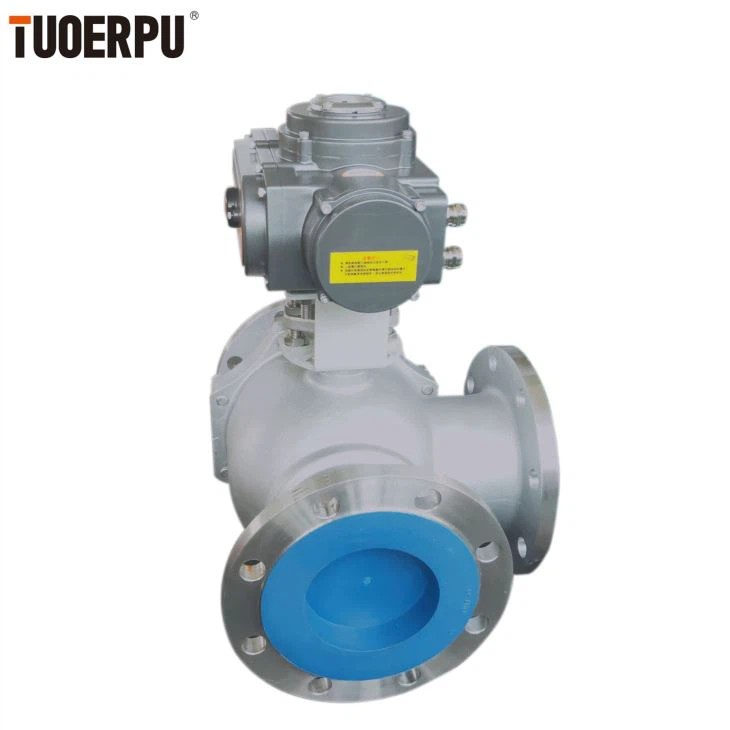

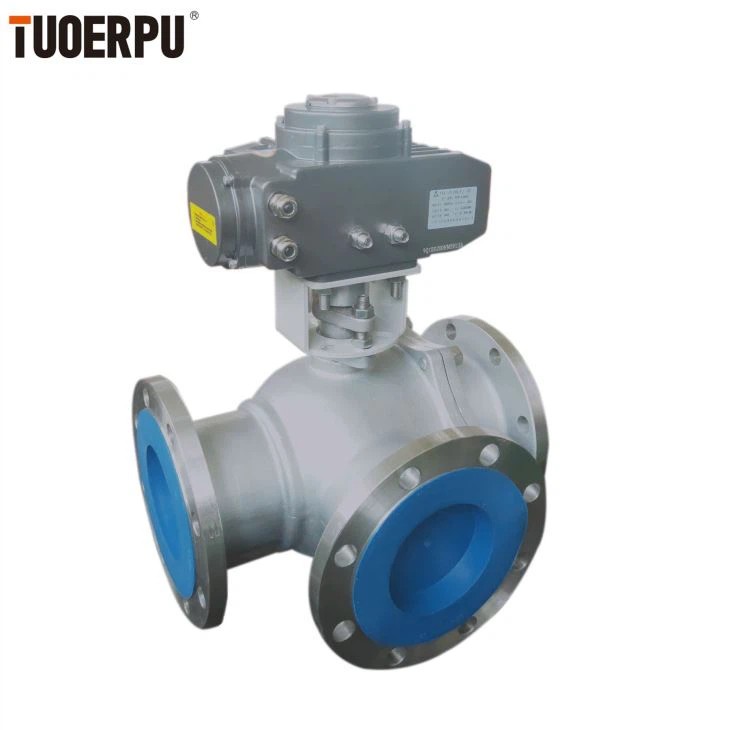

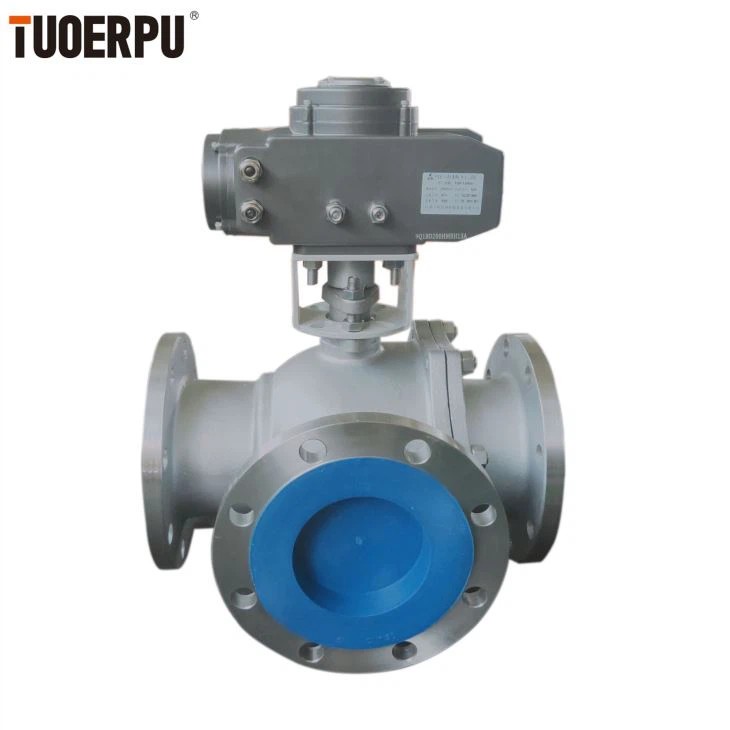

Three - way ball valve compact structure, beautiful appearance, good sealing performance.It can also realize the switch of medium flow direction in the pipeline.Two channels perpendicular to each other can also be connected or closed.Four valve seat sealing three way ball valve beautiful shape, compact and reasonable structure, it can not only realize the flow of the medium switch, but also can make three channels interconnected, but also can close any channel, so that the other two channels connected, flexible control pipeline intermediary confluence or diversion.
Product Parameters
ON–OFF TYPE
MODULATION TYPE
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-105 |
25s/50Nm |
4s/20Nm |
0-90°adjustable |
DC 24V |
|
TOP-110 |
25S/100Nm |
15s/50Nm |
||
|
TOP-116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Installation Location |
360° install at any angle |
|||
|

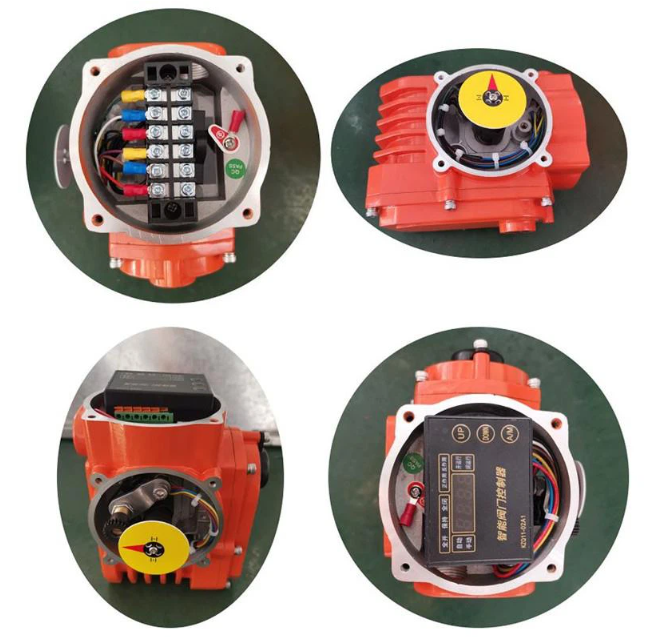

Electrical Interface |
2-G 1/2 metal connector, corresponding metal cable connector shall be added according to the selected cable during use |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
|
Nominal Diameter DN(mm) |
DN15～200mm | Seal filler | PTEF |
| Nominal Pressure | PN1.6,2.5,4.0,6.4MPa | Rotation angle | 0-90° |
| Connection | Flange,Spiral | Protection class | IP-67 |
| Boby Material | WCB,CF8,CF8M,CF3M | Humidity | ≤95% |
| Ball Material | 2Cr13,304,316 | Temperature | -25~70℃ |
| Size | Model | D1 | L | H2 | H1 | n-Φ | |
| mm | in | 1.6MPa | 1.6MPa | ||||
| DN15 | 1/2" | TOP-105 | 65 | 140 | 128 | 47 | 4-14 |
| DN20 | 3/4" | TOP-105 | 75 | 160 | 155 | 52 | |
| DN25 | 1" | TOP-105 | 85 | 180 | 176 | 57 | |
| DN32 | 11/4* | TOP-105 | 100 | 200 | 201 | 67 | 4-18 |
| DN40 | 11/2° | TOP-110 | 110 | 220 | 212 | 77 | |
| DN50 | 2' | TOP-110 | 125 | 240 | 234 | 80 | |
| DN65 | 21/2' | TOP-116 | 145 | 260 | 253 | 90 | |
| DN80 | 3" | TOP-120 | 160 | 280 | 266 | 97 | 8-18 |
| DN100 | 4 | TOP-140 | 180 | 320 | 291 | 107 | |
| DN125 | 5° | TOP-160 | 210 | 380 | 292 | 122 | |
| DN150 | 6" | TOP-1100 | 240 | 440 | 320 | 140 | 8-22 |
| DN200 | 8° | TOP-1200 | 295 | 550 | 357 | 167 | 12-22 |
